China Best Quality Automatic Syringe Filler 6 Head 1ml Small Bottle Essential Oil Cartridge Filling Machine With Heating Control
- Category: >>>
- Supplier: Shenzhen Longwill Technology Co. Ltd.
Share on (1600799870142):
Product Overview
Description
Product Overview
China Best Quality Automatic Syringe Filler 6 Head 1ml Small Bottle Essential Oil Cartridge Filling Machine With Heating Control
Model | FM-08 |
Heating range(℃) | 0-150℃ |
Input voltage(V) | AC110V 60Hz |
Max oil tank capacity | 950ml |
Equipment weight(Kg) | 40kg |
After Warranty Service | Video technical support |
Automatic Grade | Automatic |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Function customization | Accept |

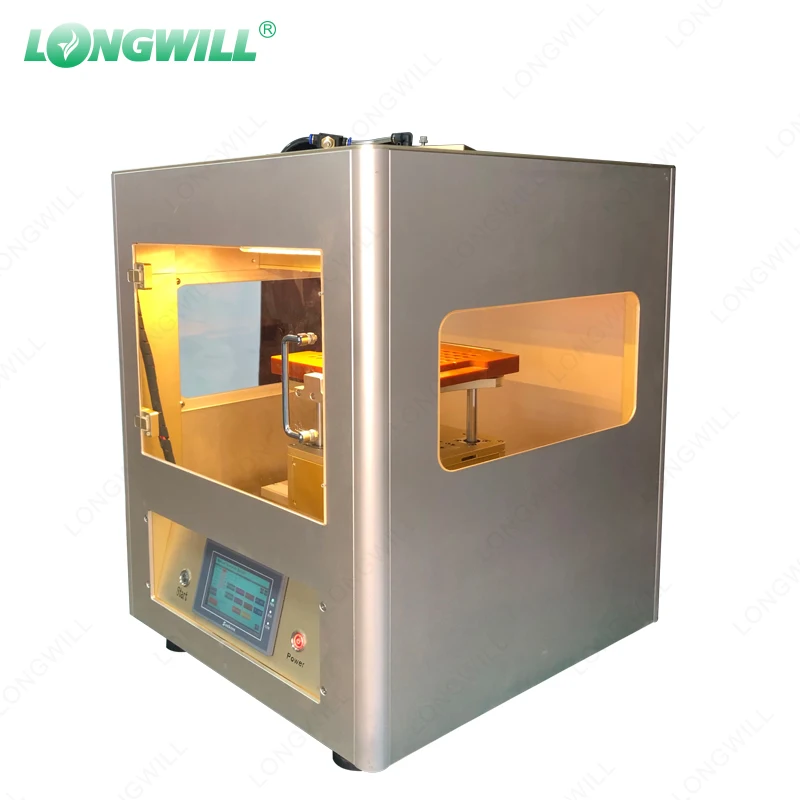

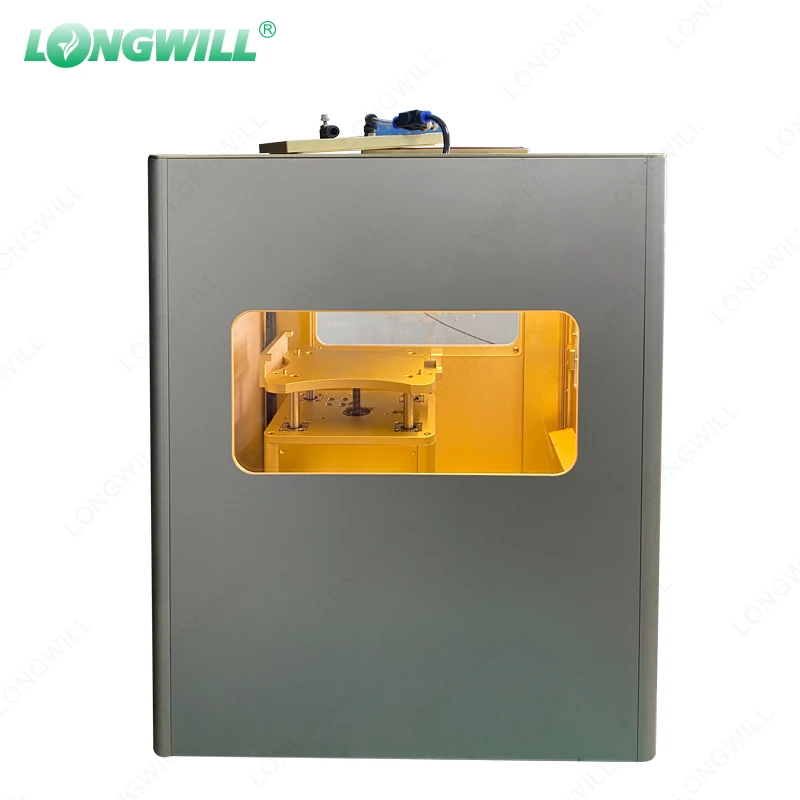

BOX Shell Design
1, Machine has a shell in order for protection and keep away from other ones who cannot operate machine;
2, Machine has a clear window so every working process is visible;
3, Also the products inside are dust free, very clean;
2, Machine has a clear window so every working process is visible;
3, Also the products inside are dust free, very clean;

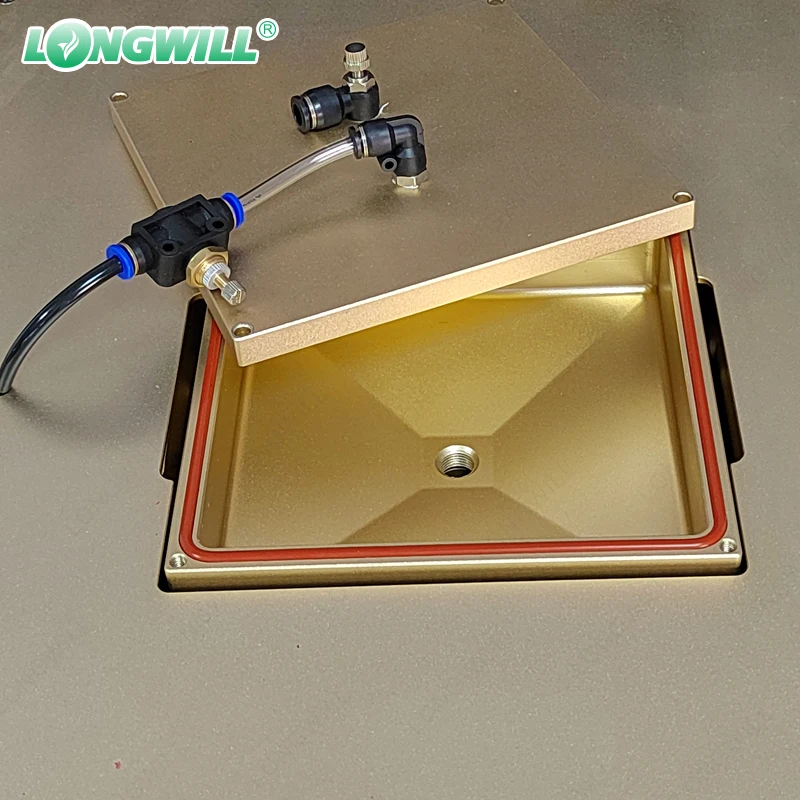

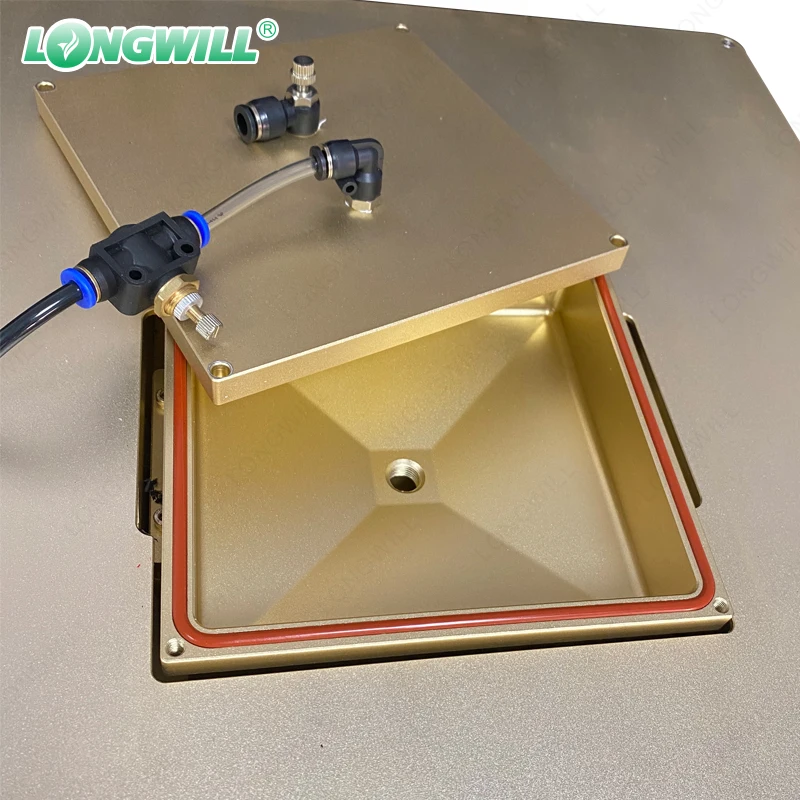

Oil Basin
1, 950ml oil basin, can be heated well;
2, Short path to the needle, no waste oil;
3, Food grade material, very safe;

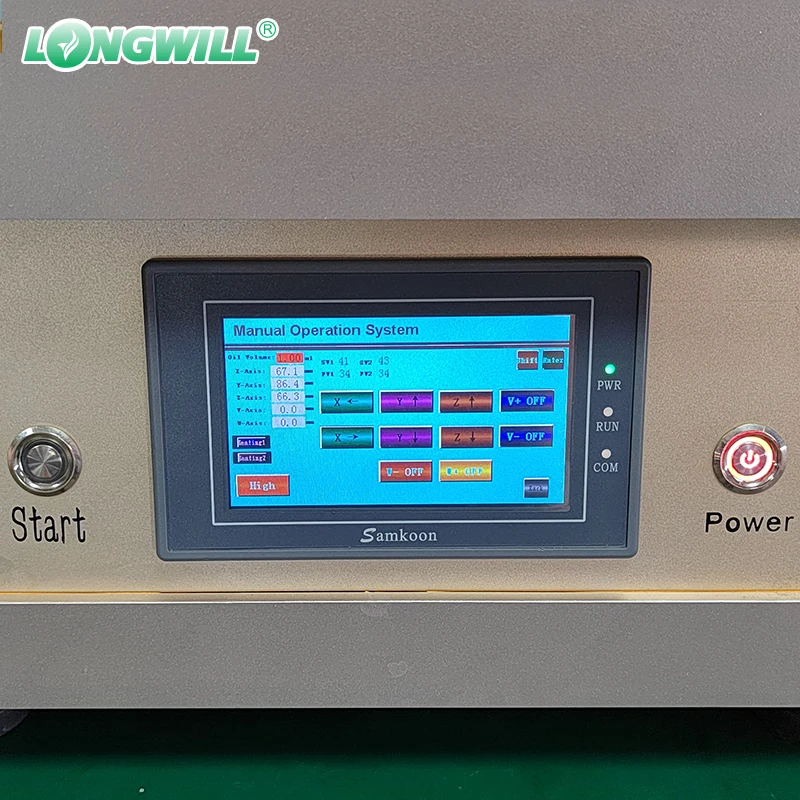

LONGWILL Smart Filling System
1, Machine has a 7inch big touch screen, you could set filling volume, filling speed, filling interval, clean procedure etc. all on the screen, very convenient to operate;
2, Longwill smart filling system is user-friendly, we develop this system by collecting many suggestions from clients, so that operators can read it very easily and handle machine well;
High efficiency
Machine can fill 800-1500pcs tubes per hour, high efficiency;
No. | Functional description |
1 | Chassis cover |
2 | Oil tank cover |
3 | Oil tank |
4 | Heat shield |
5 | Heating plate |
6 | Oil filling head |
7 | Chassis shell |
8 | Z-axis lift assembly |
9 | Y-axis lift assembly |
10 | X-axis lift assembly |
11 | Operation panel |

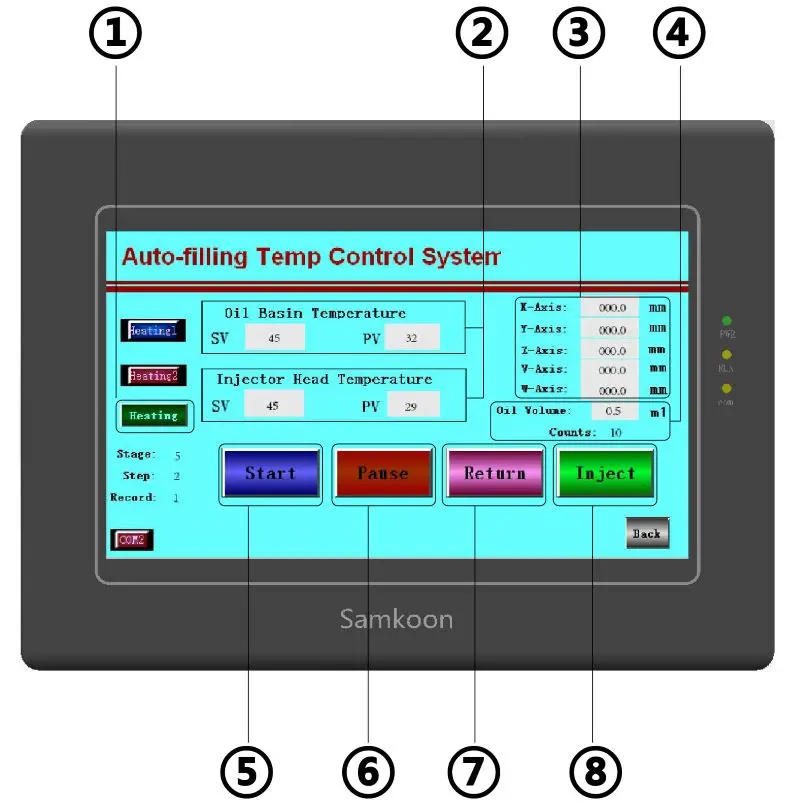

Function description
① heating button
② temperature(SV: set temperature, PV: actual temperature)
③ X, Y and Z axis position
④ Single oil filling volume and oil filling times
⑤ Start button, Press the start button, the device will run automatically.
⑥ Pause button, Press the pause button,
The equipment stops.
⑦ Return button, Press the return key, the equipment returns to the waiting position for production.
⑧ Inject button, After pressing the oil filling key, oil filling will be performed automatically once.
② temperature(SV: set temperature, PV: actual temperature)
③ X, Y and Z axis position
④ Single oil filling volume and oil filling times
⑤ Start button, Press the start button, the device will run automatically.
⑥ Pause button, Press the pause button,
The equipment stops.
⑦ Return button, Press the return key, the equipment returns to the waiting position for production.
⑧ Inject button, After pressing the oil filling key, oil filling will be performed automatically once.
Customer Feedback
Here are your professional hardware and Filling solution Partner!
Contact me for more clients Filling Feedback video!
SEND INQUIRY NOW FOR SPECIAL COUPONS!
SEND INQUIRY NOW FOR SPECIAL COUPONS!
Company Profile
Shenzhen Longwill Technology Co., Ltd is a professional Manufacturing & Trading combo which specializes in different Filling machine, capping machine since 2014.
LONGWILL Machine Head Engineer has more than 21 years filling and packaging machine experience, and he is one of the most professional engineer in China.
He invented the auto filling machine, FM10 smart Filling Machine, and Intelligent Filling and Capping Machine. More machines are in his planning.
“We are here to provide a best solution in filling and capping machine industry for our clients all over the world. Let filling capping become an easier work with higher accuracy which help clients save manpower, improve efficiency and save oil.” which is his belief.
He invented the auto filling machine, FM10 smart Filling Machine, and Intelligent Filling and Capping Machine. More machines are in his planning.
“We are here to provide a best solution in filling and capping machine industry for our clients all over the world. Let filling capping become an easier work with higher accuracy which help clients save manpower, improve efficiency and save oil.” which is his belief.
LONGWILL Auto Caps Twist Machine
LONGWILL Auto Capping Machine
LONGWILL FM10 Smart Filling Machine
LONGWILL FM07 Auto Robo Filler
Contact me for more clients Filling Feedback video!
SEND INQUIRY NOW FOR SPECIAL COUPONS!
SEND INQUIRY NOW FOR SPECIAL COUPONS!
Why Choose Us
OEM/ODM service:
1,Customize your logo, design your packaging, labelling etc;
2,Function design, redesign the products from the appearance, function and inner structure.
Quality Assurance:
1,Strictly quality control system,we have IQC, IPQC, FQC, OQC etc. to ensure the best quality;
2,Products have passed CE RoHS ASTM certifications to meet the high standards of the local market.
Fast Delivery:
1,Sample order could be shipped in 3-5 days;
2,Bulk order will be shipped in 10-15 days.
Outstanding Service:
1,Excellent Pre-sale,in-sale and after-sale service;
2,We offer 24 hour online service, fast response;
3,All products with life-time sales or service support.
1,Customize your logo, design your packaging, labelling etc;
2,Function design, redesign the products from the appearance, function and inner structure.
Quality Assurance:
1,Strictly quality control system,we have IQC, IPQC, FQC, OQC etc. to ensure the best quality;
2,Products have passed CE RoHS ASTM certifications to meet the high standards of the local market.
Fast Delivery:
1,Sample order could be shipped in 3-5 days;
2,Bulk order will be shipped in 10-15 days.
Outstanding Service:
1,Excellent Pre-sale,in-sale and after-sale service;
2,We offer 24 hour online service, fast response;
3,All products with life-time sales or service support.
Payment & Shipping
1, Support Kinds of payment, by Alibaba, Paypal, T/T, Western Union etc.
2, Support variety methods of shipments, such as by DHL/Fedex/UPS, by air, by sea, by train door to door.
FAQ
Q1: Do you have warranty on machines?
A1: Yes, our machine have 12month warranty, 7*24 hours Online service, Life time technical support, welcome for any question;
Q2: When can I get machine if I place order?
A2: Longwill filling machine can be shipped out in 24-72hours, and 5-7days delivery by DHL!
Q3: Will you support on install machine when receive?
A3: Yes, our sales rep will contact you for online support by video call, or voice call; paperwork instruction and video instruction will be also prepared well;
Q4: Is there any insurance which I pay for to guarantee I will get the right machine?
A4: We are an onsite check supplier from Alibaba. Trade Assurance order provides quality protection, ontime shipment protection and 100% safe payment protection.
Q2: When can I get machine if I place order?
A2: Longwill filling machine can be shipped out in 24-72hours, and 5-7days delivery by DHL!
Q3: Will you support on install machine when receive?
A3: Yes, our sales rep will contact you for online support by video call, or voice call; paperwork instruction and video instruction will be also prepared well;
Q4: Is there any insurance which I pay for to guarantee I will get the right machine?
A4: We are an onsite check supplier from Alibaba. Trade Assurance order provides quality protection, ontime shipment protection and 100% safe payment protection.
