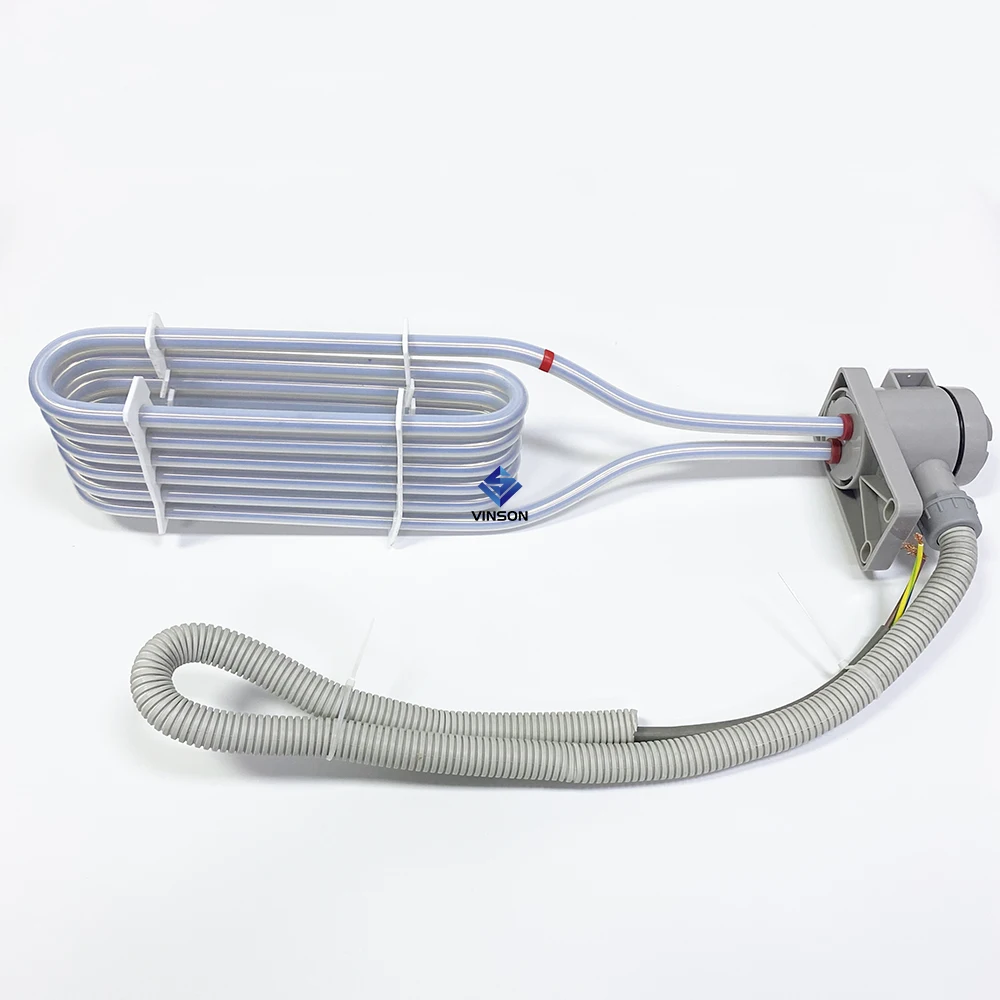

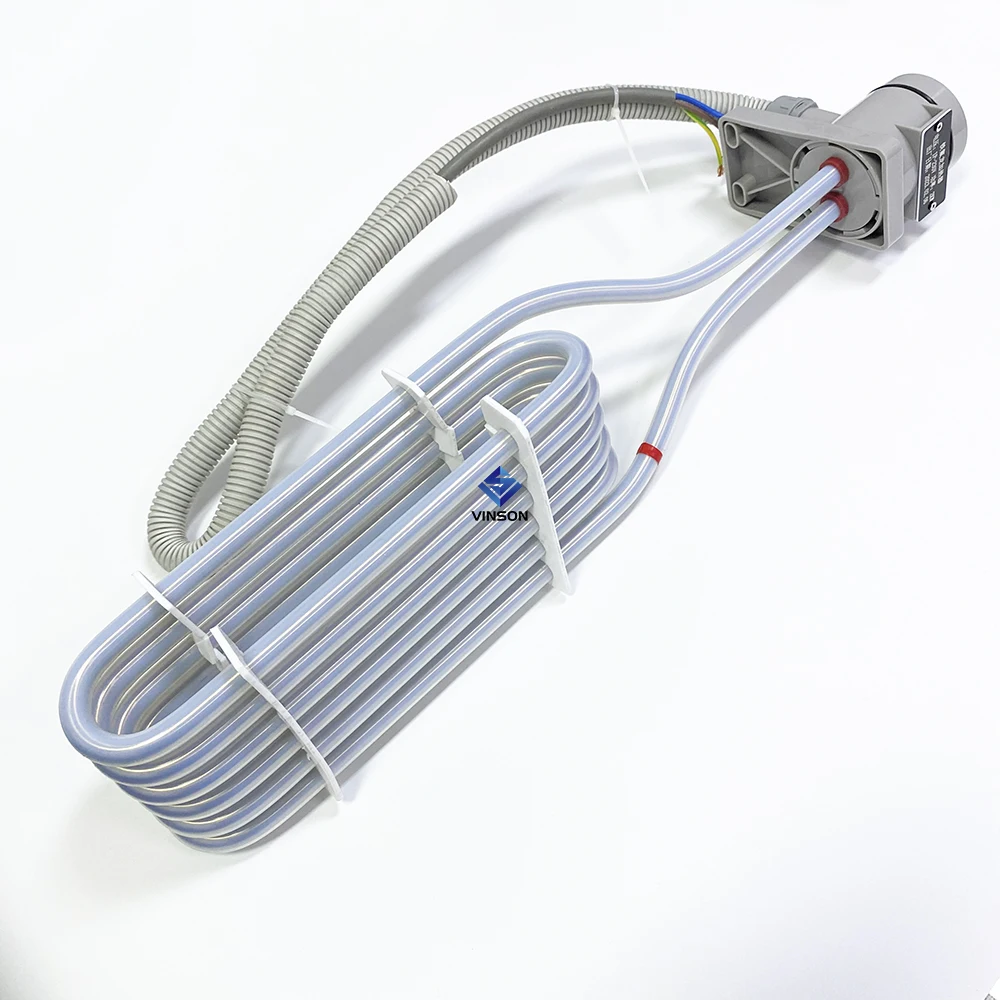

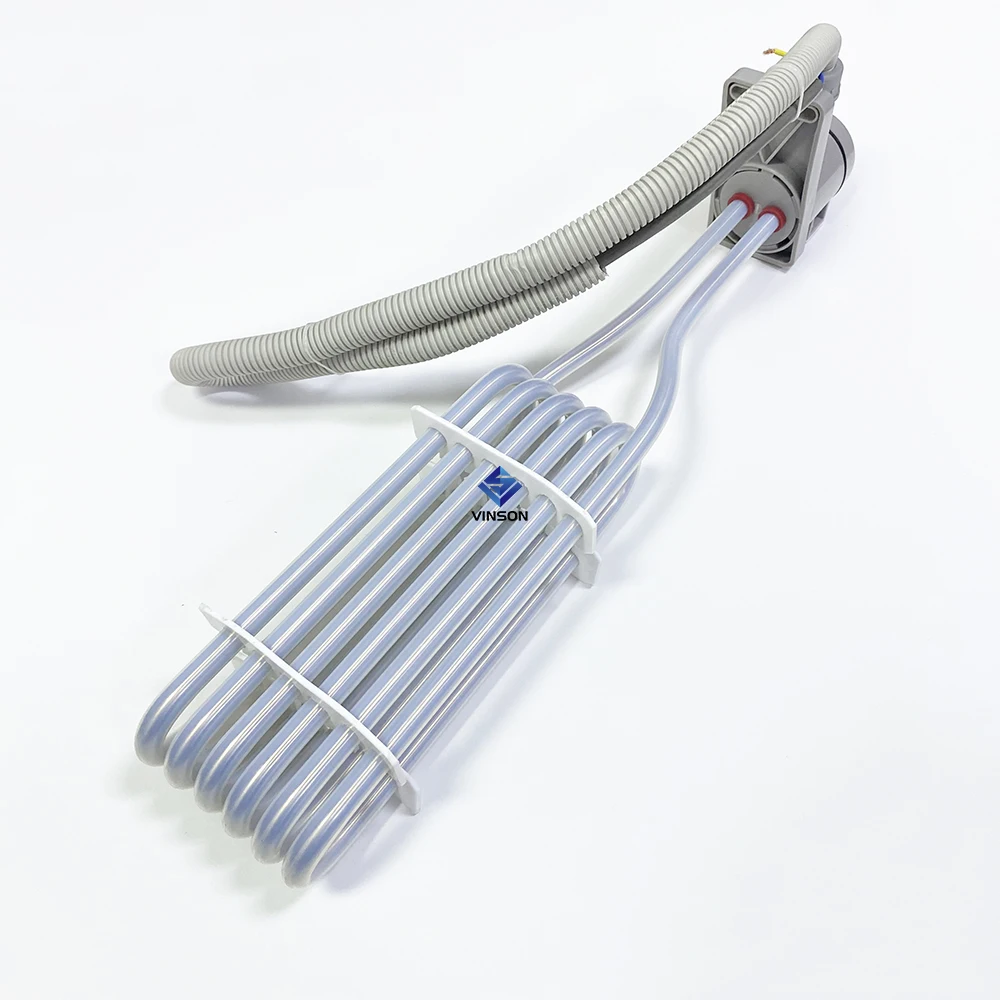

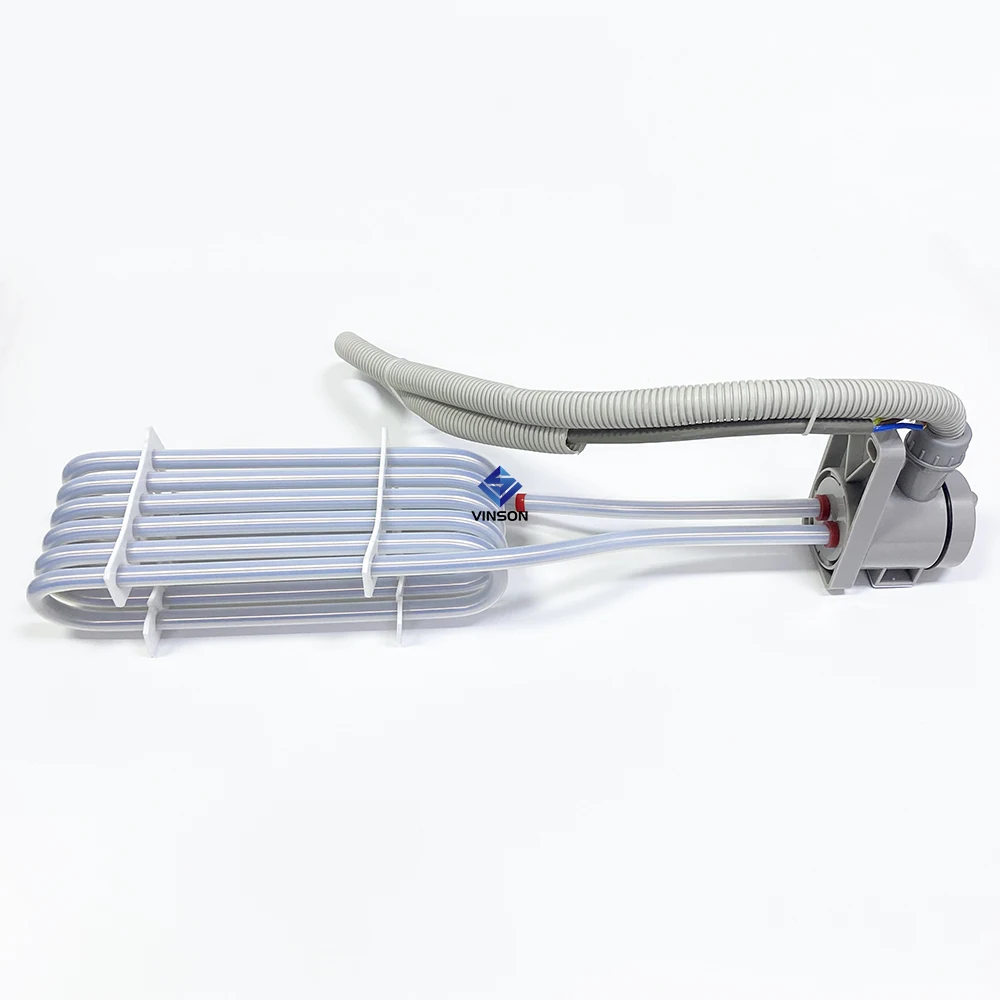

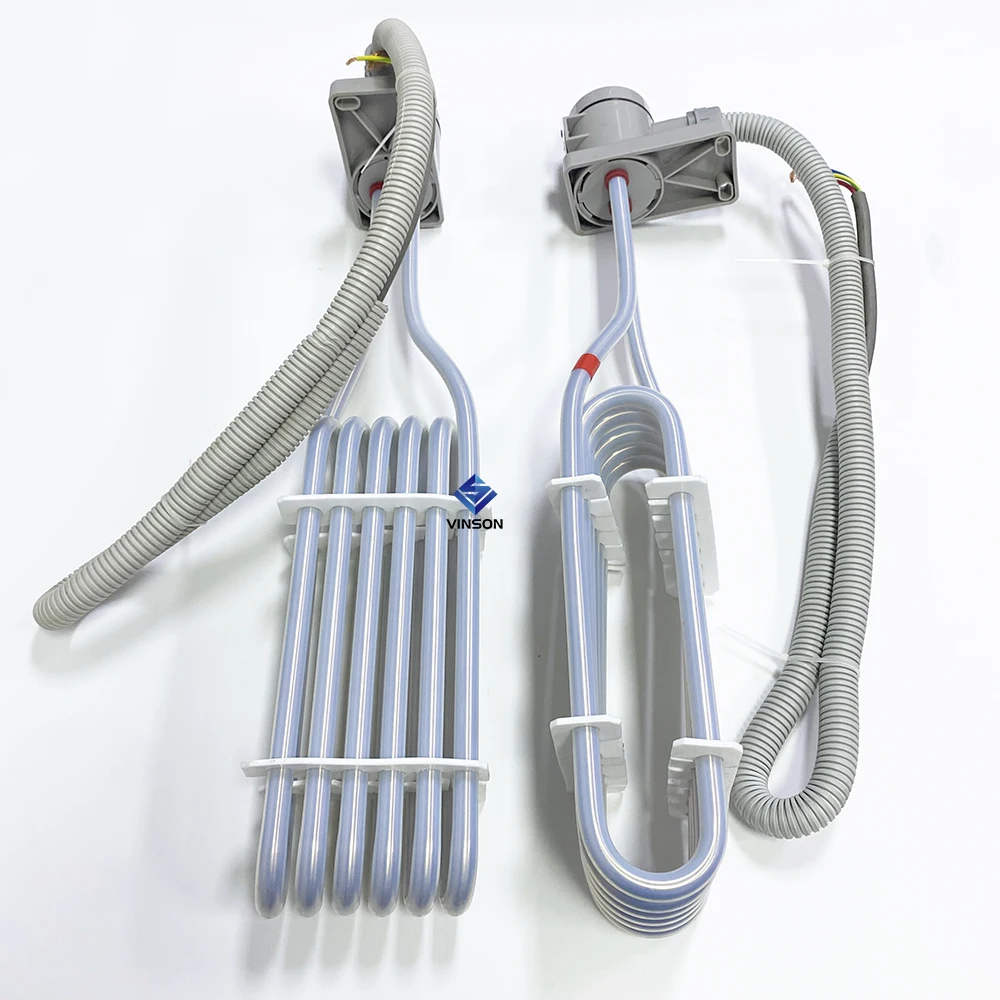

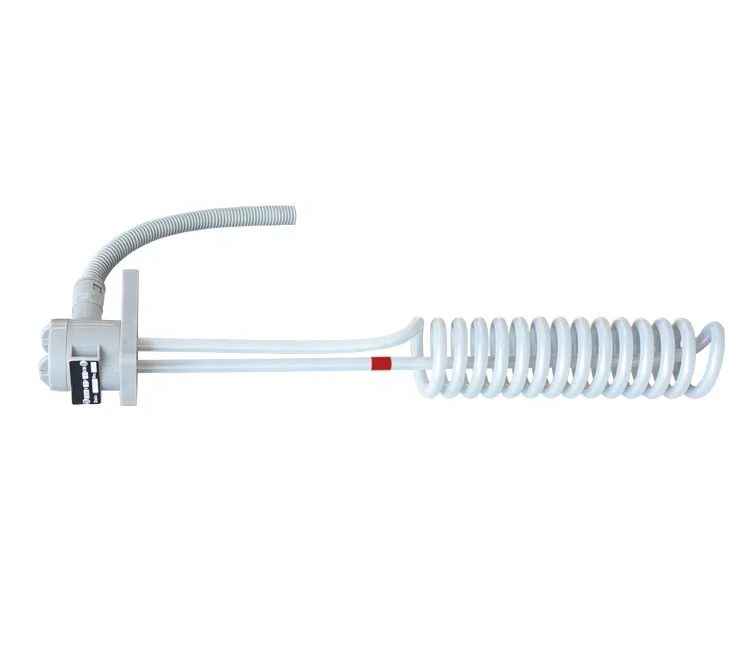

custom electric tubular PTFE coated corrosion resistant immersion heater for acid liquid tank
- Category: >>>
- Supplier: Yancheng Vinson Technology Co. Ltd.
Share on (1600799892930):
Product Overview
Description
Products Description
Vinson Immersion heaters are made using hairpin or bugle type tubular elements using incoloy or PTFE sheathed elements that are welded or silver-brazed into a pipe or steel flange. Perfectly designed to be mounted in tanks and pressurized vessels, Vinson immersion heaters are used for heating liquid mediums or other specific types of liquids, and for heating gases (water, oil, heat transfer fluid, and corrosive solutions).
Tubular diameter | 8.5-12mm |
Tube Material | Spray fluoroplastics, fluoroplastics sleeve, titanium |
Shape | "L", "I", "circle", "m" and so on. |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Working temperature | 1050 Deg C max. |
Dielectric strength | 1500v. 1/sec |
Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
Exhaust extreme (when cold) | <=0.1mA to 242 v. |
Select high-quality stainless steel (SUS316 or SUS304) electric heating tube inner core and outer PTFE tube (PTFE) to make, with
strong corrosion resistance, suitable for heating various corrosive liquids.
strong corrosion resistance, suitable for heating various corrosive liquids.
Attention shall be paid to the installation position of the electric heater to prevent the solid in the solution from depositing
on the surface of the electric heater, or if the liquid is too thick and the liquid level is too low, the PTFE tube (PTFE) will be burned due to the poor heat dissipation on the surface.
on the surface of the electric heater, or if the liquid is too thick and the liquid level is too low, the PTFE tube (PTFE) will be burned due to the poor heat dissipation on the surface.
PTFE heater is the best choice for heating, condensing, evaporating and condensing corrosive liquid such as electroplating,
electrolysis, degreasing, pickling, electroless nickel plating, phosphorus plating, hydrofluoric acid, anodized aluminum,smelting, chemical industry, medicine, food, etc.
electrolysis, degreasing, pickling, electroless nickel plating, phosphorus plating, hydrofluoric acid, anodized aluminum,smelting, chemical industry, medicine, food, etc.
