Low Cost Pneumatic Dot Peen Small Portable Marking Machine for Cylinder Car Vin
- Category: Metal Engraving Machinery >>>
- Supplier: Jinan,Tianhong,Mechanical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Main feature
1--TH-D series dot peen marking machine is the pneumatic marking machine,it works by compressed air.
2--Mark signs,characters and pictures on various kinds of hard materials such as mental and plastic.
3--It featured with distinct and beautiful effect,editable contents,adjustable sign ,depth,and high speed,etc.
4--Nameplate marking machine is pneumatic marking machine that work by the vibration caused by the compressed air and the machine.
5--Nameplate marking machine is mainly consist of control system and the execution system,
6--Widely used in the field of mechanical working and Automobile Industry,
7--The ideal choice of plane work piece and the plate material marking.
Specification
Machine Parameter Specification: | ||||||
Model | TH-D | |||||
Marking range | 80*30mm/120*30mm/150*90mm | |||||
Marking speed range | 10~100words/min(adjustable) | |||||
Marking depth range | 0.05~1.0mm(according to the materials ) | |||||
Compressed air pressure | 0.4~0.8Mpa | |||||
System functions | 1,mark character input,editing,marking | |||||
2,VIN code automatically calculated,setting,marking | ||||||
3,serial number setting ,automatically increase,marking | ||||||
4,tag data query,reporting ,print | ||||||
5,characters,graphics,Chinese character editing(B Controller) | ||||||
Marked font size | ARBITRARY ADJUSTABLE | |||||
Tag character content | 0~9figures,A~Z large,lowercase letters graphics,characters | |||||
Operating voltage | Control cabinet~220v50HZ+/_10% | |||||
Machine power | ≤300w | |||||
Work environment | 5~35℃≤80% ROOM | |||||
safety | Electric strength: ～50Hz、1500V 、1min | |||||
Leakage Current | ≤0.75Ma | |||||
Tag character content | 0~9figures,A~Z large,lowercase letters graphics,characters | |||||
Operating voltage | Control cabinet~220v50HZ+/_10% | |||||
Machine power | ≤300w | |||||
Work environment | 5~35℃≤80% ROOM | |||||
safety | Electric strength: ～50Hz、1500V 、1min | |||||
Graphics Support | Provides CAD, CorelDRAW, CAXA file conversion | |||||
Package size and Weight | 45*45*45cm&18kgs | |||||

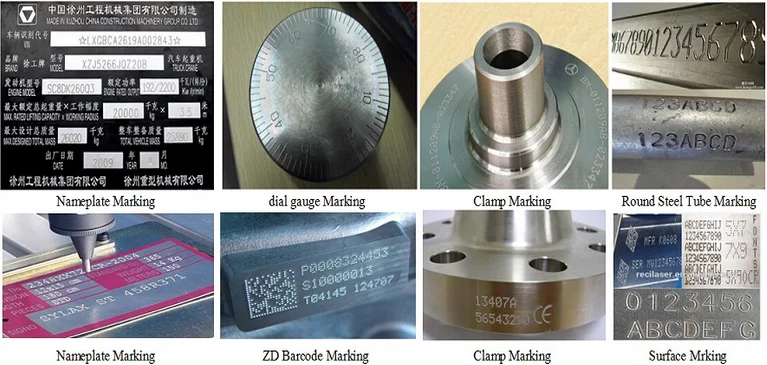

Application
1--Available for marking all kinds of metal (aluminium rating plate,copper rating plate,stainless steel rating plate),
hard plastic,wood,and so on
hard plastic,wood,and so on
2--Applied in mechanical working ,automobile industry,aeronautics,and petroleum equipment,etc
Packing & Delivery
1.Our wooden case is after fumigation treatment.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

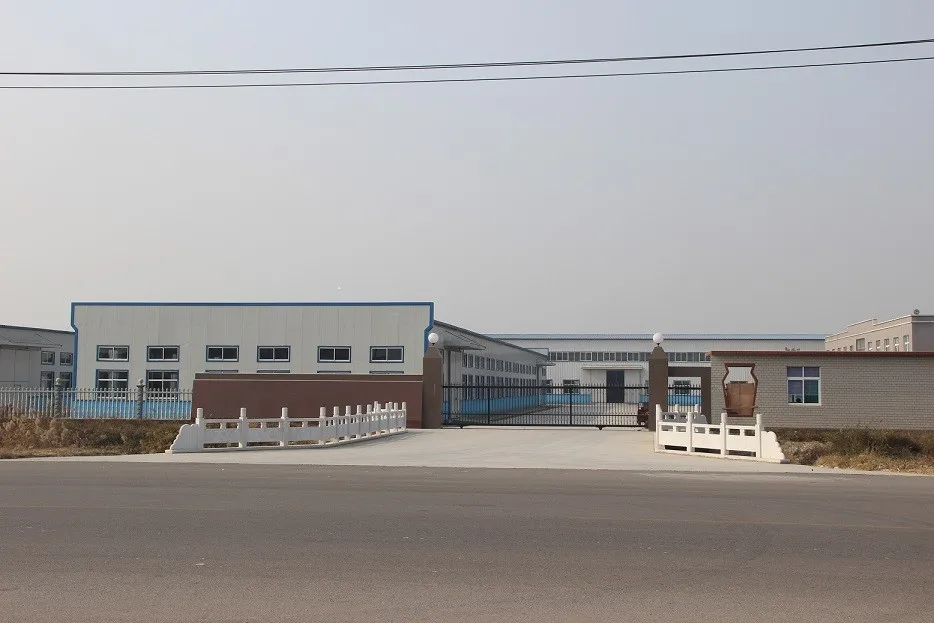

Company Profie
1, JINAN TIANHONG Mechanical Equipment Co., Ltd. Located in the beautiful "spring city " Jinan, is a professional CNC Machine company with manufacturing,R&D and marking.
2, Jinan Tianhong supply various CNC product such as advertising, appllication. Art and Craft, Organic Glass, Mould, Marking,
Automobile Industry, Textile Machinery, Electronics, and so on.
3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality,
Customer First" is the corporate management purpose. We have got good reputaion and many agents all over the world especially in North America, European, Middle East and South Asia.
4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better!!!
2, Jinan Tianhong supply various CNC product such as advertising, appllication. Art and Craft, Organic Glass, Mould, Marking,
Automobile Industry, Textile Machinery, Electronics, and so on.
3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality,
Customer First" is the corporate management purpose. We have got good reputaion and many agents all over the world especially in North America, European, Middle East and South Asia.
4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better!!!

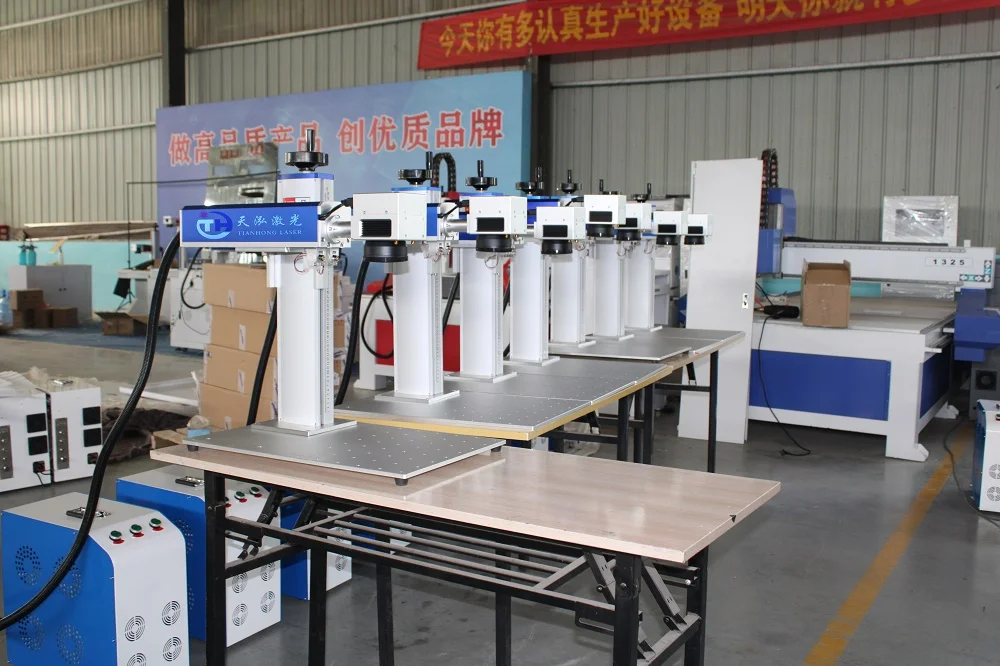

Customer Photos
Cetification
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.If there is still have any question, we can talk from phone or skype.
2)Can you recommend a MACHINE to me,thanks?
Yes, In order to recommand you the suitable machine, please tell me the max working area, materials to do .
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. T/T in advance
b. L/C is acceptiable
c.West Union for Samller Amount
6)Delivery terms
Gnerally it will be be delivery within 5 working days after get the payment.
After services
TH LASER After Services
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to install the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
TIANHONG Mechanical Equipment Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to install the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
TIANHONG Mechanical Equipment Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
