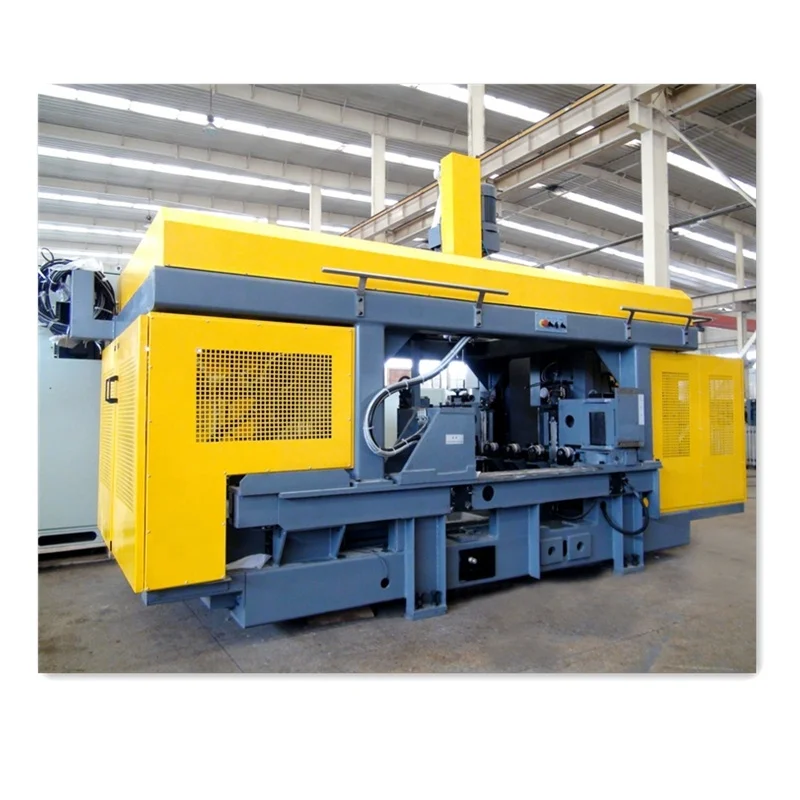

Factory Price SWZ Series CNC 3D H Beam Drilling Machine Used For Iron Structure And Bridge
Product Description
SWZ Series is mainly used for processing holes on H-beam, Channel beam. The positioning, feeding of three spindles are all driven by servo motors. It adopts Spindle driven by reducer, hydraulic spindle feeding, and in-feeding by rollers, high efficiency, and high precision; and it is wildly used in Construction, Bridge and other industries.
The main advantage of the SWZ series is that it allows for multiple position drilling along a 520mm length of the beam without repositioning the material.
The main advantage of the SWZ series is that it allows for multiple position drilling along a 520mm length of the beam without repositioning the material.
Model | SWZ700 | SWZ1000 | SWZ1250 | |||||
Workpiece Size | H- beam (web plate height x flange width) | Max. | 700 x 400 | 1000 x 500 | 1250 x 600 | |||
Min. | 150*75 | 150 x 75 | ||||||
Length（mm） | ≥2000 | |||||||
Max. Thickness(mm) | 80 | 80 | ||||||
Drilling Diameter | Vertical Drilling | Ø12-Ø33.5 | Ø12-Ø33.5 | |||||
Horizontal Drilling | Ø12-Ø26.5 | Ø12-Ø26.5 | ||||||
Spindle Units | Qty. Of Spindle | One spindle on each side( top, left,right) Total 3 spindles | One spindle on each side( top, left,right) Total 3 spindles | |||||
Rotation Speed (rpm) | 120-560 | 120-560 | ||||||
Spindle Motor Power (kw) | 3 x 4kw | |||||||
Max. Feeding Stroke(mm) | Left & Right 140 | Vertical:325 | ||||||
Feeding Speed(mm/min) | 20-300 | 20-300 | ||||||
Movement of left/right spindle(mm) | In the direction of workpiece length:520 | In the direction of workpiece length:520 | ||||||
In the direction of workpiece length:20-420 | In the direction of workpiece length:30-470 | Above the vertical base-level:30-570 | ||||||
Movement of top spindle(mm） | In the direction of workpiece length:520 | In the direction of workpiece length:520 | ||||||
Beyond horizontal base-level:30-630 | Beyond horizontal base-level:45-910 | Beyond horizontal base-level:45-1160 | ||||||
Marking | Character Qty. | 36 | ||||||
Character Size | Ø10 | |||||||
Overall Dimension(L x W x H) mm | Aprox.3600*1450*2450 | Aprox.4550 x 3050x 3520 | Aprox.4800 x 3050 x3520 | |||||
Total Power(KW) | 27Kw | 34kw | ||||||
Machine Weight(Kg) | 5000Kg | 7000Kg | 8000Kg | |||||
Application:
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and throughput
