Product Overview
Description

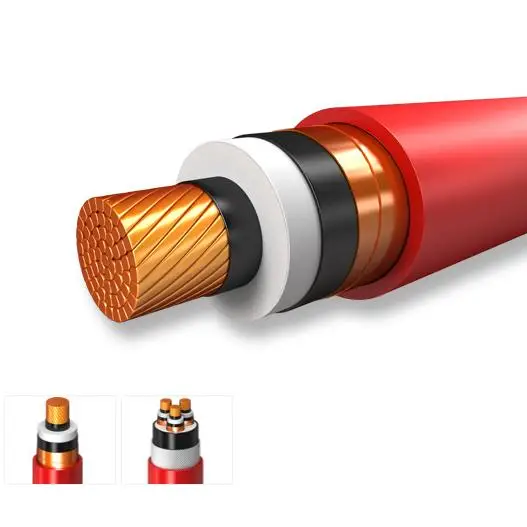

1/C CU 15kV 220 NLEPR 133% CPE MV-105. Silicone Free
Type MV-105 Single Conductor Copper, 220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level, Tape Shield, Chlorinated Polyethylene (CPE) Jacket, Dual Rated
15KV cables are silicone free suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated at -35°C for cold bend. ST1 (low smoke) Rated for sizes 1/0 and larger. Rated for 1000 lbs./FT maximum sidewall pressure.
Specifications

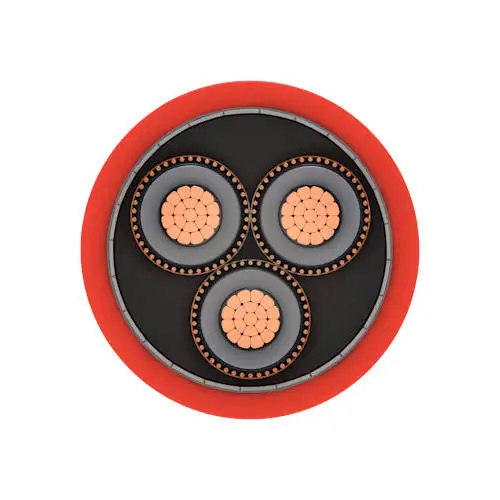

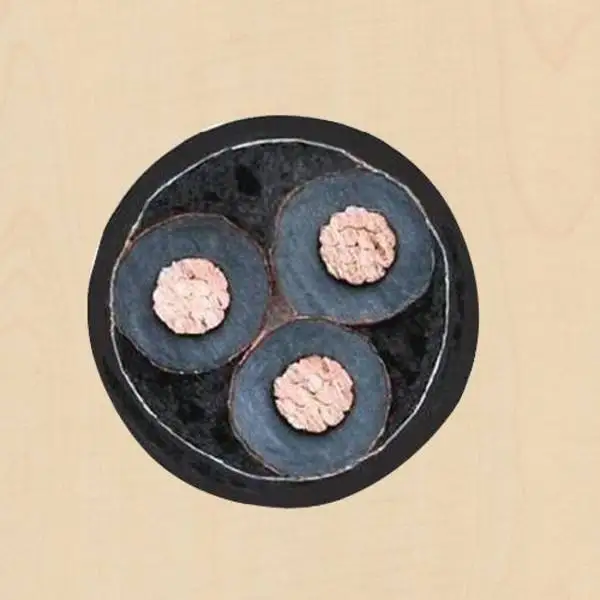

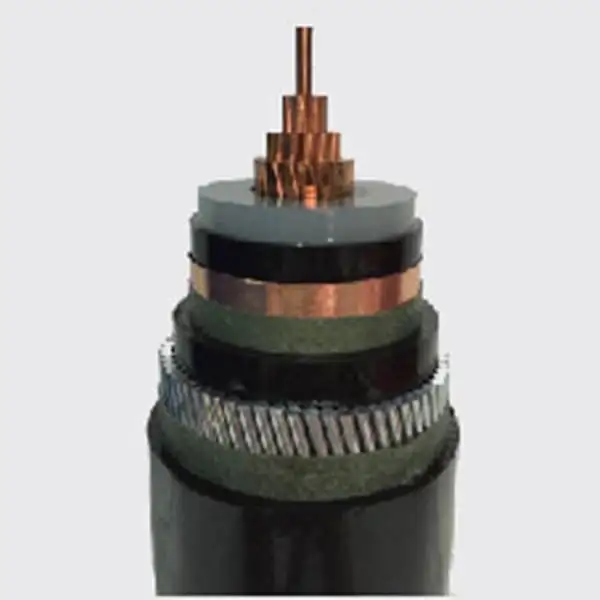

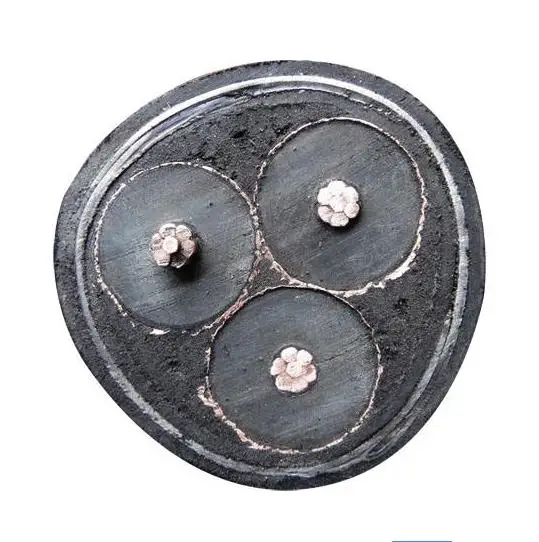

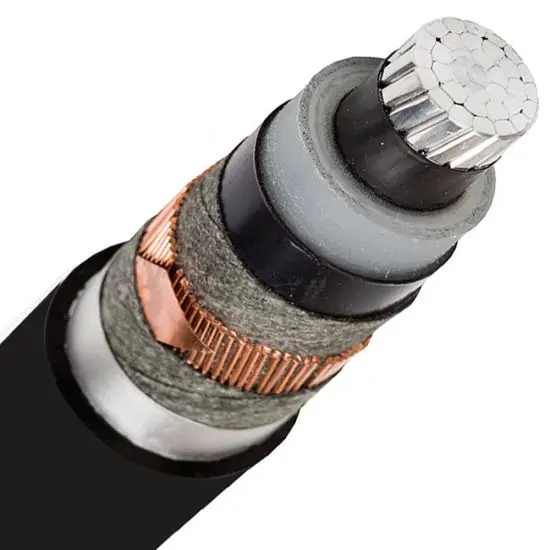

XLPE/PVC High Voltage Power Cable
1.Aluminium or Copper Conductor XLPE Insulated Armored Cable
2.0.6kV~1kV~35kV
1.Aluminium or Copper Conductor XLPE Insulated Armored Cable
2.0.6kV~1kV~35kV
XLPE/PVC High Voltage Power Cable
- Application:
- Power cables for power networks, underground, outdoors and in cable ducting.
- Standards:
- ASTM, BS6622, IEC etc.
- Conductor:
- Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
- Conductor screen:
- Semi-conducting material
- Insulation:
- XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
- Insulation Screen:
- Semi-conducting material
- Metallic Screen:
- Individual and overall copper tape screen to BS6622
- Filler:
- PETP (Polyethylene Terephthalate) fibres
- Separator:
- Binding tape
- Bedding:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Armouring:
- Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA) - Sheath:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Colour:
- Red or Black or as clients' request
- Voltage Rating:
- 19000/33000V
- Temperature Rating:
- 0°C to +90°C
- Minimum Bending Radius:
- Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
We can provide more info than above data, if needed.The above are just some examples.
Customer's specifications are available upon request.
Quality goes first, we pay highly attention to this. Good quality and competitive price will be your best choice. Choose what you like, we will offer you the best prices.
Any inquiries or questions, pls contact me freely!~~
