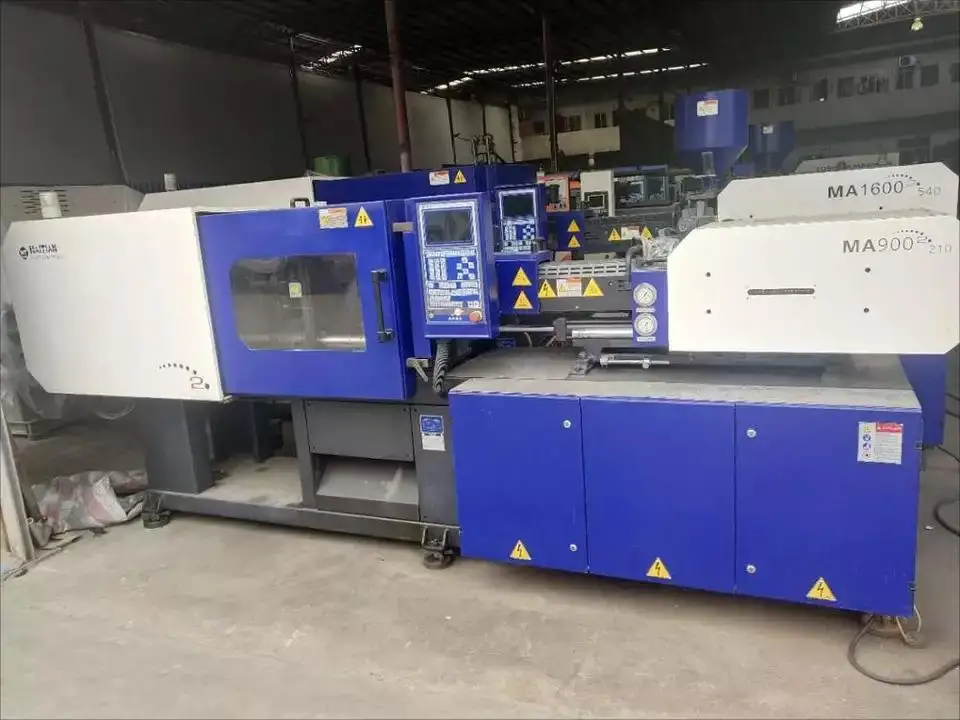

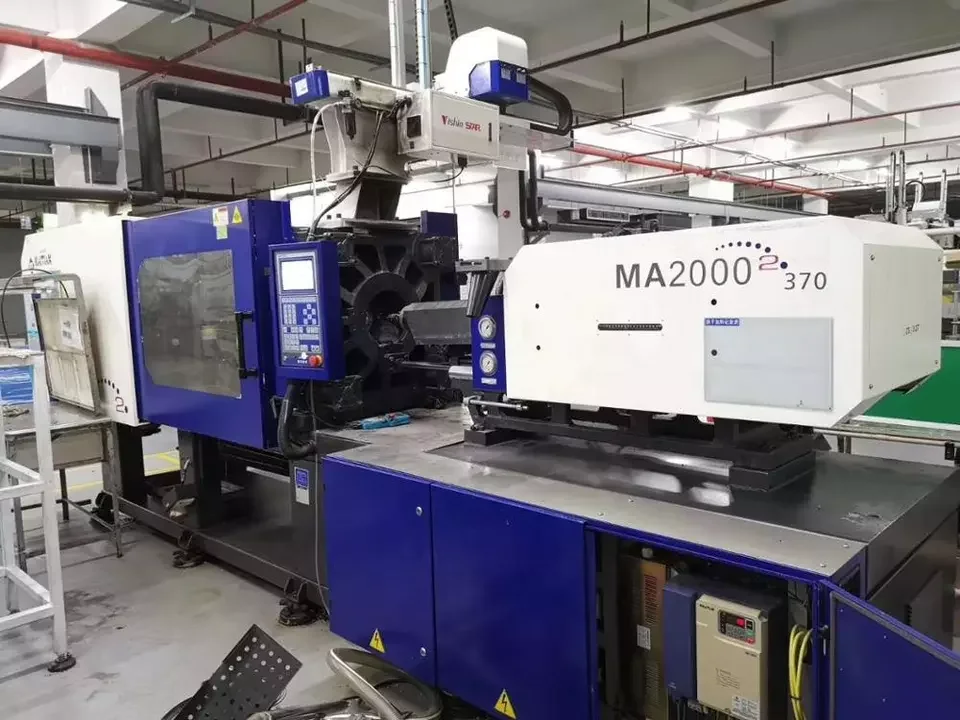

Second Hand 200 Ton Plastic Injection Machine MA 2000 Horizontal equipment For Sale
- Category: >>>
- Supplier: Greengines Industrial (shenzhen) Co. Ltd.
Share on (1600799995200):
Product Overview
Description
Specifications
Injection Unit | ||
Screw diameter | mm | 50 |
Screw L/D ratio | L/D | 20 |
Shot size (theoretical) | cm^3 | 412 |
Injection Weight (PS) | g | 375 |
Injection rate (PS) | g/s | 198 |
Injection pressure | Mpa | 187 |
Plasticizing rate (PS) | g/s | 24 |
Screw speed | rpm | 0-215 |
Clamping Unit | ||
Clamping force | KN | 2000 |
Mold opening stroke | mm | 490 |
Dist. between tie bars (HxV) | mm | 530×530 |
Mold height max | mm | 550 |
Mold height min | mm | 200 |
Ejector stroke | mm | 140 |
Ejector force | kN | 62 |
Others | ||
Max.Pump Pressure | Mpa | 16 |
Pump motor power | KW | 22 |
Heater power | KW | 14.3 |
Machine dimension (l x w x h) | m | 5.9×1.32×2.16 |
Machine weight | t | 7.1 |
Hopper capacity | kg | 50 |
Oil tank capacity | l | 350 |
Details Images
Product Advantage
Injection molding machine, also known as injection molding machine or injection machine. It is the main forming equipment for plastic products which are made of thermoplastic or thermosetting plastic by using plastic molding mould. Divided into vertical,horizontal, all electric. The plastic injection molding function heats the plastic, and exerts high pressure on the molten plastic, so that the injection molding cavity is filled with the mold cavity.
Machines are classified primarily by the type of driving systems they use: hydraulic, mechanical, electric, or hybrid.Injection molding machine is usually composed of injection system, mold clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, and so on.
Machines are classified primarily by the type of driving systems they use: hydraulic, mechanical, electric, or hybrid.Injection molding machine is usually composed of injection system, mold clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, and so on.

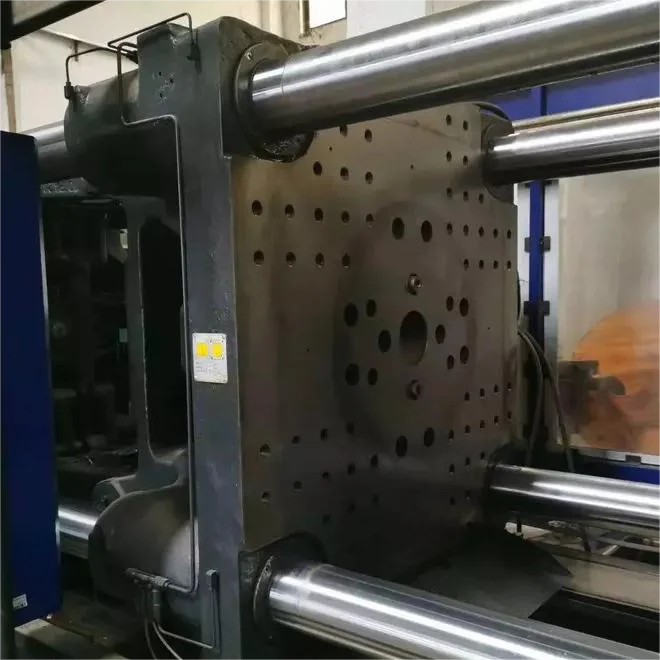

Clamping Unit
The platen structure is designed with European style and fully optimized parameters and force distribution. High-rigidity materials and manufacturing processes for base frame ensure the machine is strong, stable and reliable.

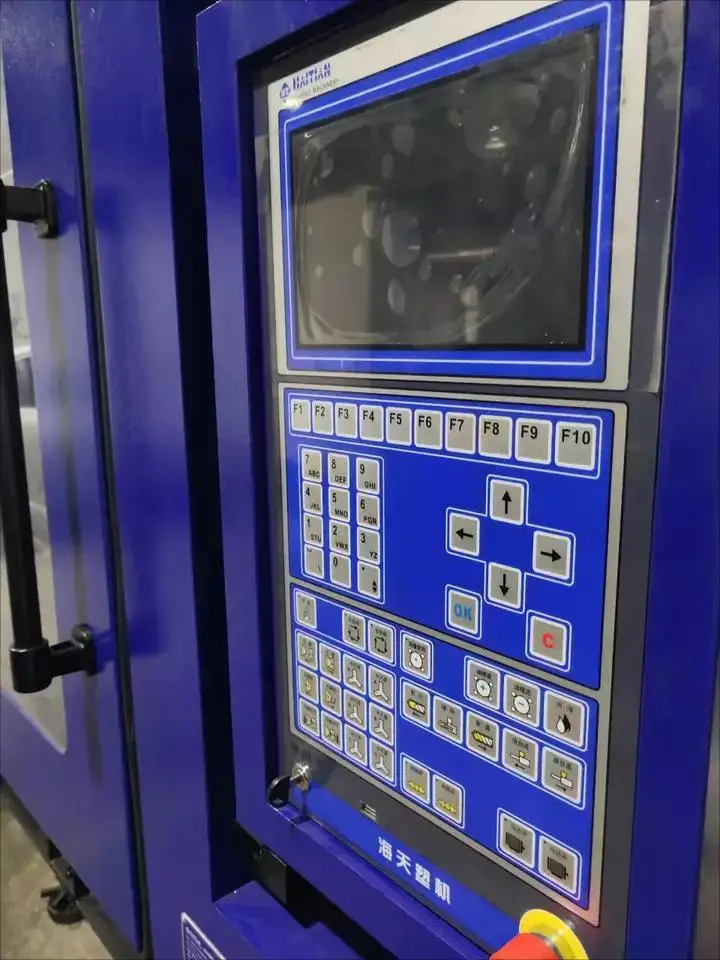

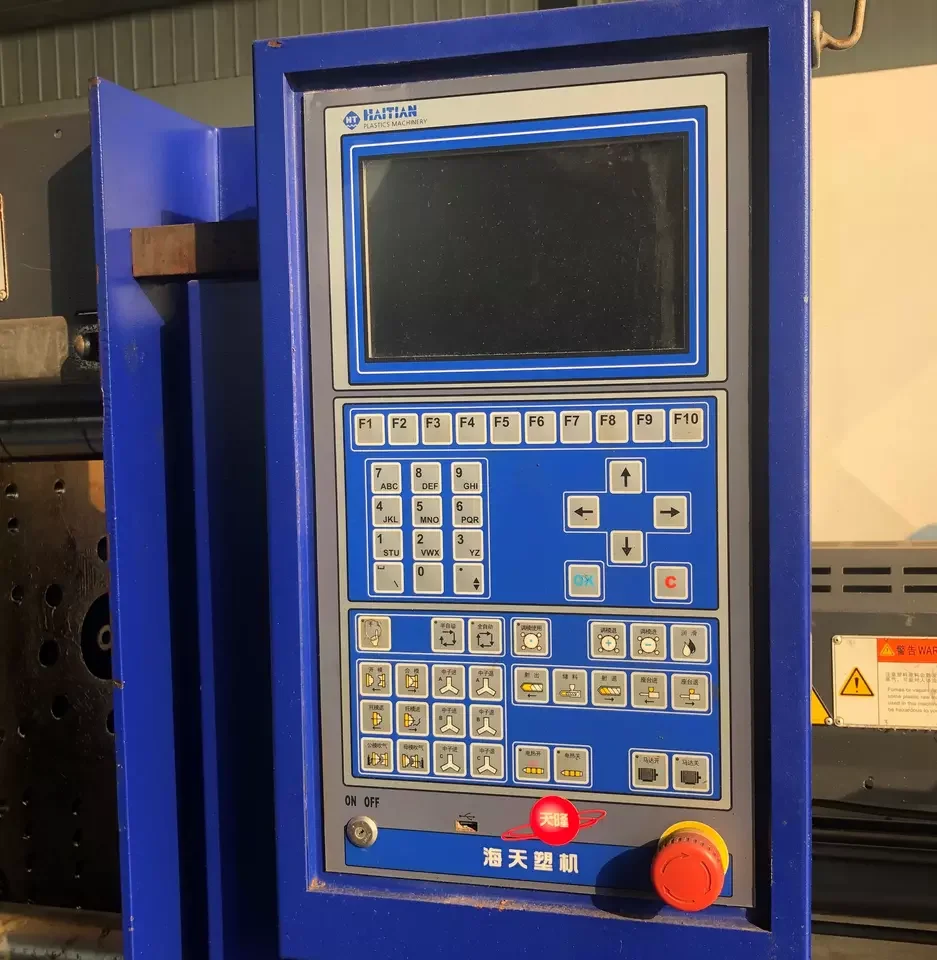

Control System
Programmable Logic Controller, an automated control system that controls the process requirements (pressure, temperature, speed, time) and various program actions of the injection machine by entering various commands.
Expandable with multiple modules including AO, AI, DO, DI, and TM to meet more requirements; Real-time monitoring of signals from machine equipped sensors to coordinate corresponding movements for higher operating safety.

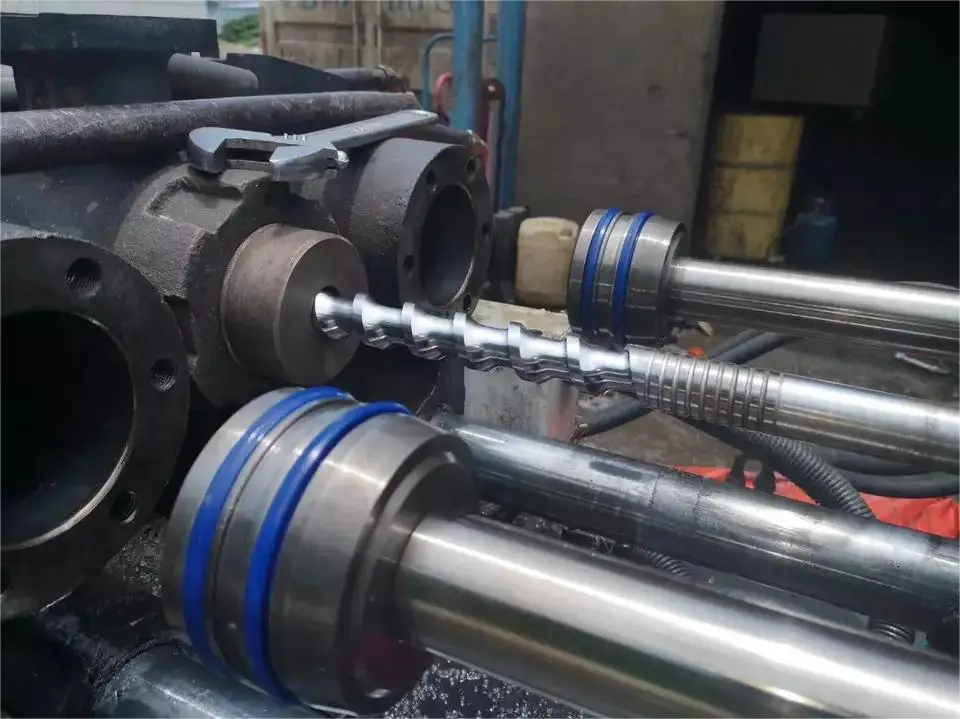

Injection Unit
Integrated linear guide rail support Medium size machine adopts integrated linear guide rail, horizontal double-carriage design
and double-cylinder injection to ensure injection is reliable & stable.
Integrated linear guide rail support reduces the friction between injection unit and linear guide rail or tie bar and enhances
production repeatability.
and double-cylinder injection to ensure injection is reliable & stable.
Integrated linear guide rail support reduces the friction between injection unit and linear guide rail or tie bar and enhances
production repeatability.
Hydraulic System
Low energy consumption, strong power and fast response.
Overall hydraulic circuit optimization reduces flow loss.
The resistance to moving parts, including the clamping unit and injection unit is further reduced, raising the response speed and reducing frictional loss.
Recommend Products
Applications
Why Choose Us
More than 20 years of industry experience
Our company has more than 20 years of industry experience, and many experienced engineers can find injection molding machines suitable for your needs in a short time.
Large inventory
We have injection molding machines of various tonnage and their supporting products. We have built and cooperated with more than 10 warehouses. The number of injection molding machines in the warehouse is large, and we can find the machines that meet your needs.
Highly professional
We mainly operate injection molding machines of Chen hsong and Hai tian brands. We have worked hard for many years to find
machines with low price and good quality. We believe that we can succeed only if we are professional.
Custom service
We have a number of professional engineers, which could customize the machine you need according to your needs, and save you money to produce the products you want.
Product Packing
FAQ
1.Q: Are you a manufacture or a trading company ?
A: We are a manufacturer in Shenzhen city, Guangdong Province, China.
2. Q: Why should i choose your company and your products ?
2. Q: Why should i choose your company and your products ?
A: We have been in this field for more than 20 years, and our quality is good. Due to our good quality ,some of the famous companies are also using our products ,such as ,Apple ,Foxconn, BYD, etc.
3. Q:Do you accept customization service ?
A:Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Q:What is the order process ?
A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance
payment -packing - delivery - customer receiving - after sale service.
5.Q: I want make a plastic product, but I don't know how to choose a suitable machine model, what should I do ?
3. Q:Do you accept customization service ?
A:Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Q:What is the order process ?
A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance
payment -packing - delivery - customer receiving - after sale service.
5.Q: I want make a plastic product, but I don't know how to choose a suitable machine model, what should I do ?
A: Please feel free to tell us about the product detail information, such as size weight, how many output you prefer per hour. We will help make good proposal with nice price for you.
