IVIMA high capacity 315 630mm big long PE pipe recycling fast shredder machine/complete whole HDPE tube rapid chipper crusher
- Category: >>>
- Supplier: Zhangjiagang Ivima Technology Co. Ltd.
Share on (1600800002831):
Product Overview
Description
Product Overview
Machine Introduction

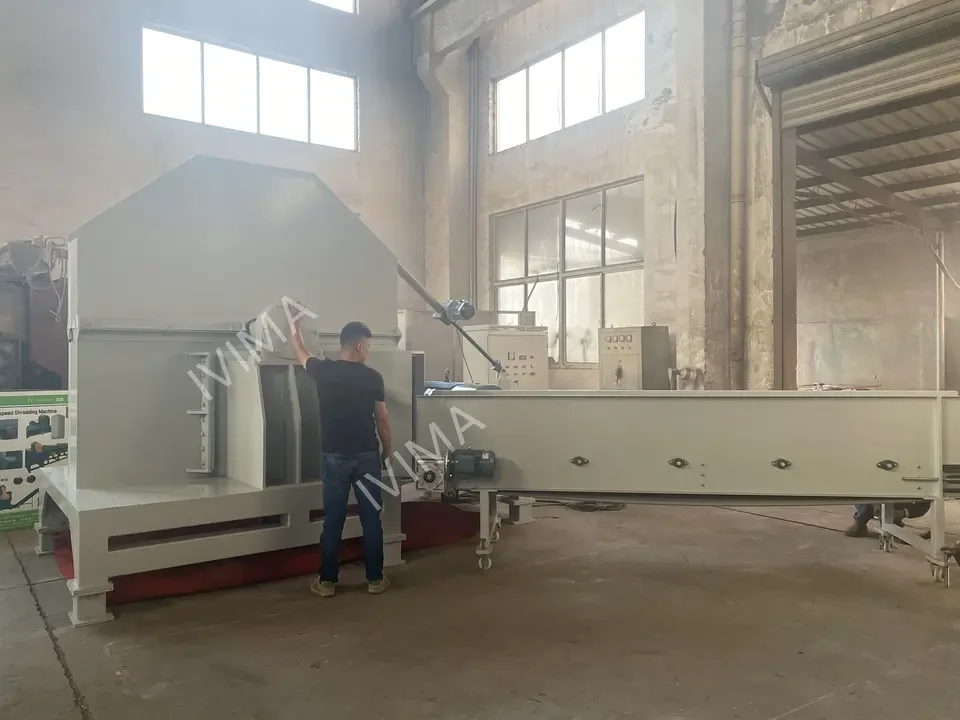

During the 2017, IVIMA presents this newest High speed Disc Chipper,
The output rate of this disc chipper is 10 - 25t/h. This Disc type chippers are especially suitable for HDPE pipe into high quality HDPE chips. These chips are further processed where high quality PE chips are desired. This machine is a good
and necessary in the plastic recycling industry for big size HDPE pipe recycling.
The disc with horizontal bearing assembly has a diameter of max 3.6 mm and is equipped with max 15 knives. The chipper is equipped with a horizontal feeding device. Machine open-up is now performed by a frequency-controlled “pony motor”. Chips are discharged straight down after size reduction. Due to the intake characteristics of the chipping disc, the pipes are automatically drawn into the chipper without any additional draw-in rollers. This type of“drawing cut“ results in a low specific energy consumption during size reduction. The material feeding system allows for feeding of pipes up to 800 mm in diameter,
Any parts subject to wear and which are in direct contact with the pipes are made of wear-resistant material and are easily
exchangeable.
Generously dimensioned knife changing flaps allow for easy access to the chipping chamber for quick and safe exchange of the knives.
The disc with horizontal bearing assembly has a diameter of max 3.6 mm and is equipped with max 15 knives. The chipper is equipped with a horizontal feeding device. Machine open-up is now performed by a frequency-controlled “pony motor”. Chips are discharged straight down after size reduction. Due to the intake characteristics of the chipping disc, the pipes are automatically drawn into the chipper without any additional draw-in rollers. This type of“drawing cut“ results in a low specific energy consumption during size reduction. The material feeding system allows for feeding of pipes up to 800 mm in diameter,
Any parts subject to wear and which are in direct contact with the pipes are made of wear-resistant material and are easily
exchangeable.
Generously dimensioned knife changing flaps allow for easy access to the chipping chamber for quick and safe exchange of the knives.
PRODUCT SPECIFICATIONS
Capacity | Main motor | Rotation dia. | Max pipe diameter available | Out put capacity |
IVGWS450 | 75kw | 1000mm | 450mm | 10000kg/hr |
IVGWS630 | 110kw | 1400mm | 630mm | 15000kg/hr |
IVGWS800 | 160kw | 1800mm | 800mm | 20000kg/hr |
FEATURES AT A GLANCE
1. By dynamic balancing, the disc rotation is very stable.
2. Due to the intake characteristics of the chipping disc, the pipes are automatically drawn into the chipper without any additional
draw-in rollers
3. Main shaft connected by bolts, easy to replace
4. The multi-model, multi-material rotor, abrasion treatment
5. D2, SKD-11 or other high-strength wear-resistant material rotating and fixed knife design, unique blade structure, to ensure longer life
2. Due to the intake characteristics of the chipping disc, the pipes are automatically drawn into the chipper without any additional
draw-in rollers
3. Main shaft connected by bolts, easy to replace
4. The multi-model, multi-material rotor, abrasion treatment
5. D2, SKD-11 or other high-strength wear-resistant material rotating and fixed knife design, unique blade structure, to ensure longer life

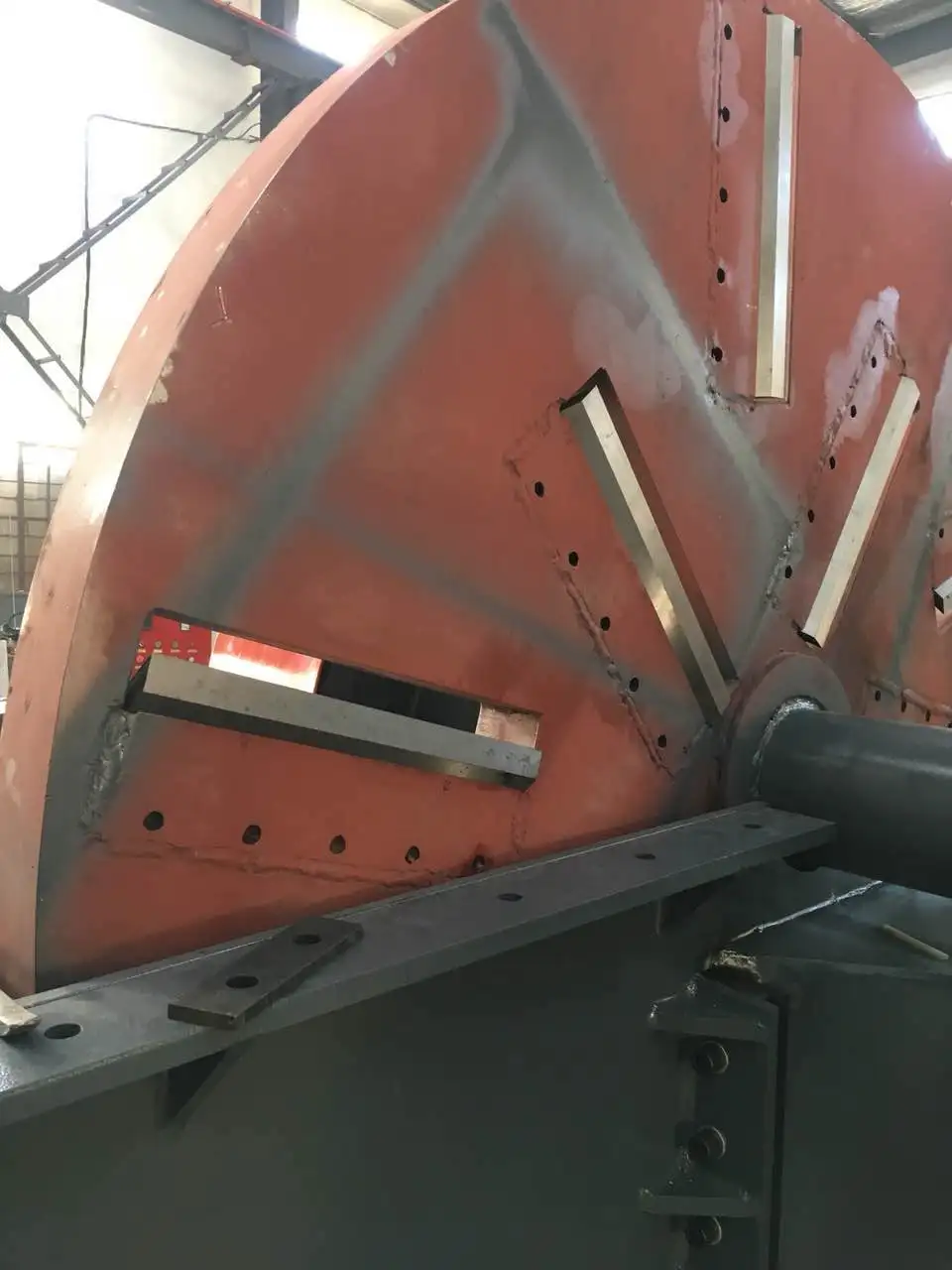

disc of the pipe chipper
stable bearing installation
heavy duty driving wheel
SKF bearing

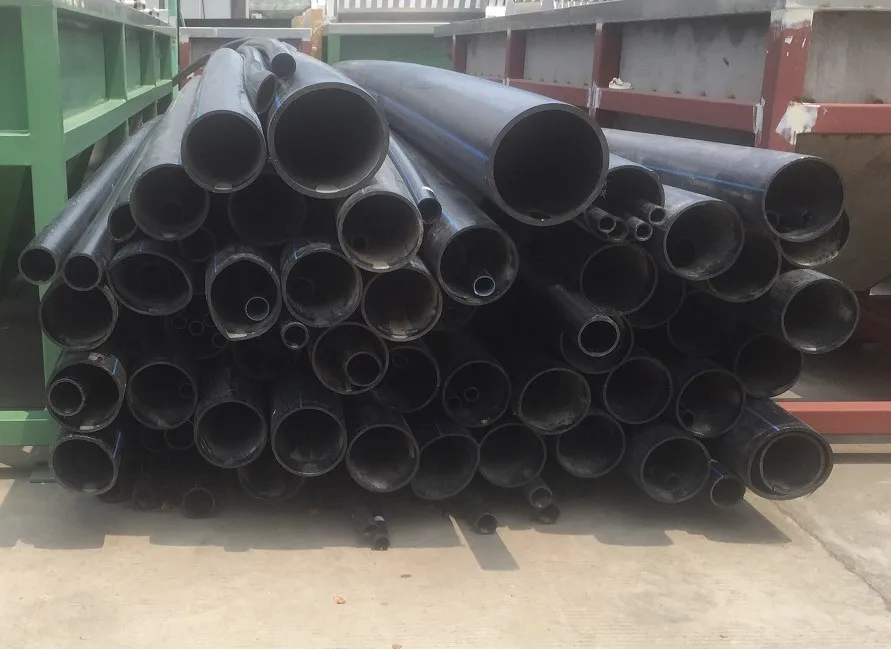

raw material： whole set pipe

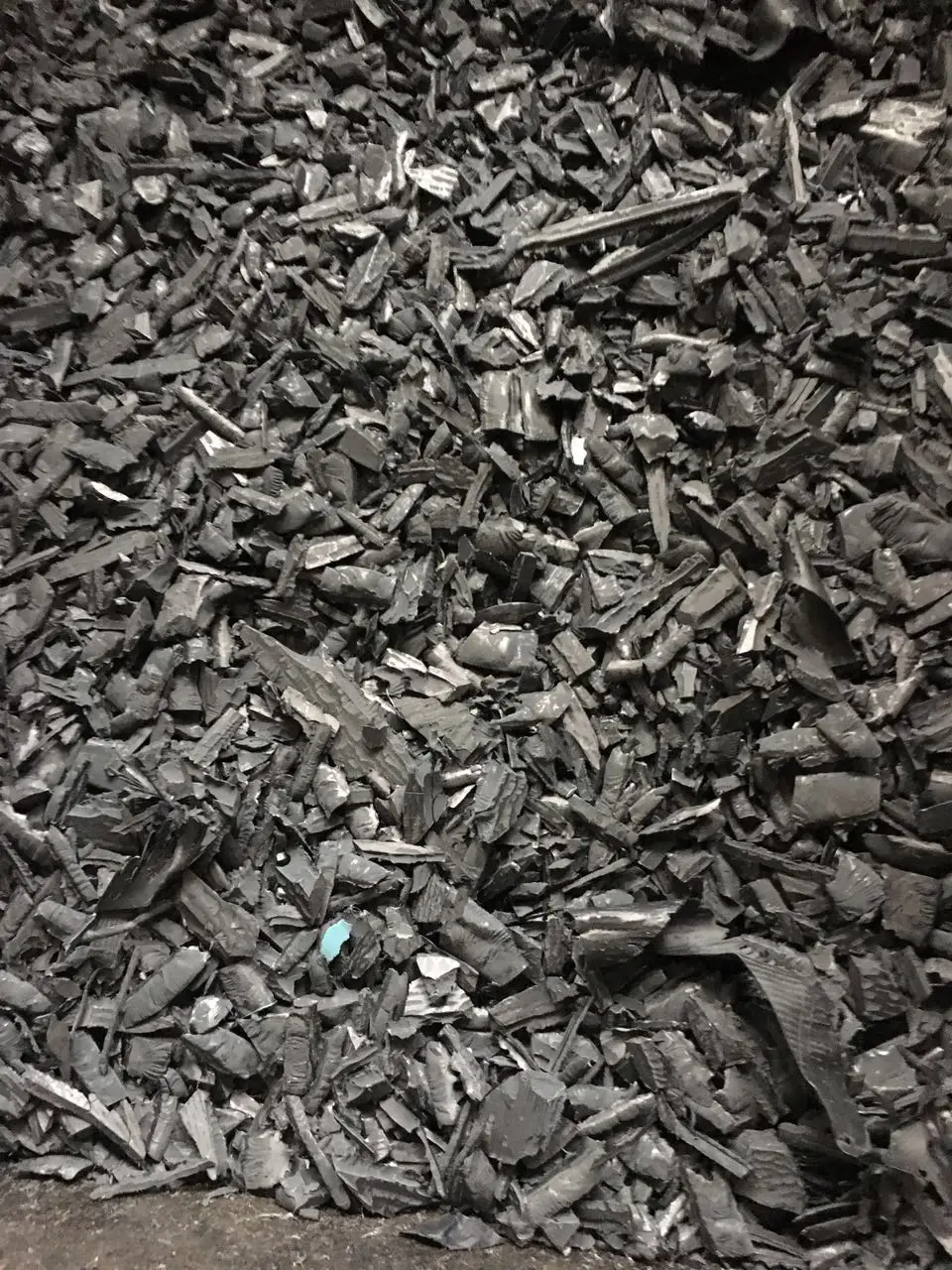

final pipe chips
PRODUCT CONFIGURATION
Siemens motor optional
Siemens brand electric
Schneider soft starter
We can supply serve for all over the world
Recommend Products
Plastic pipe crusher machine
Usage:Special designed for plastic pe pvc ppr pipe crushing
Horizontal type HDPE pipe shredder
Usage: For big size hdpe pipe shredding
Single shaft shredder for HDPE PIPE
Usage: For HDPE pipe shredding
FAQ:
What about the payment way?●T/T,L/C at sight or Alibaba trade assurance.
If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free . Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●Yes.
If you support Alibaba trade assurance pay?
●Yes.100% support.
