Full Automatic Hot press machine for plywood
- Category: >>>
- Supplier: Weihai Hanvy Plywood Machinery Manufacturing Co. Ltd.
Share on (1600800055165):
Product Overview
Description
Product Overview

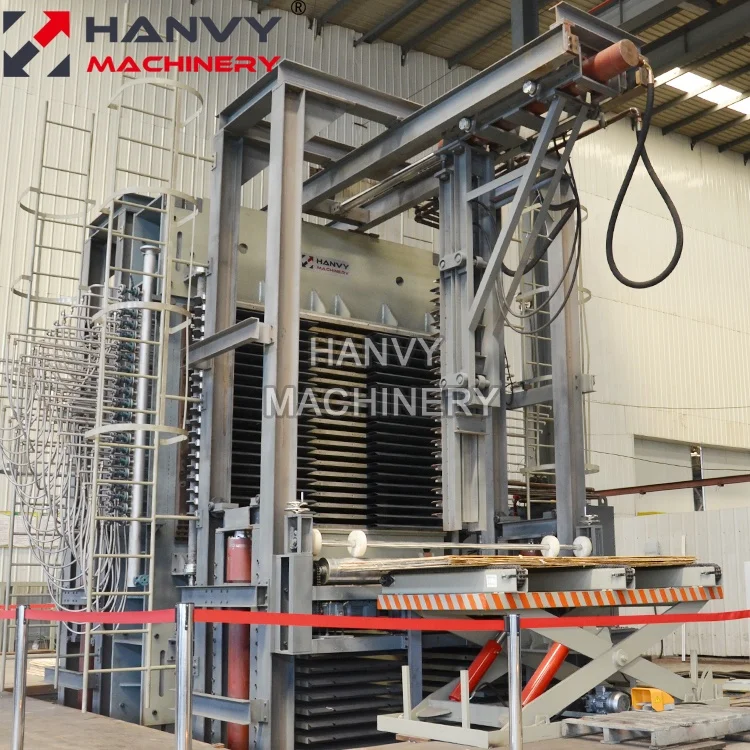

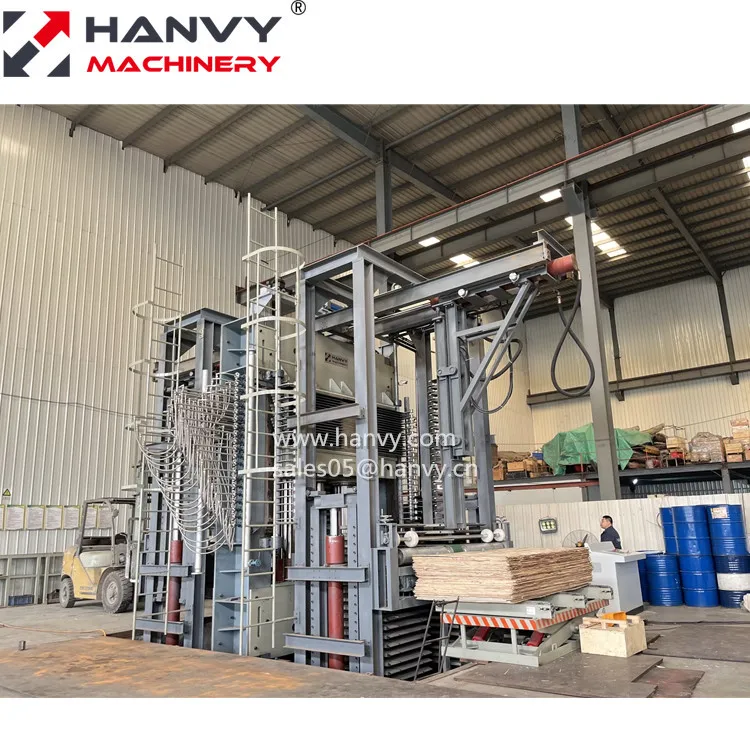

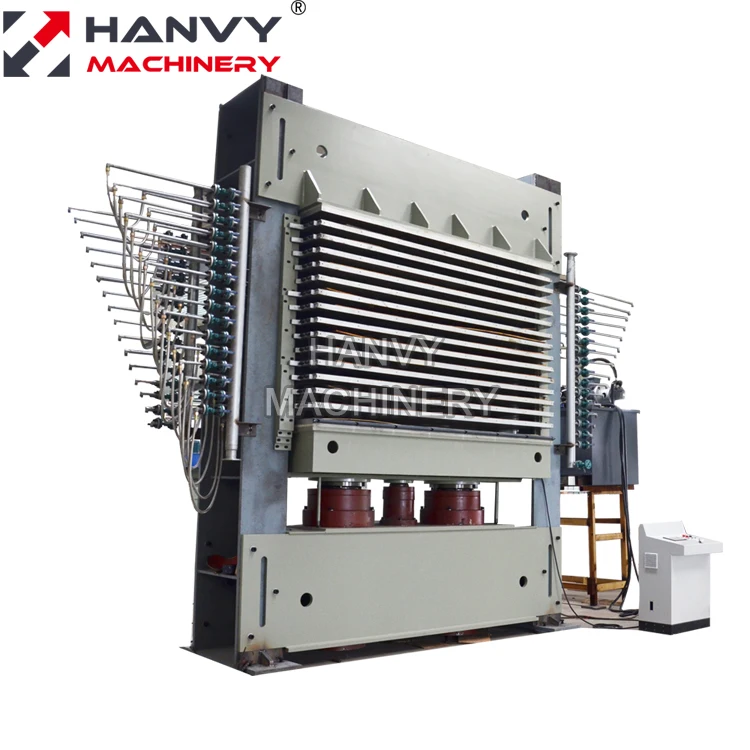

Plywood hot pressing machine
Hanvy machinery supply the full ranges of machines for veneer plywood production line,LVL,Film faced plywood production line,Commercial Plywood production line,furniture plywood production line.
1.Pressure(tons): 400/500/600 or more
2.Opening/floor number :8/10/12/15 ..etc.
3.42mm & 52mm thick solid steel hot platen.
2.Opening/floor number :8/10/12/15 ..etc.
3.42mm & 52mm thick solid steel hot platen.
4.Size of hot platen(feet): 3'x6'/ 5x5'/ 4'x8' or customized
5.Infeed and outfeed devices option4
5.Infeed and outfeed devices option4
6.Full automatic hot press and semi-automatic hot press
Model | HY214*8/6A-15 | HY214*8/8B-10 |
Nominal pressure | 600T | 800T |
Hot plate size | 2700*1370*42MM | 2700*1370*52MM |
Opening | 70MM | 100MM |
Opening number | 15 | 10 |
Plunger cylinder diameter | 380MM*2.180MM*1 | 300MM*4.190MM*1 |
Working stroke | 1050MM | 1000MM |
Max.working pressure | 25MPa | 25MPa |
Motor | 26KW | 33KW |
Overall sizes | 5000*1446*5395MM | 5450*1850*4415MM |
Weight | 38000KG | 38000KG |

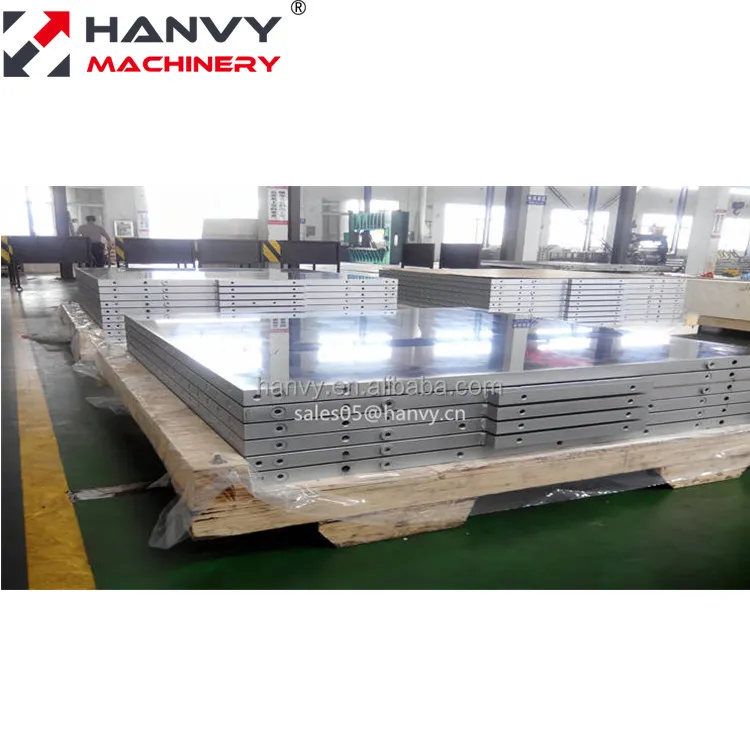

Platen material is high quality Q345B.
Solid 52mm/42mm plate Heat fast and press veneer quality good
Solid 52mm/42mm plate Heat fast and press veneer quality good

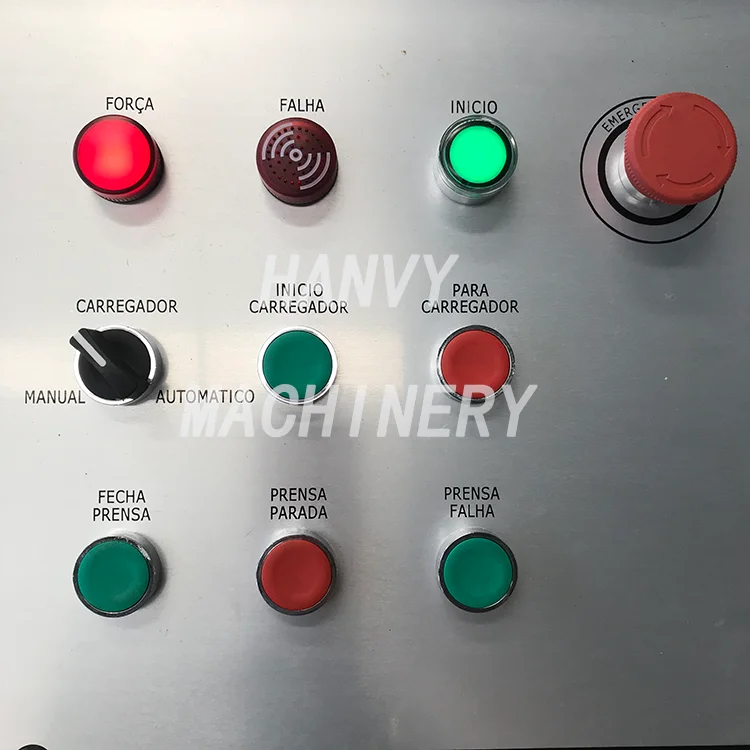

With Siemens Touch Screen, 5 section pressure, automatic working
Wuxi (alloy material) condensed cast iron solid plunger, Good quality solid cylinder will not leak oil
Brand: Siemens Original: Germany
Six modes data can be saved to do different kinds of boards.Five different pressure control, Oil-way visible, emergency alarm system. temperature pressure real time mornitoring system
Six modes data can be saved to do different kinds of boards.Five different pressure control, Oil-way visible, emergency alarm system. temperature pressure real time mornitoring system
Hot plate thickness
Usually, the pressure below 600tons, the hot plate thickness is 42mm.Above 600tons, the thickness is 52mm.
Usually, the pressure below 600tons, the hot plate thickness is 42mm.Above 600tons, the thickness is 52mm.
Plunger cylinder diameter: φ380mm*2 φ180mm*1. Good quality solid cylinder will not leak oil
FAQ
Buyer: can you customize products for customers?
Sales: Yes, we can manufacture woodworking machinery according to the customer's requirements or drawings.Buyer: how about the quality of your products?
Sales: we can provide you with samples for quality inspection. When ordering, we guarantee that the quality is consistent with the sample If there are quality problems, we can sign an agreement and our company will fulfill its responsibilities.
Buyer: how can we trust your factory?
Sales: we suggest you come to our factory to see the goods, check the actual situation of the products, and learn more about our factory.
Buyer: why do prices often change?
Sales: the price depends on the latest price of raw materials
Buyer: how to sign the contract?
Sales: if you are satisfied with the products and our service, you can sign a contract with us and pay a deposit, then we will produce the machine as soon as possible. If it's far away, we can sign the contract by fax. We guarantee the quality of products and accessories.
Buyer: how to deliver?
Sales: when the goods are ready, they can be delivered to you after full payment. We provide technical guidance.
