Product Overview
Description

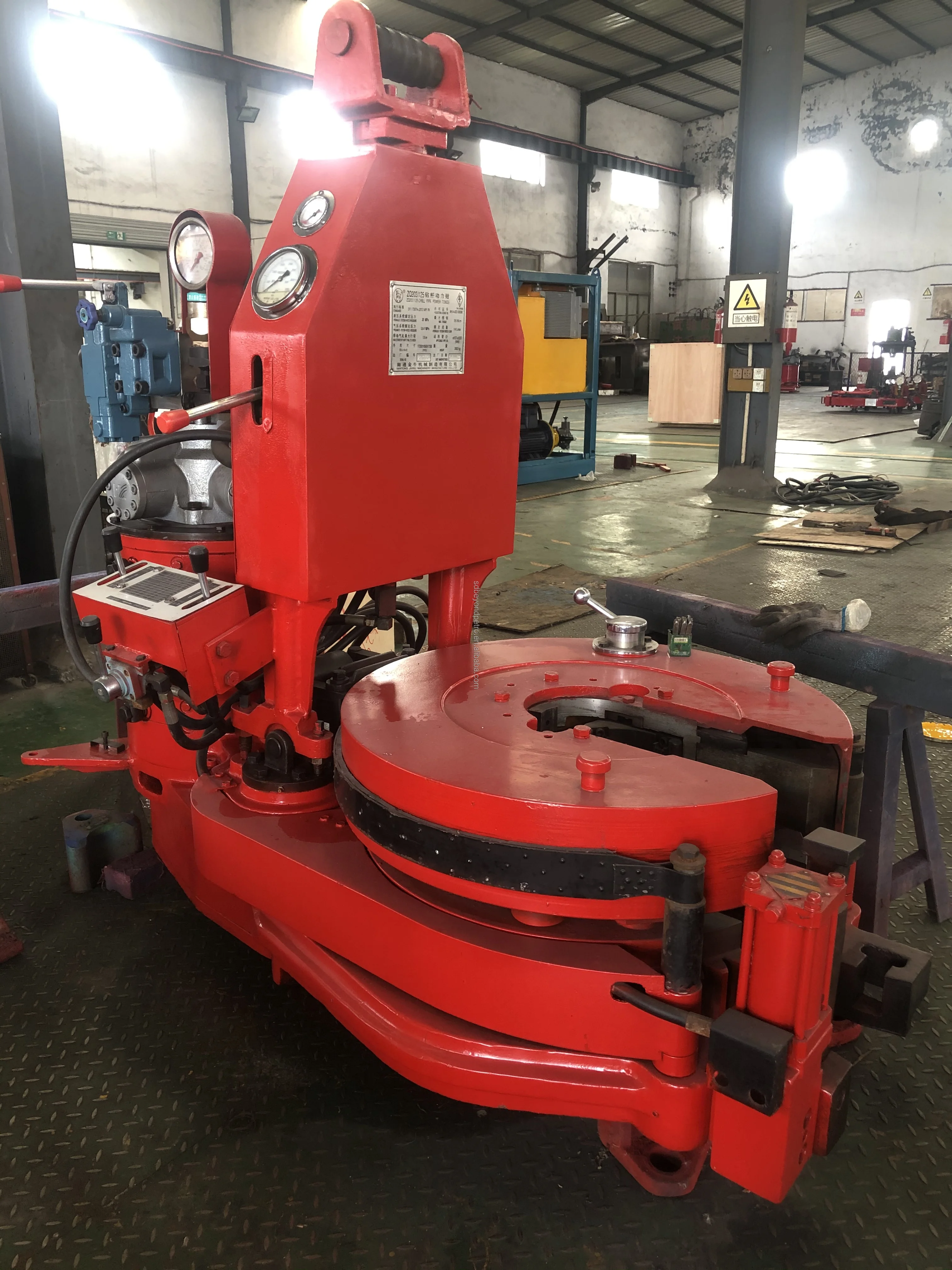

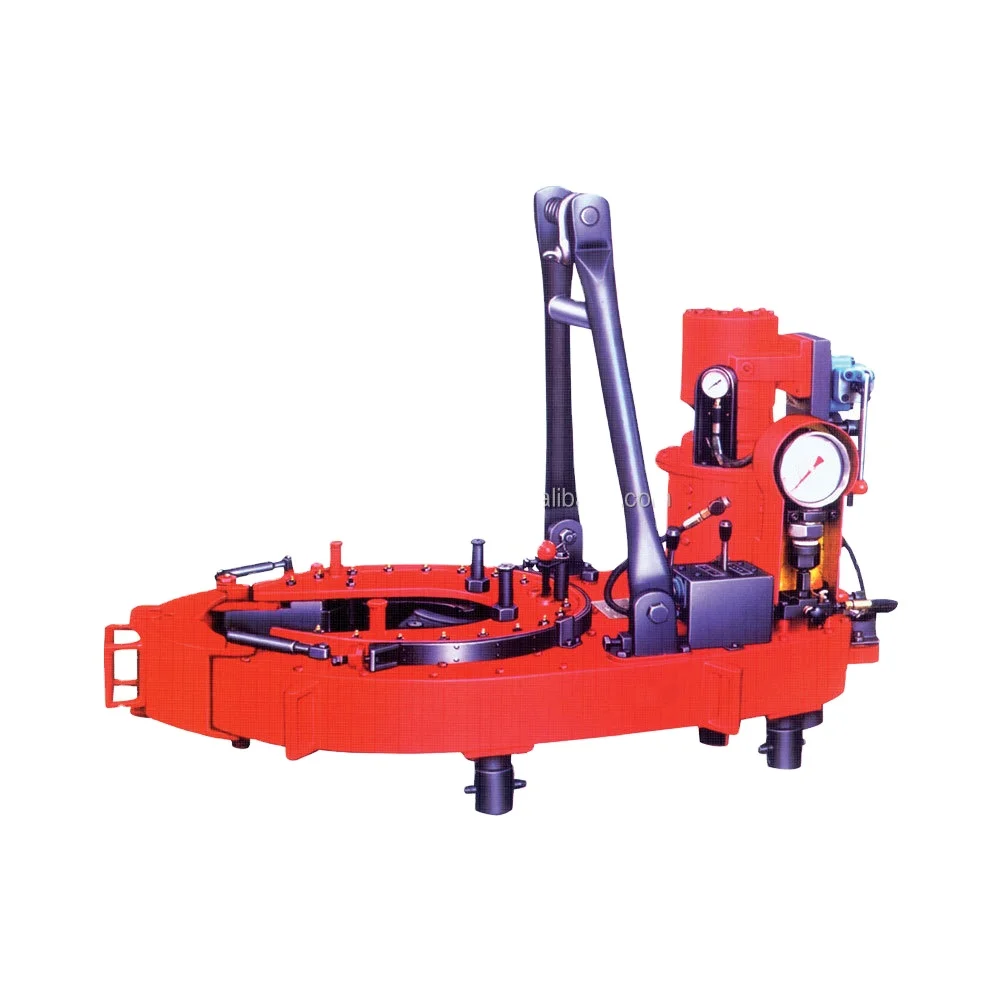

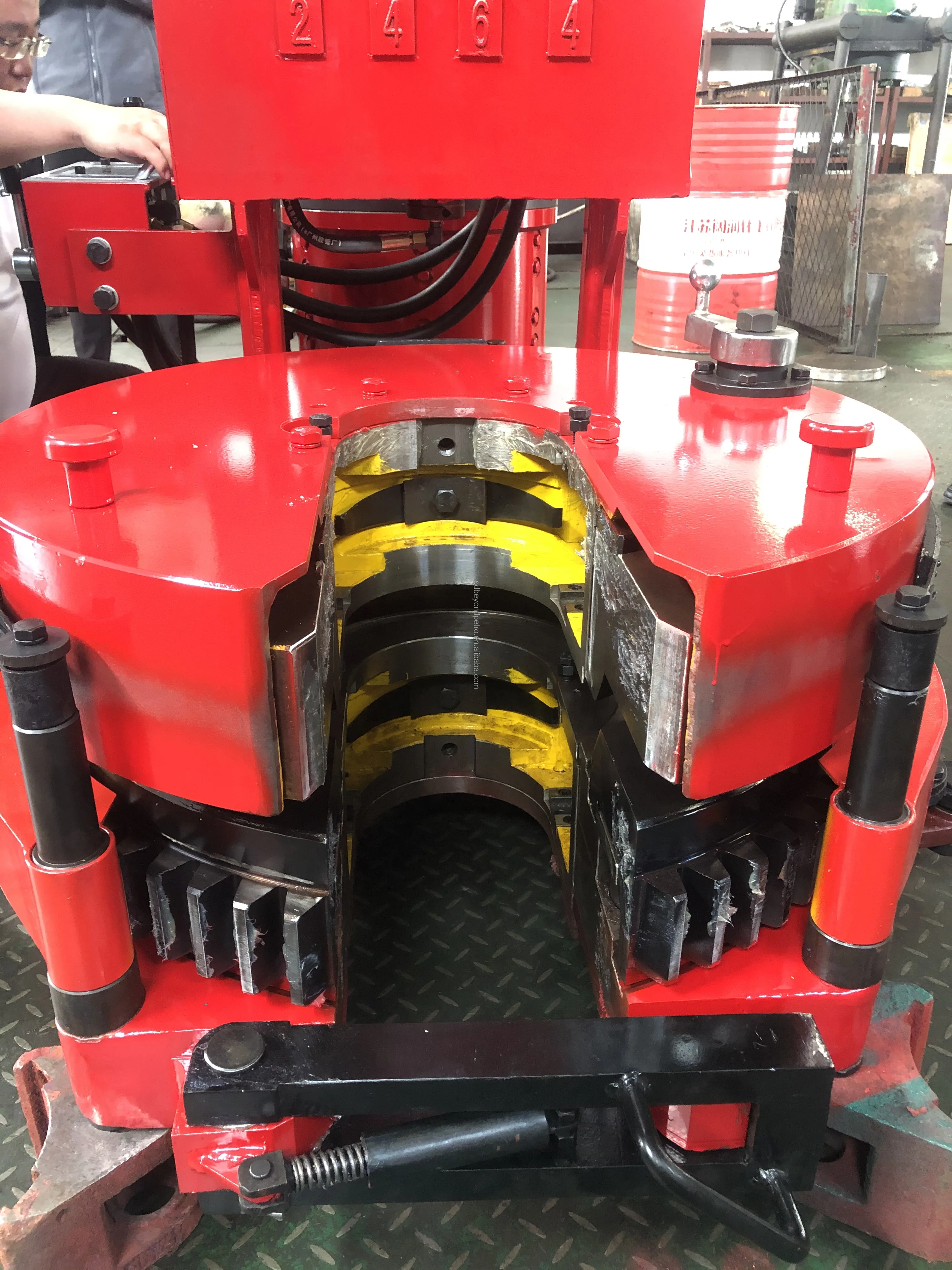

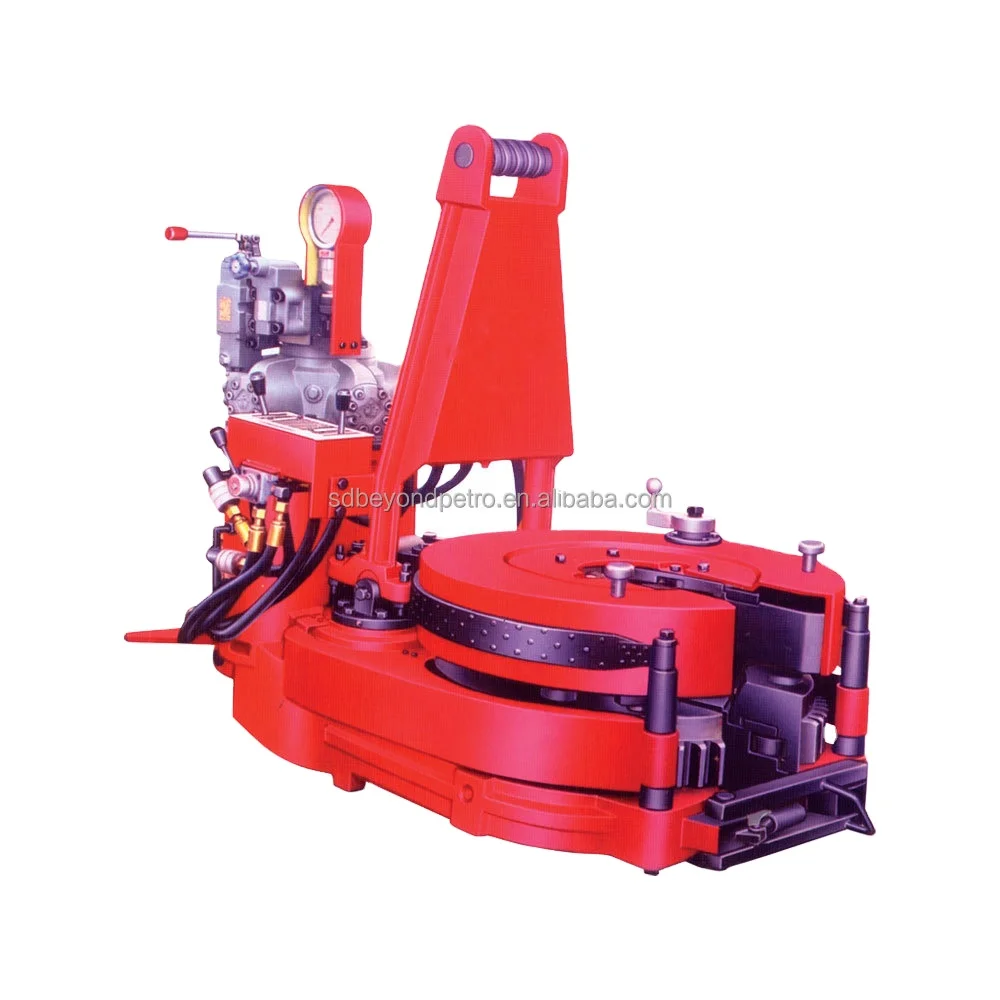

ZQ drill pipe power tong is an ideal well head tool for oil drilling apparatus, widely applied in making-up and breaking-out in
drilling well and repairing well on offshore and land, open head design of the ZQ-series allows to take the long away from
drillingpipe freely and high mobility, the tong is a combination of spinning tong and torque tong instead of manual tong and
spinning rope for making-up and breaking-out.The Tongs are designed and manufactured according to SY/T5074 standard and API Spec
7K“Specification for Drilling and Well Servicing Equipment”.
drilling well and repairing well on offshore and land, open head design of the ZQ-series allows to take the long away from
drillingpipe freely and high mobility, the tong is a combination of spinning tong and torque tong instead of manual tong and
spinning rope for making-up and breaking-out.The Tongs are designed and manufactured according to SY/T5074 standard and API Spec
7K“Specification for Drilling and Well Servicing Equipment”.
Size Information
Model | XQ89/3Y3YC | XQ114/6YB | XQ140/12Y | XQ140/12Y-T | ||||
Applicable range main tong | mm | 60-89 | 60-114 | 60-140 | 48-140 | |||
in | 23/8～31/2 | 23/8～41/2 | 23/8～51/2 | 1.9～51/2 | ||||
Applicable range backup tong | mm | 60-114 | 73-141.5 | 73-156 | 60-156 | |||
in | 27/8～41/8 | 27/8～51/8 | 27/8～61/8 | 23/8～61/8 | ||||
Hi-gear rated tofque | kN.m | 1100 | 1500 | 2600 | 2600 | |||
ft.lbf | 811 | 1106 | 1918 | 1918 | ||||
Lo-gear rated tofque | kN.m | 3300 | 6000 | 12000 | 12000 | |||
ft.lbf | 2213 | 4425 | 8851 | 8851 | ||||
Ratek Speed | High gear | rpm | 90 | 85 | 72 | 72 | ||
Low gear | rpm | 30 | 20 | 14 | 14 | |||
Rated pressure | MPa | 10 | 11 | 12 | 12 | |||
psi | 1450 | 1595 | 1740 | 1740 | ||||
Max.oil supply | L/min | 80 | 100 | 120 | 120 | |||
gpm | 21 | 26 | 32 | 32 | ||||
Size | mm | 650×430×550 | 750×500×600 | 1024×582×539 | 1050×620×900 | |||
in | 25.6×16.9×21.7 | 29.5×19.7×23.6 | 40.3×22.9×21.2 | 41.3×24.4×35.4 | ||||
Weight | kg | 158 | 220 | 480 | 480 | |||
lb | 348 | 485 | 1060 | 1060 | ||||
Title goes here.
ZQ drill pipe power tong is an ideal well head tool for oil drilling apparatus, widely applied in making-up and breaking-out in
drilling well and repairing well on offshore and land, open head design of the ZQ-series allows to take the long away from
drillingpipe freely and high mobility, the tong is a combination of spinning tong and torque tong instead of manual tong and
spinning rope for making-up and breaking-out.The Tongs are designed and manufactured according to SY/T5074 standard and API Spec
7K“Specification for Drilling and Well Servicing Equipment”.
drilling well and repairing well on offshore and land, open head design of the ZQ-series allows to take the long away from
drillingpipe freely and high mobility, the tong is a combination of spinning tong and torque tong instead of manual tong and
spinning rope for making-up and breaking-out.The Tongs are designed and manufactured according to SY/T5074 standard and API Spec
7K“Specification for Drilling and Well Servicing Equipment”.
Size Information
Model | Drill Pipe Size and Style | Diameter of Elevator Bores | Elevator Sign | Max. Load Tons(KN) |
DDZ67 | 23/8EU | 67 | 23/8EU | DDZ 150 (1350) 250 (2250) 350 (3150) 500(4500) DDZ TD 350 (3150) 500(4500) |
DDZ83 | 27/8EU | 83 | 27/8EU | |
DDZ101 | 31/2EU | 101 | 31/2EU | |
DDZ109 | 4IU | 109 | 4IU | |
DDZ121 | 4EU | 121 | 4EU | |
41/2IU | 41/2IU | |||
41/2IEU | 41/2IEU | |||
DDZ133 | 41/2EU | 133 | 41/2EU | |
5IEU | 5IEU | |||
DDZ148 | 51/2IEU | 148 | 51/2IEU | |
DDZ 159 | 5 7/8IEU | 159 | 5 7/8IEU | |
DDZ179 | 6 5/8IEU | 179 | 6 5/8IEU |
