Solarborn ground installation solar pv panels mounting bracket system mounting systems car park metal racks
- Category: >>>
- Supplier: Solarborn Technologies Co. Ltd.
Share on (1600800102015):
Product Overview
Description
Solar Mounting Bracket | ||||||||
Material | AL6005-T5, SUS304，EPDM | |||||||
Standard | AS/NZS 1170 | |||||||
Surface Treatment | Anodized | |||||||
Gross Weight Per Bracket(KG) | 8 | |||||||
Length Of Solar Module(mm) | ≤2200 | |||||||
Width Of Solar Module(mm) | 751≤A≤1313 | |||||||
Thickness Of Solar Module(mm) | 30-50 | |||||||
Adjustable Angle Range | 15~50° | |||||||
Include | Solar Bracket Rails, Fixture Guide Rail Integration, Solar End Clamp, Solar Side Clamp, Plant, Bolt & Slider nut, etc. | |||||||
Feature | Anti-corrosion , safety and reliability, easy installation, long service life | |||||||
Application | Customized according to your drawings, different solutions to meet different customers' requirements. | |||||||
Certificate | ISO9001 , CE, etc | |||||||
Warranty | 10 Years Warranty, Over 20 Years Service Life | |||||||

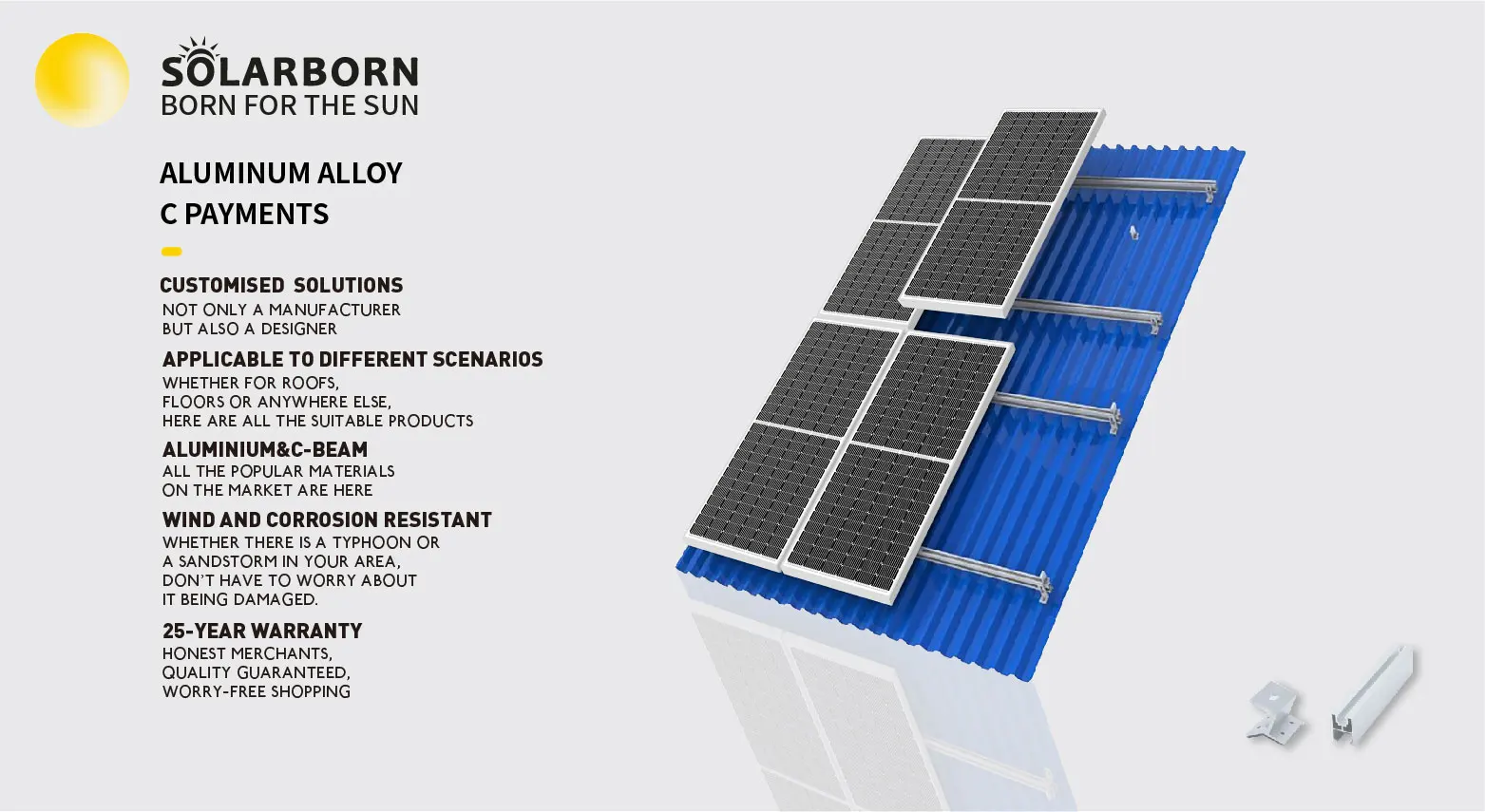

This type of support is suitable for colour steel tile roofing
* Modular design with plug and play connection, quick and easy installation.
* Adjustable angle manually to adjust the PV module angle for more energy.
* Our recommendations will deliver a structurally-sound, cost-effective solution based on one decades of construction experience and testing data.
* Aesthetics. Various surface treatments, such as anodising, chemical polishing, fluorocarbon spraying, electrophoretic coating, etc.
* Multiple cross-sections. Various models by extrusion, casting, bending, stamping, etc.
* Adjustable angle manually to adjust the PV module angle for more energy.
* Our recommendations will deliver a structurally-sound, cost-effective solution based on one decades of construction experience and testing data.
Aluminium

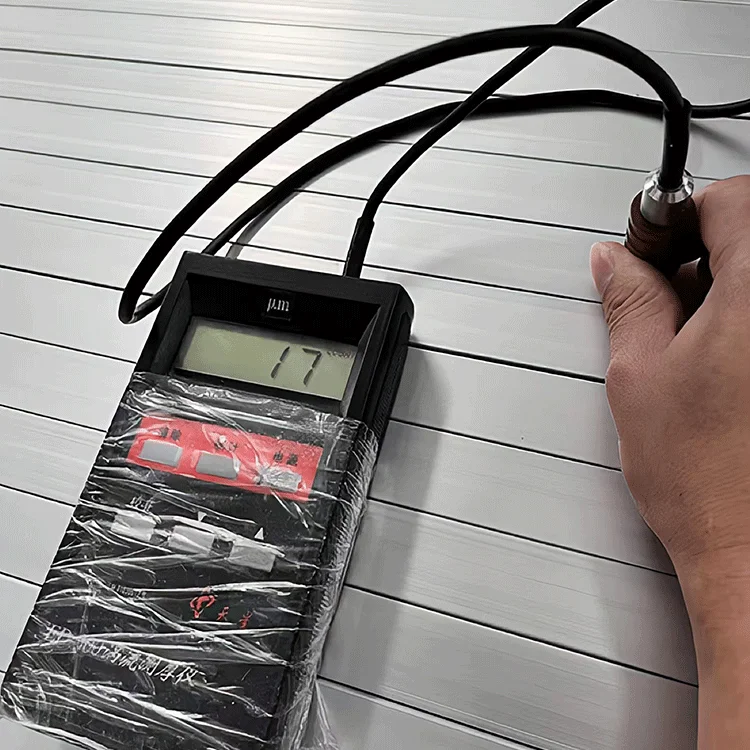

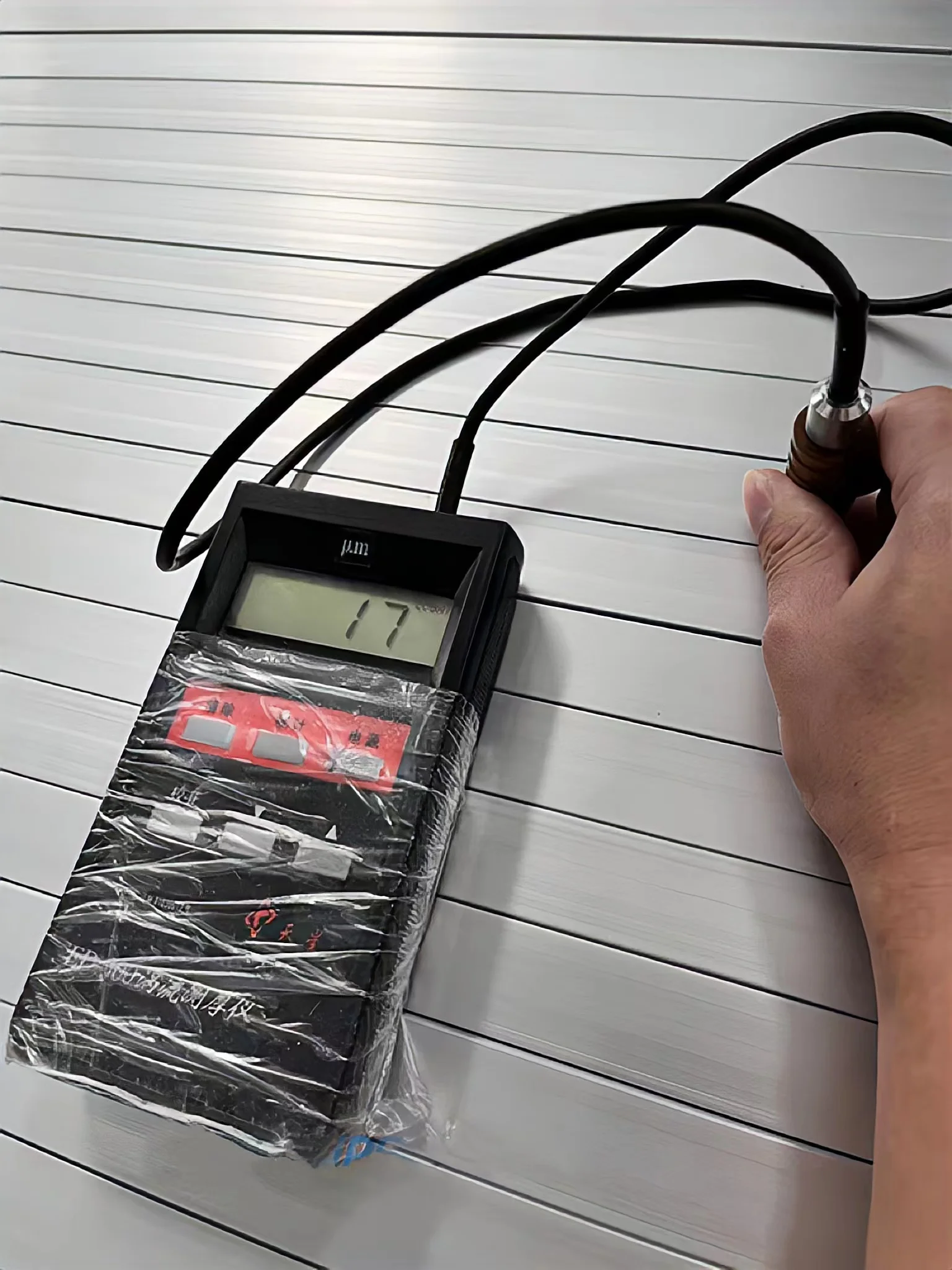

* Anti-corrosion. Steel hot-dip galvanised 55-80μm, aluminium alloy anodised 5-10μm, forming a dense oxide film with excellent corrosion resistance.* Aesthetics. Various surface treatments, such as anodising, chemical polishing, fluorocarbon spraying, electrophoretic coating, etc.
* Multiple cross-sections. Various models by extrusion, casting, bending, stamping, etc.
* Lightweight material. Easy to transport and install, with relatively low logistics costs.

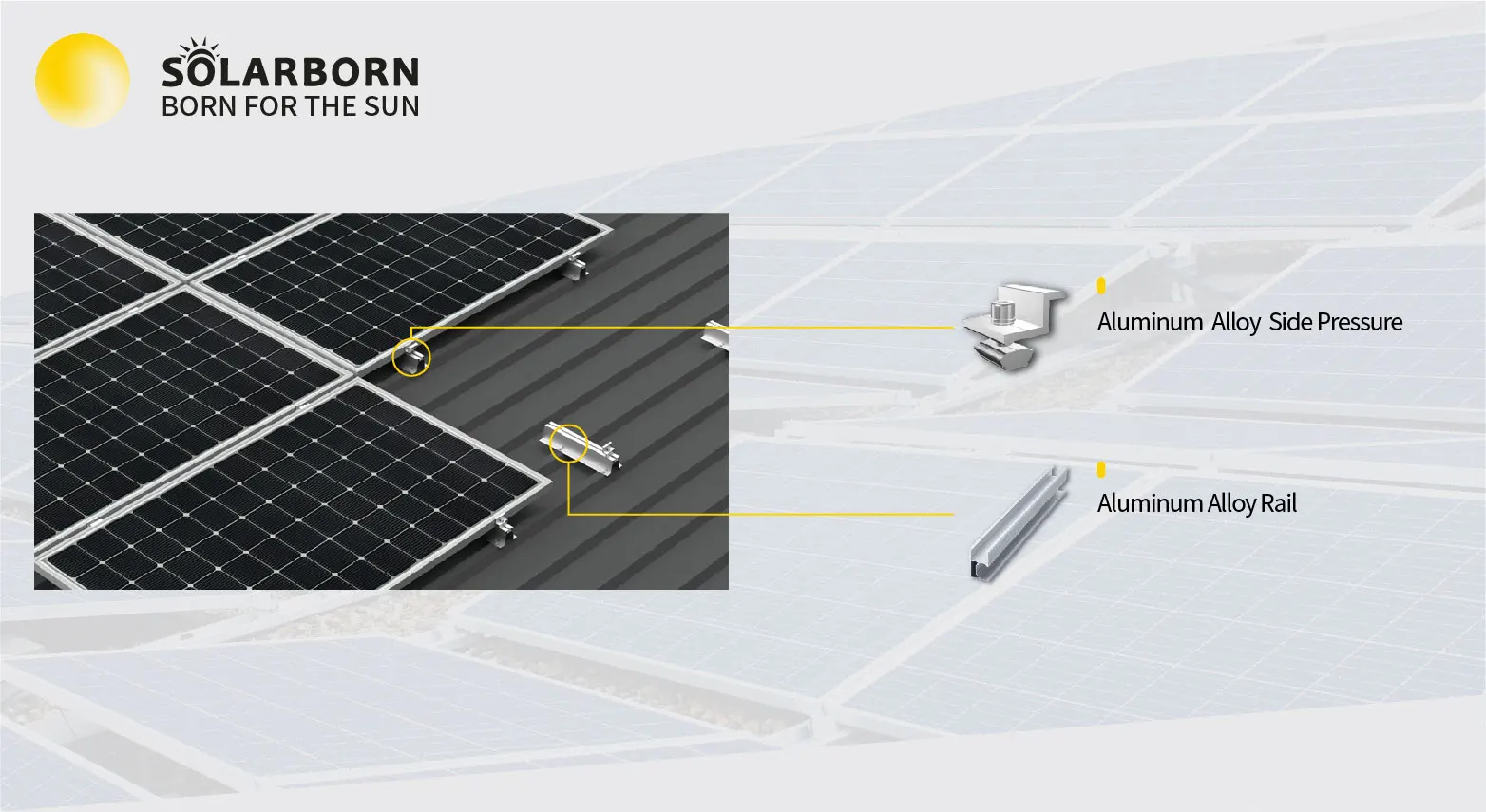

Mid clamp
· AL6005-T5
· 40*40*60mmTerminal para puesta a Tierra TTE
· AL6005-T5
· 20*430mm
Grapa para puesta a Tierra GTP
· AL6005-T5
· 40*40*60mm

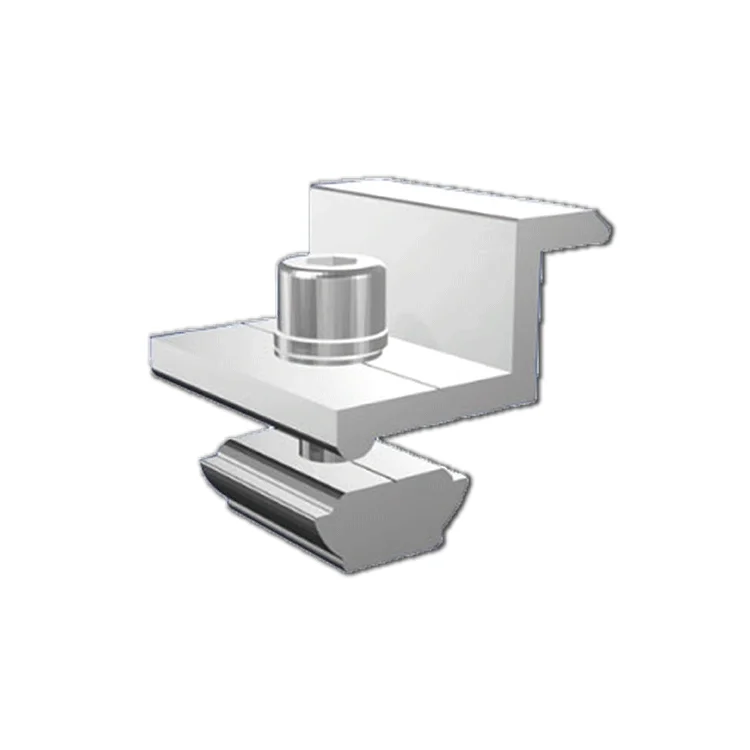

End clamp
· AL6005-T5
· 40*40*60mmAluminum Rail
· AL6005-T5
· 30*55*3735mm
Rail connector
· AL6005-T5
· 1 set with M8 * 20 2pcs, 150*29*13mm
Customised services
Solarborn:Free customised solutions based on site data provided by the client.
Other bad products:This service is not available.
Installation instructions support
Solarborn:Detailed installation instructions and technical guidance provided after purchase.
Other bad products:This service is not available.
By sea | Delivery from Shanghai or Ningbo seaport | ||||||
By air | Delivery from Shanghai Pudong airport | ||||||
By express | By TNT/DHL | ||||||
Payment Term | T/T | EXW | 30%T/T in advance, paid the balancebefore shipment | ||||
FOB | |||||||
CFR(C&F) | 30% T/T in advance, paid the balanceagainst copy of B/L | ||||||
CIF | |||||||
West Union | L/C amount above 50,0o0 usd, we can accept L/C at sight | ||||||
L/C | Amount lower than 500ousd | ||||||
Delivery Time | 7~10days after receiving payment for one container | ||||||
Power Grid
Energy Storage Project
· 2.5MW/6.804MWh· 2*SLB2500
· April2021
· Responding to speak load demand,
peak-to calley arbitrage
· April2021
· Responding to speak load demand,
peak-to calley arbitrage
Austria PV-Battery
Energy Storage Project
· 19.88KW+30KW/122.88MWh·
· 1*SLB0030
· December 2019
· Commercial and industrial
energy storage systems
· December 2019
· Commercial and industrial
energy storage systems
Power Grid
Energy Storage Project
· 5.0MW/15.889MWh· 2*SLB2500-MV
· October 2018
· Responding to peak load demand,
peak-to-valley arbitrage
· October 2018
· Responding to peak load demand,
peak-to-valley arbitrage
