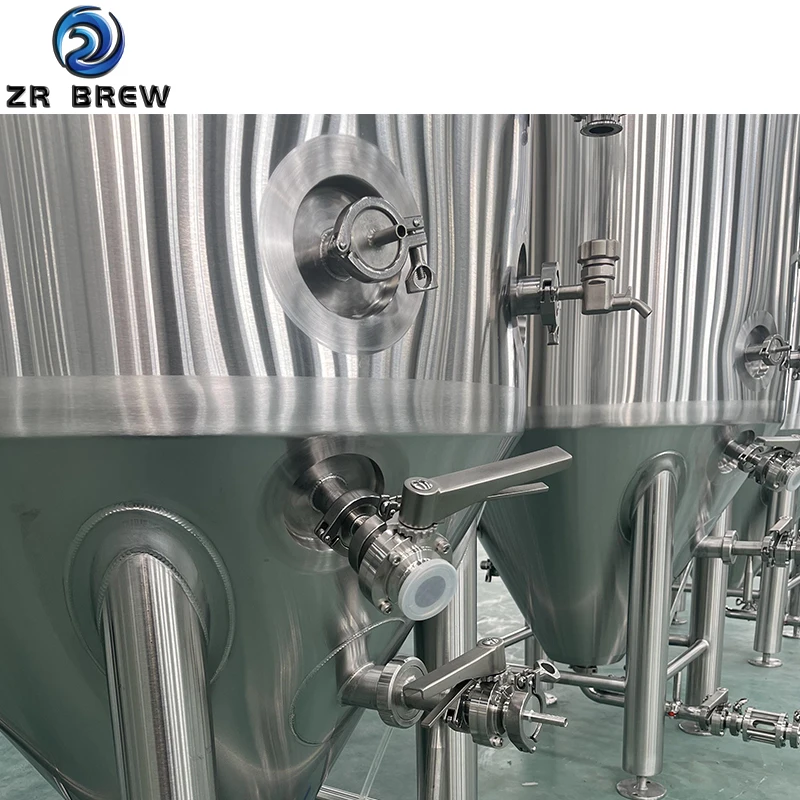

300l zeren tank inox large food grade almnium sparkling wine fermentation tank
- Category: >>>
- Supplier: Shandong Zeren Mechanical Equipment Co. Ltd.
Share on (1600800140331):
Product Overview
Description
Products Description

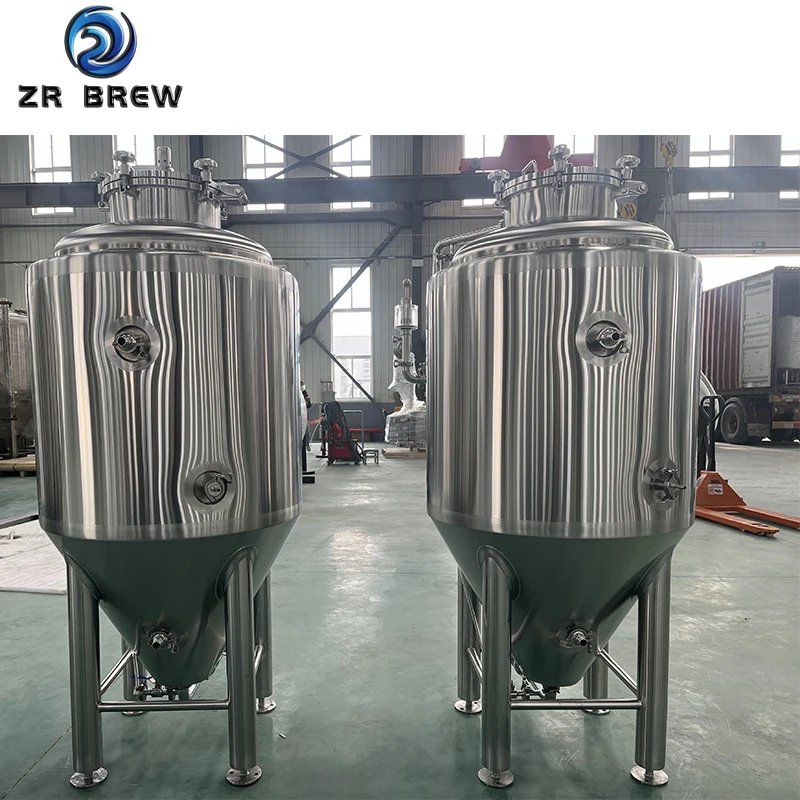

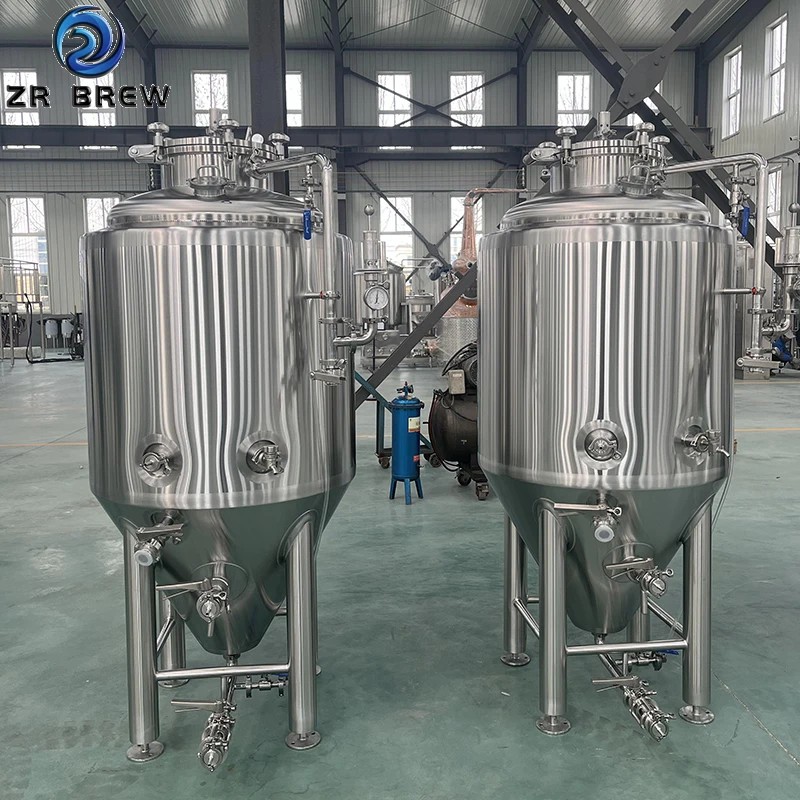

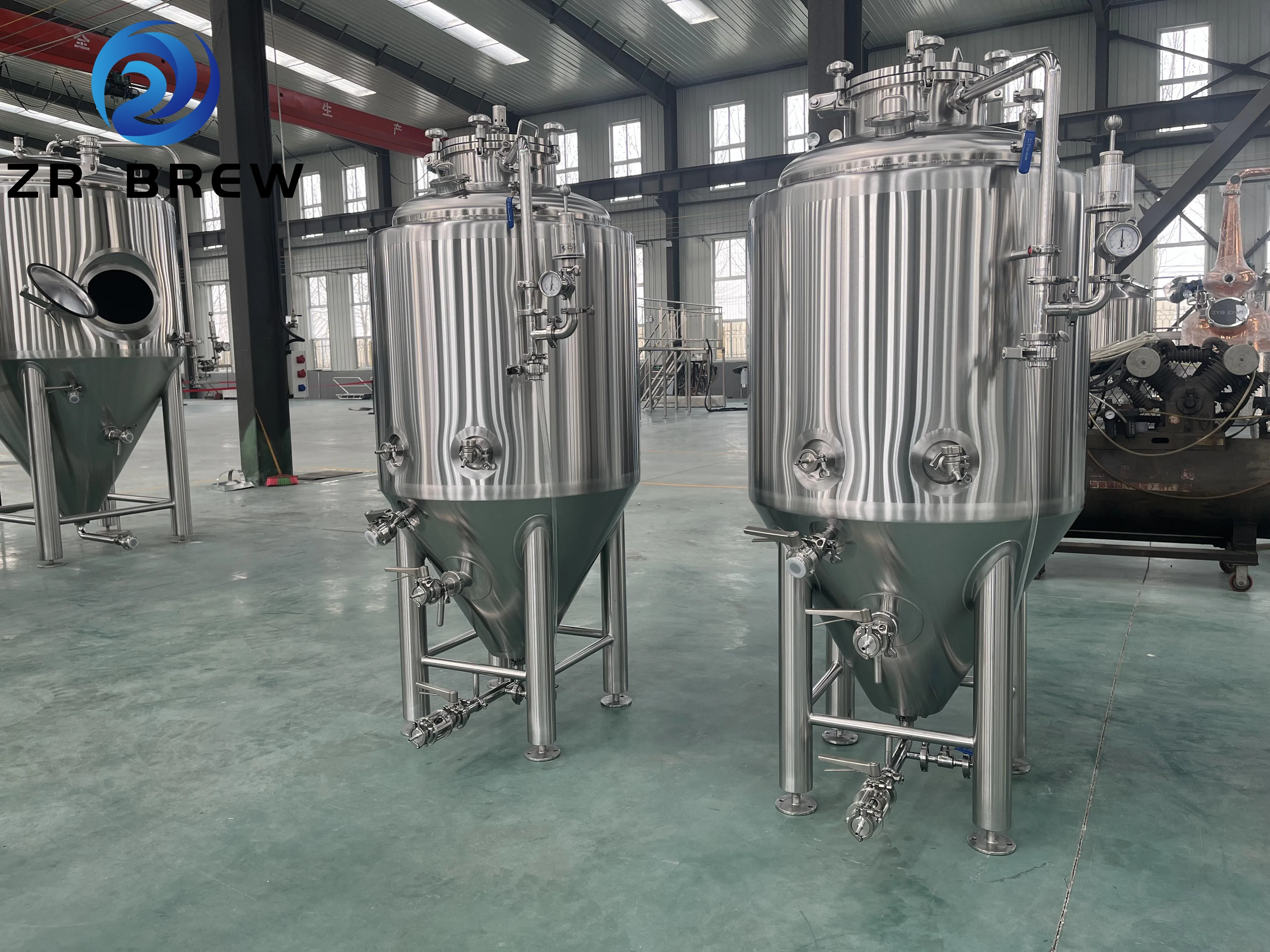

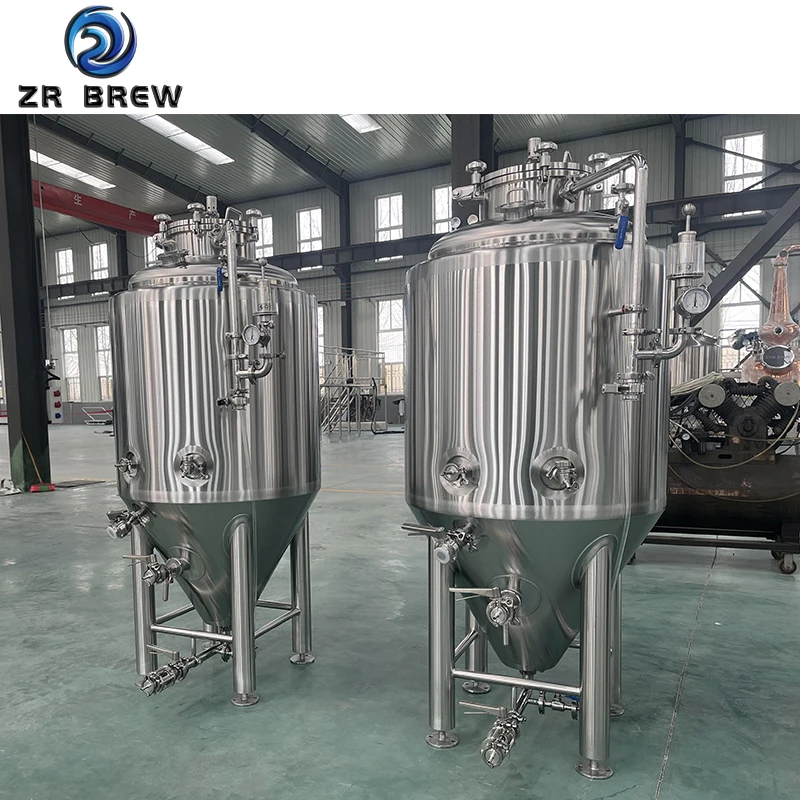

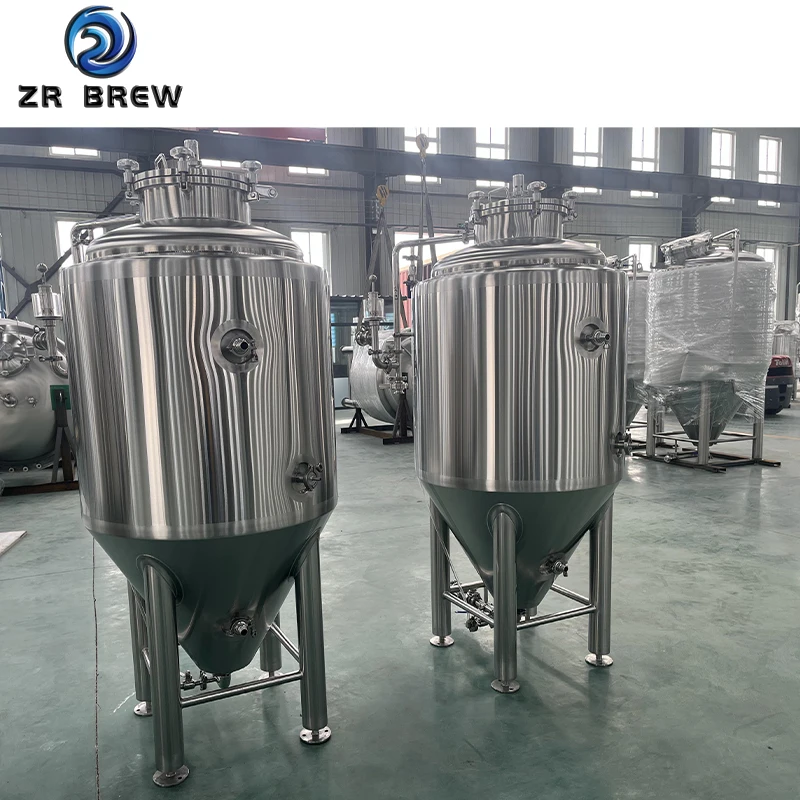

300L conical fermenter is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.
Product Paramenters
300L Fermentation tank | ||||
Interior | Jacket | |||
Material | SUS304 | SUS304 | ||
Working pressure (Mpa) | 0.2 （30psi） | 0.3 （45psi） | ||
Design pressure (Mpa) | 0.4 （60psi） | 0.5 （75psi） | ||
Useful capacity | 300L | |||
Gross capaity | 375L | |||
Tank Size (mm) | Ø860*2000 | |||
Cooling meth | Glycol water cooling | |||
Insulation material | Polyurethane | |||
Insulation thickness（mm） | 60 | |||
Inter tank thickness （mm） | 2.5 | |||
Outer tank thickness（mm） | 1.5 | |||
Cone angle | 60° | |||
Note:1Barrel (BBL) =117 Liter 1Hl=100 Liter 1Gallon=3.7854 Liter 145psi=1MPa | ||||
Details Images

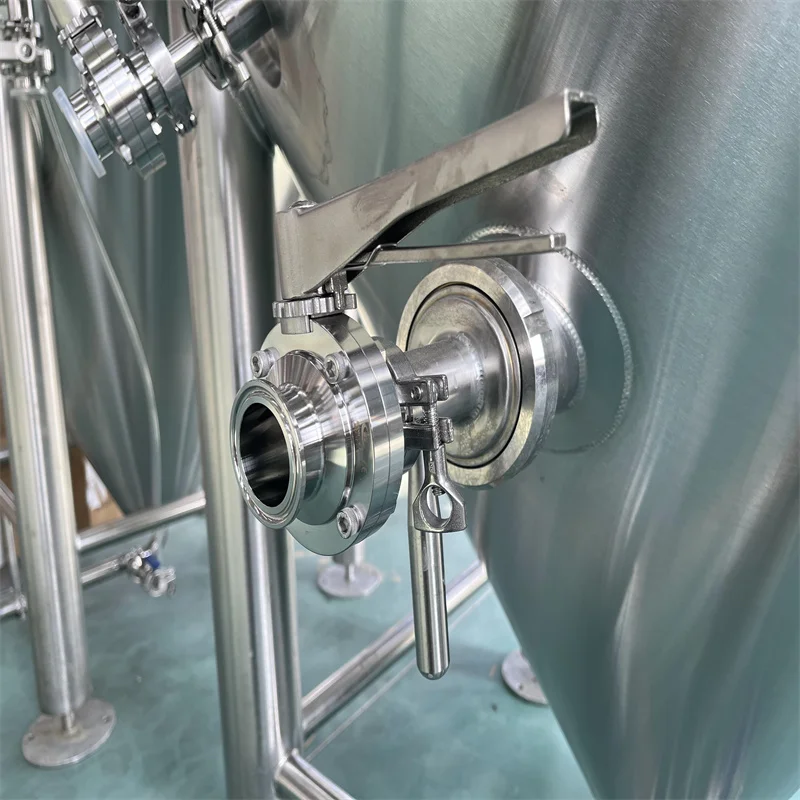

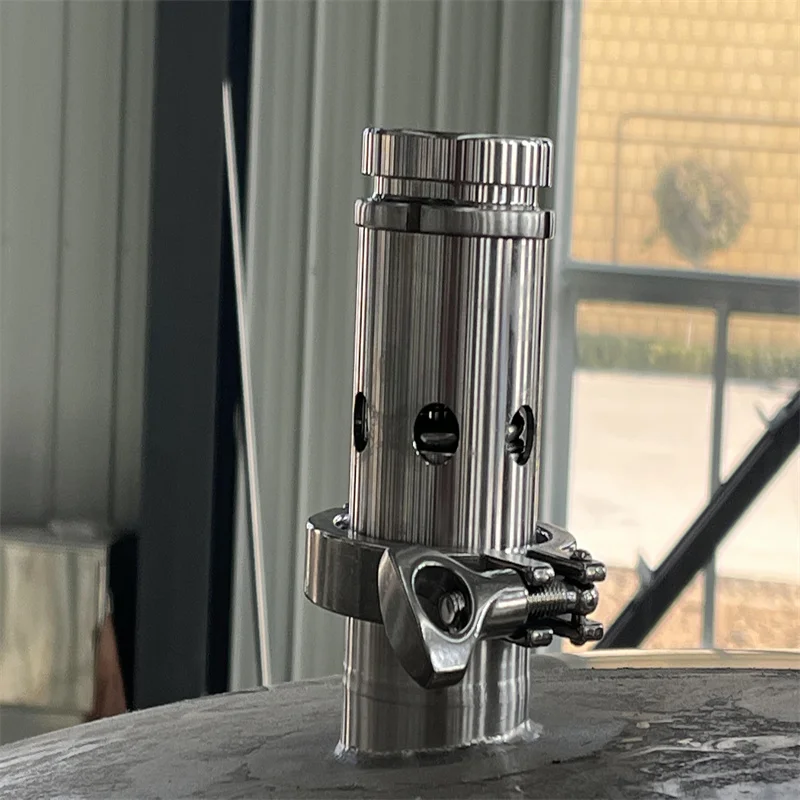

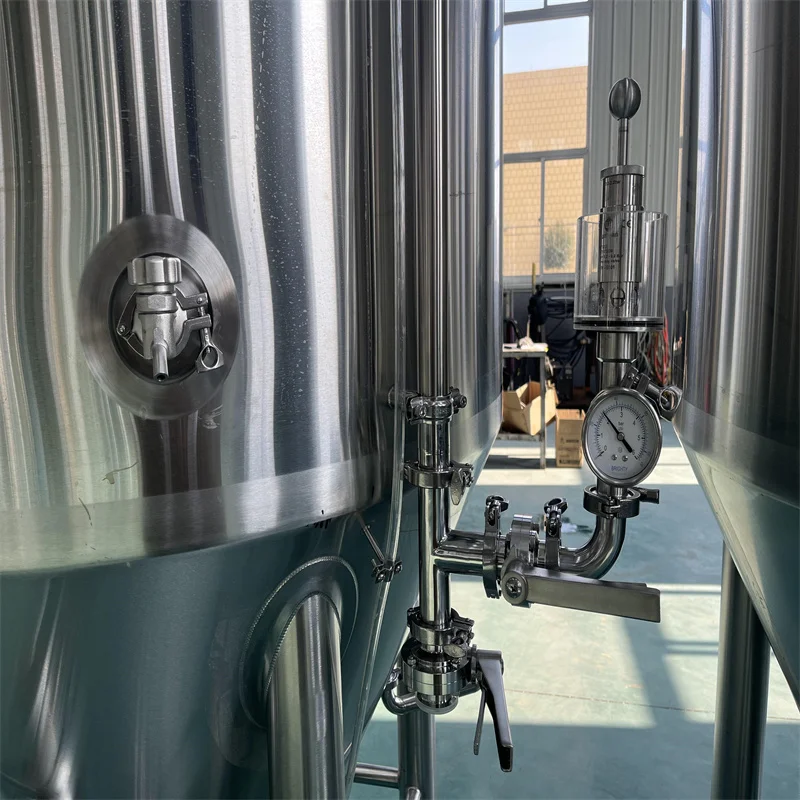

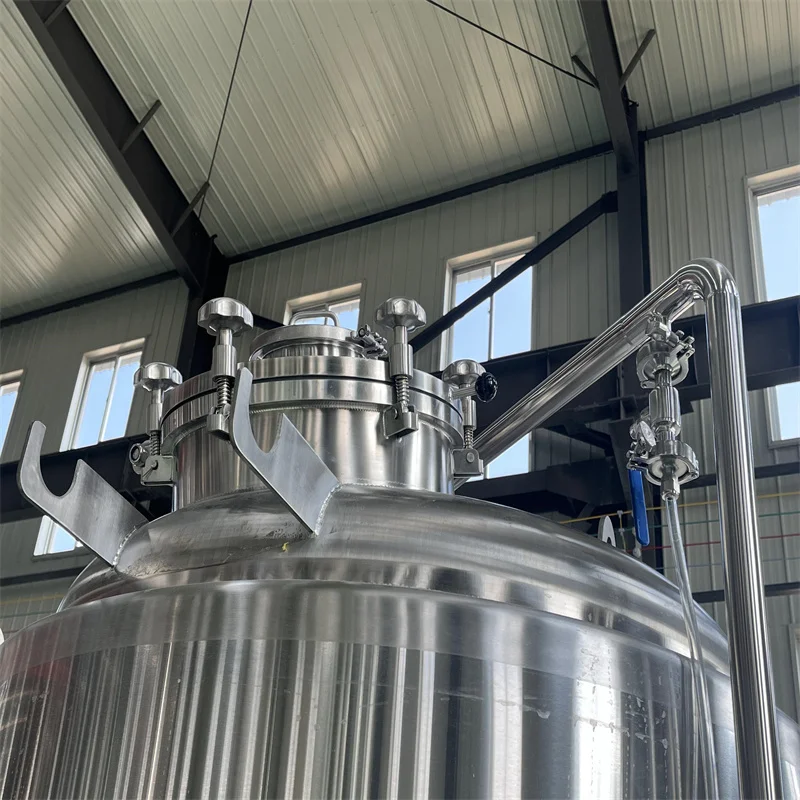

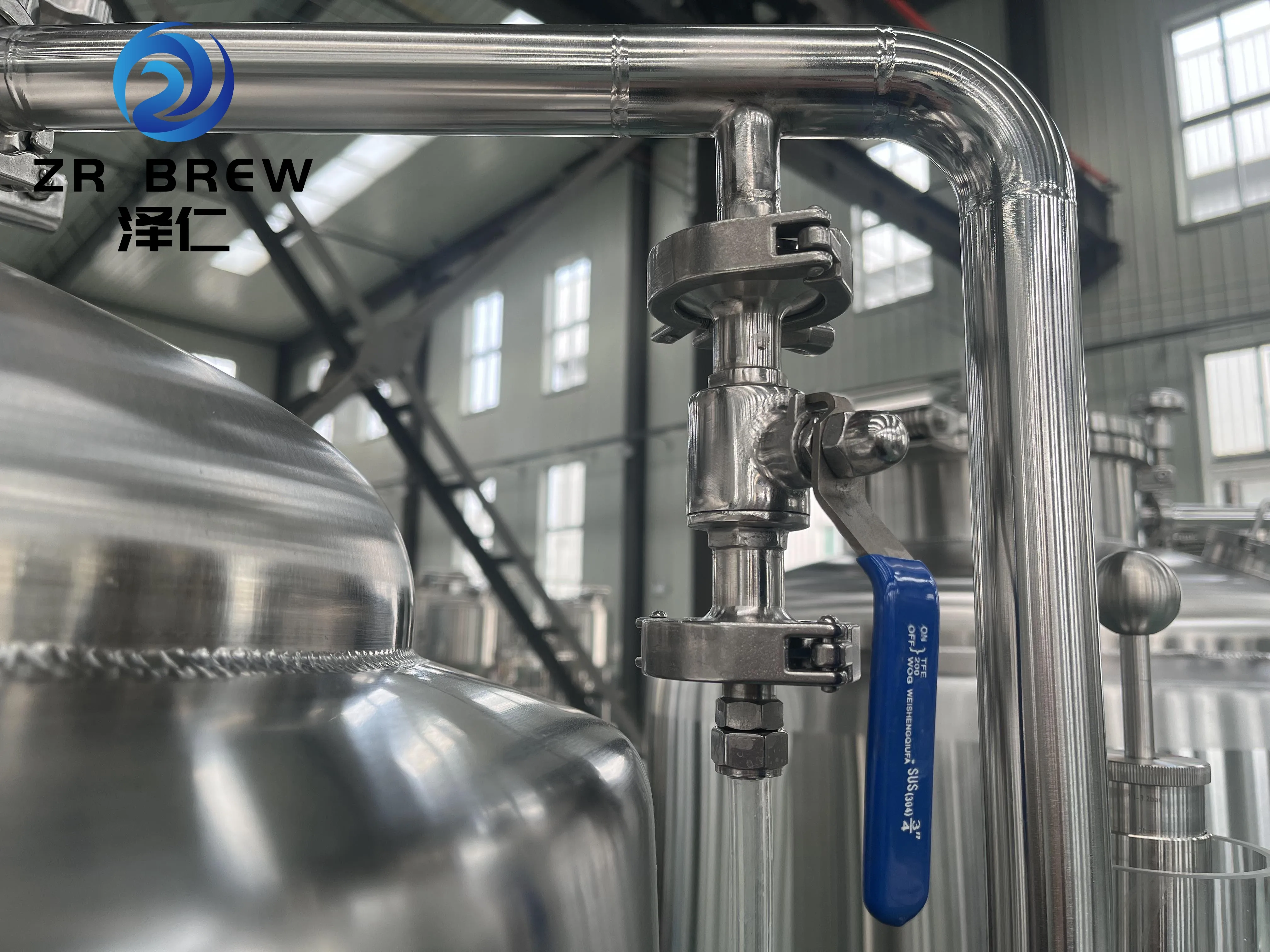

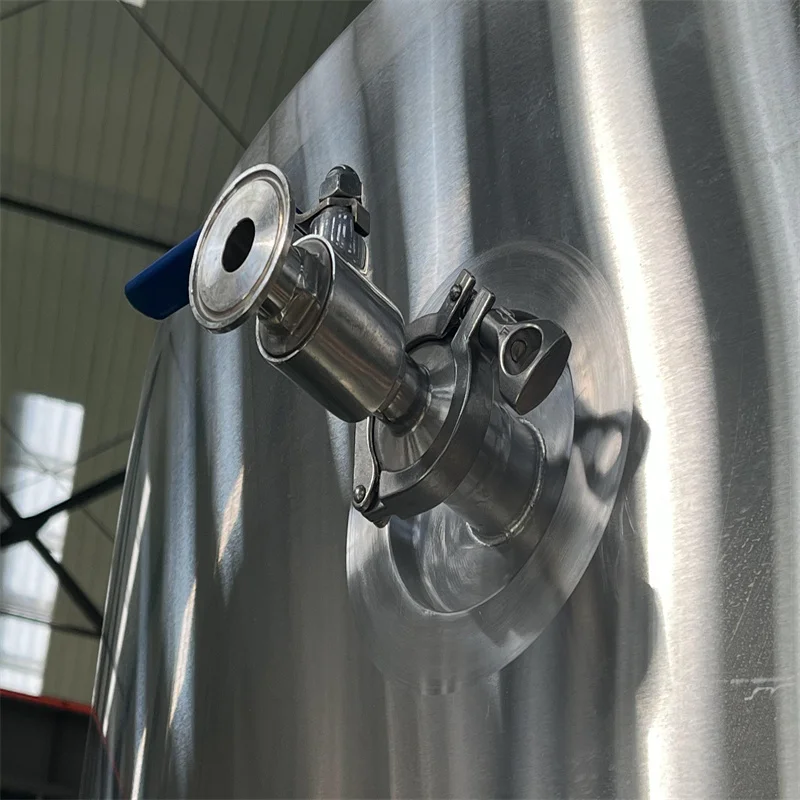

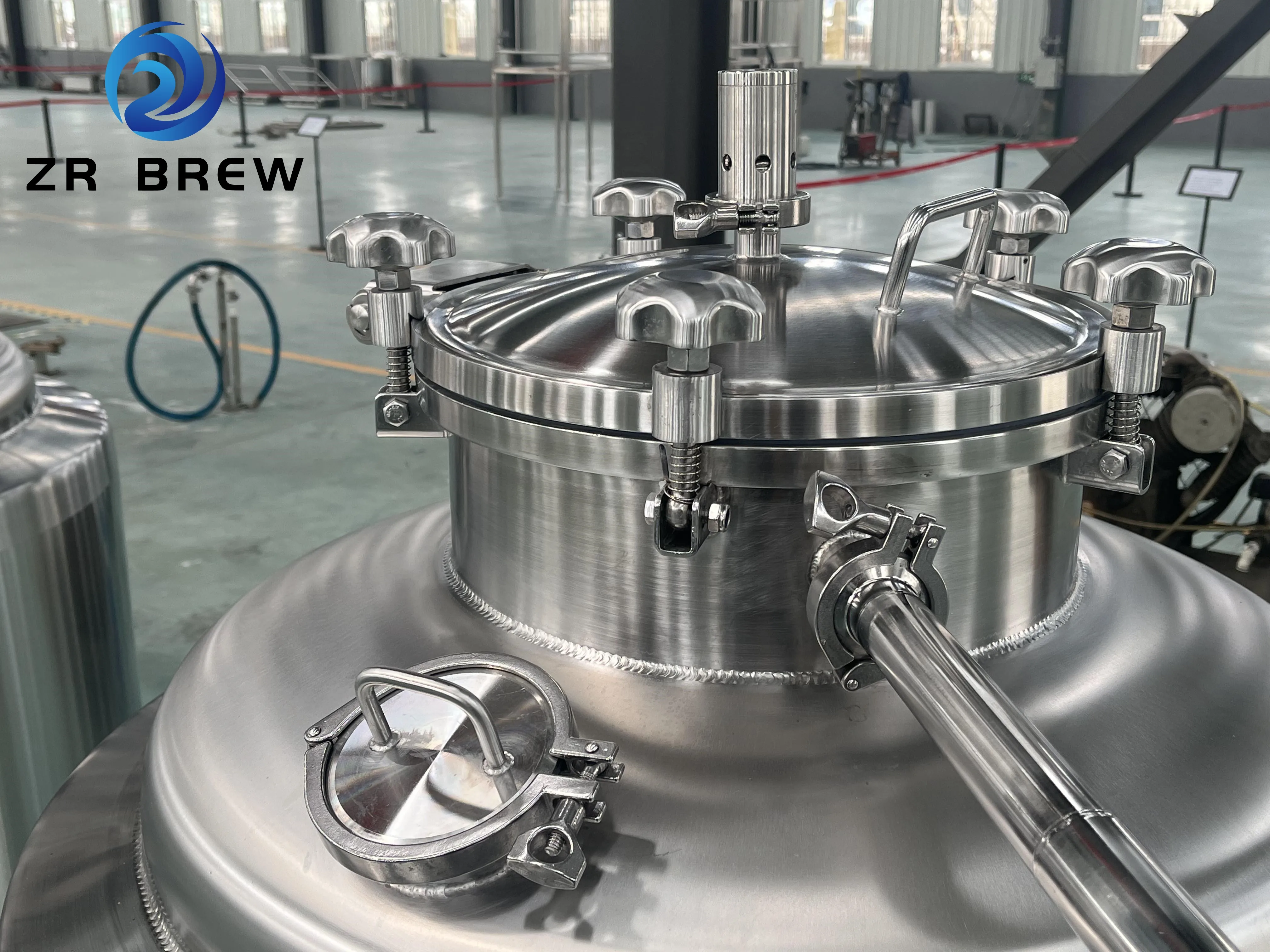

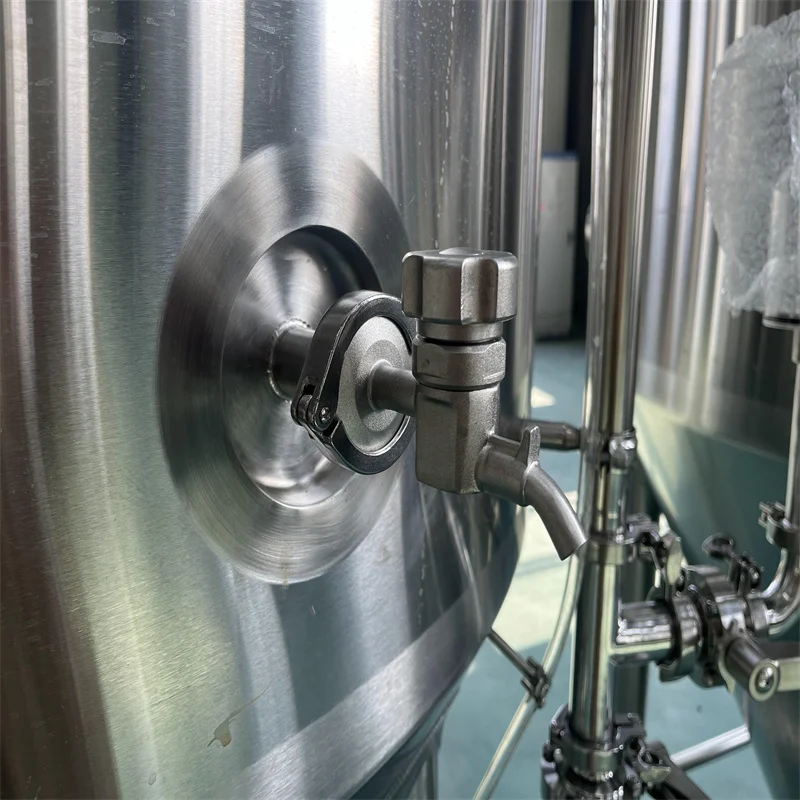

Sample Valve Mechanical PRV Pressure manhole Racking Arm

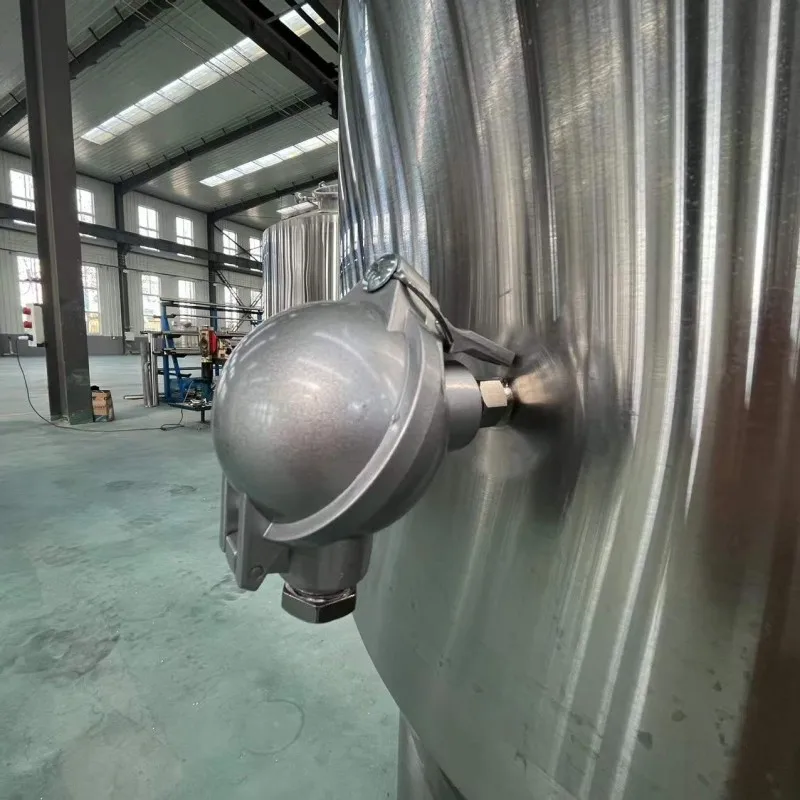

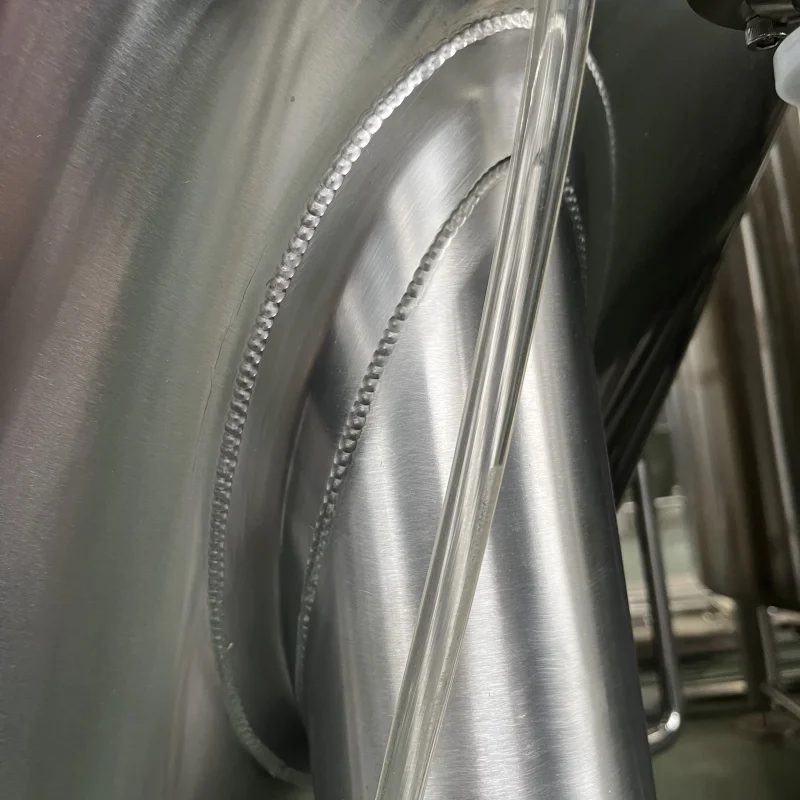

Titanium Rods Safety Valve Temperature Sensor Welding Detail
Specification selection (L) | Total volume (L) | Cooling area (m2) | Diameter (mm) | Height (mm) |
ZR-100 | 125 | 0.86 | 650 | 1500 |
ZR-200 | 250 | 1.3 | 850 | 1600 |
ZR-300 | 375 | 1.9 | 860 | 2000 |
ZR-400 | 500 | 2.1 | 960 | 2000 |
ZR-500 | 625 | 2.2 | 960 | 2200 |
ZR-1000 | 1250 | 3.4 | 1260 | 2600 |
ZR-1500 | 1875 | 4.5 | 1460 | 2850 |
ZR-2000 | 2500 | 5.4 | 1600 | 3100 |
ZR-2500 | 3125 | 6.0 | 1800 | 3400 |
ZR-3000 | 3750 | 6.7 | 1800 | 3600 |
ZR-4000 | 5000 | 7.6 | 1900 | 4000 |
ZR-5000 | 6250 | 8.5 | 2200 | 3800 |
Our Advantages
1.Pre-sale service :
1. Free turnkey beer brewing/filling/packaging solutions
2. The technical team with 13 years of experience in the beer brewing equipment industry, one-to-one service, provides different brewing process according to your requirements;

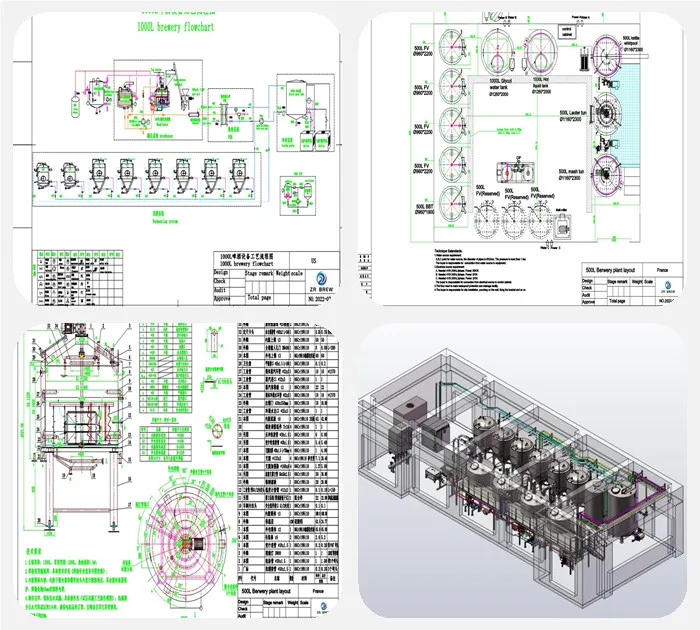

3. According to your site, carry out overall project planning and provide two-dimensional and three-dimensional layout drawings;
2. The technical team with 13 years of experience in the beer brewing equipment industry, one-to-one service, provides different brewing process according to your requirements;
3. According to your site, carry out overall project planning and provide two-dimensional and three-dimensional layout drawings;

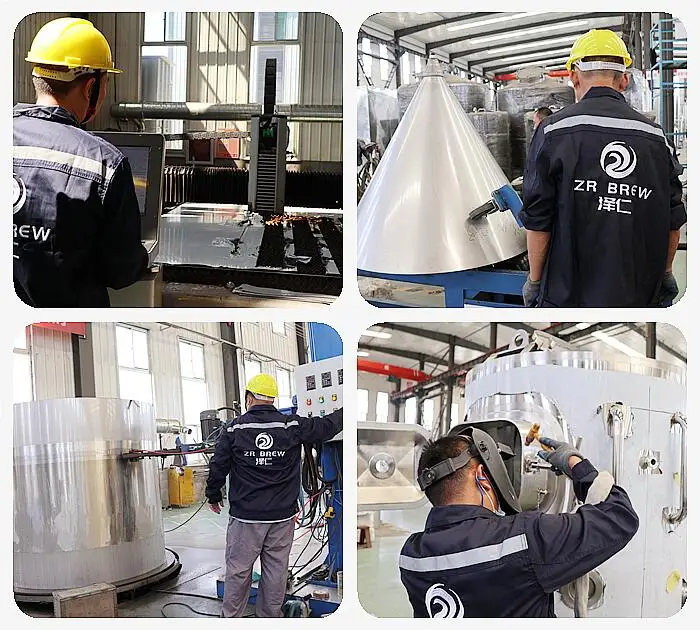

2.Rigorous production process
1. Provide detailed production drawings, and then arrange production after confirming with you to ensure accuracy;
2. Complete production process quality control system, including raw material incoming quality inspection records, production process records, pressure test records of jackets and cylinders, commissioning records of the entire set of equipment before delivery, equipment packaging and delivery records, once found Problems can be traced back to the source as quickly as possible;
3. Regularly update the production progress photos for you every week;
2. Complete production process quality control system, including raw material incoming quality inspection records, production process records, pressure test records of jackets and cylinders, commissioning records of the entire set of equipment before delivery, equipment packaging and delivery records, once found Problems can be traced back to the source as quickly as possible;
3. Regularly update the production progress photos for you every week;
3.After- sale service:

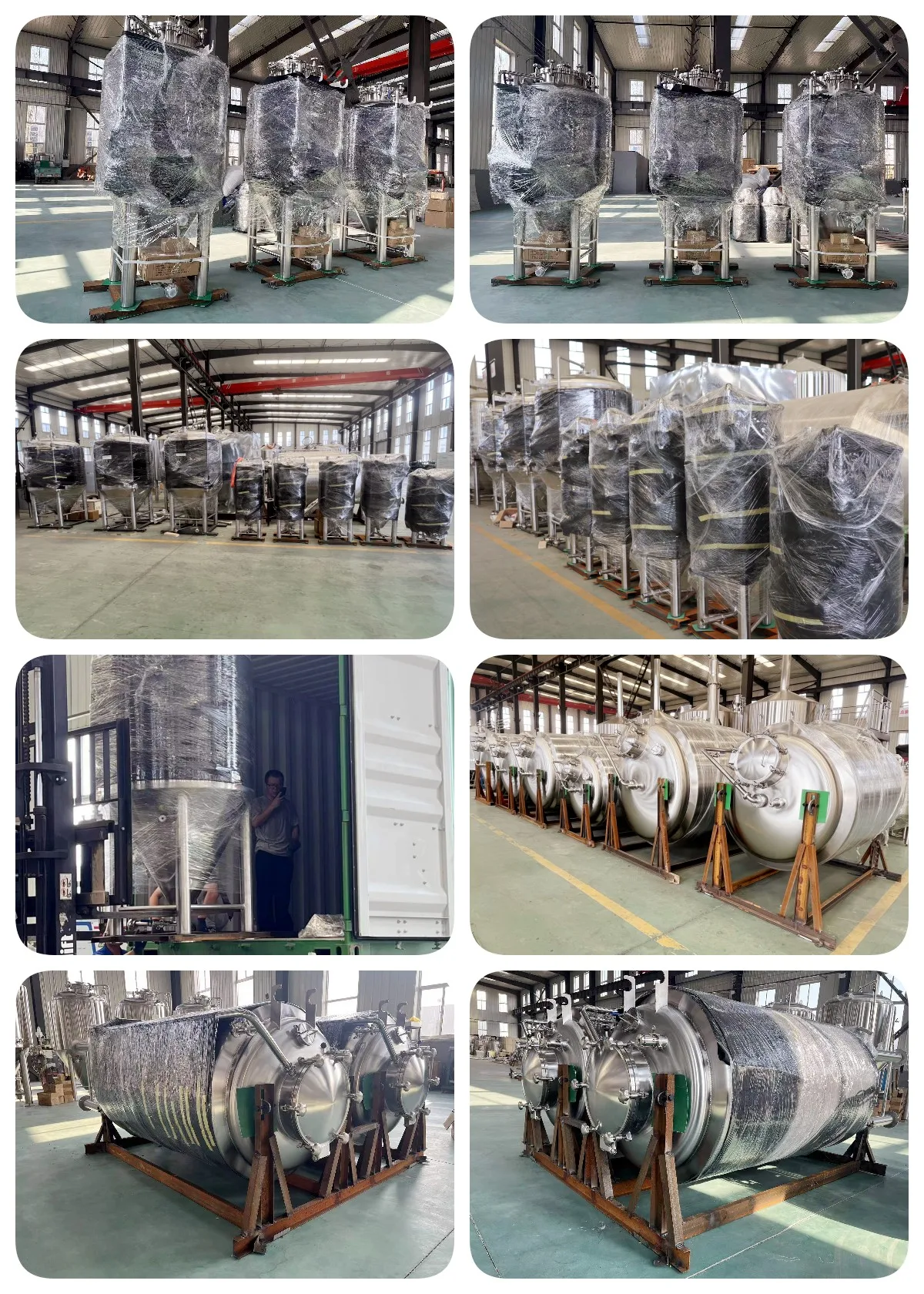

1. Perfect packaging and transportation, all the tanks are wrapped by three layers of PE protective film, the nozzles are blocked by dust caps, the spare parts are sealed in wooden boxes, the whole loading process is recorded by photos, and accompanied by a checklist, sent to you together;
2. Complete installation and commissioning services, providing detailed installation instructions in English or French, online video-guided installation and offline door-to-door installation. You can choose between two installation and commissioning modes. We are also establishing technical service teams around the world, so that you can look back worry-free;
3. Lifetime warranty and technical consultation;
2. Complete installation and commissioning services, providing detailed installation instructions in English or French, online video-guided installation and offline door-to-door installation. You can choose between two installation and commissioning modes. We are also establishing technical service teams around the world, so that you can look back worry-free;
3. Lifetime warranty and technical consultation;

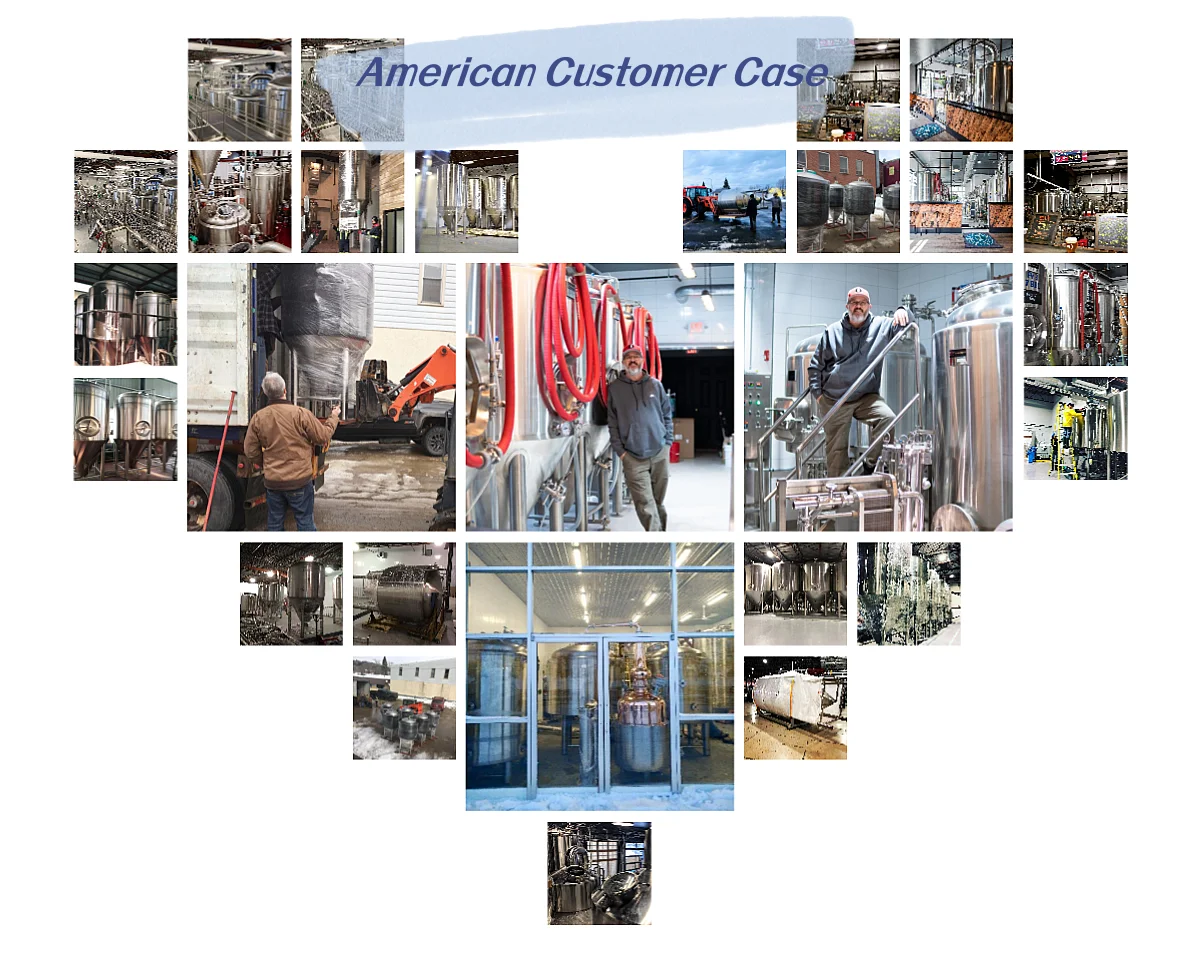

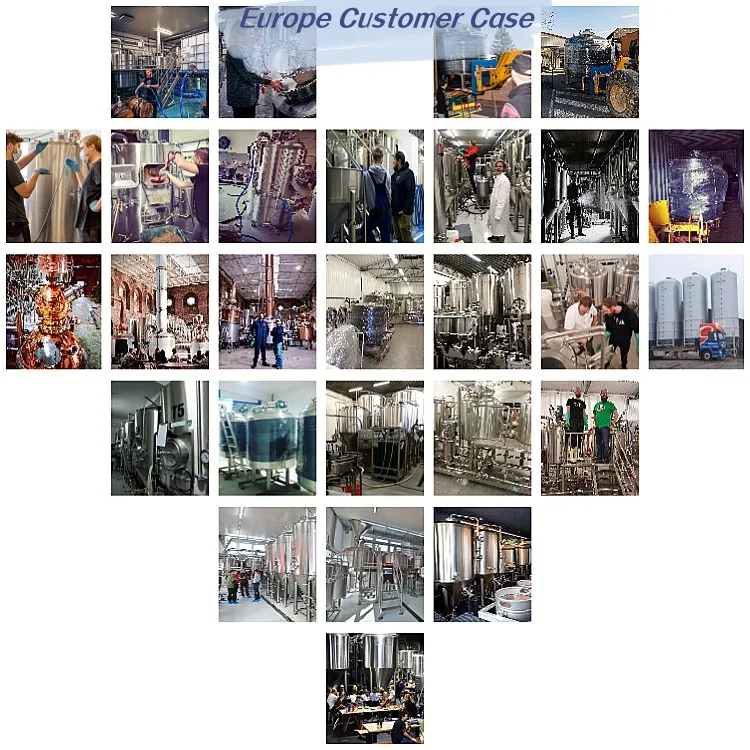

Project Case
Why Choose ZR BREW
ONE-STOP SERVICE Turnkey beer brewing/filling/packing solution. | DOOR-to-DOOR SERVICE We provide door to door service. Installation is free of charge. | AFTER-SALES SERVICE We have a dedicated after-sales service team to provide 7/24 after-sales service. | 10000+ SQUARE METERS WORKHOUSE Our factory located in Dezhou with 10,000+ square meters. |
13 YEARS EXPERIENCE 13 years experience of beer brewing equipment industry. | CERTIFICATE CE, UL, TUV ,PED certification. etc. | TECHNOLOGY TEAM Including pre-sales technical consultation, issuance of process flow chart, CAD/CAXA drawings, 3D drawings, after-sales technical services, etc. | 24H ONLINE SERVICE 7/24 pre-sale, after-sale service |
ABOUT ZR BREW
Shandong Zeren Machinery Equipment Co., Ltd. referred to as ZR BREW.ZR BREW is an equipment manufacturer focusing on the biological fermentation industry, mainly engaged in beer brewing equipment, providing high-end comprehensive services of product design, production, processing, installation, technical process training. ZR BREW's products have been exported to more than 40 countries and regions in the world. Mainly concentrated in Europe and North and South America.
ZR BREW Company is located in Jinan City, and the factory is located in Dezhou City, covering an area of 10,000 square meters. The company has 52 employees, including 6 senior technicians and 8 intermediate technicians, with more than 20 undergraduates. Project leaders and technical engineers have more than 13 years of work experience in the beer industry.

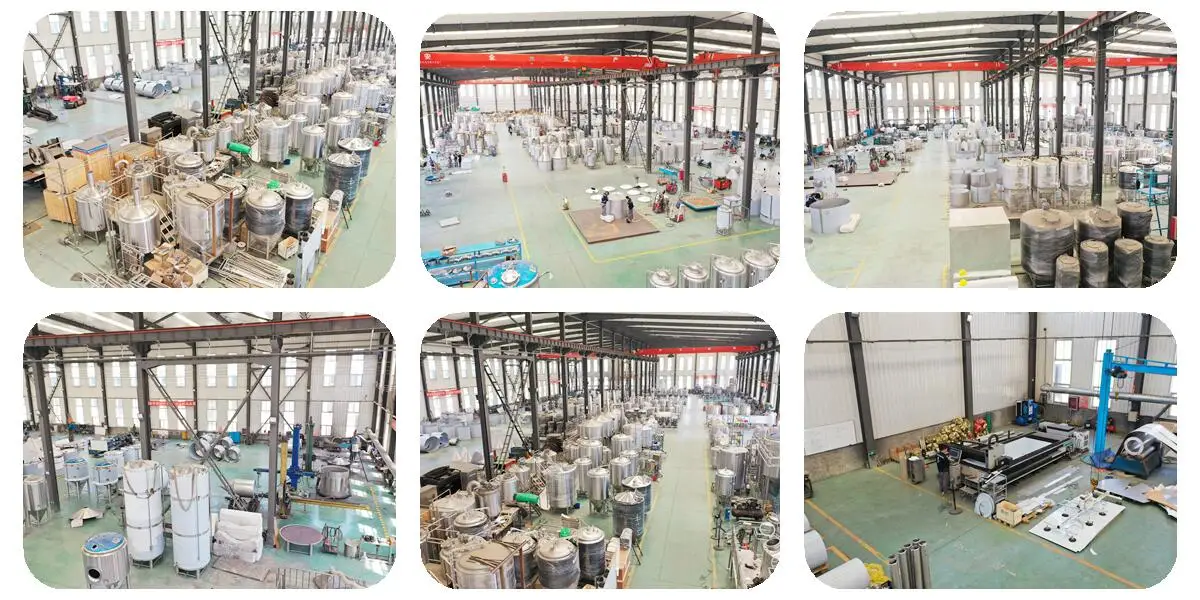

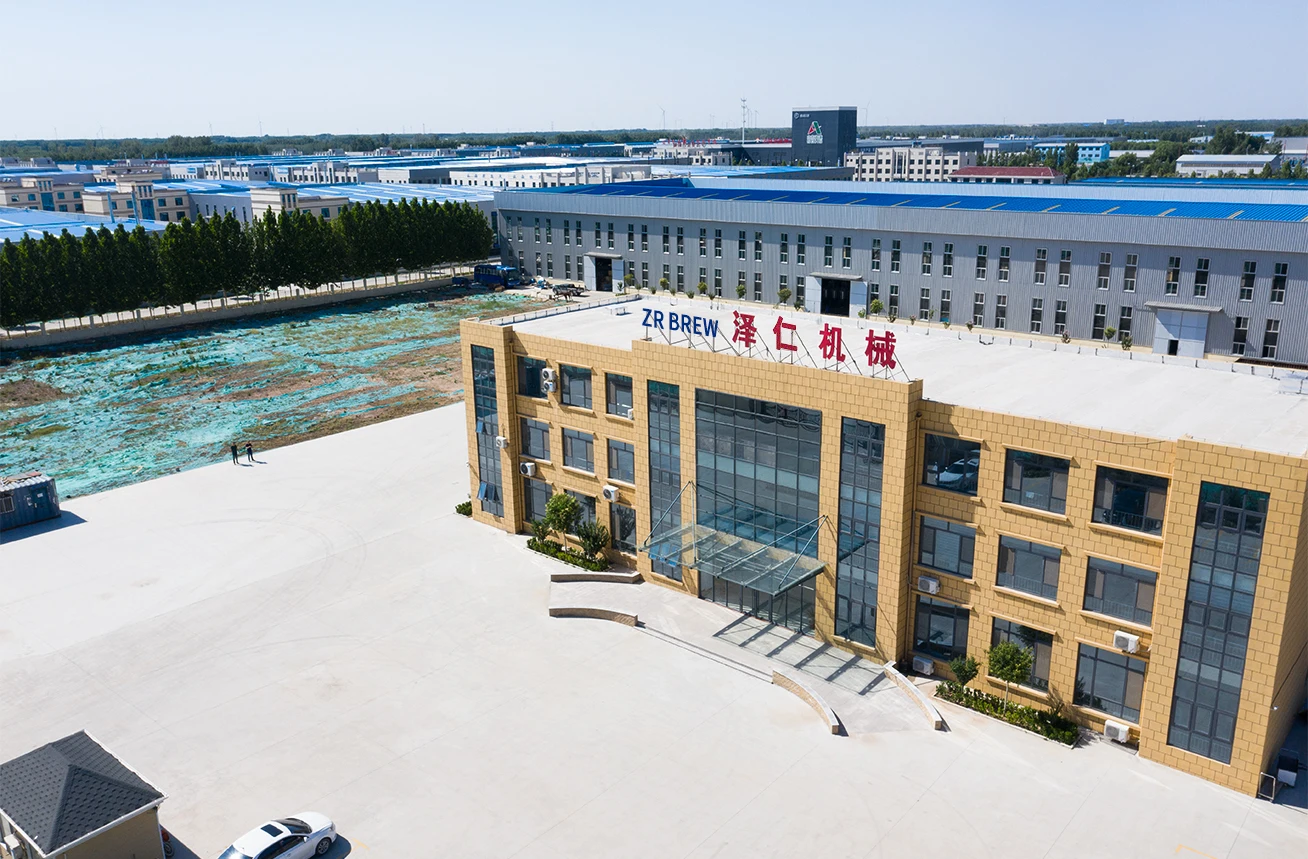

Our Factory
Our Team
Certifications

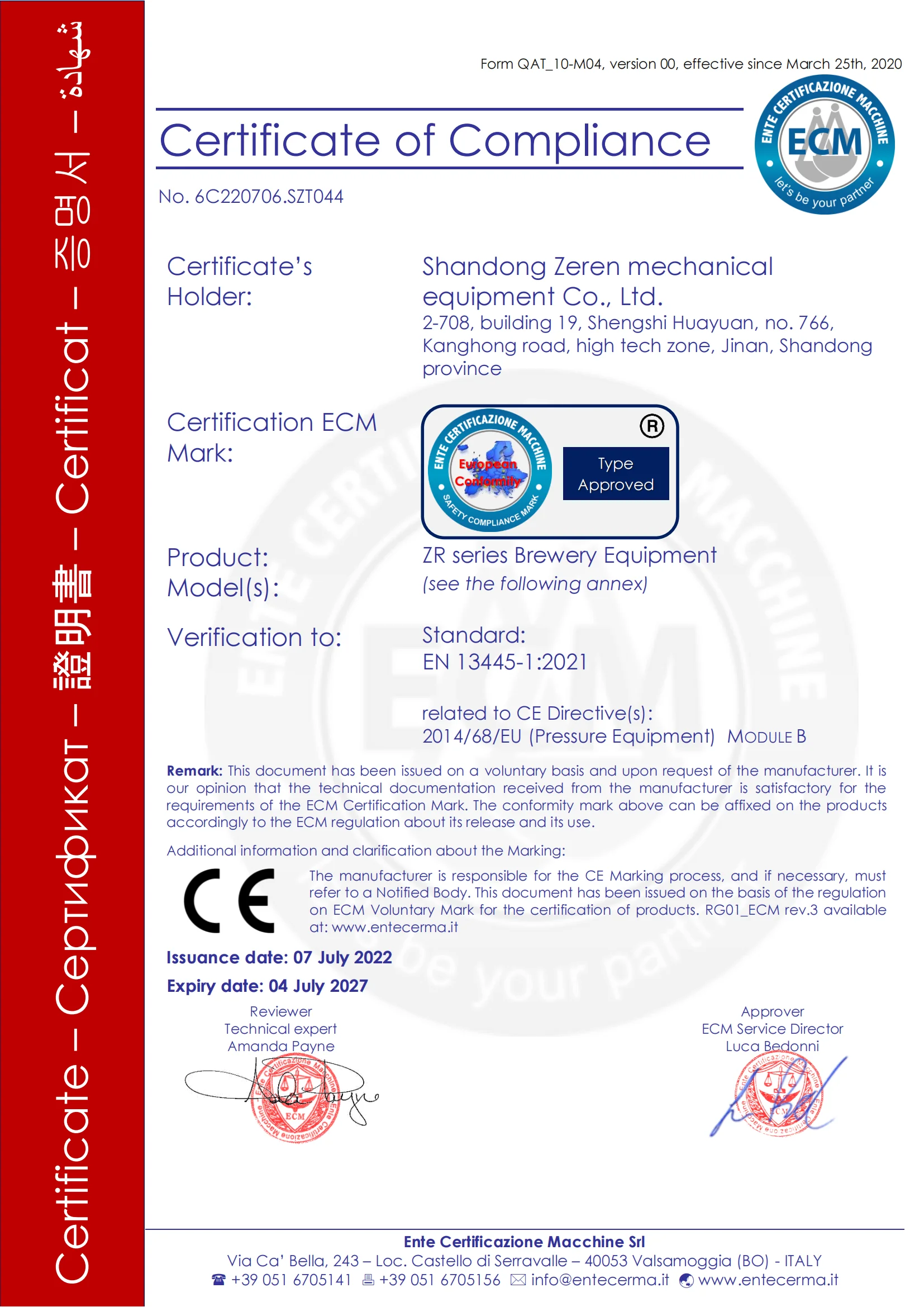

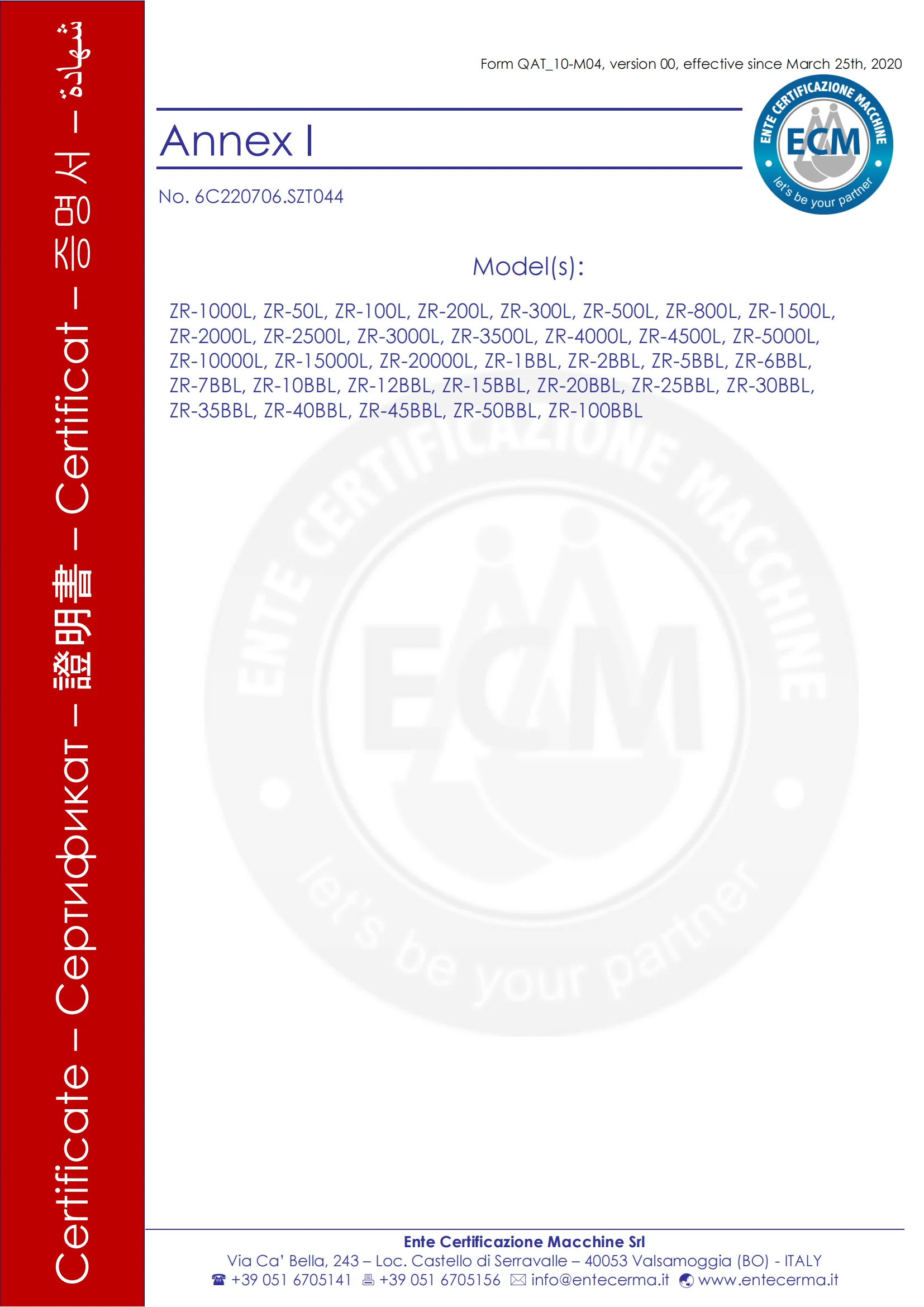

CE Certification CE Certification

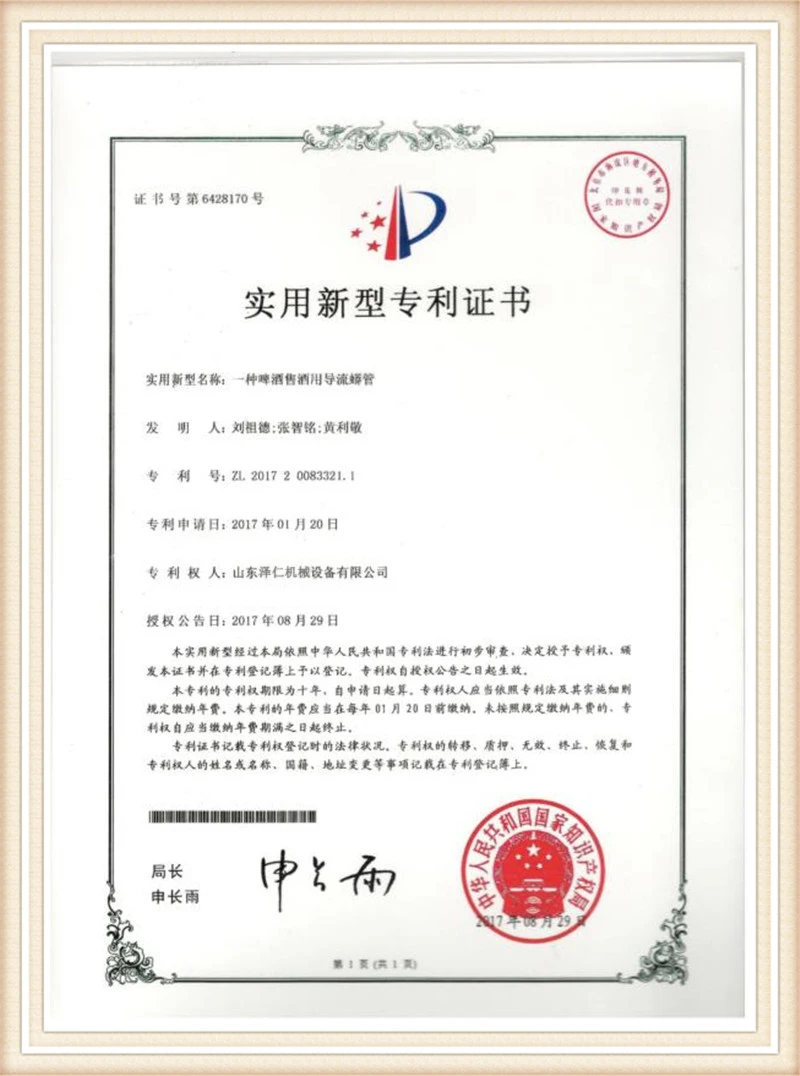

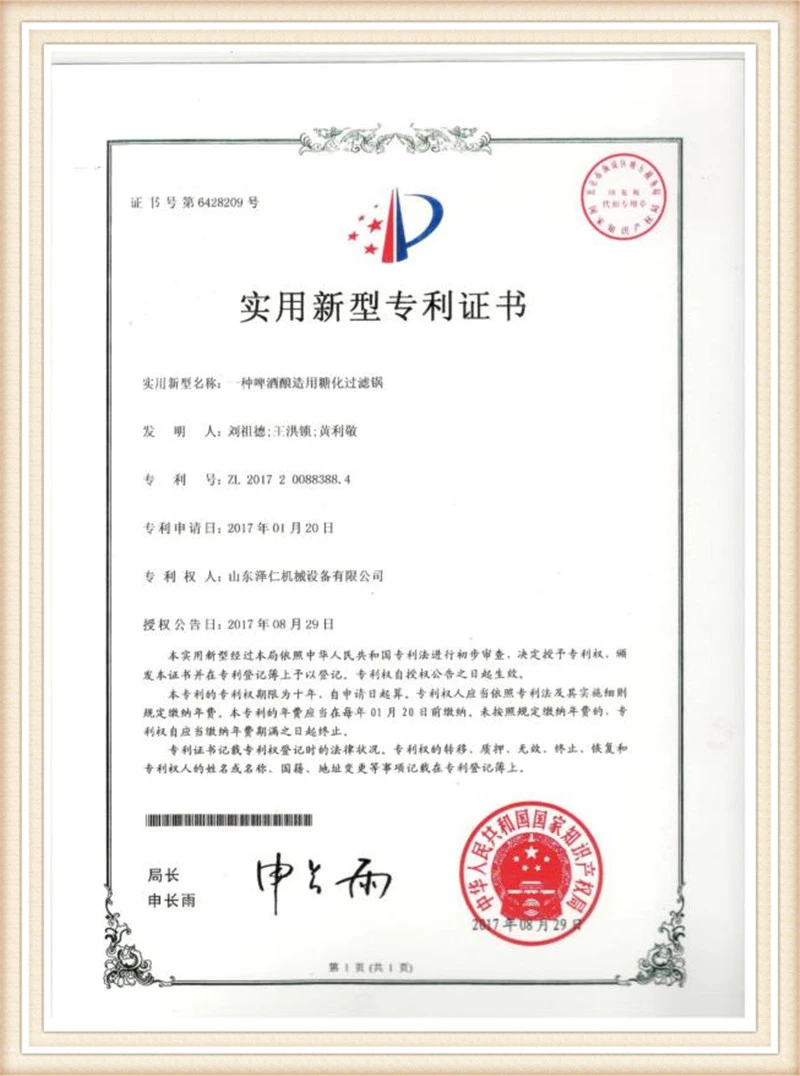

Patent Certificate Patent Certificate Patent Certificate Patent Certificate
FAQ
1.How to achieve temperature control?
The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.
2.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping.
2. Paypal or trade assurance is available.
4.How long is your delivery time?
Usually the lead time for fermenter tank is 30 working days, while the lead time for complete brewery project is 40 working days, timed from final drawing confirmed
5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing.
