KUONGSHUN Cheap RS485 Modbus Output Cup Wind Sensor Anemometer Meter

Share on (1600800162192):


Price:$21.38 - $22.87

Quantity:


Product Overview

Description







Product Description

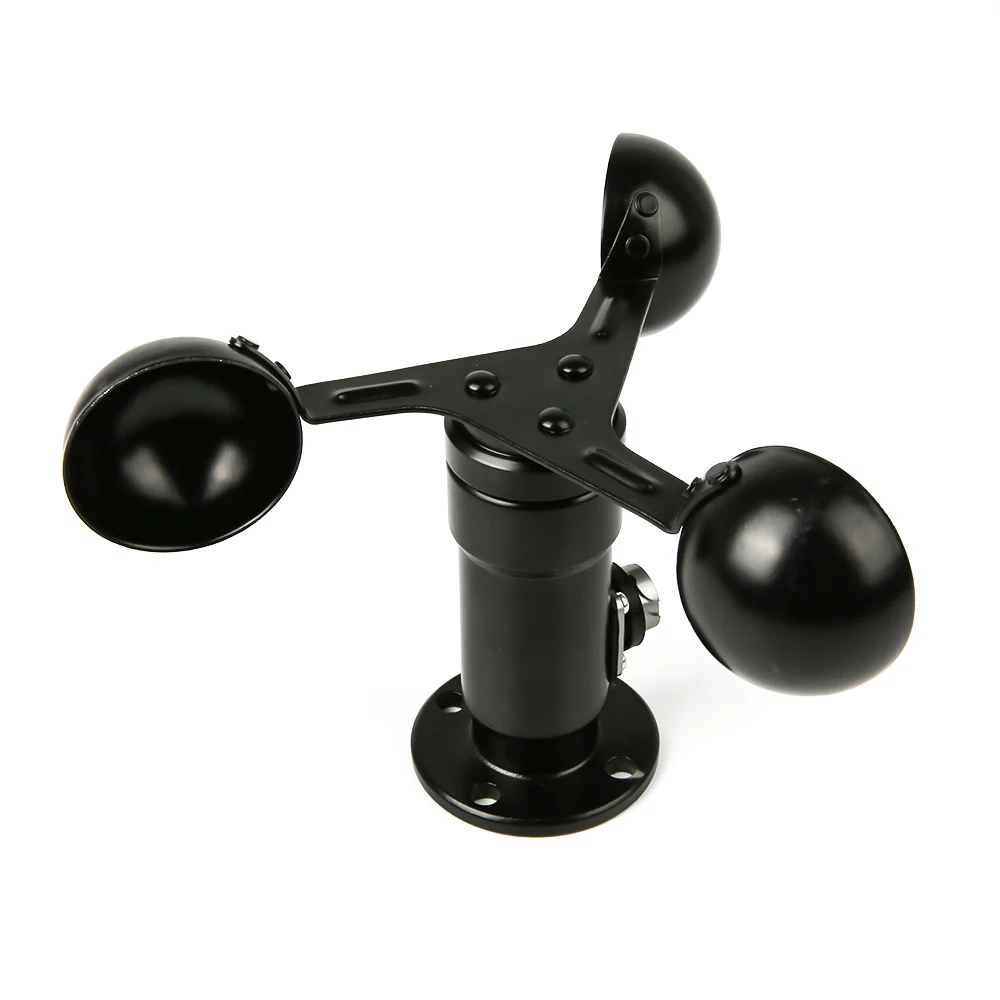

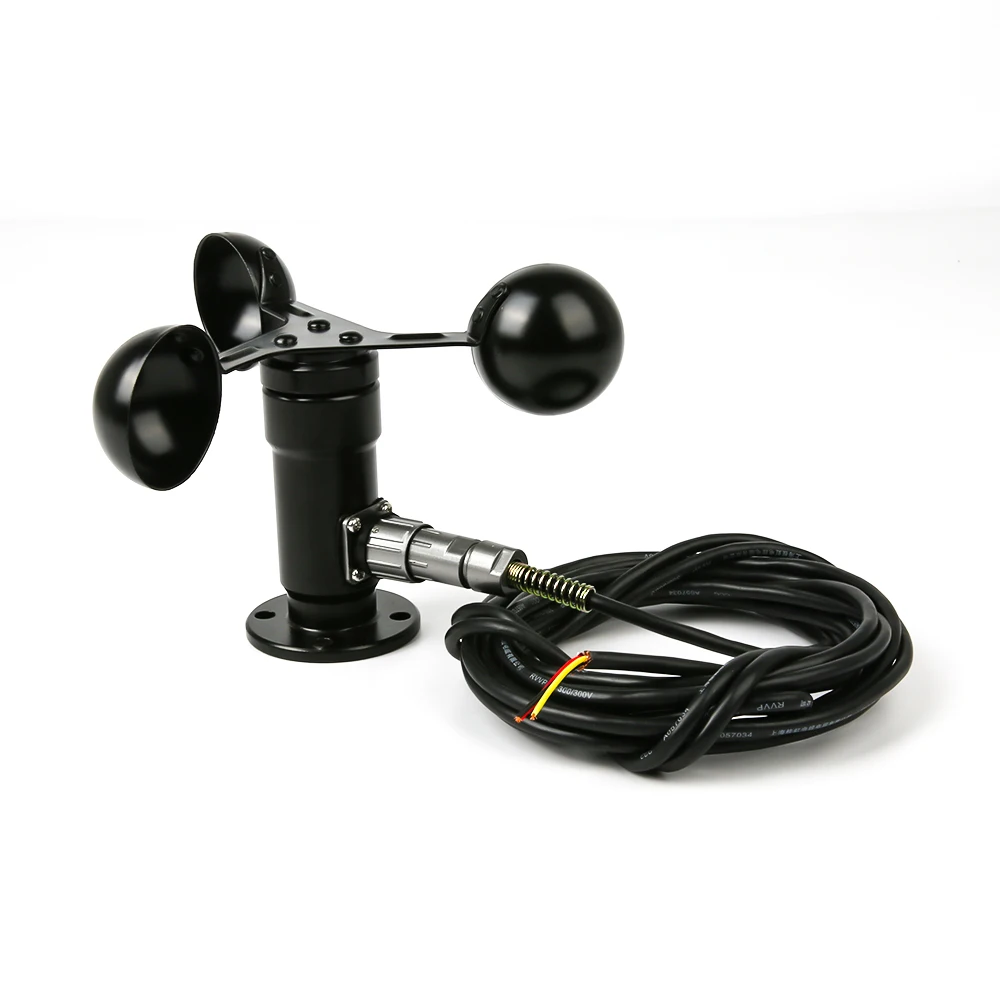

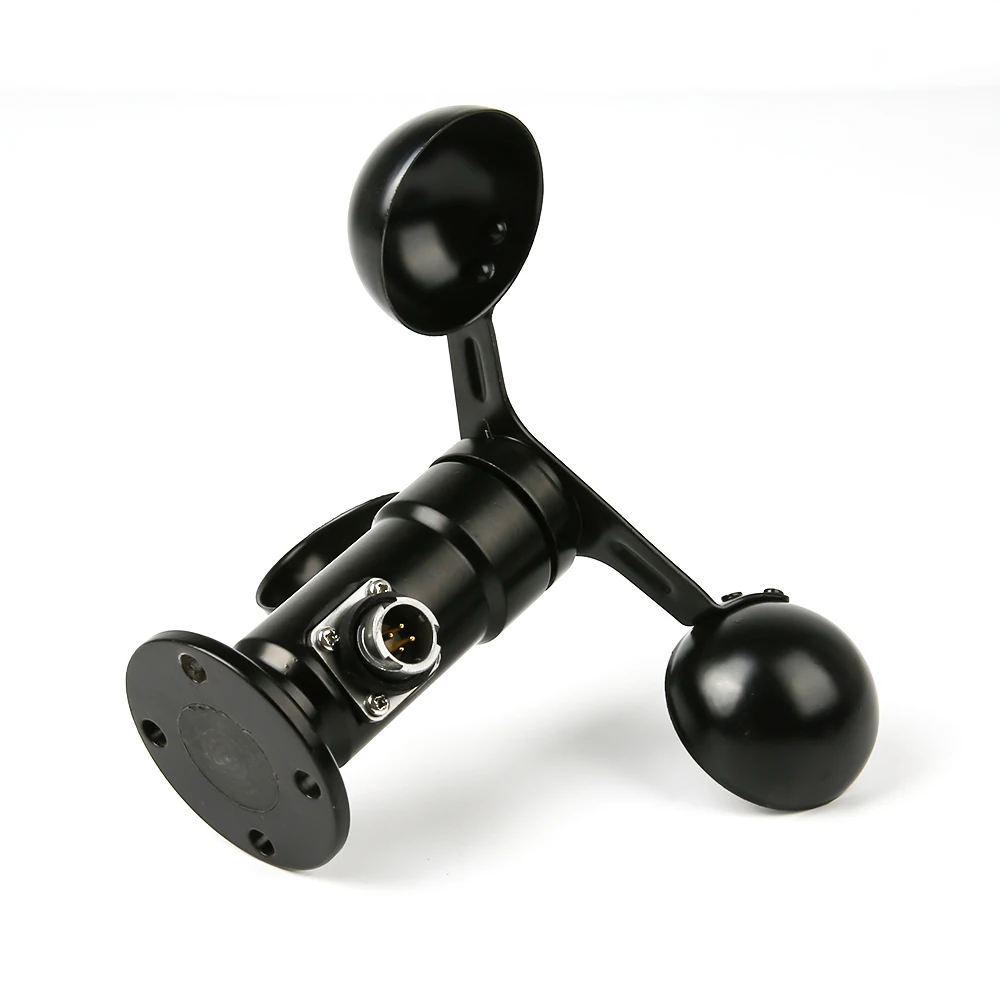

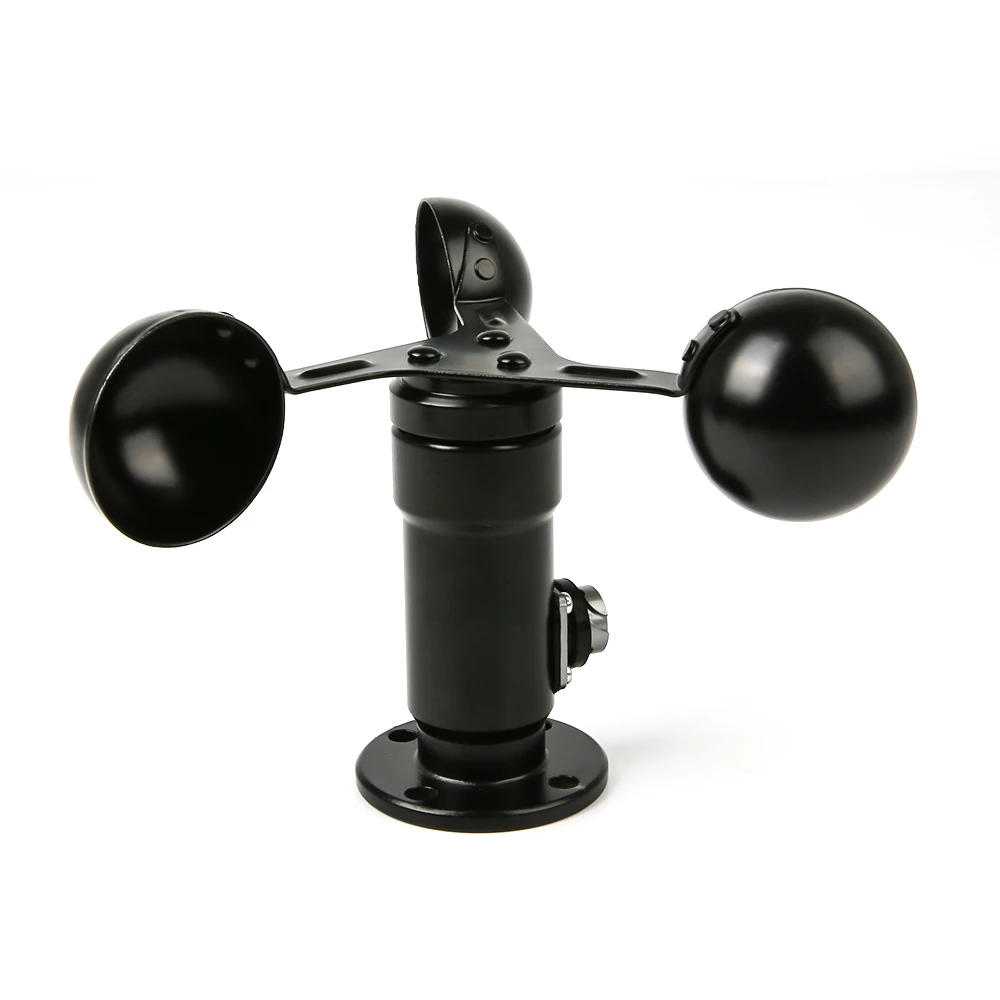

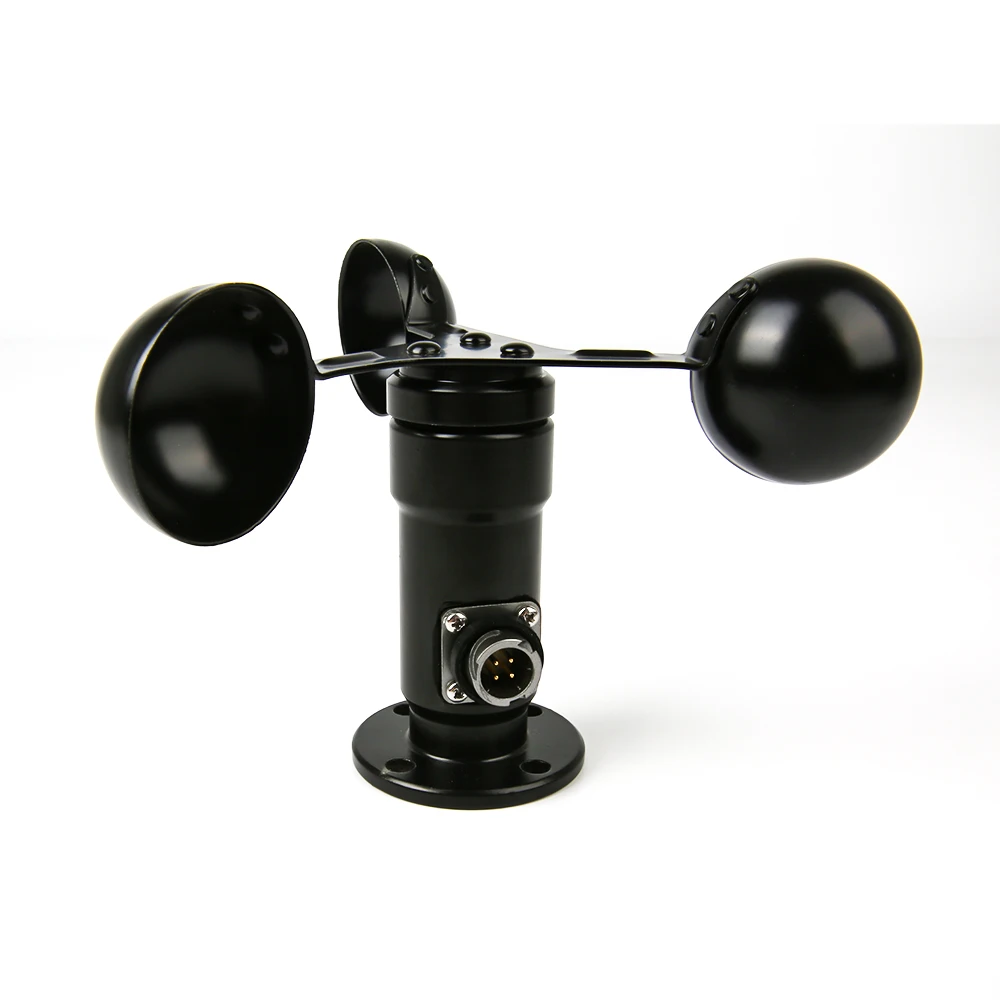

KUONGSHUN Cheap RS485 Modbus Output Cup Wind Sensor Anemometer Meter

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell.
It can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

FEATURES
* Low starting threshold
* Overall carbon fiber material
* Strong corrosion resistant ability
* Light structure
* Various output signals optional
* Easy Installation

APPLICATIONS
* Weather monitoring stations
* Safety monitoring of high altitude equipment
* Ports
* Mobile weather monitoring vehicles
* Marine vessels
* Remote airports & helipads
* Road & rail tunnels




1. Industry market conditions and original factory price fluctuation dynamic videos are numerous, the specific price and business confirmation shall prevail
2. The original factory packs the package, the specific price involves unpacking and repacking according to the required quantity,the specific price and business confirmation shall prevail




Output
Pulses
4-20mA
0-5V
RS485
Supply Voltage
5V,12V-24V
5V,12V-24V
5V,12V-24V
5V,12V-24V
Load Capacity
>1kΩ
<500Ω(typ 250Ω)
>1kΩ
Range
0-45m/s
0-45m/s
0-45m/s
0-45m/s
Accuracy
±(0.3+0.03V)m/s; (V is the current wind speed)
Starting Threshold
<0.5m/s
Limit wind speed
50m/s
Ingress Protection
IP65
Operating Temperature
-40℃~ +50℃
Cable Grade
Nominal voltage:300V, Temperature grade:80℃
Weight(unpacked)
170g
Dimension
Cup rotor:ø179mm, Height:160mm
Main material
Carbon fiber
Storage Condition
10℃-50℃@20%-90%RH
