110 120V 220 240V Smart Prepaid Electric Electricity Single Phase Prepaid Electric Meter Card
- Category: >>>
- Supplier: Wenzhou Hawai Electron & Electric Manufacture Co. Ltd.
Share on (1600800202082):
Product Overview
Description
RELATED PRODUCTS

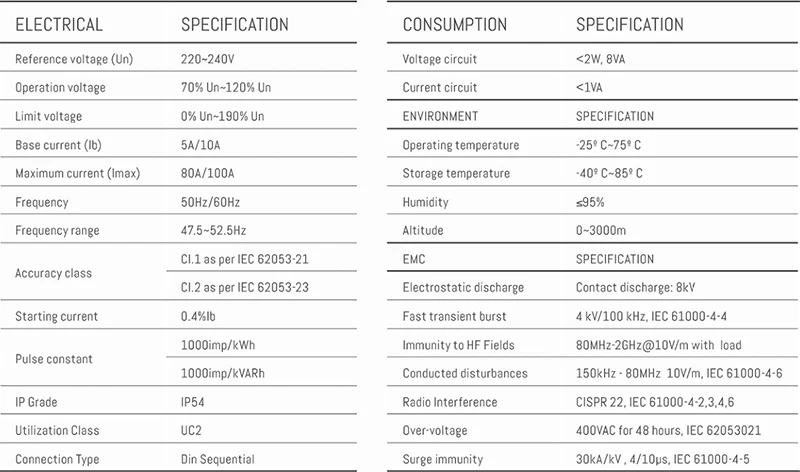

PRODUCT PARAMETER
Name | prepaid electricity meter |
Base current: | 5A/10A |
Frequency: | 50Hz/60Hz |
Pulse constant: | 1000imp/kwh |
Utilization Class: | UC2 |
Brand Name: | YUANKY |
Measuring Energy Range: | 1000imp/kwh |
Output Voltage: | 110-120V,220-240V |
PRODUCTS SHOW

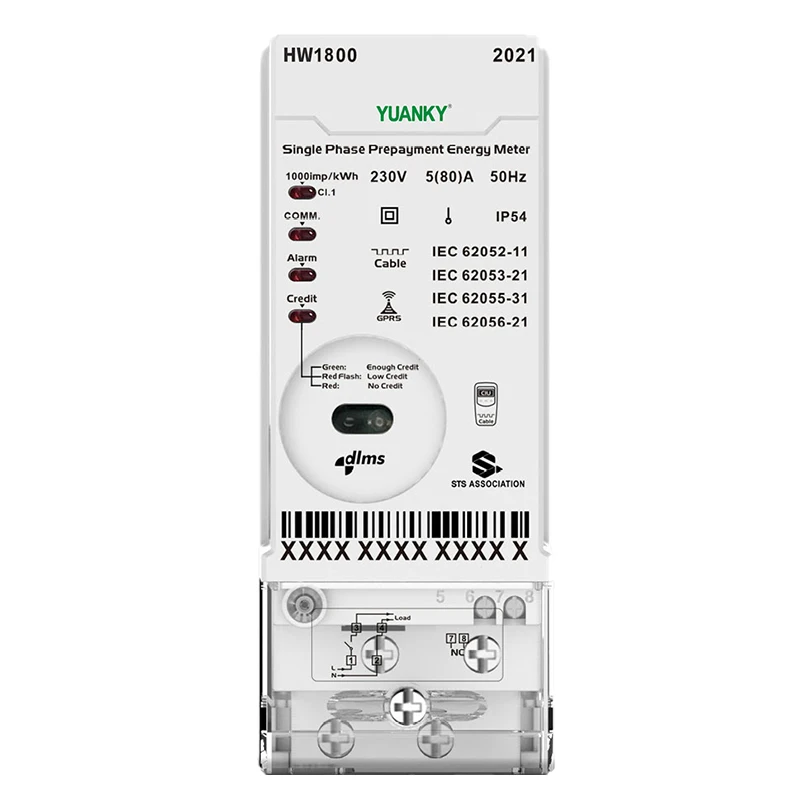

DIN-RAIL PREPAYMENT HW 1800
HW1800 is a stondard 35 mm Din-Rail variant of HW1800, offering full smart prepayment features with compact design. The meter is built with a Customer Interface Unit (CIU), allowing high anti- tampering functions. The communication between the meter and the CIU is selectable amongst PLC, RF and M-Bus.
+CERTIFICATION
STS 2.0,DLMS/COSEM
+APPLICATION
SINGLE PHASE TWO WIRE
+LOCAL COMMUNICATI0N
0PTICAL,RS485,USB MICRO

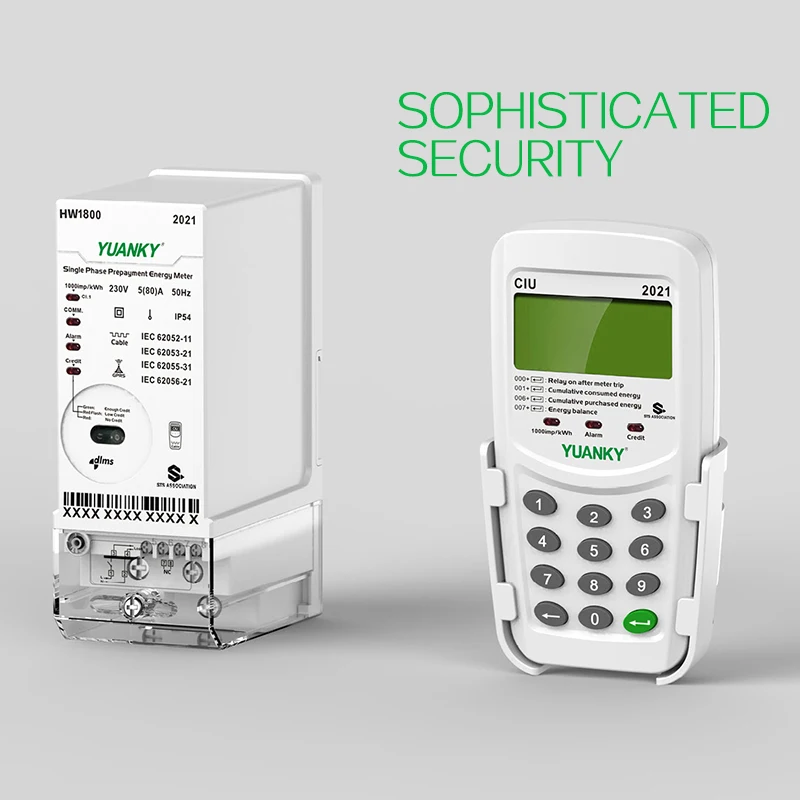

SOPHISTICATED SECURITY
Serialized security seals are provided in combination with “sacrificial” seals. The meter is completely ultrasonic-sealed to
prevent any opening. Tamper can be detected even if the power is disconnected. The user interface includes hotkey to display the number of tamper conditions detected.
+ COMMUNICATION WITH CIU
RF, PLC,M-BUS
+ SEALING MECHANISM
ULTRASONIC WELDED
+SECURITY SETTING
DLMS/COSEM HLS

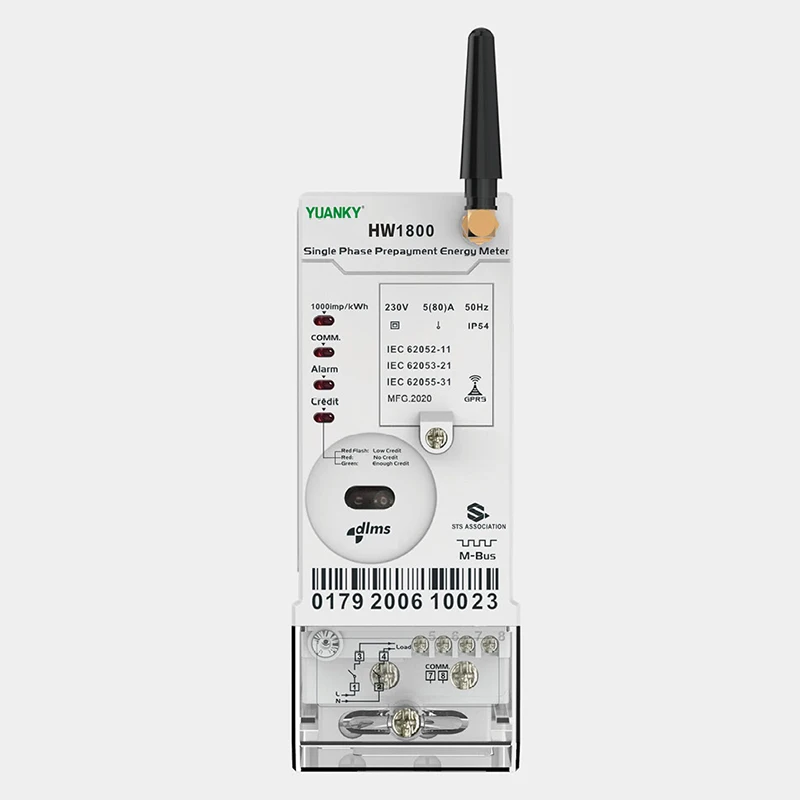

THE SMART VARIANT OF HW1800
As a smart variant of HW1800, the meter is inbuilt with GSM/GPRS modem to support the direct remote communication with Head End System (HES). The modem is independently sealed from the front panel of the meter.External antenna is provided to enhance the communication in challenging environment.
Besides GSM/GPRS, the meter also supports communication of RF and PLC communication to the DCU for AMl implementation.
HW1800 is a stondard 35 mm Din-Rail variant of HW1800, offering full smart prepayment features with compact design. The meter is built with a Customer Interface Unit (CIU), allowing high anti- tampering functions. The communication between the meter and the CIU is selectable amongst PLC, RF and M-Bus.
+CERTIFICATION
STS 2.0,DLMS/COSEM
+APPLICATION
SINGLE PHASE TWO WIRE
+LOCAL COMMUNICATI0N
0PTICAL,RS485,USB MICRO
SOPHISTICATED SECURITY
Serialized security seals are provided in combination with “sacrificial” seals. The meter is completely ultrasonic-sealed to
prevent any opening. Tamper can be detected even if the power is disconnected. The user interface includes hotkey to display the number of tamper conditions detected.
+ COMMUNICATION WITH CIU
RF, PLC,M-BUS
+ SEALING MECHANISM
ULTRASONIC WELDED
+SECURITY SETTING
DLMS/COSEM HLS
THE SMART VARIANT OF HW1800
As a smart variant of HW1800, the meter is inbuilt with GSM/GPRS modem to support the direct remote communication with Head End System (HES). The modem is independently sealed from the front panel of the meter.External antenna is provided to enhance the communication in challenging environment.
Besides GSM/GPRS, the meter also supports communication of RF and PLC communication to the DCU for AMl implementation.
Certifications
The certificate continues to be updated
We have ISO9001, CE, CB, SAA, semko and other certificates, and we can continue to produce new certificates according to customer needs, and look forward to cooperating with you for a win-win situation.
