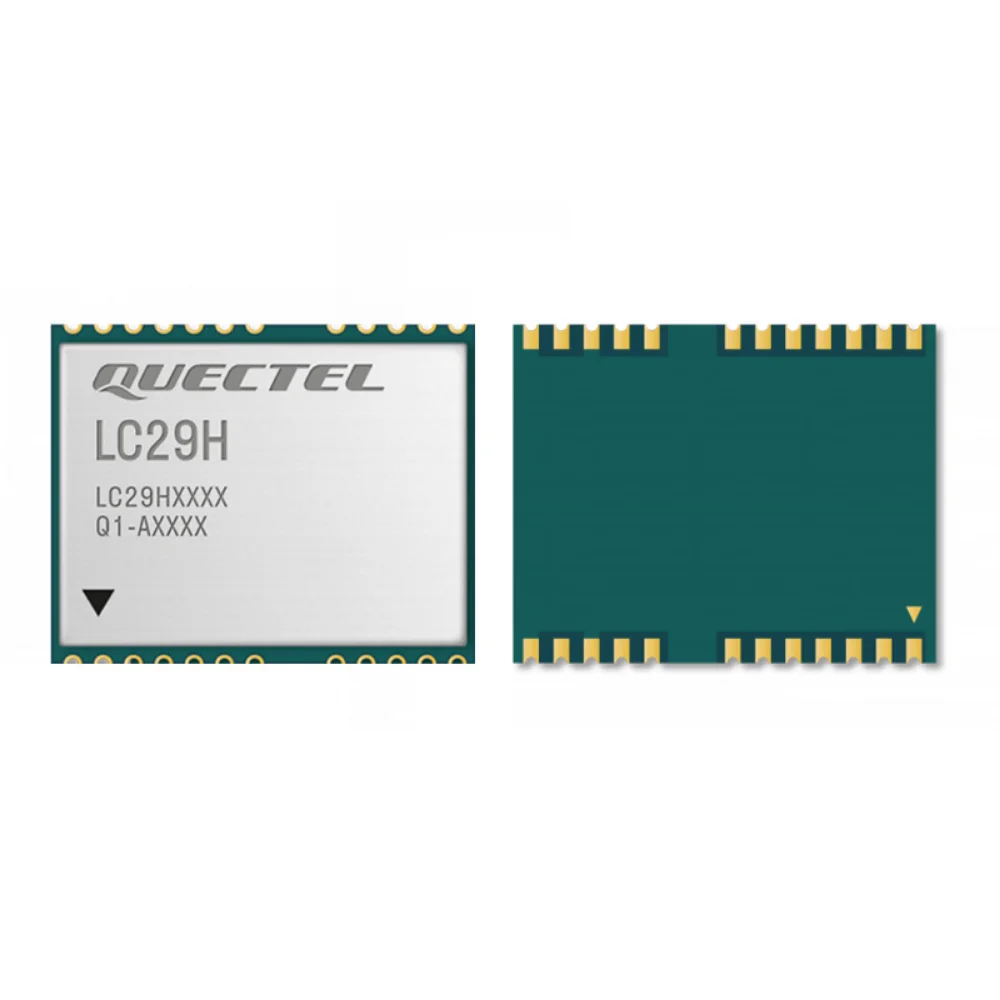

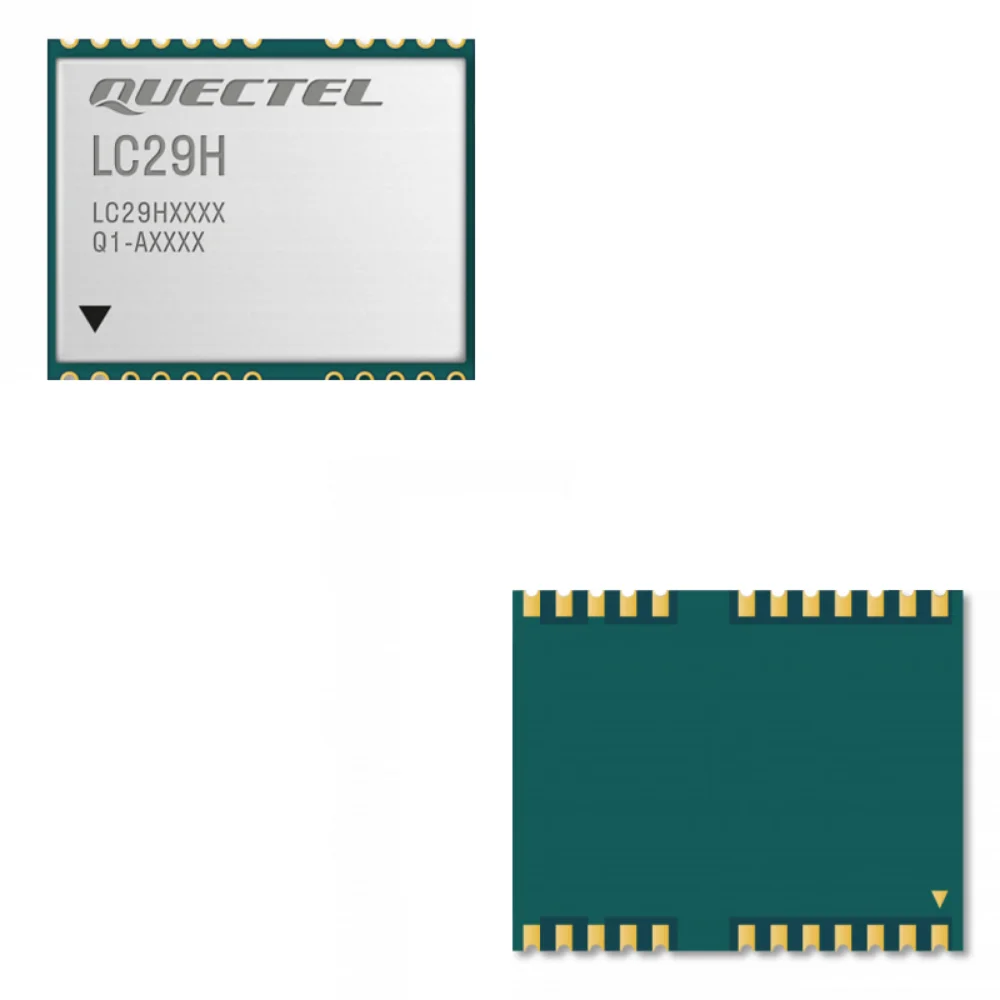

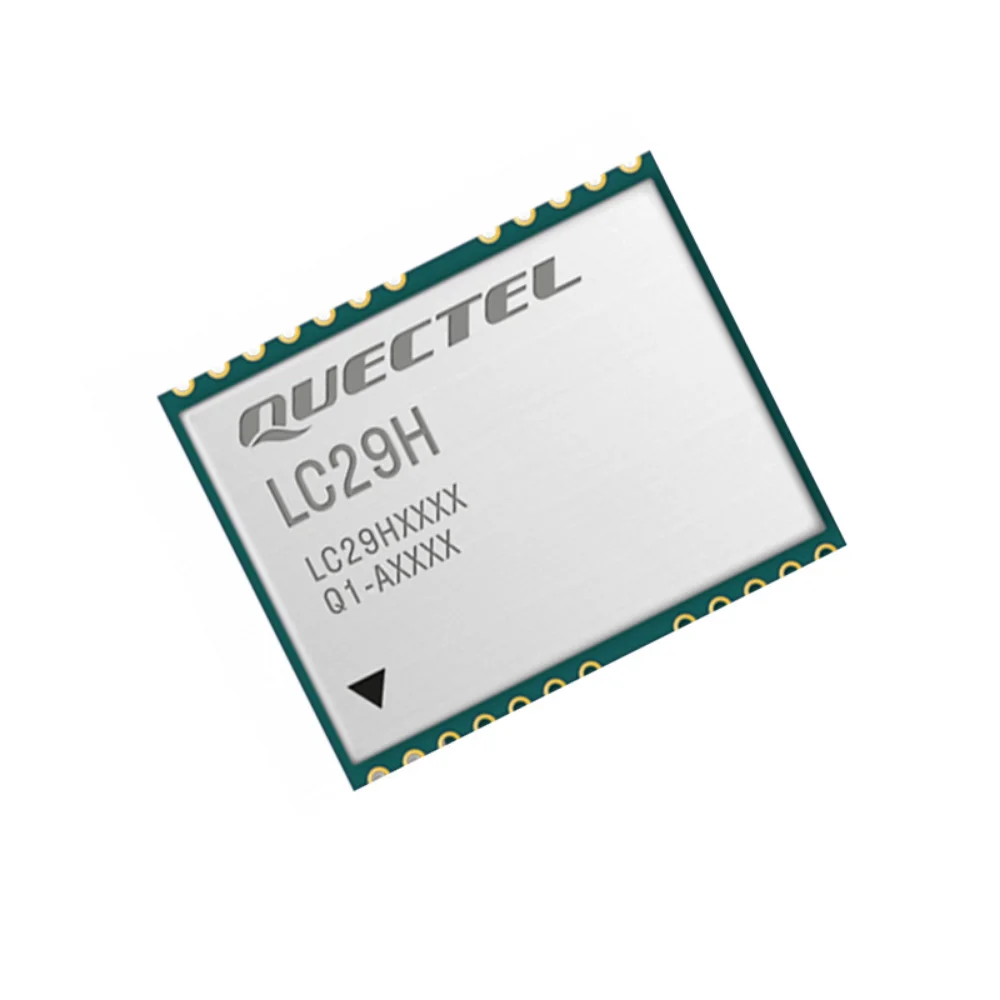

LC29H Series New Original High precision Dual band GNSS Module LC29H LC29HAAMD GPS Module GPS GLONASS BDS Galileo QZSS Module
- Category: >>>
- Supplier: Shenzhen Baolaiwei Technology Co. Ltd.
Share on (1600800593549):
Product Overview
Description
Key Features
Multi-GNSS engine for GPS, GLONASS, BDS, Galileo and QZSS Reception of L1 and L5 GNSS bands signals concurrently Integrated DR function (optional) RTK (optional) providing sub-meter accuracy with fast convergence time and outstanding performance Integrated LNA for high sensitivity Integrated SAW filter for noise cancellation UART, I2C and SPI* interfaces Integrated AGNSS function Integrated AIC and jamming function *: under development
Overview
Overview
LC29H is a series of dual-band, multi-constellation GNSS modules that support the concurrent reception of all four global GNSS constellations: GPS, BDS, Galileo and GLONASS. Compared to GNSS modules that track only L1 signals, the LC29H series can receive and track a higher number of visible satellites in multi bands, thereby significantly mitigating the multipath effect in deep urban canyons and improving positioning accuracy. By having an internal LNA and SAW filter, the module achieves better sensitivity and anti-interference capability. Featuring dual frequency support, the module delivers CEP accuracy values of 1 m in autonomous mode and centimeter levels in the RTK capable variants. The optional DR function ensures the module’s superior positioning performance even in weak signal areas or when GNSS signals are not available. Based on the receiver chip using 12 nm technology, the LC29H series provides advanced power management enabling low-power GNSS sensing and position fix, which makes the module an ideal solution for power-sensitive and battery-powered systems. Featuring high-precision positioning and low power consumption makes the LC29H series perfectly suited for applications such as real time tracking and sharing economy related services.
Quality Guarantee
1. 100% New and original
2. 60 days quality warranty
Delivery & Shipping
1. Ship your order within 3 workdays after payment confirmation.
2.We suggest EMS or China Post and HK post for not urgent order.
3. Please inform usdeclared value for customs clearance before shipment.
Payment terms
We accept T/T,Paypal,Western Union orESCROW and so on.
Refund & Replacement
1.No mounted on boards parts can be returned even failed.
2.60 days guarrantee(after our delivery date) of quality and return with test or failure reports.
Why Choose Us
Welcome to consult our staff. We will give you the best service and price. Thank you
We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
We are an independent distributor of electronic components and industrial control parts for 12 years. We are a customer oriented company and provide high quality and performance parts.
Our main products , IC, IGBT, IPM, SCR, GTO,thyristor, diode, rectifier bridge, mosfet, fuse, power supply, capacitor, relay,sensors switch, inverter, PLC, LCD, Breakers, Automation equipment, PLC, Servo, Driver etc.
We provide One-Stop Service to our customers:
1, BOM Service
2, Own warehouse with more than USD50 millioin inventory
3, Professtional technical support
4, Programming service
5, Customized solution service
If you don't find the part you are looking for, feel free to contact us at any time so we can help you
