Aluminum electrostatic Powder Coating spray gun Equipment

Product Overview

Description

 0-100 Digital Adjustable KV
Fully Adjustable Amperage
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:

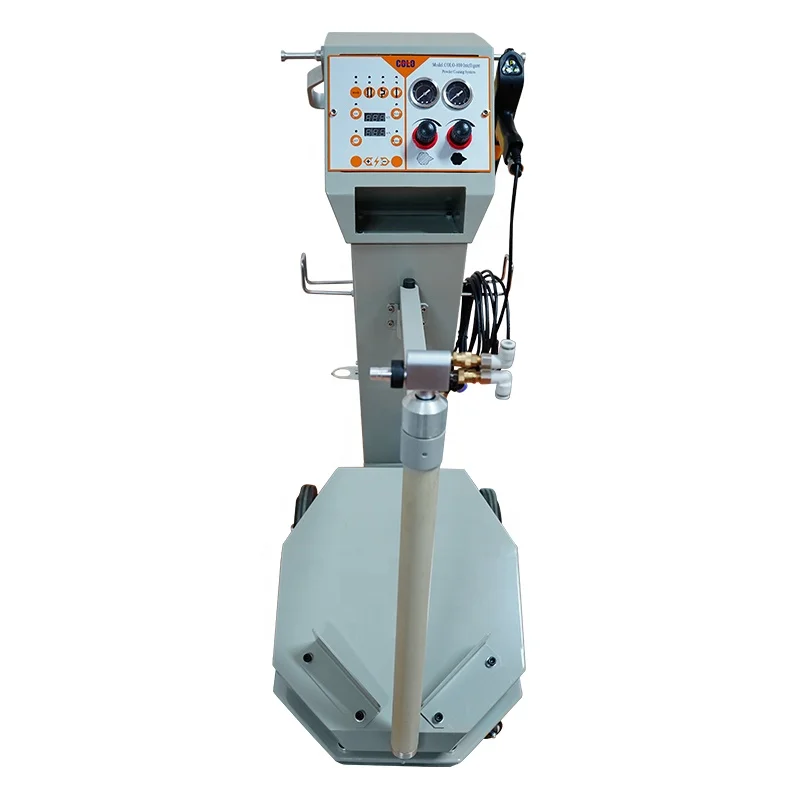

manual box unit is good for quick and easy color changes,It is designed to use the powder manufacturer’s original carton. An inclined vibration table allows complete emptying of the powder box via the fluidized suction tube.



Dual Gun unit. Both operators each have a powder coating gun, control unit and powder injector that use powder from the same powder hopper.

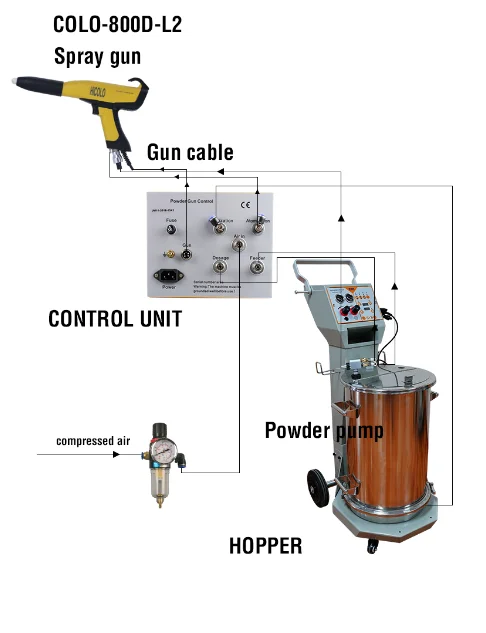

Manual coating equipment Function description

the powder gun through the powder hose . The powder is electrostatically

charged at the nozzle of the gun. In addition, an electrostatic field is

created between the gun nozzle and the grounded object. The charged

powder spray remains adhered to the surface of the object.

The powder is fluidized by air forced through a porous plastic plate from

below. The powder acquires, thereby, fluid-like characteristics.

The conveying air, supplementary air, and rinsing air are set on the control

Unit





Include

2control unit power supply cable

- 2air filter

- 2 air pressure regulator

- 2plug-in injector

-2 manual powder gun with gun cable, powder

hose, rinsing air hose and standard nozzle set.

- Pneumatic hoses for conveying air (red), supplementary

air (black) and fluidizing air (black)

powder hose

Ground wire











The process of the coating is like this :the powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns . The guns spray a powder/air mixture onto the workpieces.







The powder coating process involves three basic steps:



1. Part preparation or the pre-treatment


2. The powder application


3.

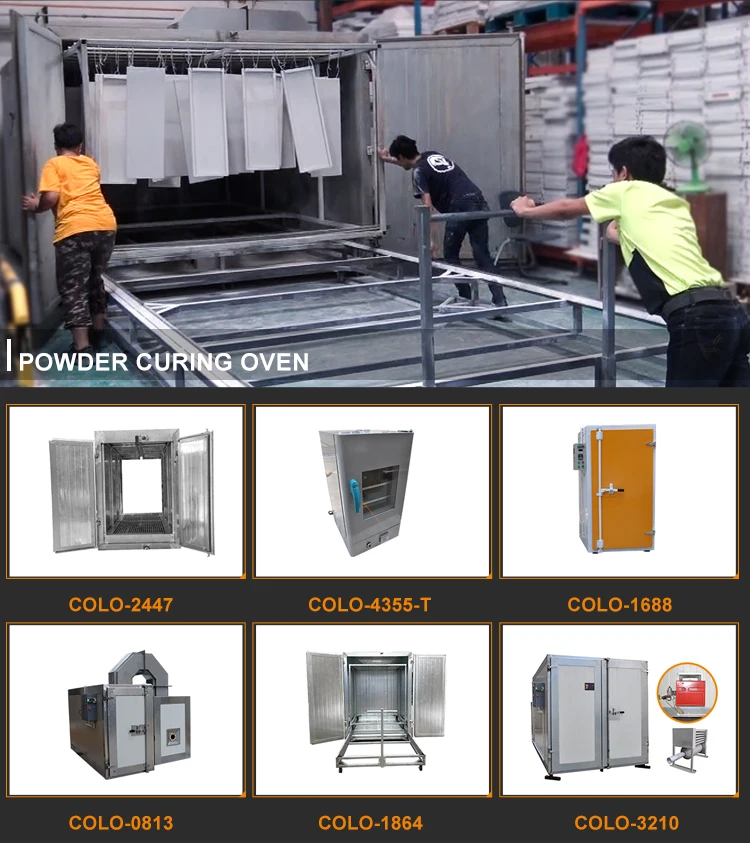

   Curing






Vibratory feed type and hopper type are avaiable.
