Product Overview
Description

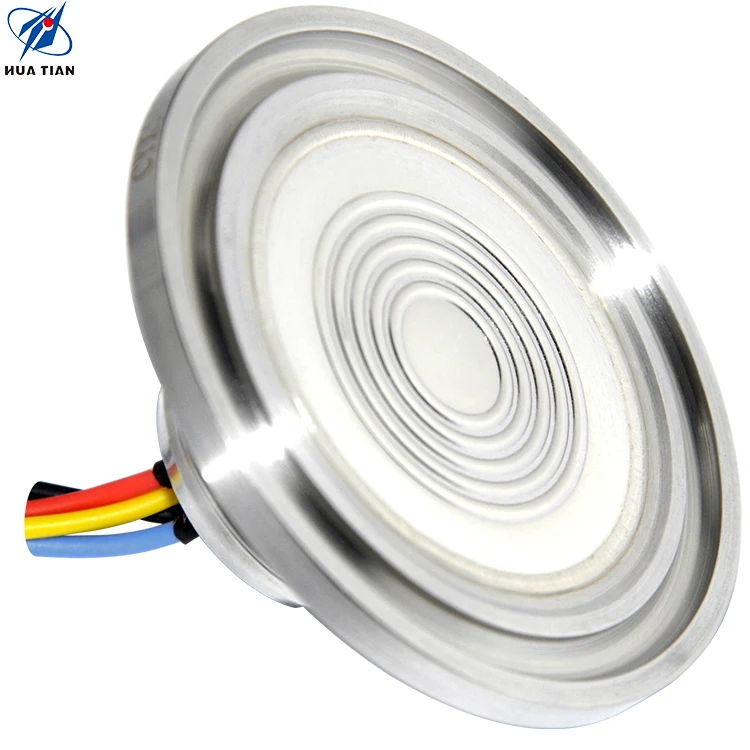

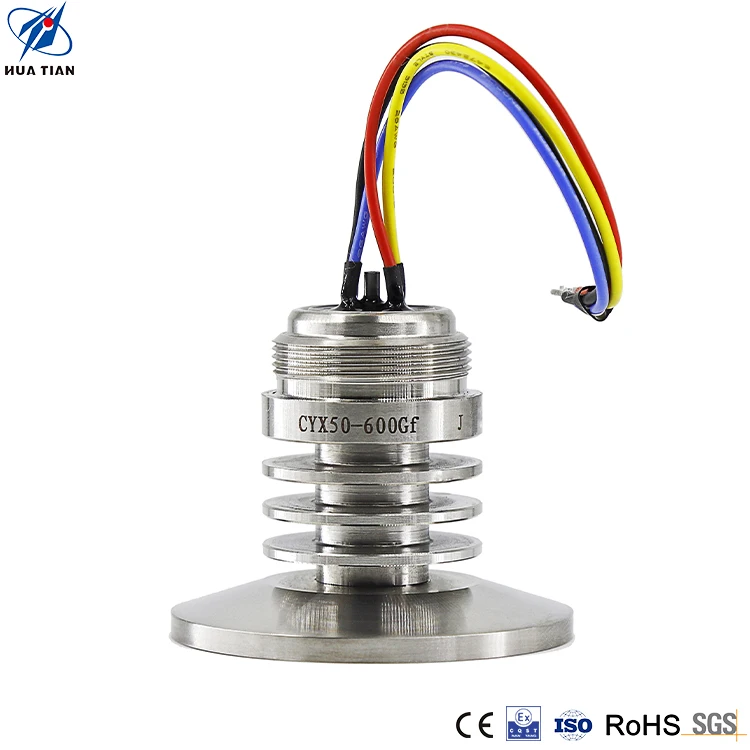

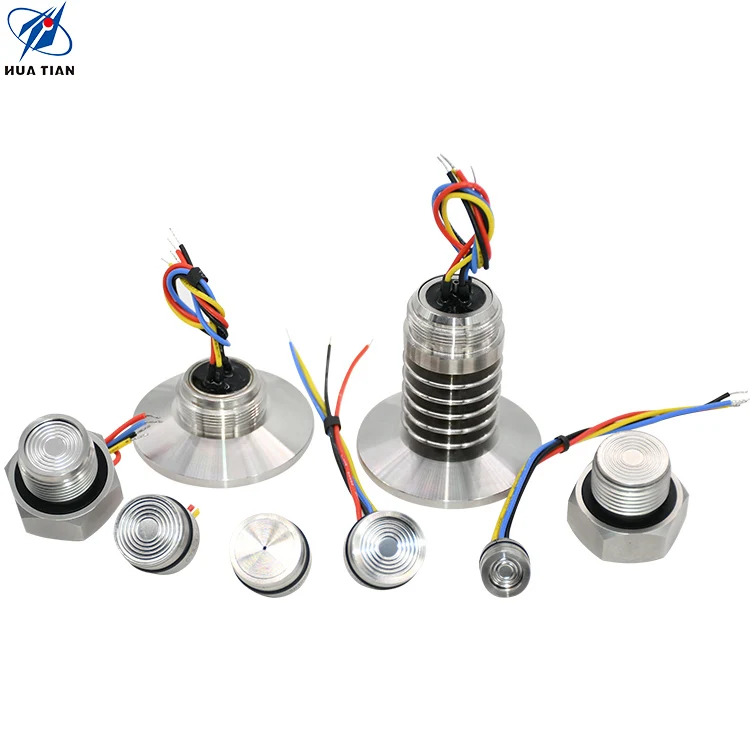

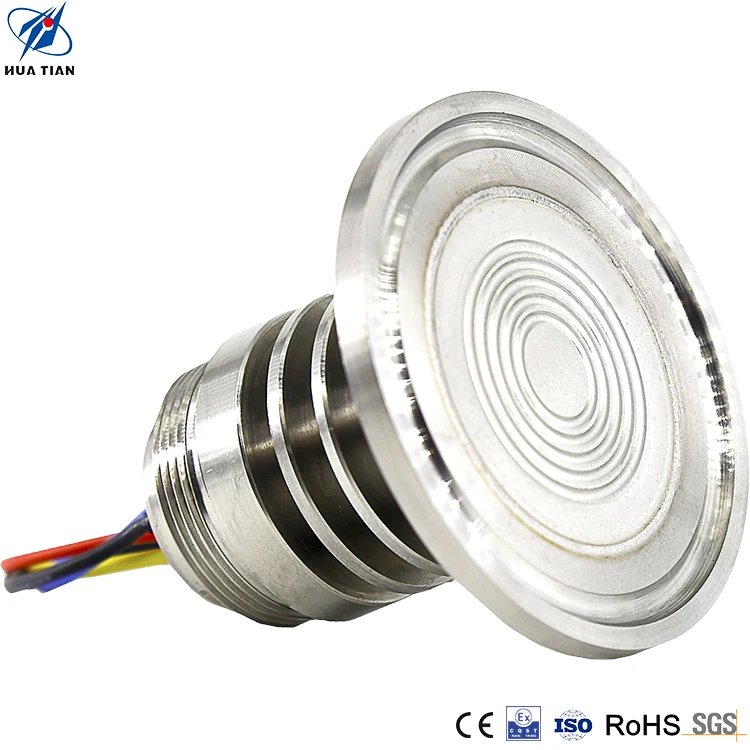

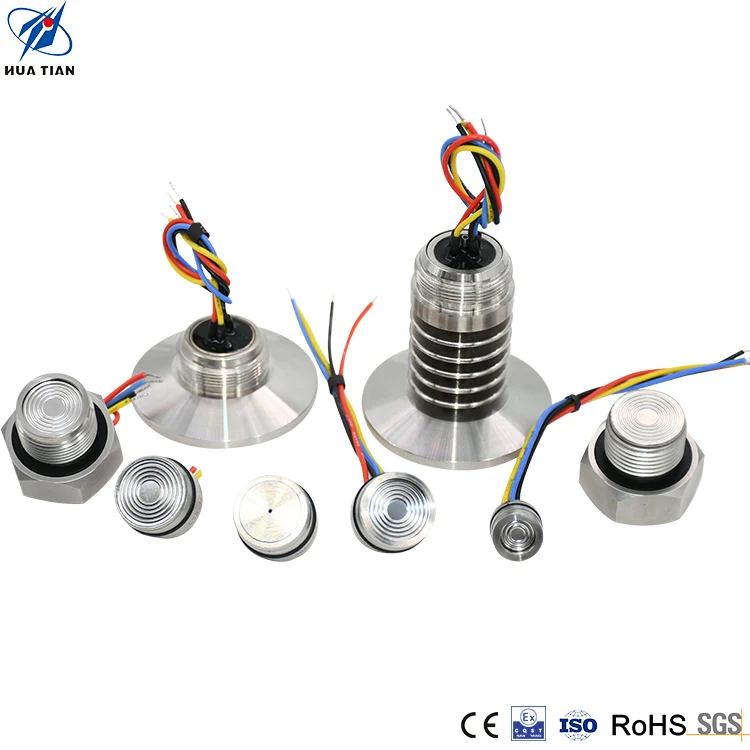

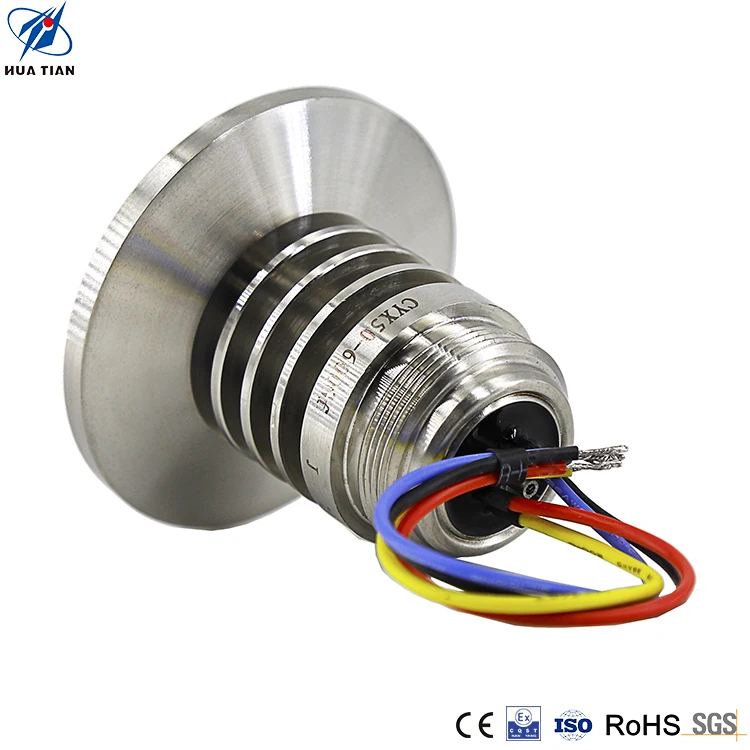

China Huatian CYX5002 OEM ODM -100kPa to 35kPa air film pressure sensor with heat sink
Product Parameters
Parameters | Typical value | Maximum | Unit | |
Zero output | + 1 | + 2 | MV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.08 | %FS | |
Repeatability | 0.05 | 0.08 | %FS | |
Input / output impedance | 2.6 | 5.0 | K Ω | |
Zero temperature drift note 1 | ±0.4 | ±1.0 | %FS, @25℃ | |
Sensitivity temperature drift note 2 | ±0.4 | ±1.0 | %FS, @25℃ | |
Long term stability | 0.2 | 0.3 | %FS / year | |
Exciting current | 1.5(the maximum input voltage can be 10V) | mA | ||
Insulation resistance | 500 (100VDC) | M Ω | ||
Compensation temperature note 3 | 0～50; -10℃～70℃ | ℃ | ||
Working temperature | -40～+125 | ℃ | ||
Storage temperature | -40～+125 | ℃ | ||
Response time | ≤1 | ms | ||
Housing and diaphragm material | 316L stainless steel | |||
Ed seal ring | 18.5× 23.9 × 1.5mm Fluororubber note 4, nitrile rubber | |||
Measuring medium | Fluids compatible with 316L, nitrile rubber or fluoroelastomer | |||
Life (25 ℃) | > 1 × 108 pressure cycle (80% FS) | times | ||
Filling medium | silicone oil | |||
Products Description
The piezoresistive pressure sensor imported high precision, high stability force sensitive chips, adopted advanced technology, military industry production conditions and equipment manufacturing delicately.
Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.
