Good quality electric heating vacuum emulsifying machine mixer homogenized for cosmetic lotion making
- Category: Cosmetics Production Equipment >>>
- Supplier: Guangzhou,Jutao,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
What production line machines do we have?
1. Paste&cream production line
2. Liquid washing production line
3. Perfume production line
4. Lipstick production line
5. Aerosol production line
6. Foundation production line
7. Toothpaste production line
FEATURES AT A GLANCE
◆ Emulsifier tank, water phase tanks, oil phase tank
◆ Three-layer tank, steam or electric heating
◆ Variable frequency speed scraper mixing
◆ 3600rpm high-speed homogenizer, fineness 0.2-5um
◆ Vacuum pumps and sync solenoid valves
◆ Hydraulic lifting system
◆ Stainless steel platform ans stairs
◆ Button or HMI operation
PRODUCT SPECIFICATIONS
Item | Technical parameter | |
Model | JT-500L | |
Main emulsifying tank designed volume | 600L | |
Main emulsifying tank working volume | 500L | |
Mixing way | Frame structure wall-scraper single way mixing | |
Mixing speed | 0-63rpm | |
Homogenizer way | Bottom Homogenizer | |
Homogenizer speed | 0-3600rpm | |
Heating way | Electric heating or steam heating for choose | |
There are more models of emulsification pots, such as 10L, 50L, 100L, 200L, 300L, 500L, 1000L, 1500L, 2000L, 2500L, 3000L and so on (more models are available) | ||
More other details, please free to click the inquiry | 5000L | |
Product details
1, The vacuum emulsifier have style of PLC control type, upper and bottom homogenizer type, manhole sealing type and customized type, the machine material contacted part with product is made by SS316L, inside and outside of the equipment are with mirror polishing and get to GMP standard.
2, PTFE scraping board cater to body of blending groove and scrape out viscosity material on tank walls, is suitable to every kind of complicated recipe and achieve optimizing effect.
3, Vacuum emulsifier the homogenizer is installed on tank bottom to increase motor power more thoroughly and strongly. During few production, It can exert homogenizing effect fully.
4. The machine is frequency conversion timing control and can setting the homogenizing time, it adopts the most advanced German-technology, the speed of high emulsification is 0-3000r/min, you can customized highest rotate speed up to 4500r/min
5. Finished products can be discharged by positive pressure or tilt the tank, or by transfer pump.
2, PTFE scraping board cater to body of blending groove and scrape out viscosity material on tank walls, is suitable to every kind of complicated recipe and achieve optimizing effect.
3, Vacuum emulsifier the homogenizer is installed on tank bottom to increase motor power more thoroughly and strongly. During few production, It can exert homogenizing effect fully.
4. The machine is frequency conversion timing control and can setting the homogenizing time, it adopts the most advanced German-technology, the speed of high emulsification is 0-3000r/min, you can customized highest rotate speed up to 4500r/min
5. Finished products can be discharged by positive pressure or tilt the tank, or by transfer pump.
Frame wall mixer
Mixing paddle Frame structure wall-scraper mixing structure, rapid homogenization stirring, frequency conversion speed regulation can be up to 63 rpm. Emulsifying effect is supreme.
High speed Homogenizer
Homogenzing head
Speed: 0-2880 rpm High-speed shearing.better homogeneous emulsification effect.
Speed: 0-2880 rpm High-speed shearing.better homogeneous emulsification effect.
Tilting system
tilting system for the main emulsifying mixer
Pot cover
The pot cover is including the pressure gauge, material inlet, manhole, viewing light, etc.
Sightglass
when the lid is closed, check the inside of the pot through the sightglass
lid lift and colsed
The lid can lift or closed
Control method
SIEMENS PLC touch screen control or button control for choose
Oil and water phase for choose
Half open lid of the water and oil phase
dispersing function inside the water and oil phase, speed:960r/min

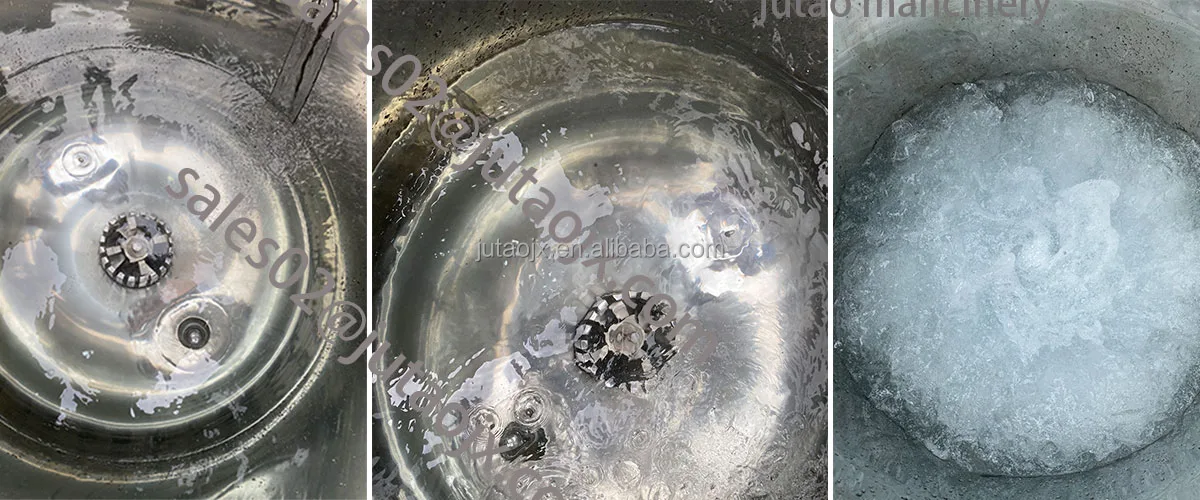

Homogeizer effect
Applications
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.

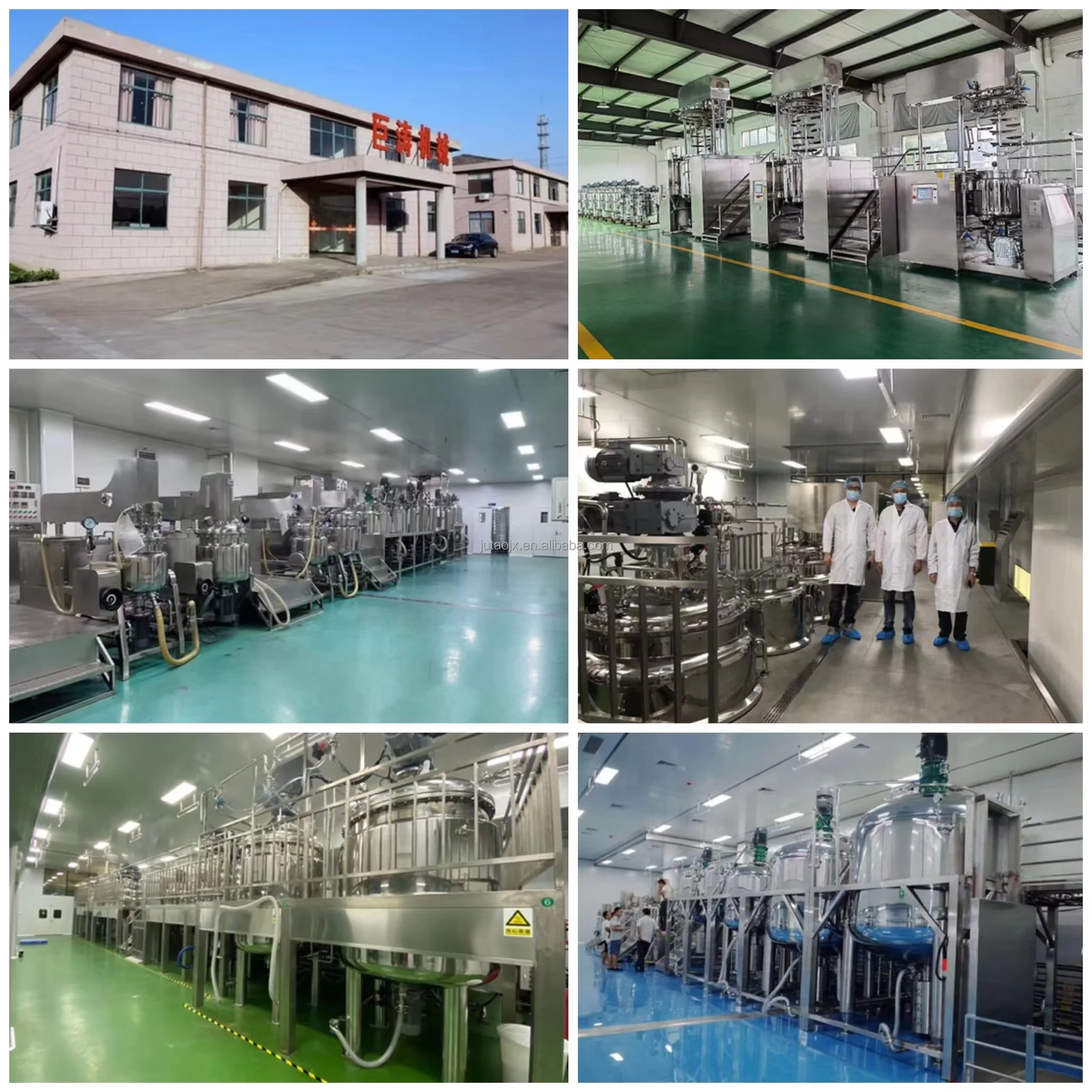

Company Profile
GUANGZHOU JUTAO MACHINERY EQUIPMENT CO.,LTD is a comprehensive enterprise integrating of production, sales, trade, after sales and others. The products include Vacuum Emulsifier Mixer, Liquid Washing Mixer, RO Water Treatment, Cream & Liquid Filling machine, Cosmetic powder or liquid filling and capping machines.Our company provides top-ranking professional project installation experience and management experience. By holding the work attitude of keeping improving, we provide users with good after-sales service and meet customer requirements.
Superb technology provides customers with cutting-edge products. As an overall solution provider, we provide diversified stand-alone equipment, process automation, production process control, MES execution management and data collection, production data analysis, etc.
Jutao Machinery will bring you more and more new products, new technologies and overall solutions.
Excellent sales team and experienced engineers, engineers can install machines abroad

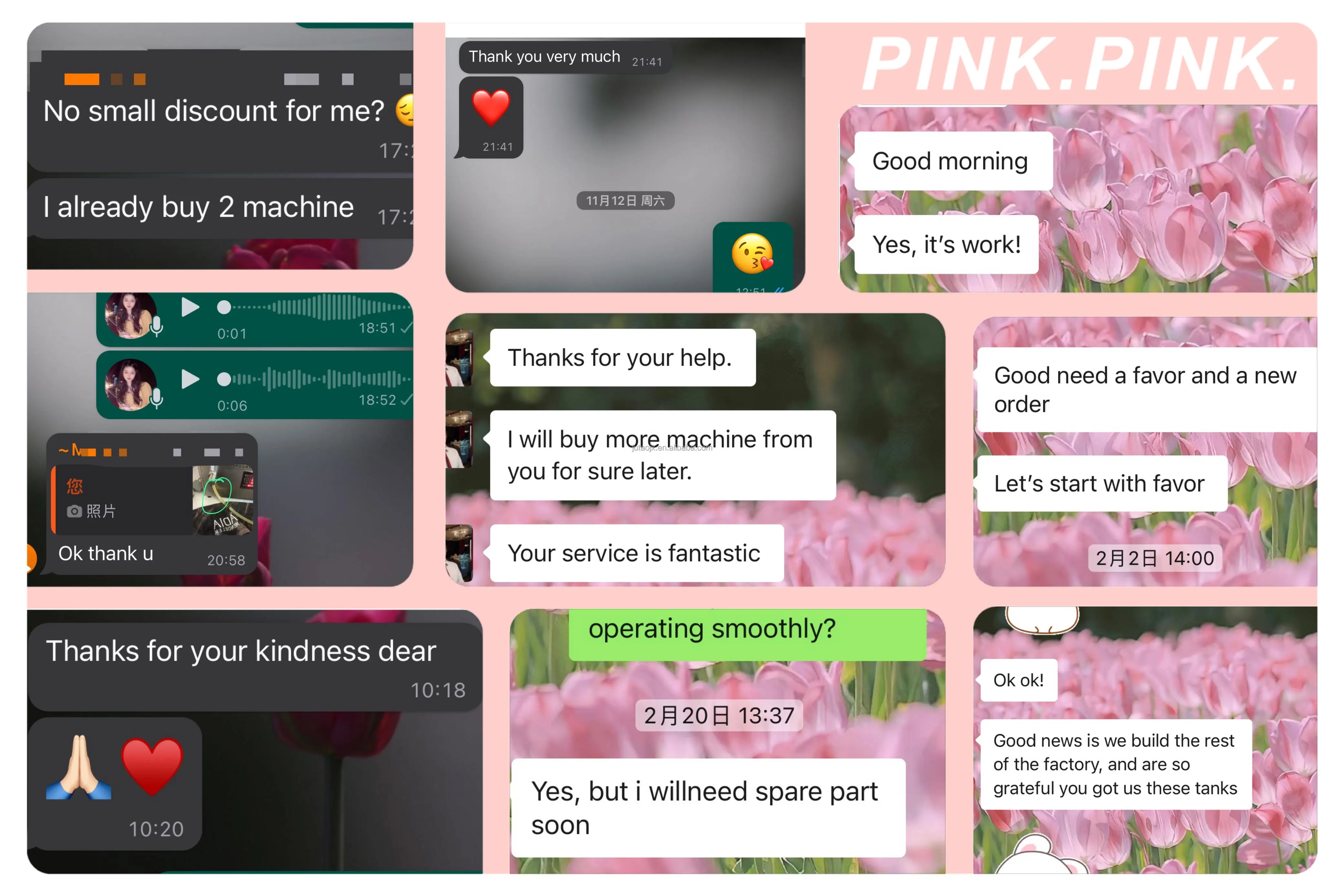

Customer Praise

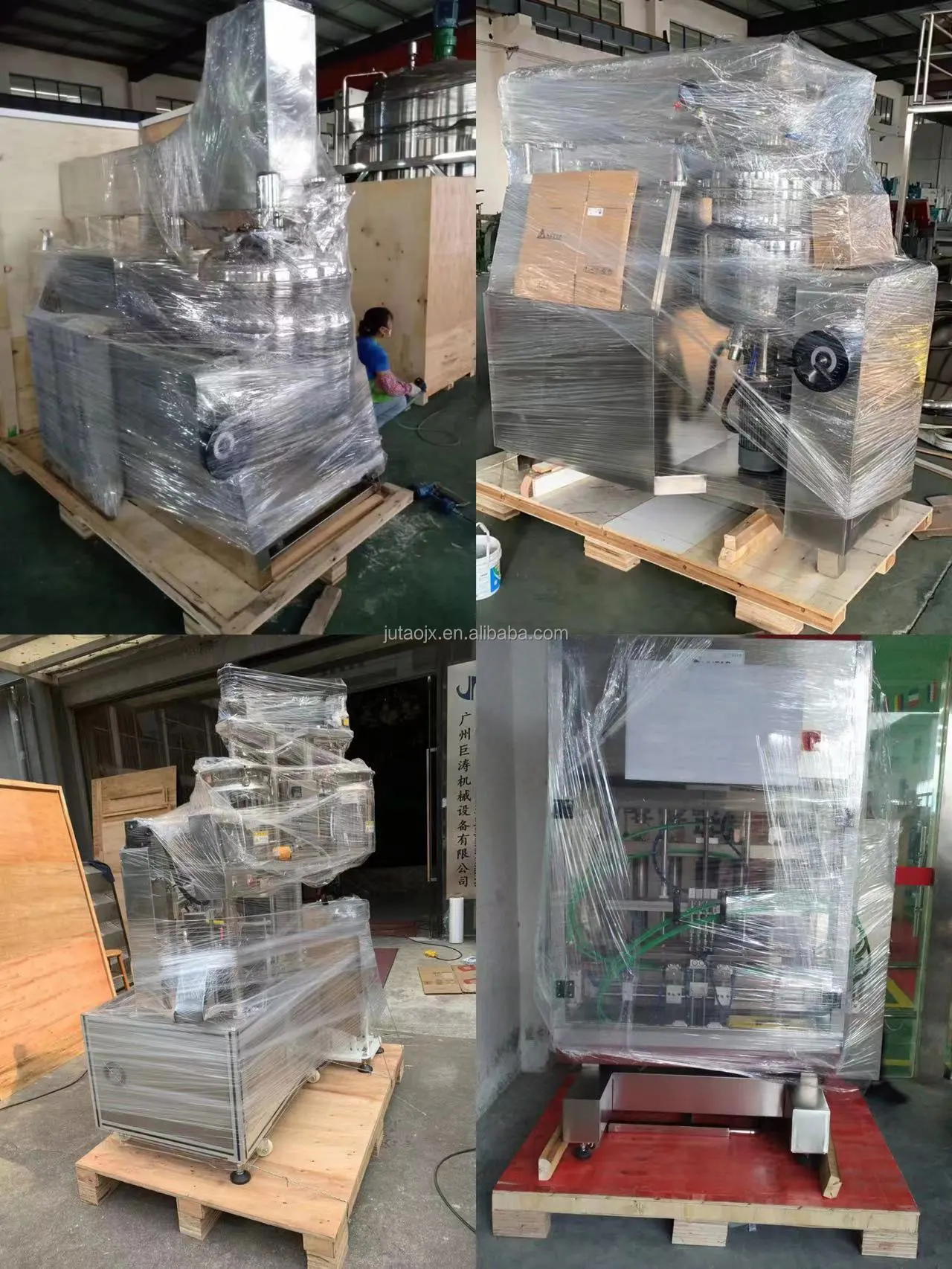

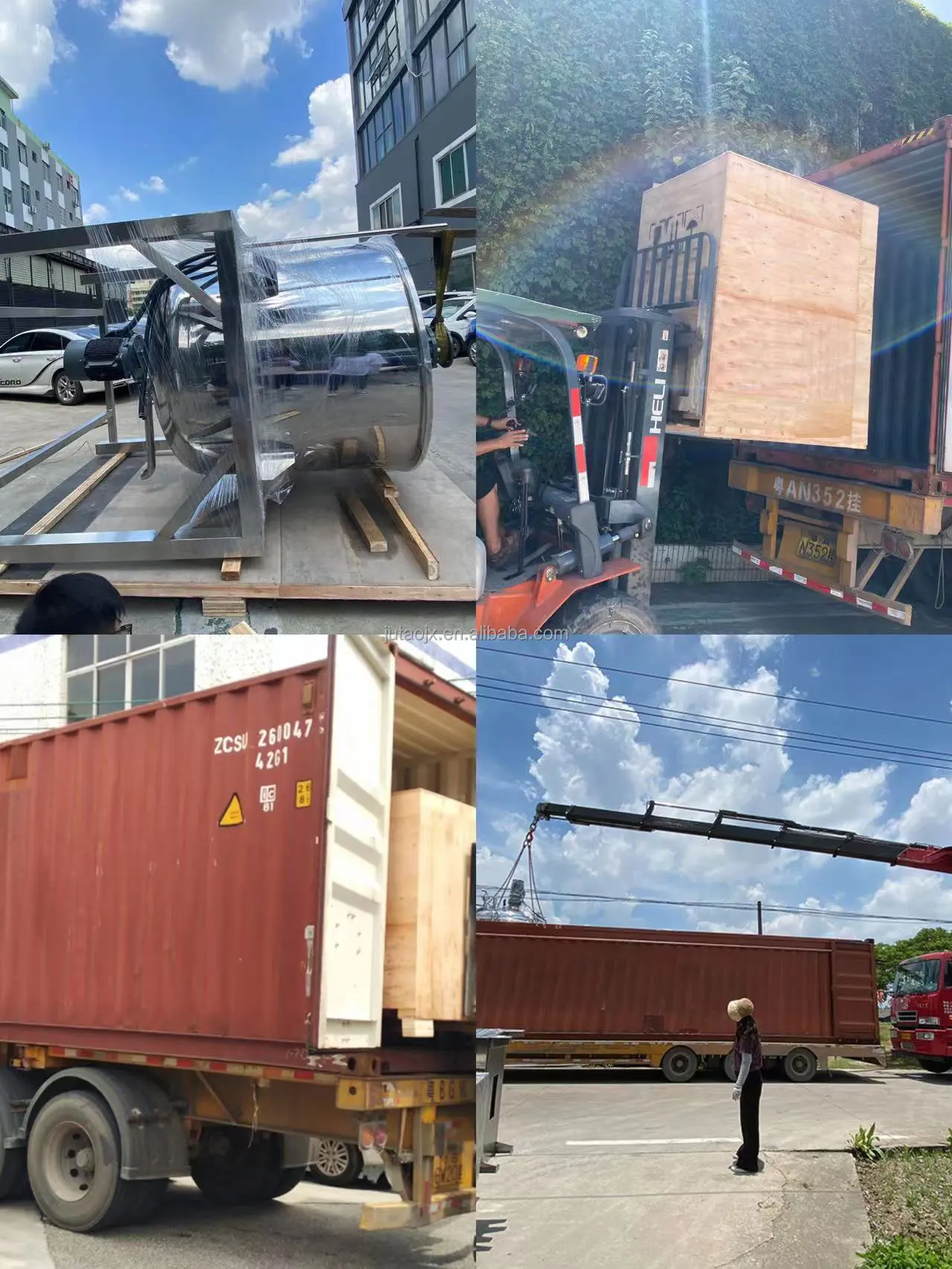

Product packaging
FAQ
Q1. Are you factory or trade company?
A1: We are factory with more than 26 years production experience. Factory inspection and customized is acceptable.
Q2. What would be the after-sales service?
A2: We provided 1-year free warranty which base on the quality problem, and lifetime free after-sales consultant. We set up service team in Indonesia, provide convenient service for our customers.
Q3. How to ensure the quality?
A3: FAT is acceptable, including CE, IQ, OQ, PQ certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
Q4. Do you provide installation service?
A4: The single unit machine has finished the installation before shipment, can be used directly. The production line will
arrange engineer to install and operator training on site.
A1: We are factory with more than 26 years production experience. Factory inspection and customized is acceptable.
Q2. What would be the after-sales service?
A2: We provided 1-year free warranty which base on the quality problem, and lifetime free after-sales consultant. We set up service team in Indonesia, provide convenient service for our customers.
Q3. How to ensure the quality?
A3: FAT is acceptable, including CE, IQ, OQ, PQ certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
Q4. Do you provide installation service?
A4: The single unit machine has finished the installation before shipment, can be used directly. The production line will
arrange engineer to install and operator training on site.
