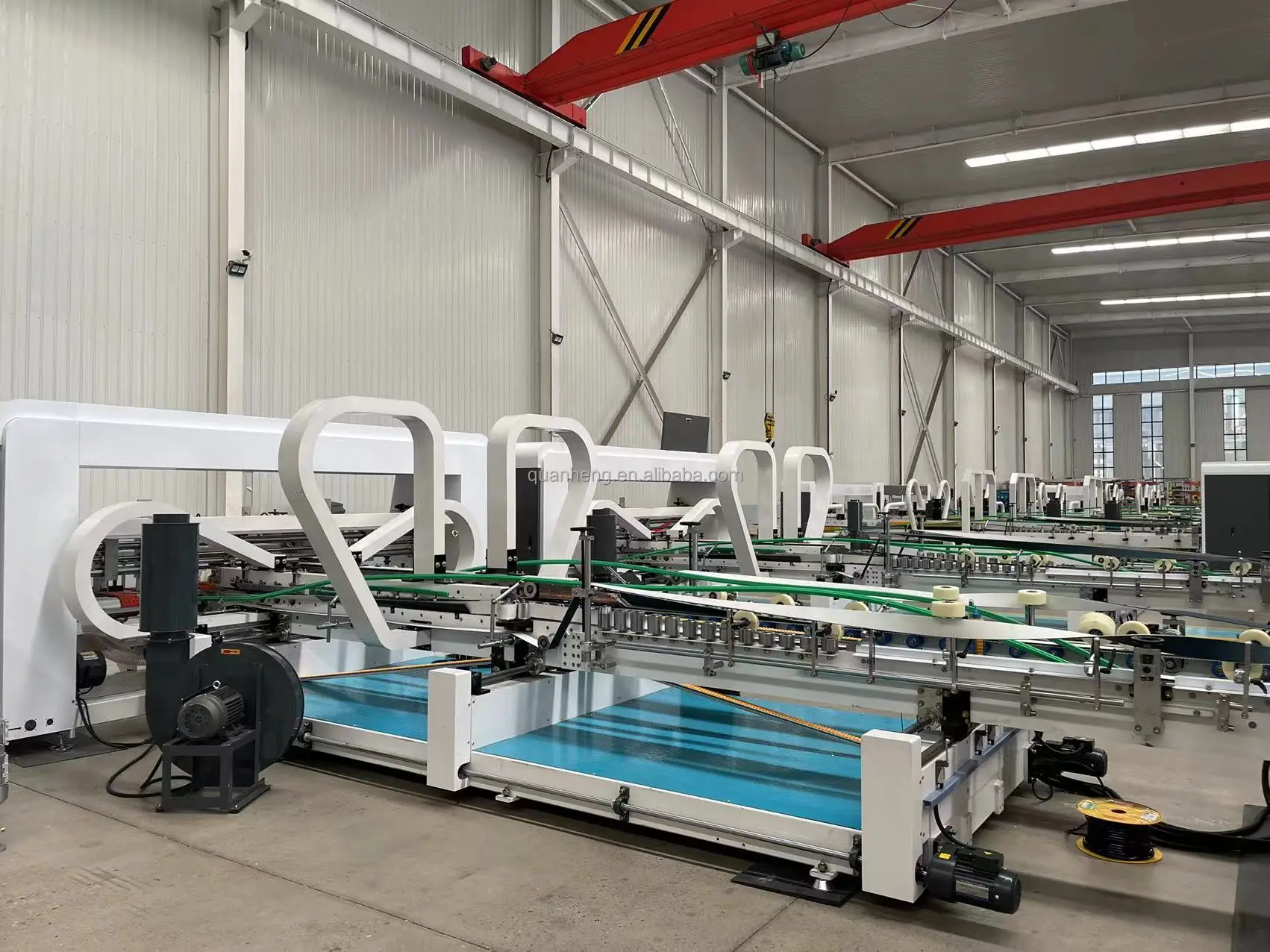

manufacturing packaging machines carton box folding gluing stapler machine paper processing machinery
- Category: >>>
- Supplier: Cangzhou Quanheng Imp & Exp Trade Co. Ltd.
Share on (1600801708339):
Product Overview
Description
Product Overview

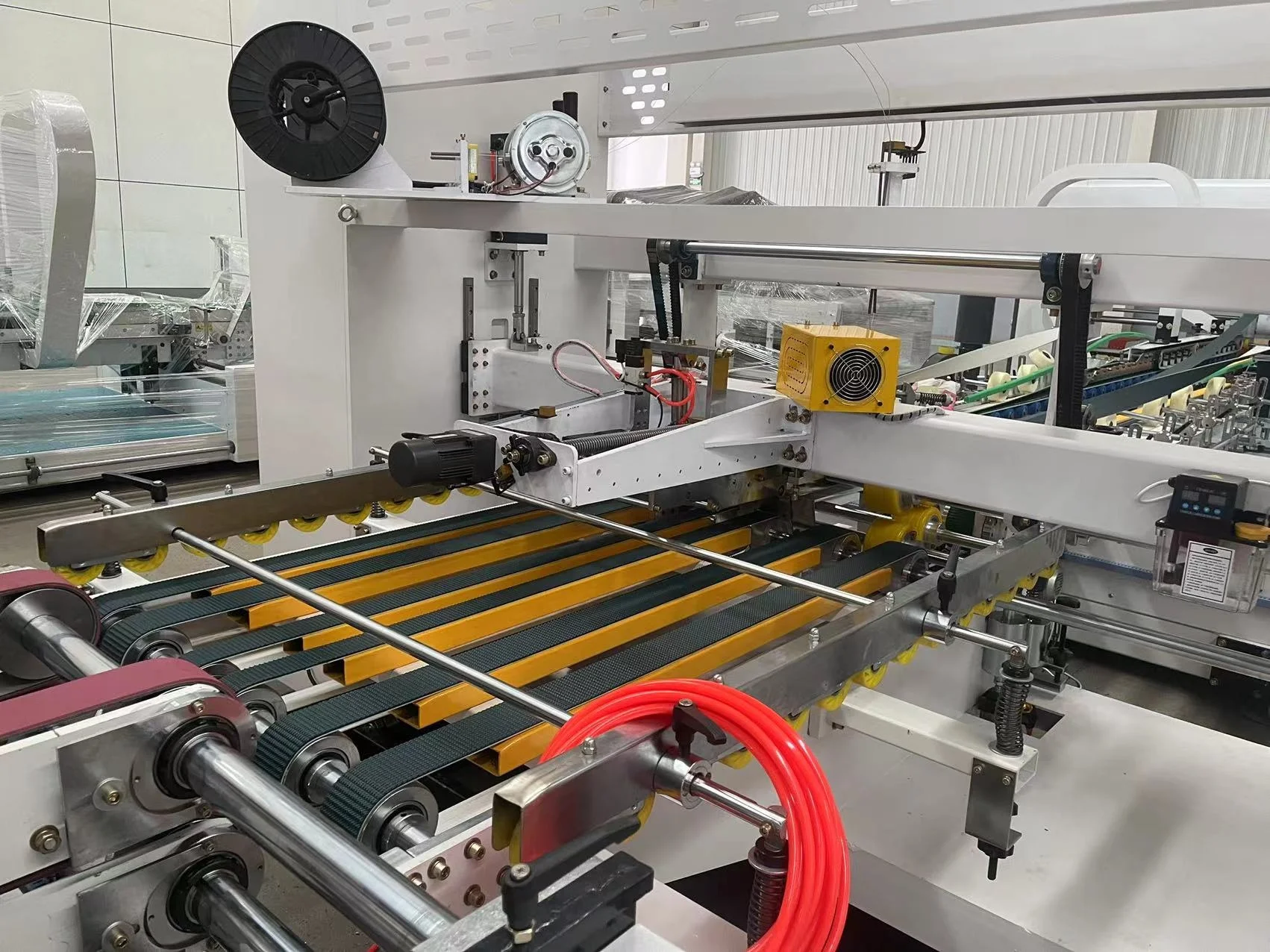

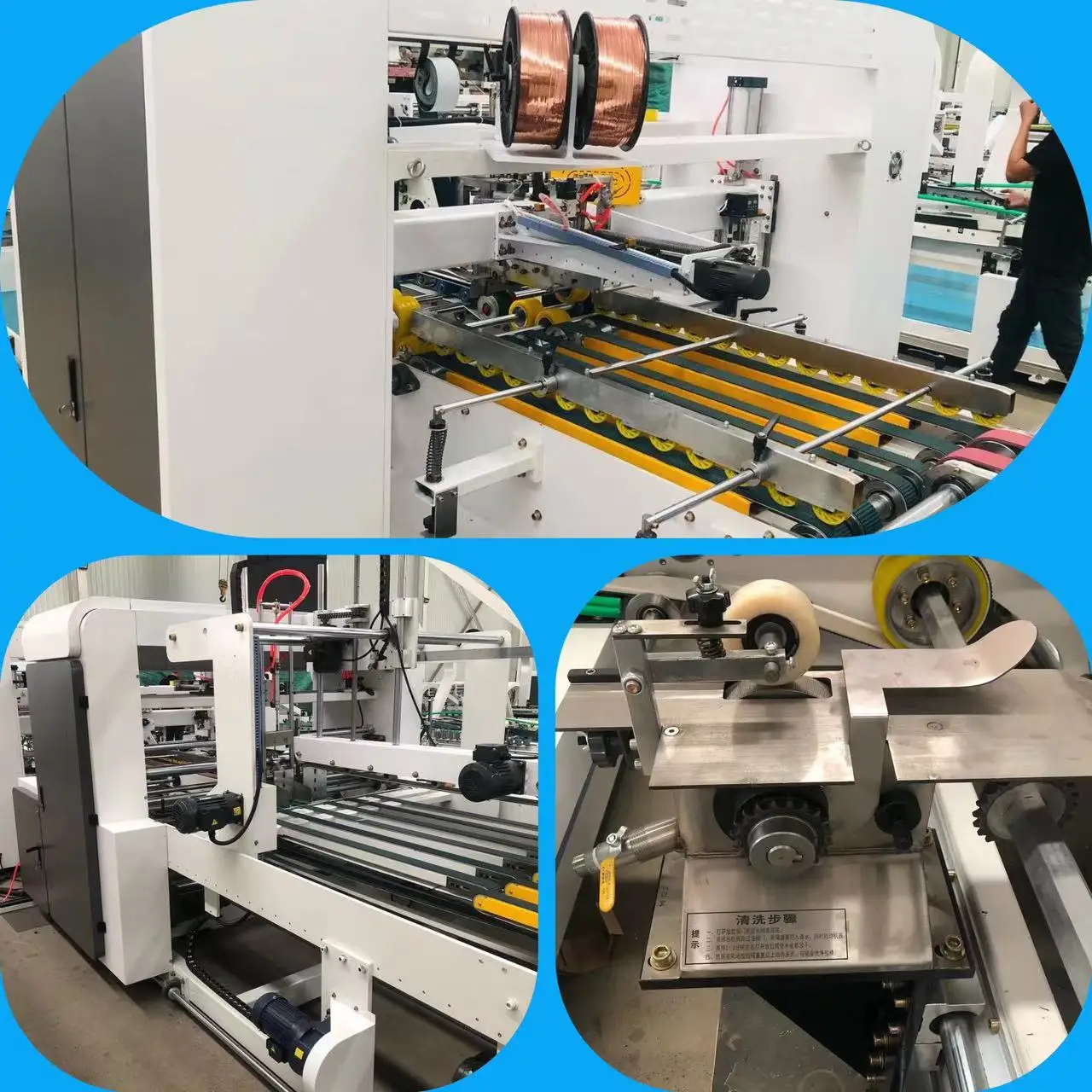

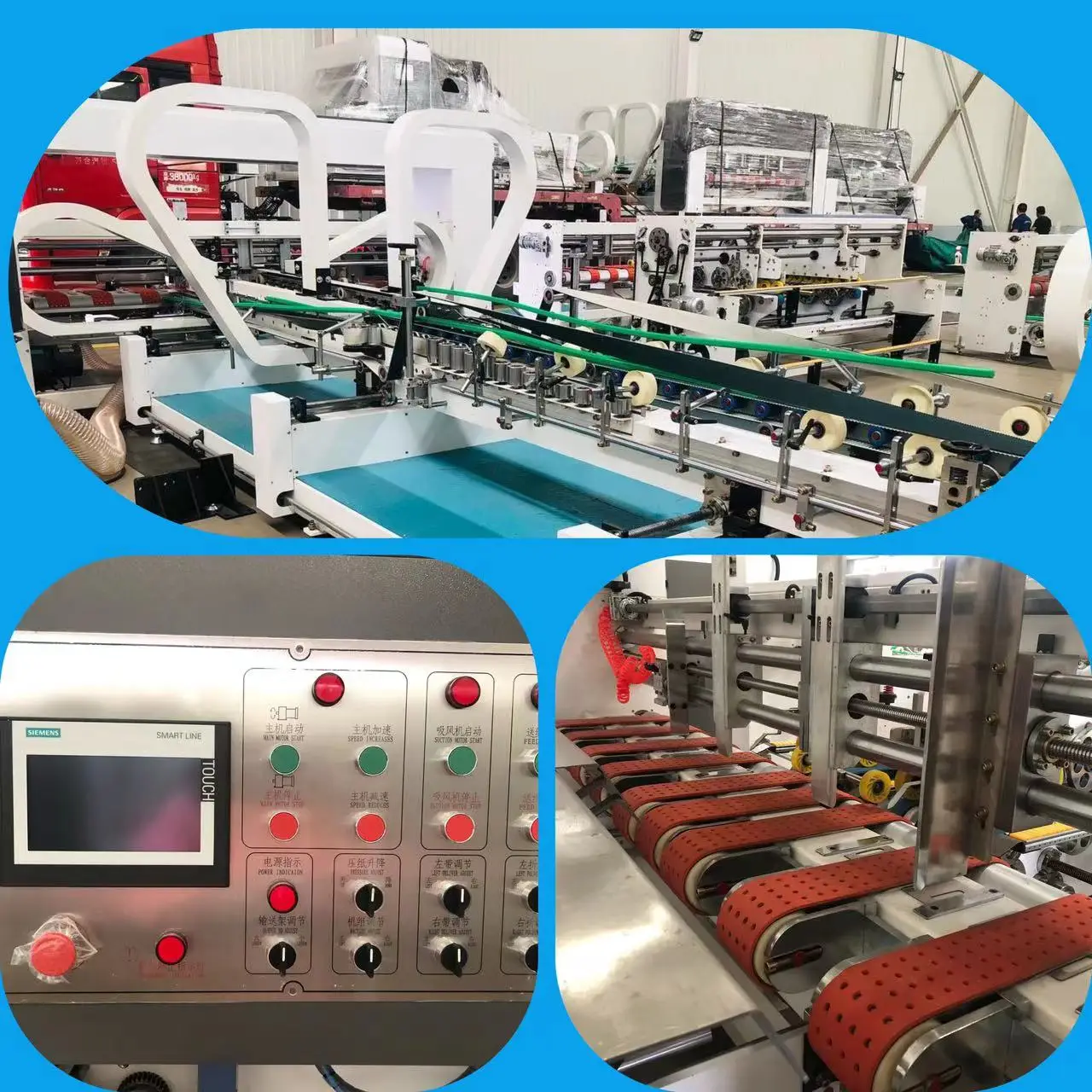

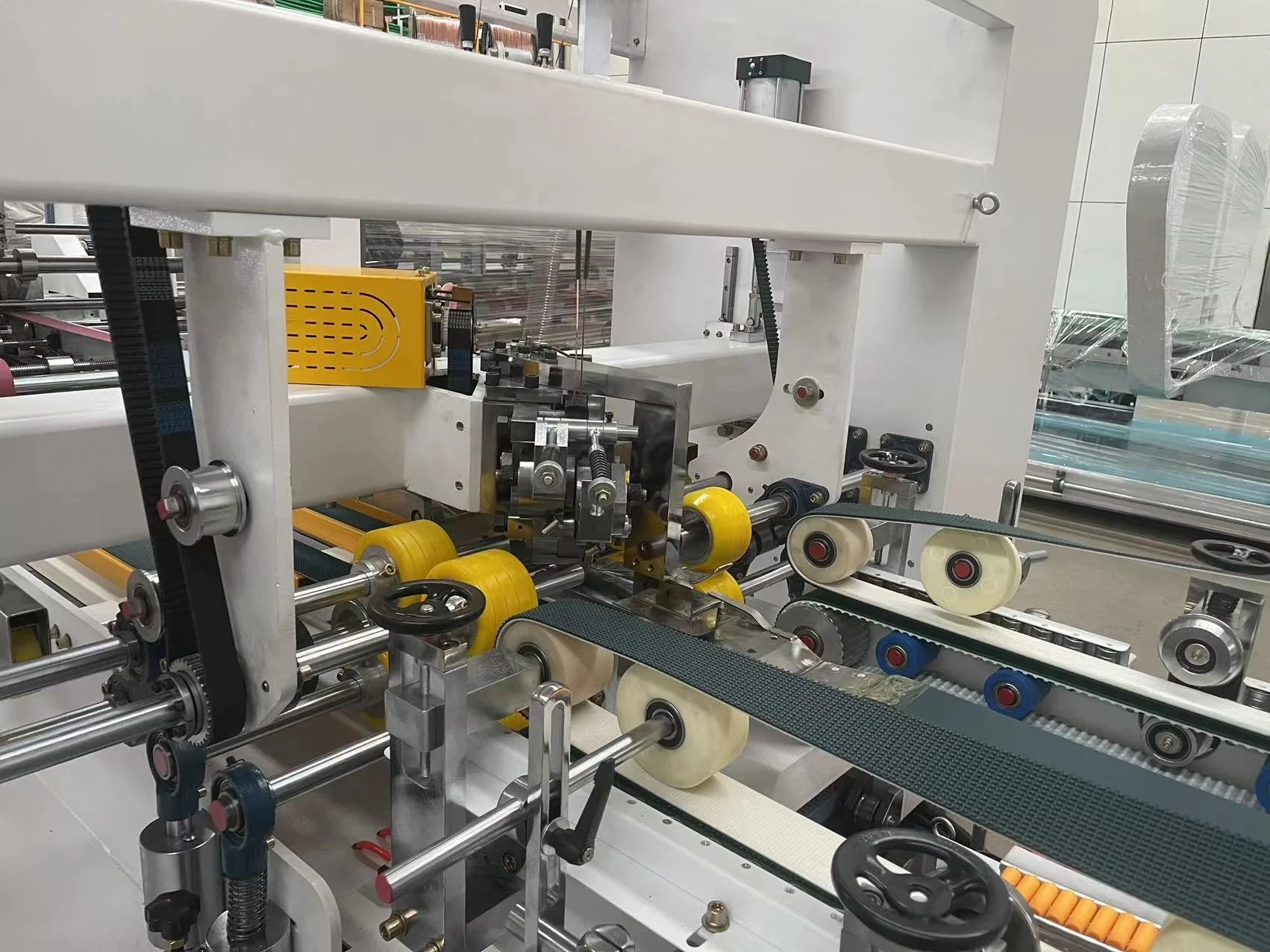

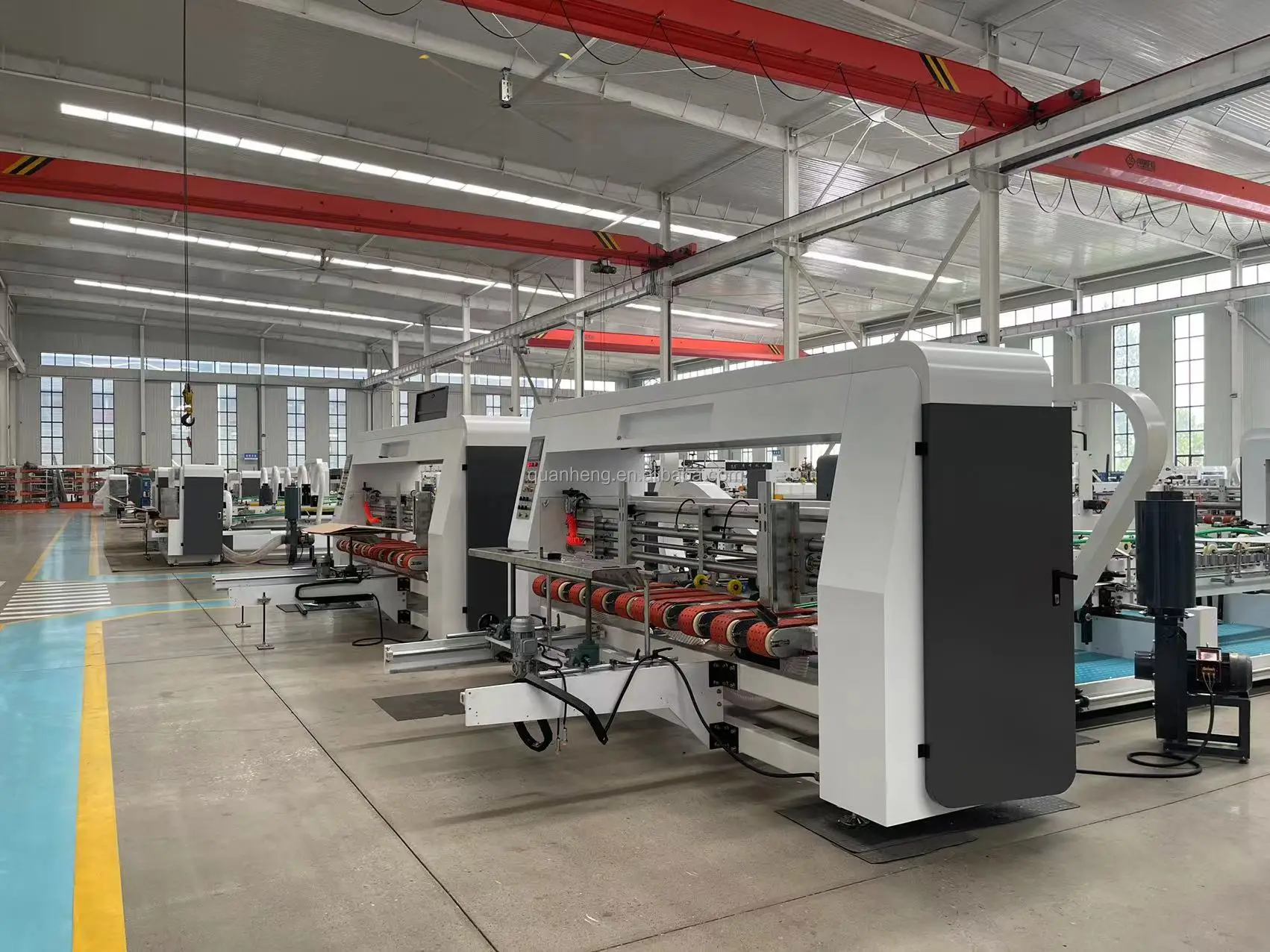

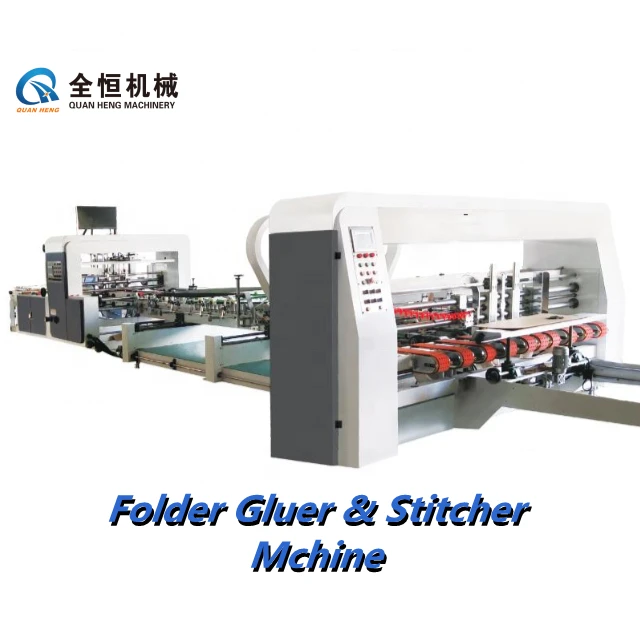

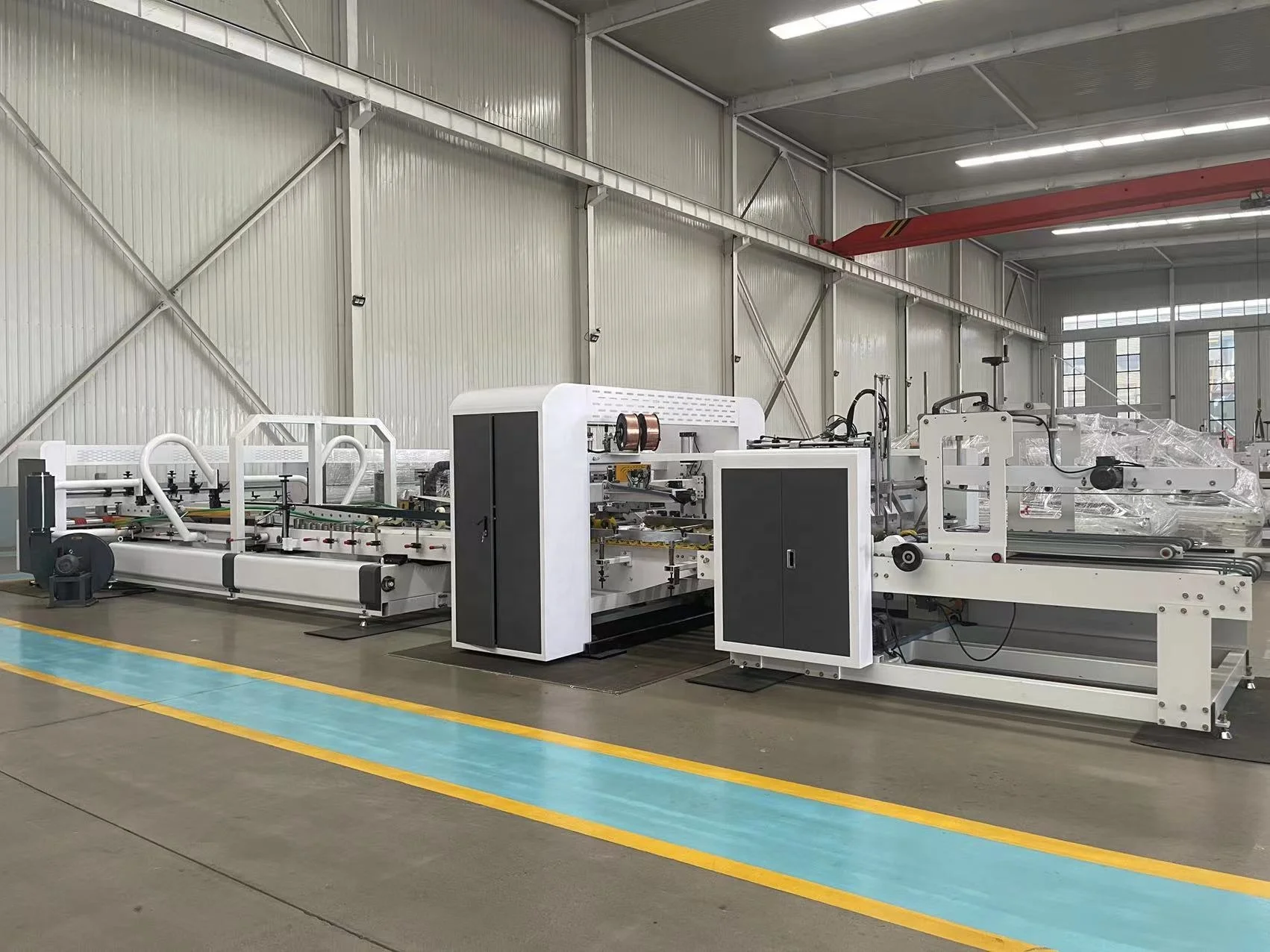

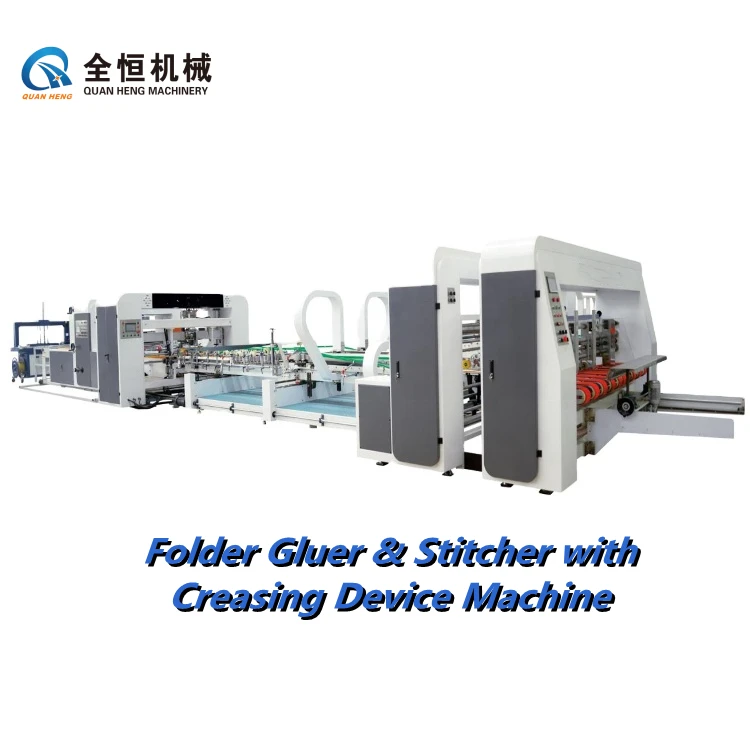

QF intelligent full-automatic stapling machine is composed of four parts: vacuum paper feeding part, gluing and folding part, nail box part and counting and stacking output part.
Taiwan motors are used for all motors except variable frequency motors. Variable frequency speed regulation, standard PLC touch screen control (dual PLC, dual touch screen), electric adjustment of the whole machine, just input three data (length, width,height dimensions) on the touch screen, and the machine will automatically adjust in place. The operation is simple and reliable.The nailing box section and the gluing box section can be controlled separately. The maximum speed of gluing box is 180 m/min, andthe average speed of gluing box is 150 m/min; Nail box 4 nails 70 pieces/minute. High speed energy saving and labor cost saving.
Taiwan motors are used for all motors except variable frequency motors. Variable frequency speed regulation, standard PLC touch screen control (dual PLC, dual touch screen), electric adjustment of the whole machine, just input three data (length, width,height dimensions) on the touch screen, and the machine will automatically adjust in place. The operation is simple and reliable.The nailing box section and the gluing box section can be controlled separately. The maximum speed of gluing box is 180 m/min, andthe average speed of gluing box is 150 m/min; Nail box 4 nails 70 pieces/minute. High speed energy saving and labor cost saving.

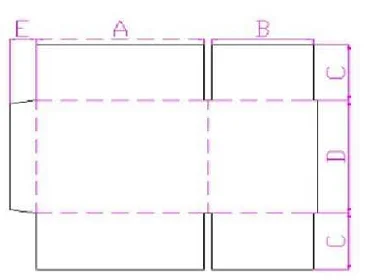

No | Size | QF2600 | ||
Gluer | Stitcher | |||
1 | Max（A+B）*2(mm) | 2600 | ||
2 | Min（A+B）*2(mm) | 420 | 900 | |
3 | Max A(mm) | 900 | ||
4 | Min A(mm) | 130 | 270 | |
5 | Max B(mm) | 650 | ||
6 | Min B(mm) | 80 | 180 | |
7 | Max（C+D+C）(mm) | 1200 | ||
8 | Min（C+D+C）(mm) | 170 | 300 | |
9 | Max C(mm) | 350 | ||
10 | Min C(mm) | 50 | ||
11 | Min D(mm) | 100 | ||
Q:Are you manufacture or trading company?
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company,so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .

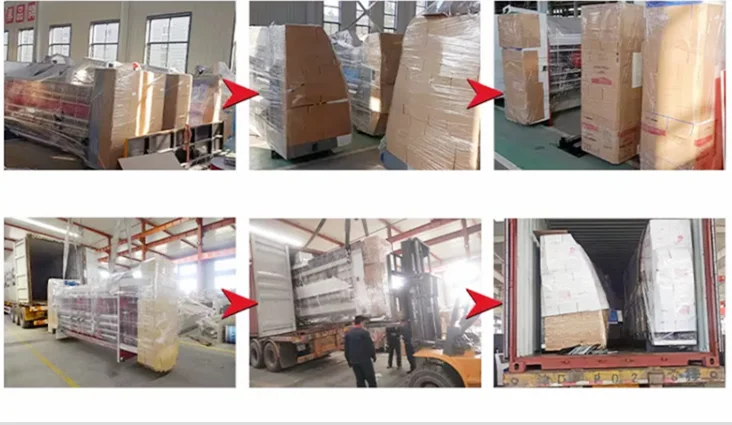

Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?

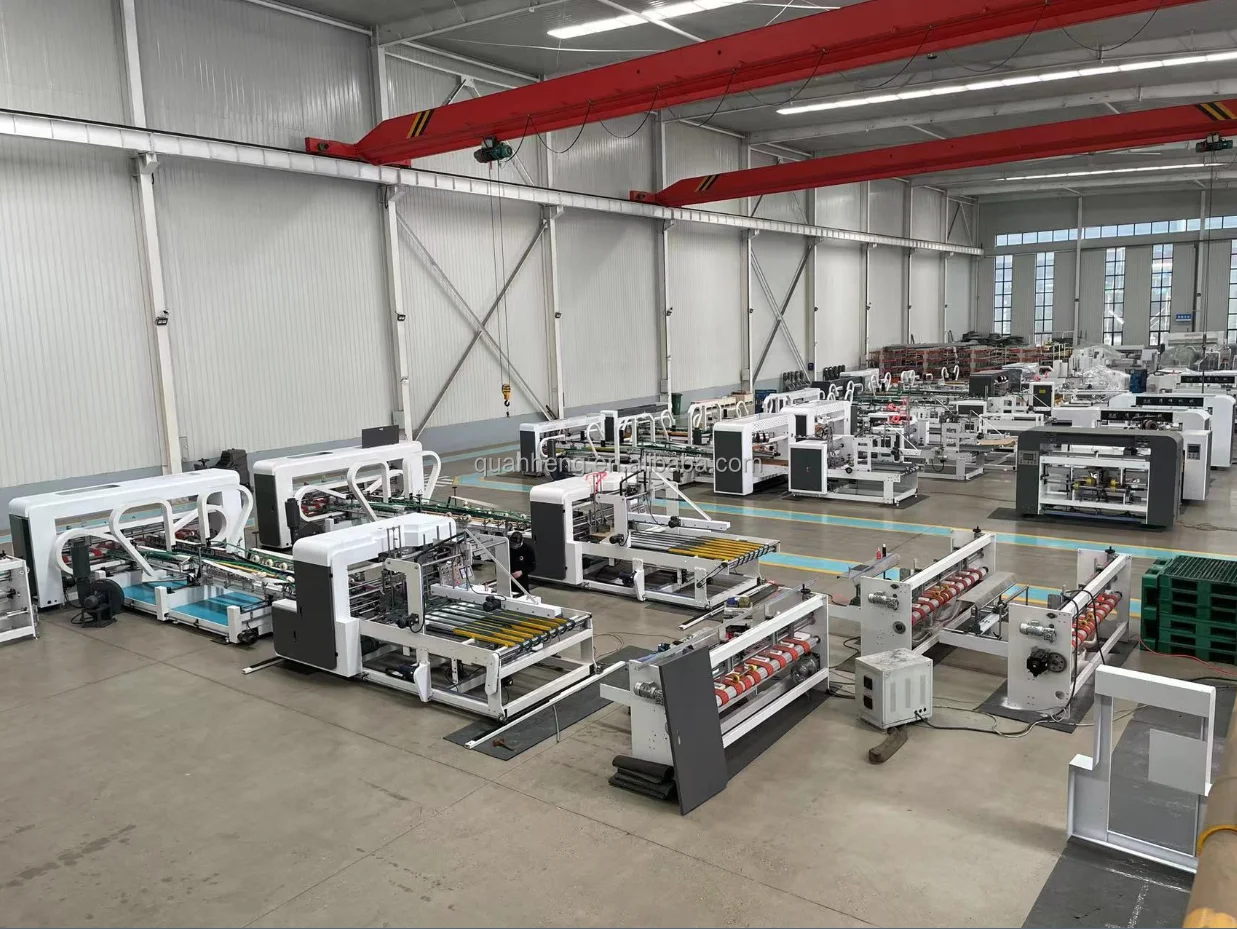

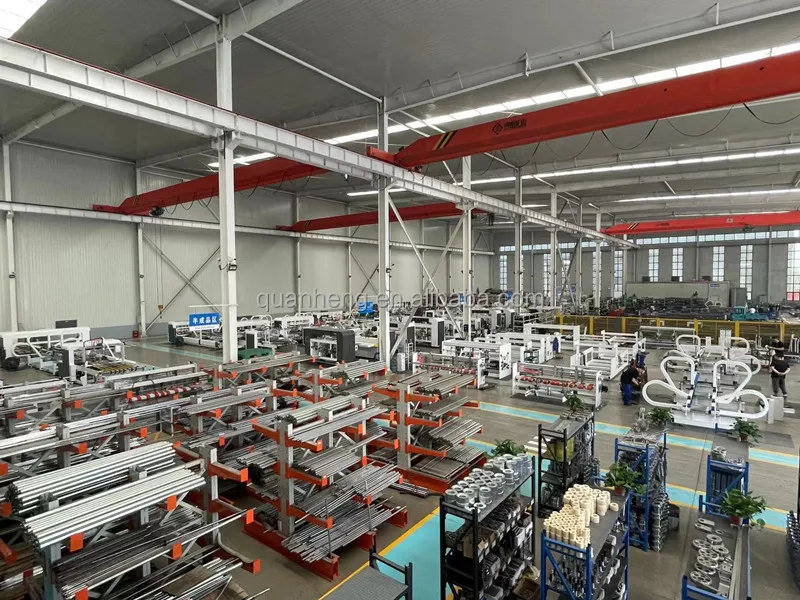

A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!
Q. Do you have Import & export right?
A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company,so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?
A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!
Q. Do you have Import & export right?
A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
