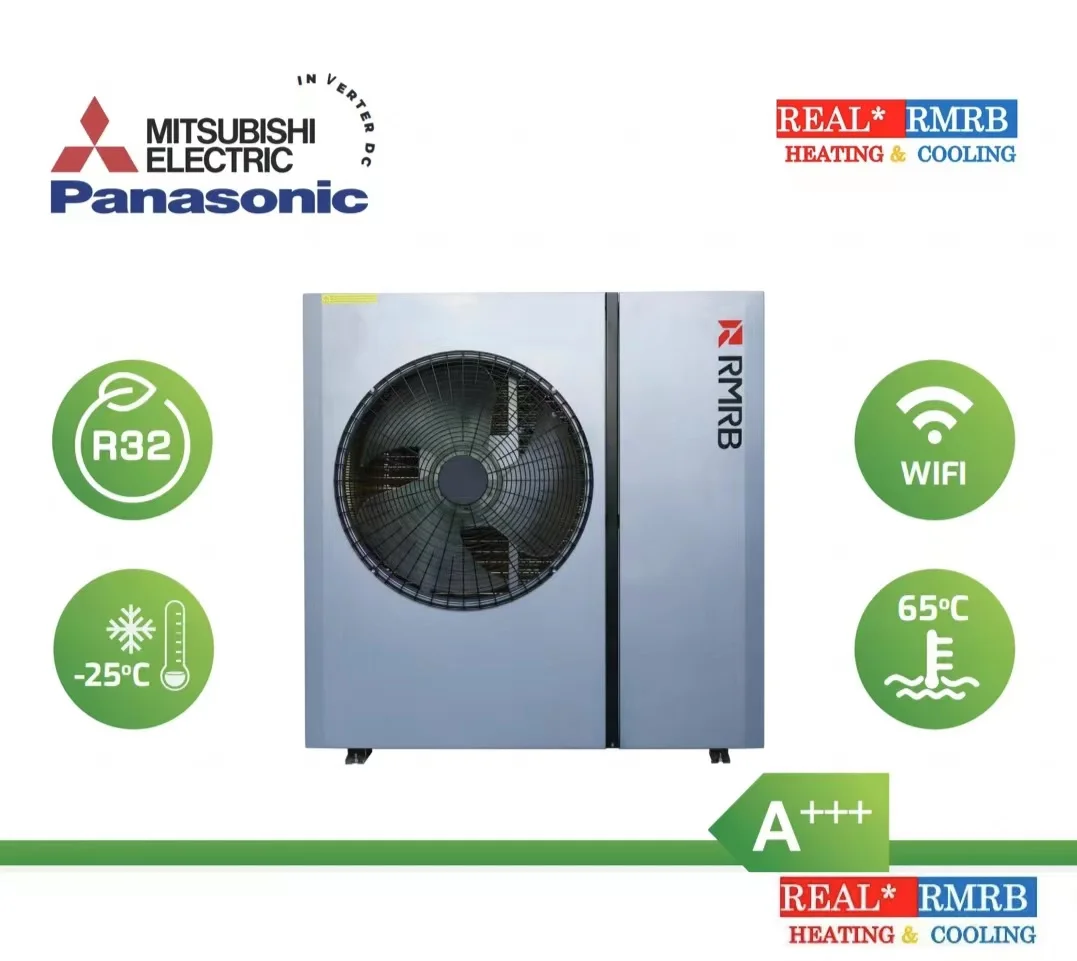

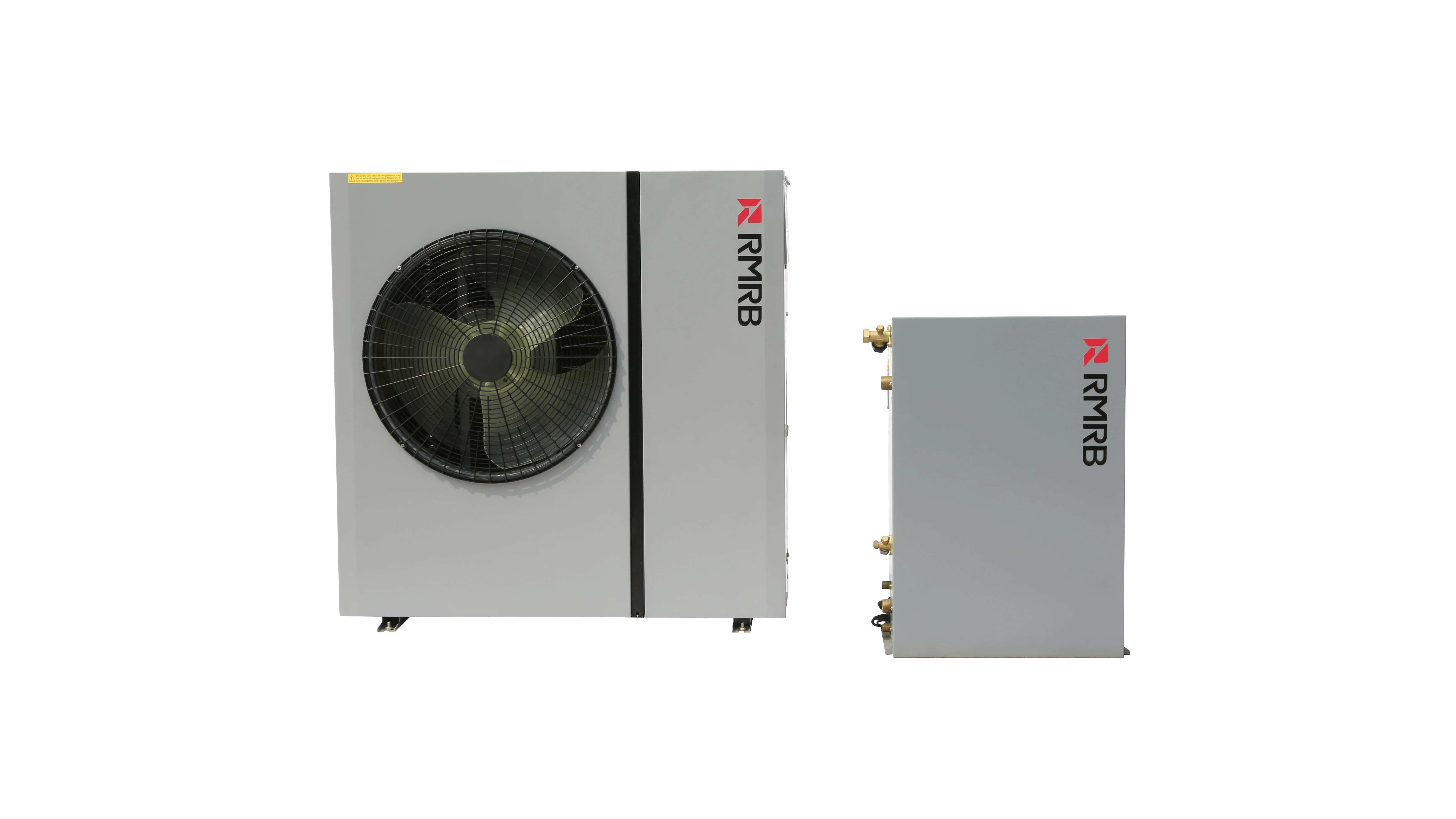

Chinese manufacturer Dc Inverter Air To Water Heat Pump Air Source Heat Pump R32 A Air Source Heat Pump Water Heater
- Category: >>>
- Supplier: Guangzhou Realm Co. Ltd.
Share on (1600801722274):
Product Overview
Description

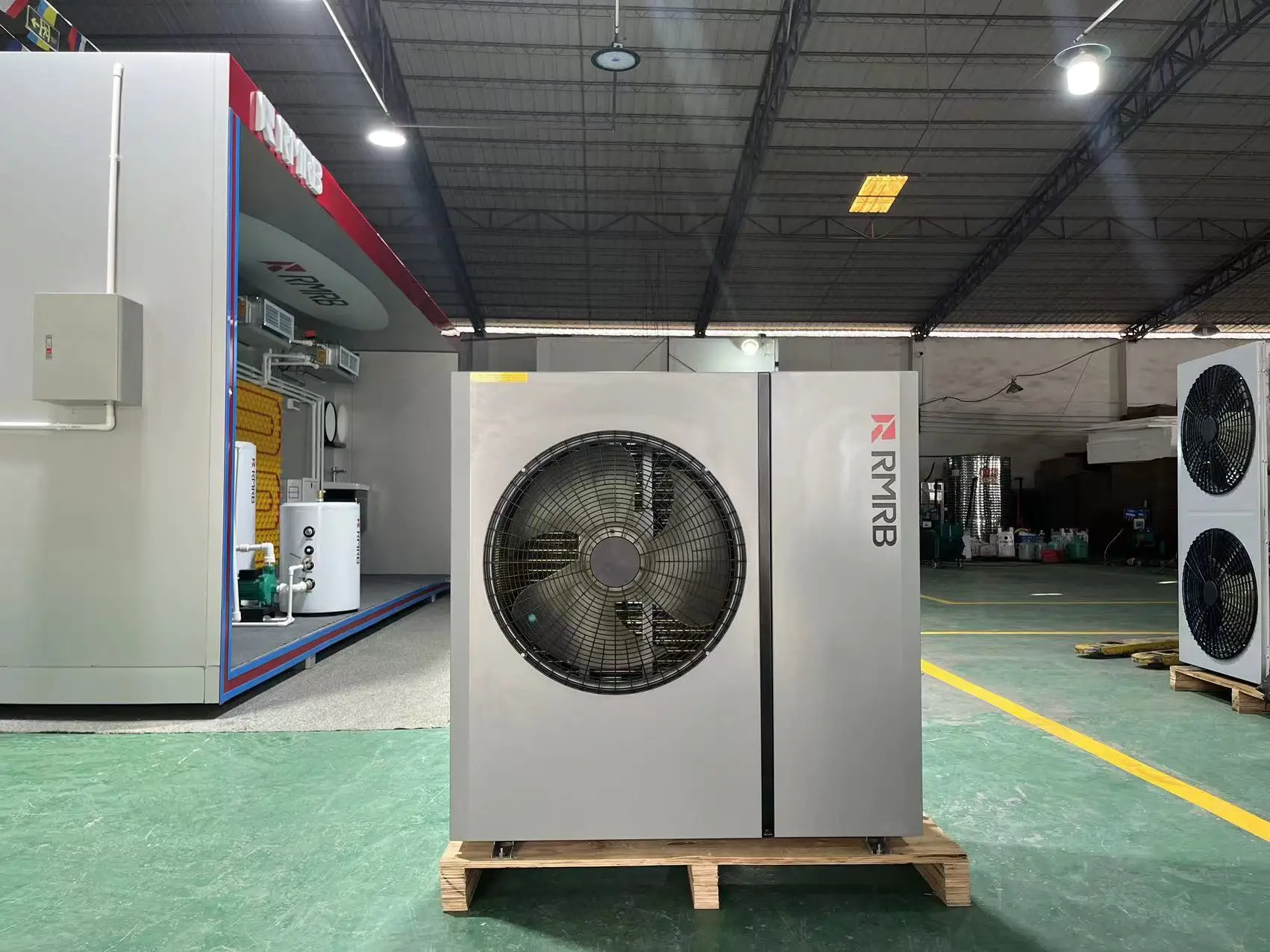

Detailed Images

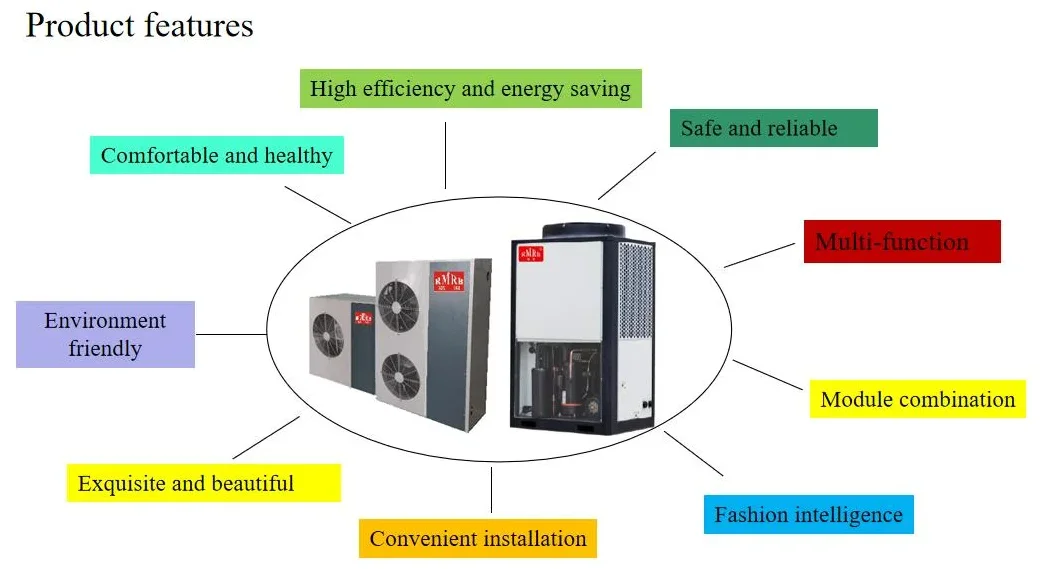

Feature
Holiday away
Holiday away function is a mode for improving system reliability and saving energy. Unit operates in heating mode and/or DHW mode with low water temperature to prevent water from freezing in the winter during holiday outside. Users can preset the disinfection mode before going home to ensure that sterile water can be used when they go home.
Smart control
With the help of the weather temperature curve function, the water temperature will automatically change with the outdoor ambient air temperature. When outdoor ambient air temperature increases or decreases, the heating load will decrease or increase, so water temperature will decrease or increase automatically. When outdoor ambient temperature decreases or increases, the cooling load will decrease or increase and the water temperature will increase or decrease automatically.
Silent mode
2mm thickness panel to reduce the vibration.
Noise absorbs material side the cabinet.
Silent mode decreases the sound effectively.
In night silent mode, the unit could launch and quit silent mode during the night automatically.
Holiday home
The holiday home function is used to deviate from the normal schedules without having to change them during the holiday at home.
Product Effects
Multiple mute design
Professional airflow analysis software is used to analyze from multiple angles such as heat exchanger, motor, fan blade, air duct, and shell structure to realize multiple mute design.
Fan stepless adjustment
Adopting brushless DC motor stepless adjustment technology
Large fan design
The design of outdoor fan is optimized. The large diameter single fan blade of 480 ~580MM is adopted to make the powder quantity larger and the speed lower. A brushless DC motor is employed to make the wind softer.

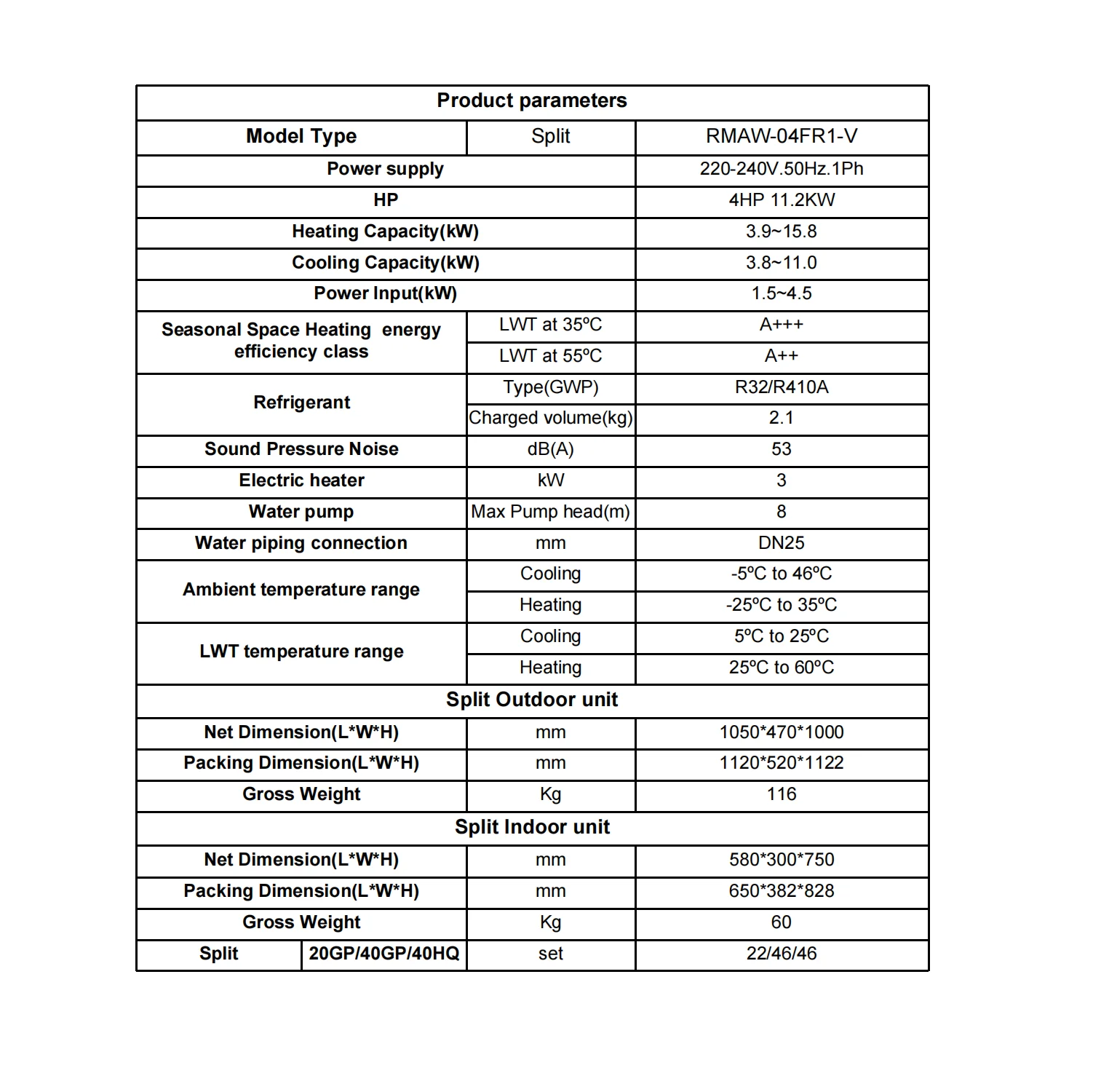

Product Parameters
| GuangZhou Realm Energy Saving Equipment CO,.LTD | |||||||
| MODEL | MONOBLOCK | RMAW-03ZR1-V | RMAW-04ZR1-V | RMAW-05ZR3-V | RMAW-06ZR3-V | RMAW-08ZR3-V | RMAW-10ZR3-V |
| SPLIT | RMAW-03FR1-V | RMAW-04FR1-V | RMAW-05FR3-V | RMAW-06FR3-V | / | / | |
| Heating capacity | (KW) | 8.2KW | 11.2KW | 16.1KW | 18KW | 22KW | 31KW |
| Power supply | / | 220-240V,50Hz,1Ph | 220-240V,50Hz,1Ph (380-415V,50Hz,3Ph) | 380-415V,50Hz,3Ph | |||
| Heating 1 - Outdoor temperature: 7ºC/6ºC; Inlet water temperature: 30ºC; Outlet water temperature: 35ºC . | |||||||
| Heating Capacity (kw) | kw | 8.7 | 11.2 | 17.2 | 18.9 | 21.95 | 33.71 |
| Cooling Capacity(kW) | kw | 2.02 | 2.82 | 4.18 | 4.42 | 5.53 | 8.19 |
| Power input (kw) | Cop | 4.3 | 4 | 4.1 | 4.3 | 3.96 | 4.06 |
| Heating 2 - Outdoor temperature: 7ºC/6ºC; Inlet water temperature: 40ºC; Outlet water temperature: 45ºC | |||||||
| Heating Capacity (kw) | kw | 8.2 | 10.6 | 16.1 | 17.8 | 20.78 | 31.56 |
| Cooling Capacity(kW) | kw | 2.46 | 3.3 | 5.01 | 5.41 | 6.47 | 9.82 |
| Power input (kw) | Cop | 3.3 | 3.2 | 3.2 | 3.3 | 3.17 | 3.17 |
| Heating 3 - Outdoor temperature: 7ºC /6ºC ; Inlet water temperature: 47ºC; Outlet water temperature: 55ºC . | |||||||
| Heating Capacity (kw) | kw | 7.8 | 10 | 15.1 | 16.7 | 19.6 | 29.6 |
| Cooling Capacity(kW) | kw | 3.02 | 3.91 | 5.95 | 6.64 | 7.66 | 11.66 |
| Power input (kw) | Cop | 2.6 | 2.6 | 2.5 | 2.5 | 2.57 | 2.48 |
| Cooling 1 - Outdoor temperature: 35ºC; Inlet water temperature: 23ºC; Outlet water temperature: 18ºC. | |||||||
| Heating Capacity (kw) | kw | 7.9 | 10.2 | 15.1 | 16.2 | 19.99 | 29.6 |
| Cooling Capacity(kW) | kw | 2.42 | 3.36 | 4.42 | 4.65 | 6.59 | 8.66 |
| Power input (kw) | Cop | 3.3 | 3.1 | 3.2 | 3.4 | 3.07 | 3.17 |
| Cooling 2 - Outdoor temperature: 35ºC; Inlet water temperature: 12ºC; Outlet water temperature: 7ºC. | |||||||
| Heating Capacity (kw) | kw | 6.7 | 8.5 | 12.5 | 13.8 | 16.66 | 24.5 |
| Cooling Capacity(kw) | kw | 2.36 | 2.9 | 5.1 | 5.31 | 5.68 | 10 |
| Power input (kw) | Cop | 2.8 | 2.9 | 2.5 | 2.8 | 2.87 | 2.48 |
| Power input (kw) | kw | 1.0-3.0 | 1.5-4.5 | 2-5.5 | 2.2-6.6 | 3.5-8.5 | 4.5-10.5 |
| Seasonal energy efficiency | 35℃ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| 55℃ | A++ | A++ | A++ | A++ | A++ | A++ | |
| Refrigerant/Quantitative | / | R32/1.7kg | R32/1.8kg | R32/3kg | R32/3.1kg | R32/3.6kg | R32/3.9kg |
| Noise | dB(A) | 57 | 59 | 60 | 61 | 62 | 62 |
| Dimension(L/W/H) | mm | 995*420*1000 | 995*470*1385 | 1195*570*1450 | |||
| Packing Dimension | mm | 1060*510*1140 | 1060*510*1530 | 1265*625*1515 | |||
| Compressor | brand | Panasonnic/Mitsubishi | Panasonnic/Mitsubishi | Panasonnic/Mitsubishi | |||
| Circulating pump | brand | WILO | WILO | / | |||
| Connectors | / | DN25 | DN32 | ||||
| Temperature during operation | ℃ | 40℃ TO -35℃ | |||||
| Electric heater | kw | 3kw | / | ||||
| Remark:"Z"= Monoblcok, "F"= Split , "R1"= single-phase,"R3"= three-phase,"V"=EVI Jet enthalpy enhancement | |||||||
