Product Overview
Description
SVLEC M12 4 Pin Plastic Circular Connectors D-Code D Coding Male as Murr connector
Product Description
Product Name: | M12 D-code connector |
Pin out: | 4 pin |
Gender: | Male |
Cable outlet diameter: | PG9 (6-8mm) |
Supply Voltage: | 250 V AC/DC |
Current per contact(40℃）: | Max.4A |
Wiring method: | Screw terminals |
Protection: | IP67(60529) When plugged and screwed down |
Temperature range: | -25~+85 ℃ |
Housing material: | Flame retardant plastic |
Connection diameter: | Max.0.75mm² |
M12 Field-wireable round plug connector
M12 series connectors provides a wide range of metric for small sensors and actuators.The ingress protection is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are
either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.
Field attachable / mountable connector is also available for your choice.
either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.
Field attachable / mountable connector is also available for your choice.

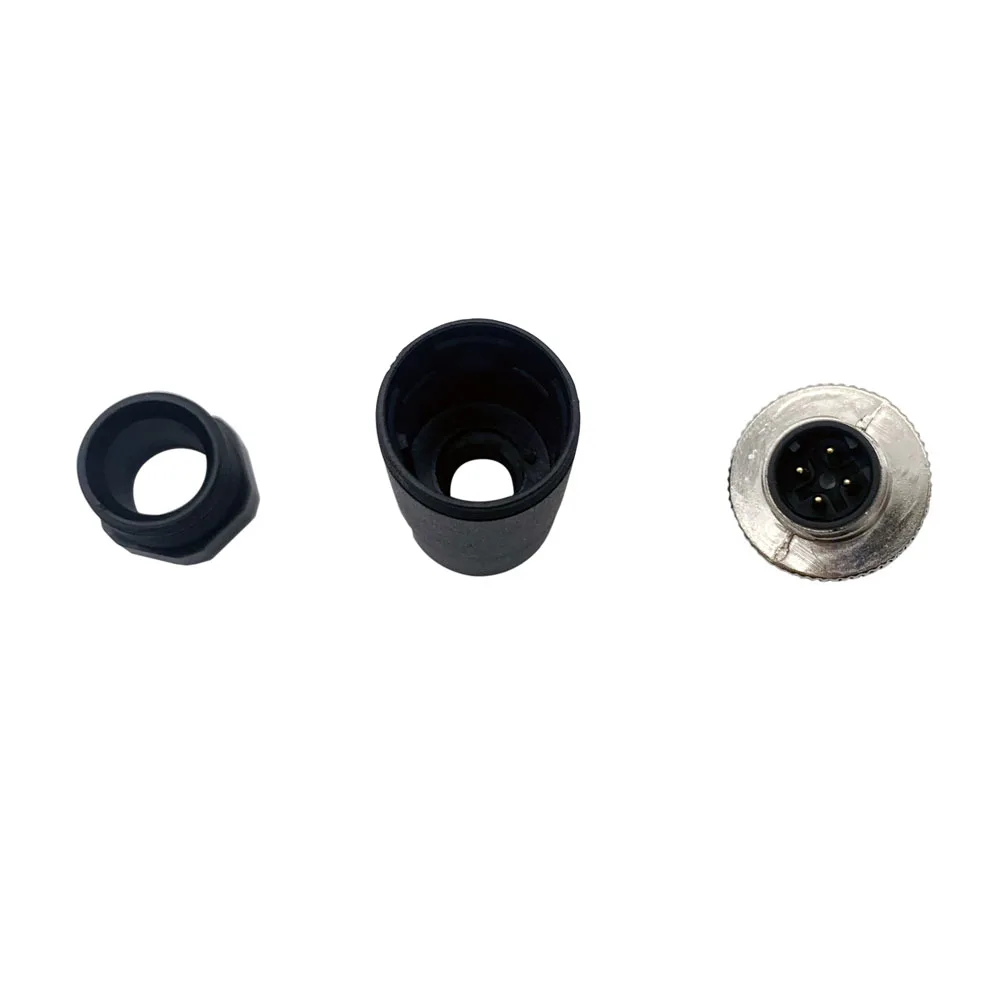

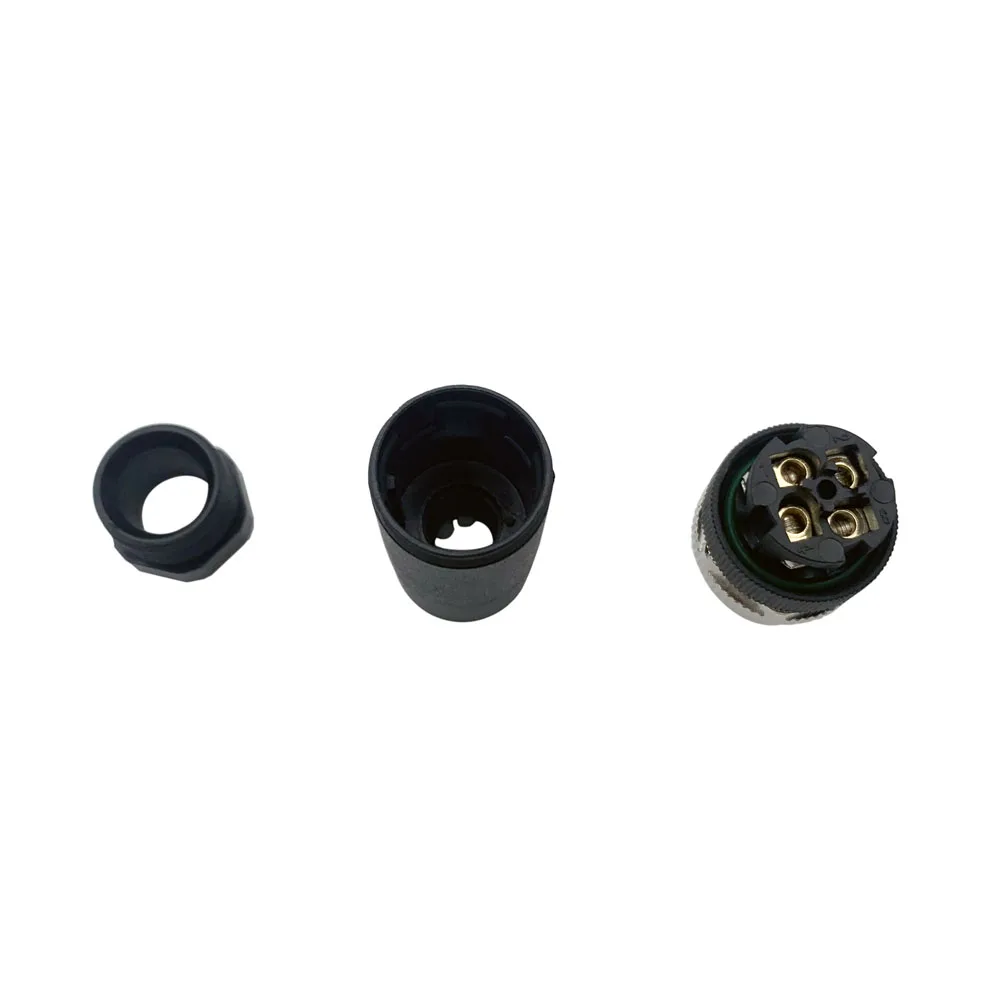

Details Images

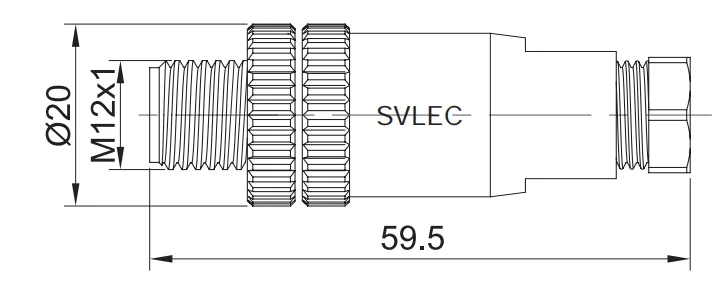

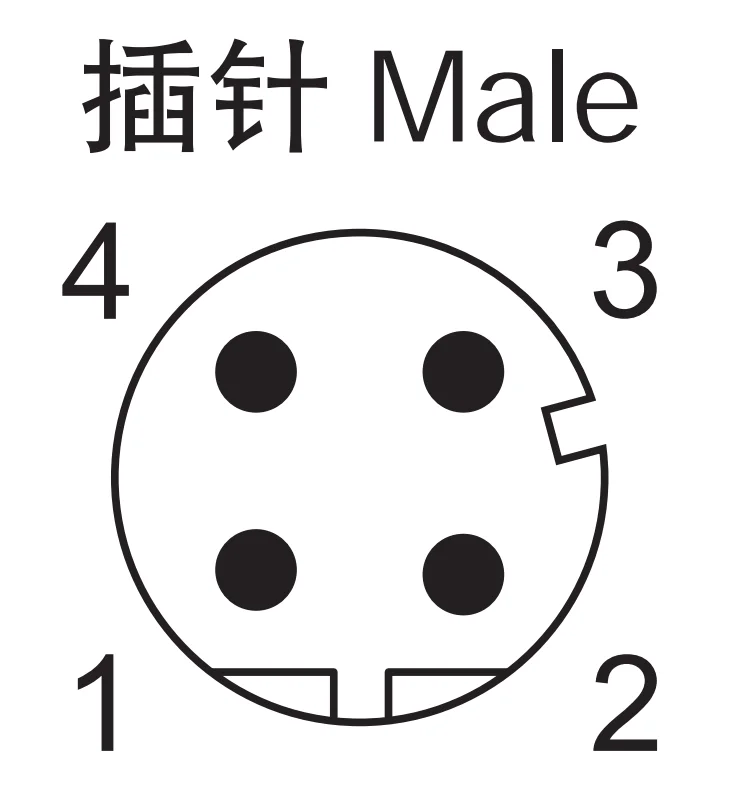

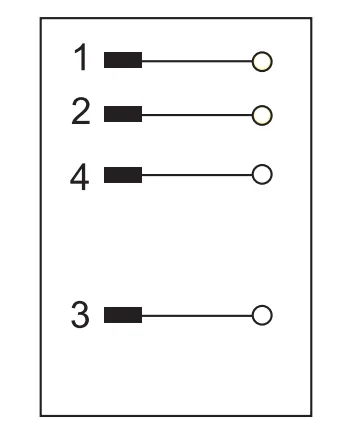

Circuit diagram /contact layout/Dimension
