panel detector flat iray 17*17 wireless flat panel detector iray mars 1717 quality with dr tech
Model No.: MSLFP06
MOQ: 1UNIT
Packing: Standard export packing
Cynthia +86 136 3291 5041
panel detector flat iray 17*17 wireless flat panel detector iray mars 1717 quality with dr tech

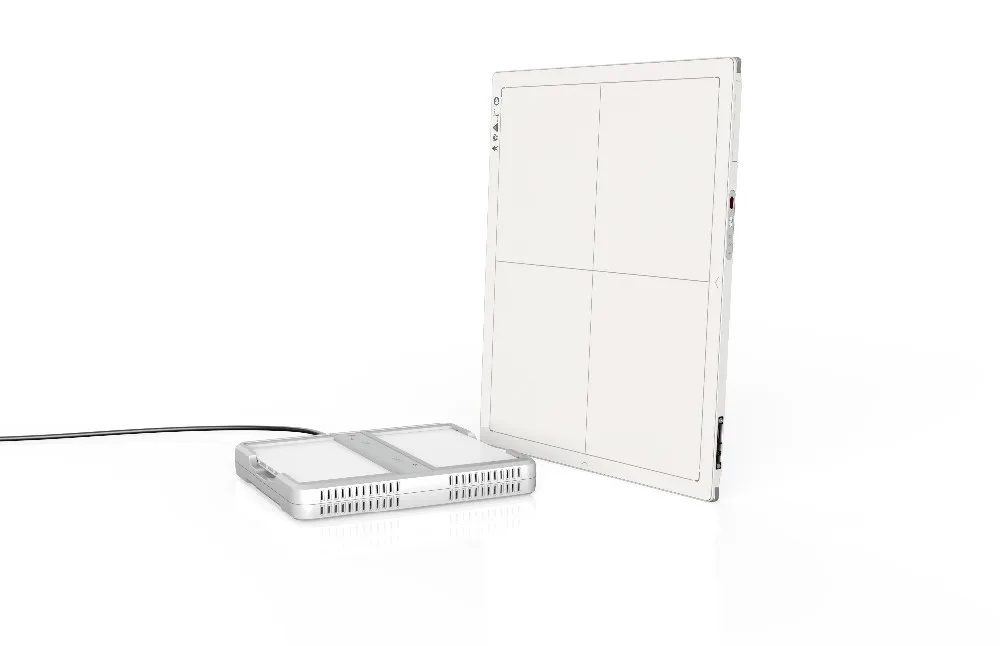

MSLFP06 is a high performance, box size flat panel probe tester. Unique cable transmission technology, can be in 1 second complete a pair of full resolution image transmission, detector with high DQE, high resolution and other excellent quality. The device is equipped with high sensitivity AED module, which can be easily connected with high voltage generator linkage.

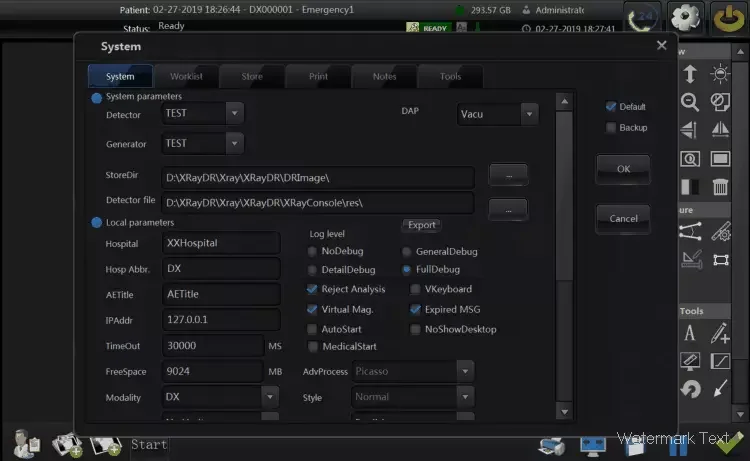

System language for options, Chinese, English. French, Portuguese, Russian, Spanish, Italian, Swedish, Chinese
*Fast workflow

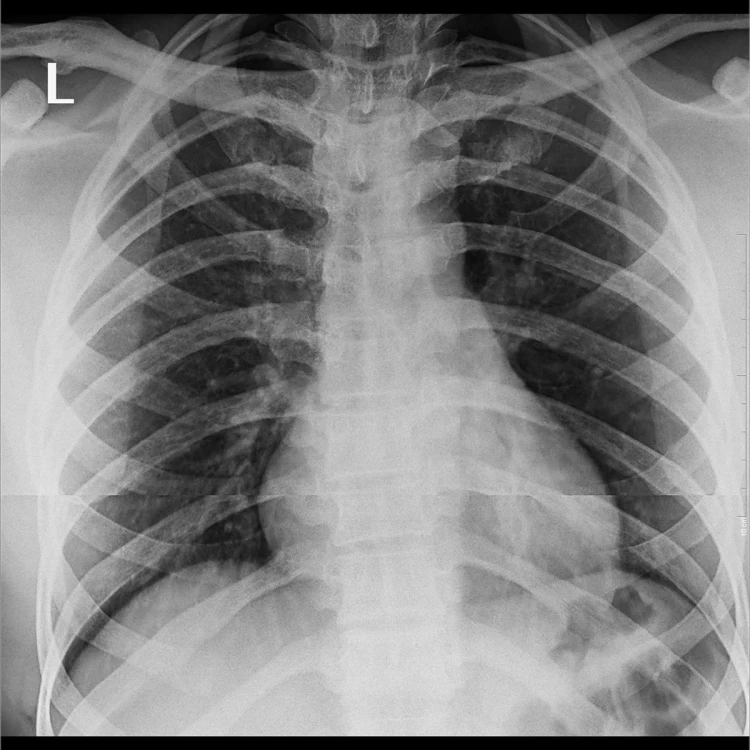

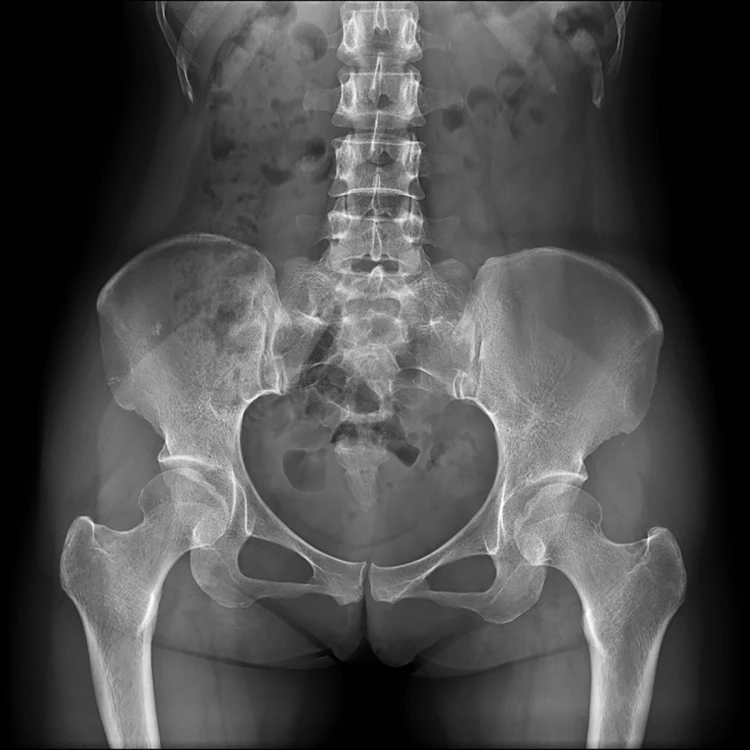

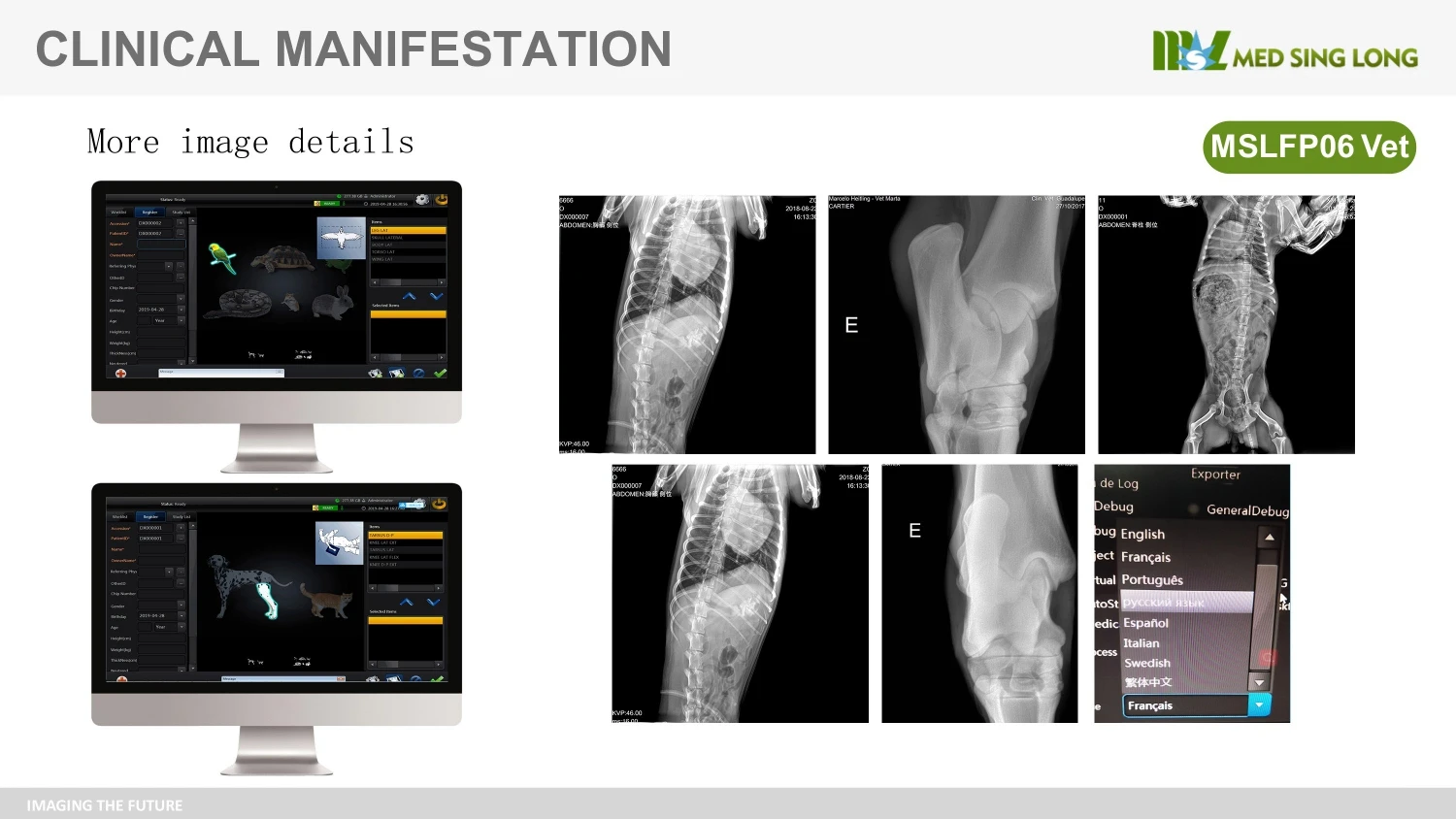

*More image details
*Excellent image quality

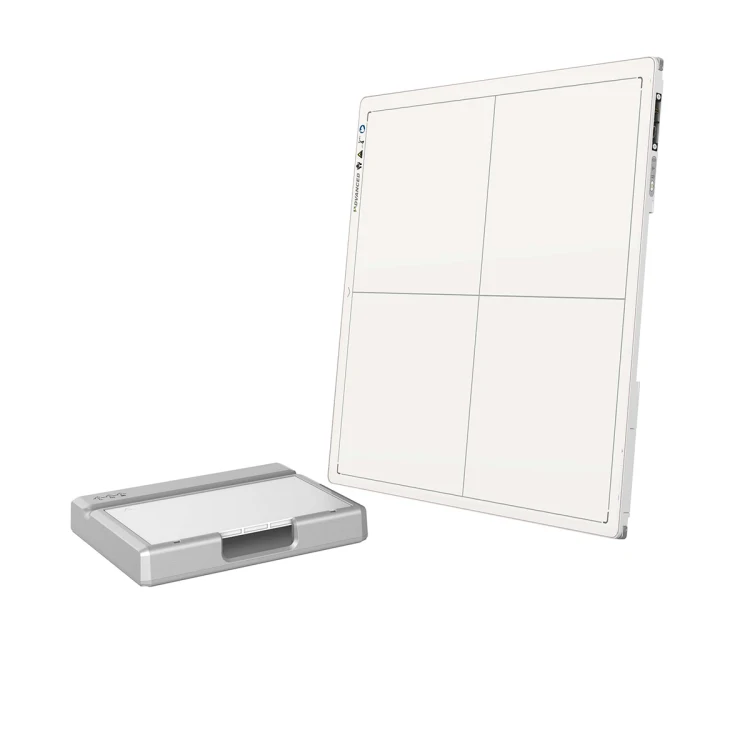

*Cassette-size flat panel detector
*More image details
*Excellent image quality
*Cassette-size flat panel detector
Product Introduction

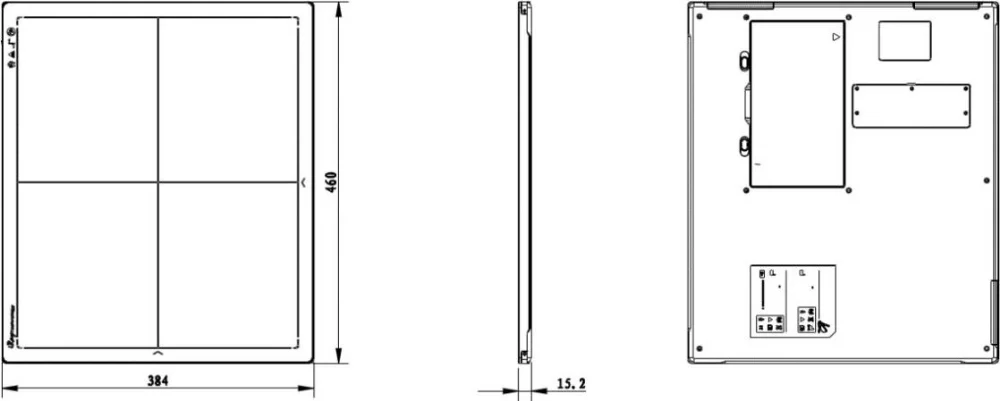

Detector Reference Drawing
Fig1. Detector Mechanical Outline (unit:mm)
Product Parameters
Detector Technology | Amorphous Silicon | ||||
Scintillator | CsI | ||||
Active Area | 430mm x 430mm | ||||
Number of Pixels | 2816x 2816 | ||||
Pixel Pitch | 150um | ||||
AD Conversion | 16 bit | ||||
Trigger Mode | AED/Software | ||||
Data Interface | Ethernet/WiFi(802.11ac) | ||||
Dimension | 460mm x 460mm x 15mm | ||||
Weight | 4.3 kg | ||||
Housing Material | Carbon, Alloy | ||||
Model NO. | Specification | Brand | Feature |
MSLFP01 | 17*17 COS Mobile Flat Panel Detector | MSL | DICOM DR workstaton |
MSLFP02 | 17*17 CIS Mobile Flat Panel Detector | MSL | DICOM DR workstaton |
MSLFP03 | 14*17 CIS Wireless Mobile Flat Panel Detector | MSL | DICOM DR workstaton |
MSLFP13 | 14*17 CIS Wired Mobile Flat Panel Detector | MSL | IPX3 water tightness |
MSLFP14 | 17*17 CIS Wired Mobile Flat Panel Detector | MSL | IPX3 water tightness |
MSLFP15 | 14*17 CIS Wireless Mobile Flat Panel Detector | MSL | IPX3 water tightness |
MSLFP16 | 17*17 CIS Wireless Mobile Flat Panel Detector | MSL | IPX3 water tightness |

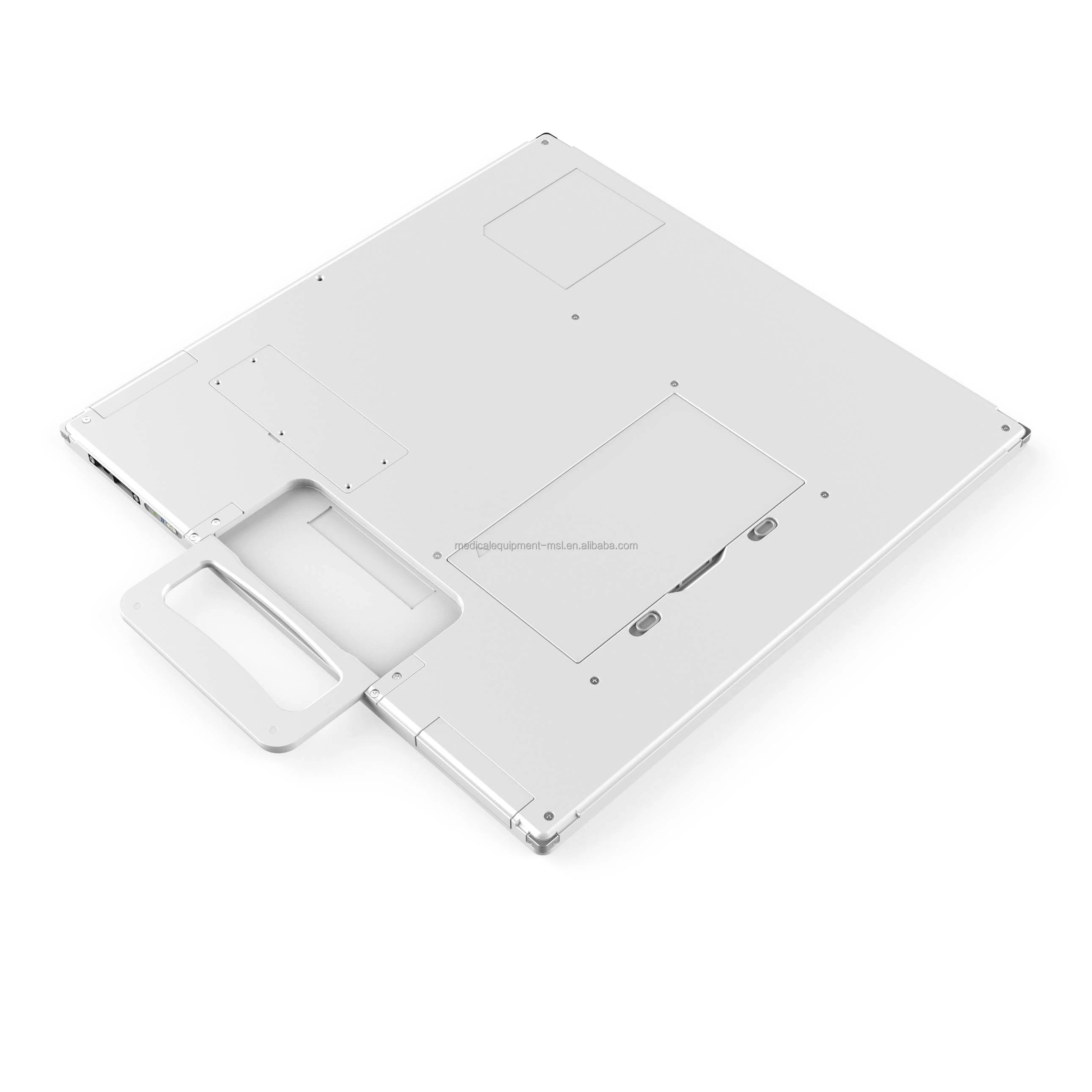

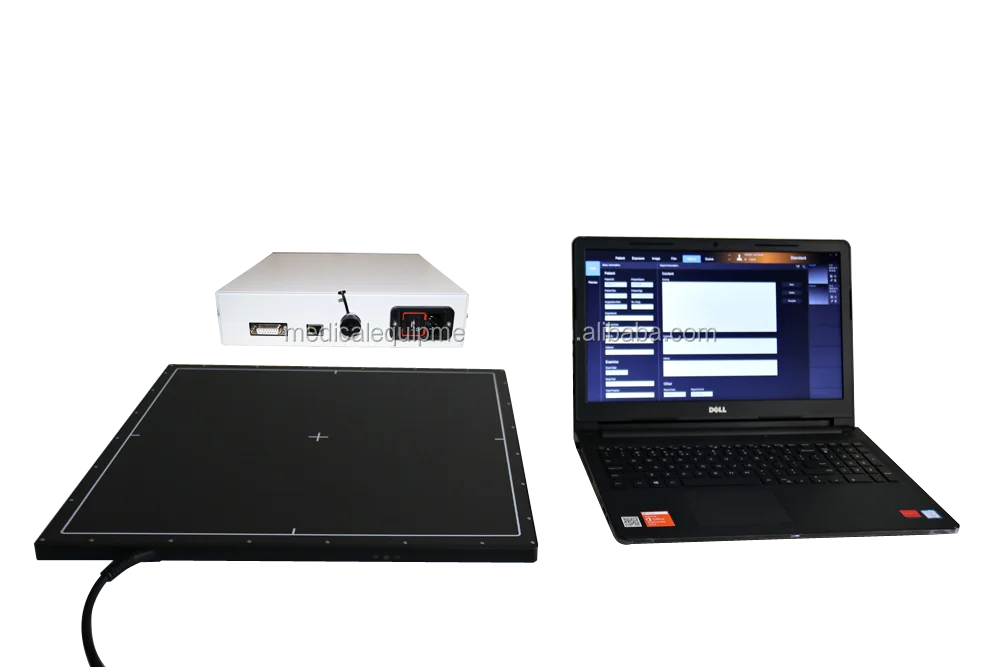

Product Details Show

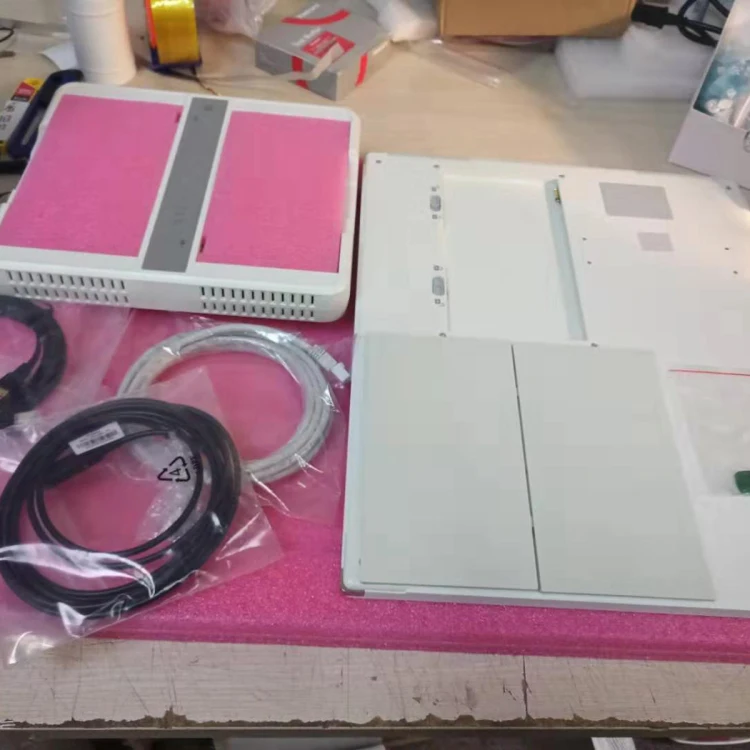

Product Packing
1unit to be packed in one carton box.
Packing size : 55*55*20cm
Gross weight: 8kgs
Shipment method: by courier DHL/TNT/FEDEX/UPS
by air , by sea, by land
Goods ready time: 3-7 working days after the payment received
Transit time: 3-6 days by courier
