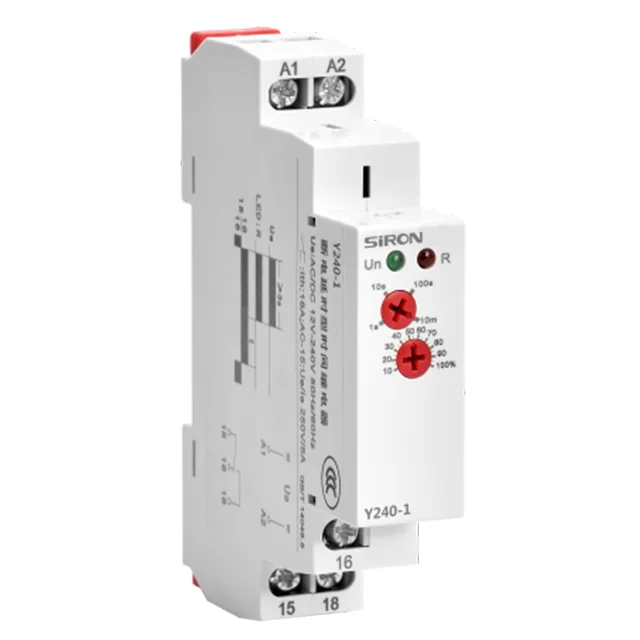

Automatic machinery application multi function led indicate 12v 240v delay time relay module
Automatic machinery application multi-function led indicate 12v 240v delay time relay module
Automatic machinery application multi-function led indicate 12v 240v delay time relay module
Automatic machinery application multi-function led indicate 12v 240v delay time relay module
Automatic machinery application multi-function led indicate 12v 240v delay time relay module
Automatic machinery application multi-function led indicate 12v 240v delay time relay module
Automatic machinery application multi-function led indicate 12v 240v delay time relay module

Automatic machinery application multi function led indicate 12v 240v delay time relay module

Share on (1600801870586):


Price:

Quantity:


Product Overview

Description



Features


*Ultra-wide delay range, 0.1 seconds to 10 days can be set (10 gears).
*AC/DC12V-240V ultra-wide working voltage specification is optional.
*The working status of the relay is indicated by the LED indicator.
*Multi-functional time relay can be used for industrial equipment, lighting control, heating element control, motor and fan control,with 10 delay modes, with a delay range of 0.1 seconds to 10 days.


Specification


Model
Y210
Y210-1
Y211
Y211-1
Output number of contact groups
A set of conversions
Two sets of conversion
Output contact current
1×16A(AC1)
2×16A(AC1)
Output contact voltage
250VAC/24VDC
Rated control supply voltage
AC 220V
(50-60Hz)
AC/DC 12-240V(50-60Hz)
AC 220V
(50-60Hz)
AC/DC 12-240V
(50-60Hz)
Consumed power
ACmax.6va/1.3W
AC 0.09-3VA/DC
0.05-1.7W
ACmax.6va/1.9W
AC 0.09-3VA/DC
0.05-1.7W
Power supply allowable fluctuation range
-15%；+10%
Power indicator light
Green LED
Delay range
0.1 seconds-10 days, normally open, normally closed
Set way
Knob
Setting precision
10%
Repeat accuracy
0.2%
Temperature fluctuation error
0.05%/℃，at=20℃(0.05%℉,at=68℉)
Minimum switching power
500mW
Output relay indication
Red LED
Mechanical life
1×107
Electrical life (resistive load)
1×105
Reset the time
Max 200ms
Operating environment temperature
-20℃～+55℃
Store and transport ambient temperatures
-35℃～+75℃
Installation
35mm rail installation
Protection grade
IP20
Installation position
Arbitrary
Installation altitude
≤2000M
Pollution levels
2
Wiring ability
1×2.5mm2 or 2×1.5mm2 0.4N.m
Overall dimensions
90mm×18mm×64mm
Conform to the standard
GB14048.5,IEC60947-5-1,EN61812-1


Product Paramenters

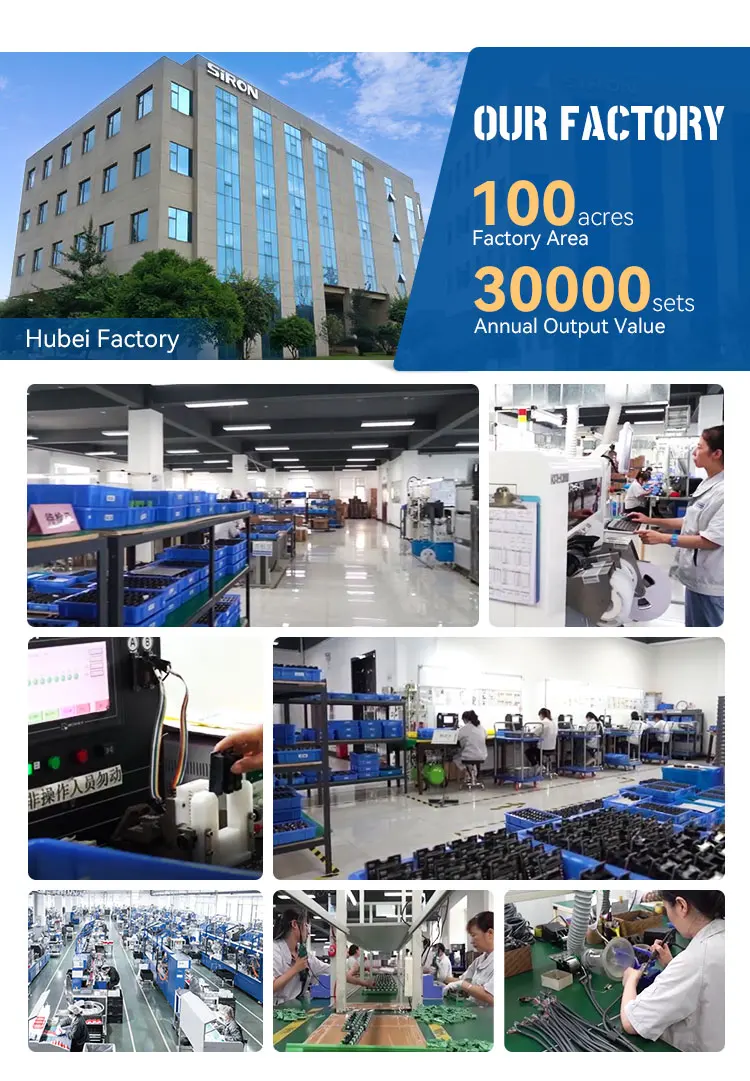

Company Profile










Certifications




Delivery




FAQ


1.What type of company are you?
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switch, and
Auxiliary Equipment, Human Machine Interface, Frequency Converter, Servo Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE, CCC, UL, and RoHs etc.,
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South Korea..., and we do hope you become our agent in the future, welcome to discuss the deep details with us.
