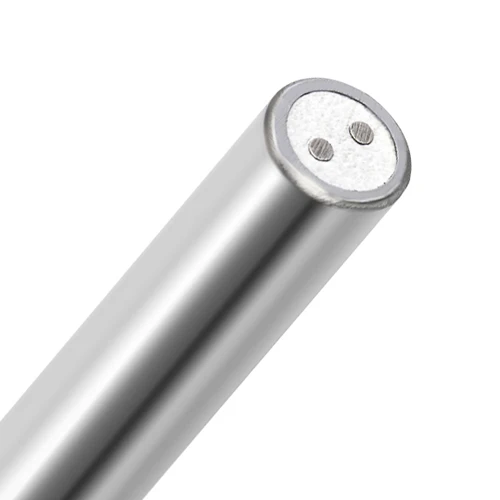

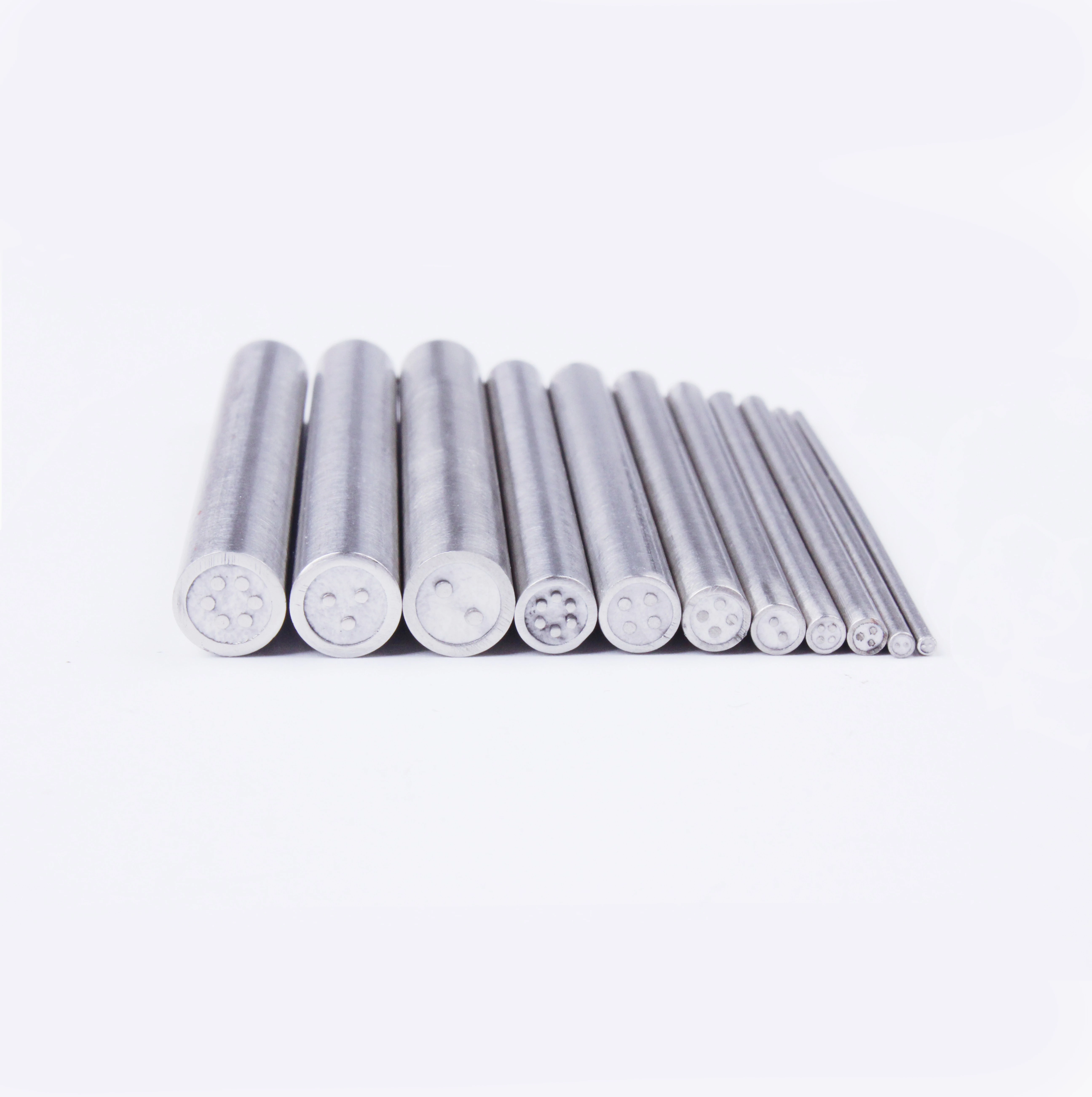

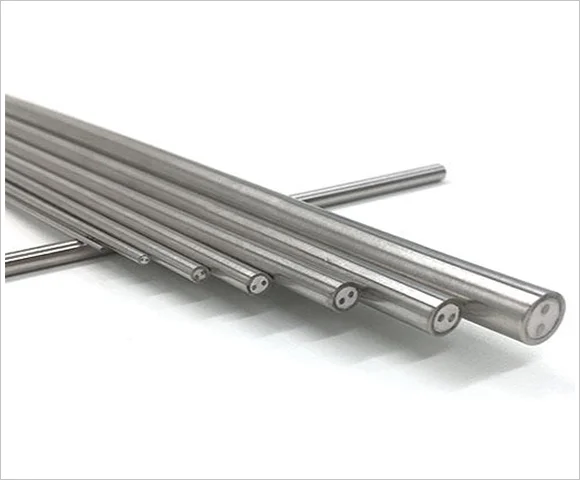

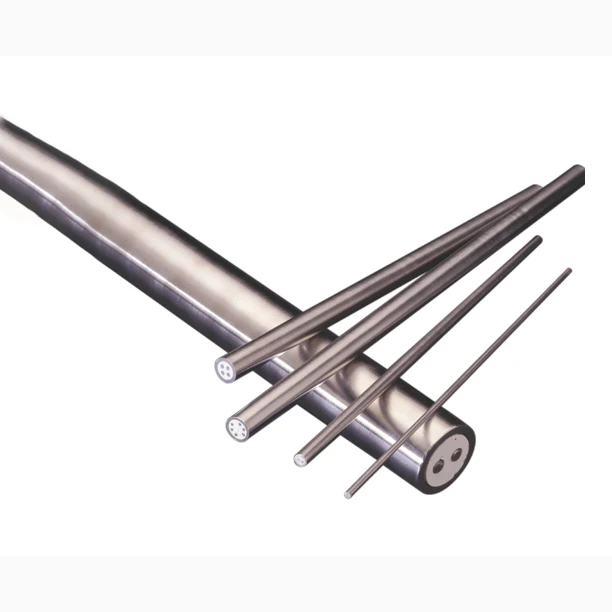

HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable
HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable
HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable
HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable
HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable
HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable
HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable

HY Factory 3mm Sheathed MI Cable 2/4/6/8 cores Mineral insulated Cable Type K Armored MgO K/N/E/J/T thermocouple RTD MI Cable

Share on (1600801901887):


Price:$0.88 - $1.20

Quantity:


Product Overview

Description



Product Description




Specification


Mineral Insulated Cable Features：
In comparison to conventional cables, the MI cables have the following features.
* Wide Range of Temperature Supported
The MI cables are high temperature/high pressure tolerant and can be used for a wide temperature range from -269 to 1260°C.

* Excellent Uniformity
We can manufacture longer MI cables in which inorganic insulators are firmly packed with a method of our unique technology.

* Easy Handling
Since bending processing is available up to a radius 2 times longer than the outer diameter of the sheath, the MI cables can be
installed in various places at sites. They can be wound in a coil shape and soldered with silver, or welded.

* Longer Product Life
Air tightness is maintained and longer product life is achieved with insulation by magnesium oxide, which is chemically stable.

* High Mechanical Strength/Pressure Resistance Performance
The MI cables can be used even in the conditions of a place with vibration, corrosive atmosphere, etc.

* Various Sizes and Shapes
We can manufacture a sheath outer diameter of 0.05 to 8 mm or customize according to your purposes of use.


item
value
Place of Origin
China
Jiangsu
Brand Name
HY
Model Number
K,E,J,T,N
Conductor Material
Copper or Nickel
Insulation Material
99.6% high purity MgO''Magnesium oxide"
Jacket
SUS321(SS304) or SUS316
Number of Conductors
2,4,6
Product name
Mineral Insulated Cable MI Cable
Place of Origin
Jiangsu Province,China
Certification
ISO,CQC
ModeL Number
RTD
Conductor material
Copper or Nickel
Diameter(mm)
2, 2.4, 3.0, 3.2, 4.0, 4.8, 5.0, 6.0, 6.4, 8.0
Insulator
99.6% high purity MgO''Magnesium oxide"
Usage
Industrial
Application
dustrial thermocouple, Temperature sensor
Sheath material
SUS321(SS304) or SUS316
* Note:Dear,Please note The Mineral insulated Cable Price I have quote are just for 1 meters ,single core diameter 3mm,use304stainless steel for outer sheath,for more details please contact me(can do customized per your demand,It's Not including shipping fee as well ,see contact info at bottom)






Packing & Delivery




Company Profile




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2003,sell to Domestic Market(45.00%),Southeast Asia(20.00%),Mid East(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Oceania(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Thermocouple, High Temperature Wire, Cartridge Heater

4. why should you buy from us not from other suppliers?
30years manufacturer experience
High quality, high credibility, good after sale service

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
