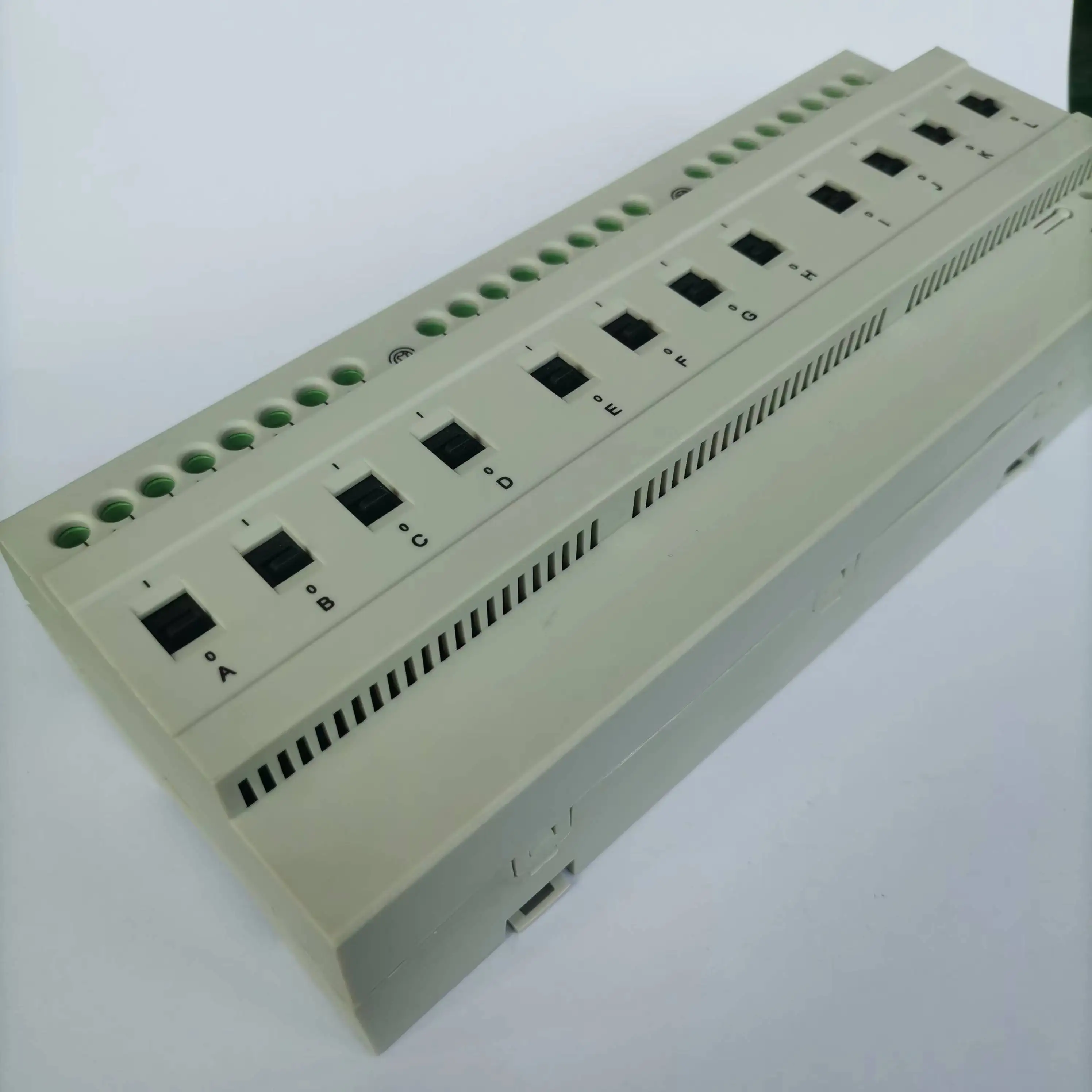

Automation 12 folds KNX Switch Actuator 24 folds mi home products actutor in switch

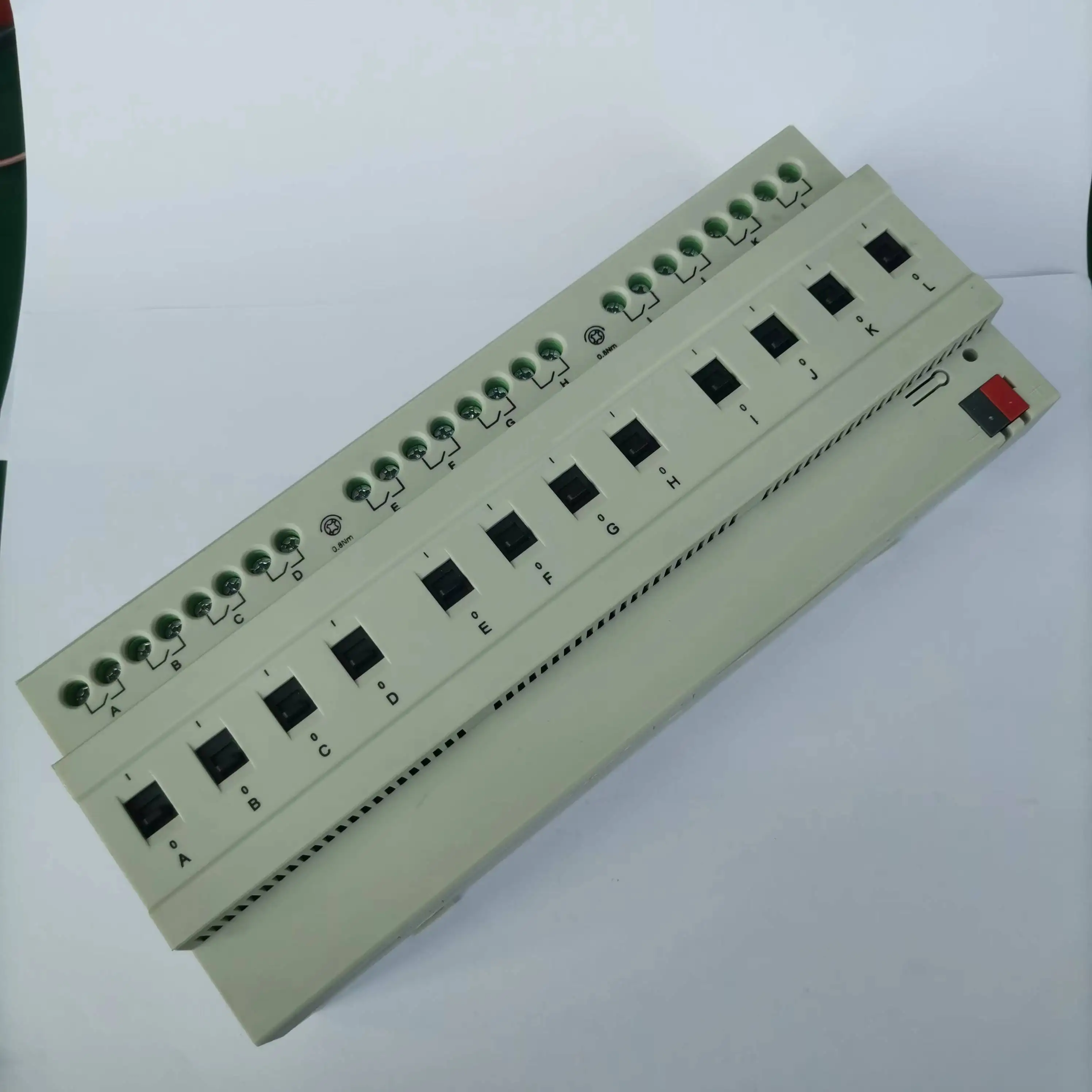

12 folds EIB/KNX Switch Controller Actuator

4 folds

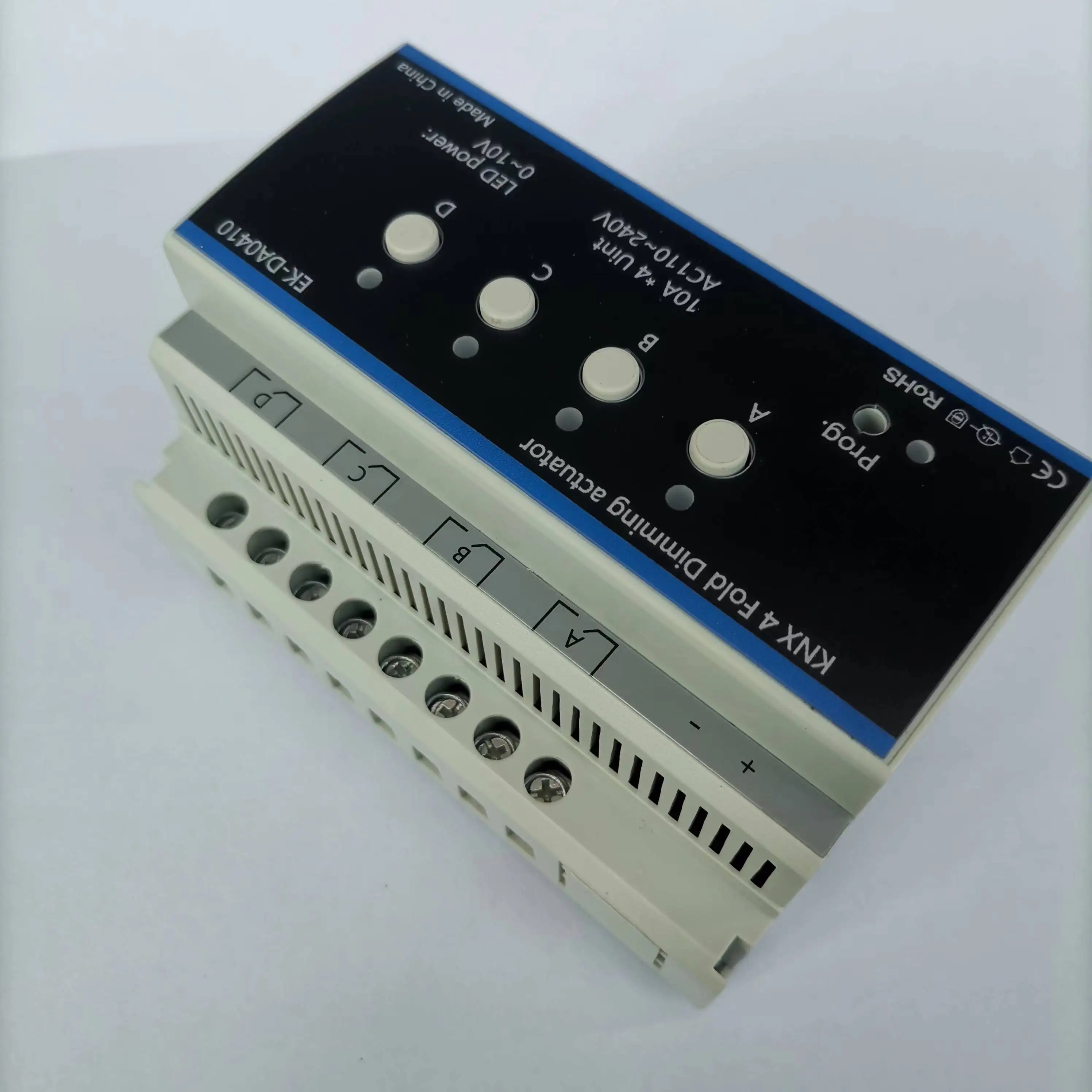

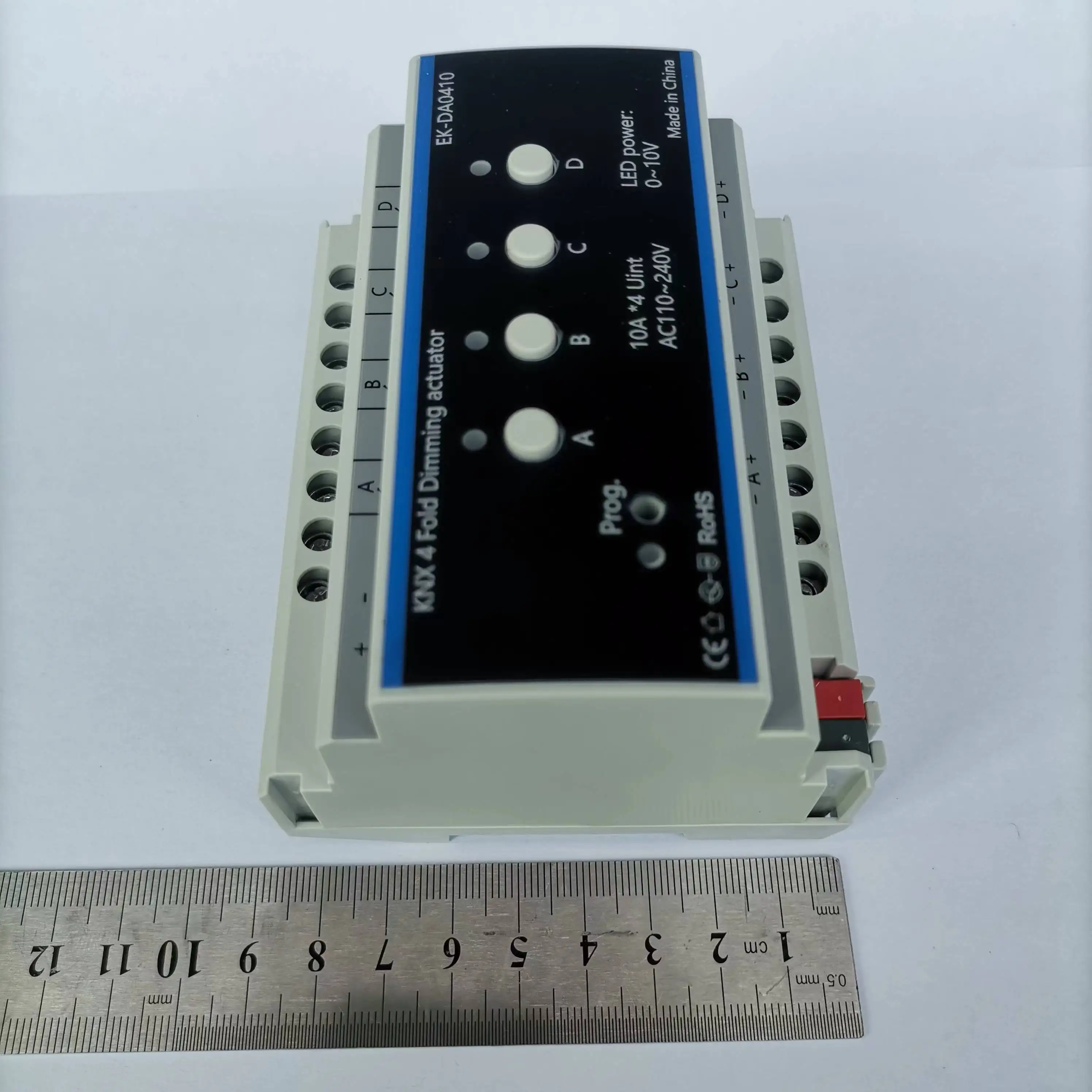

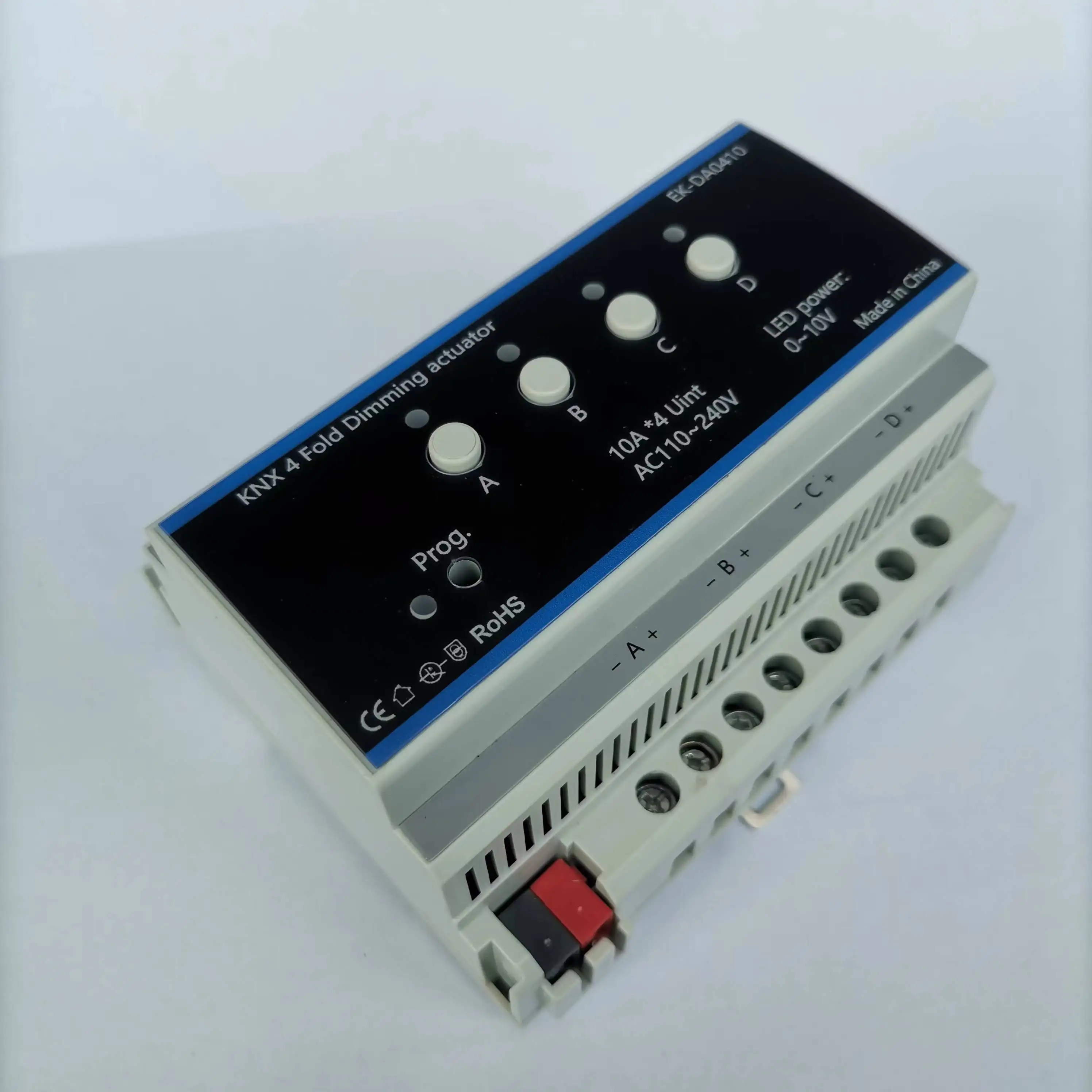

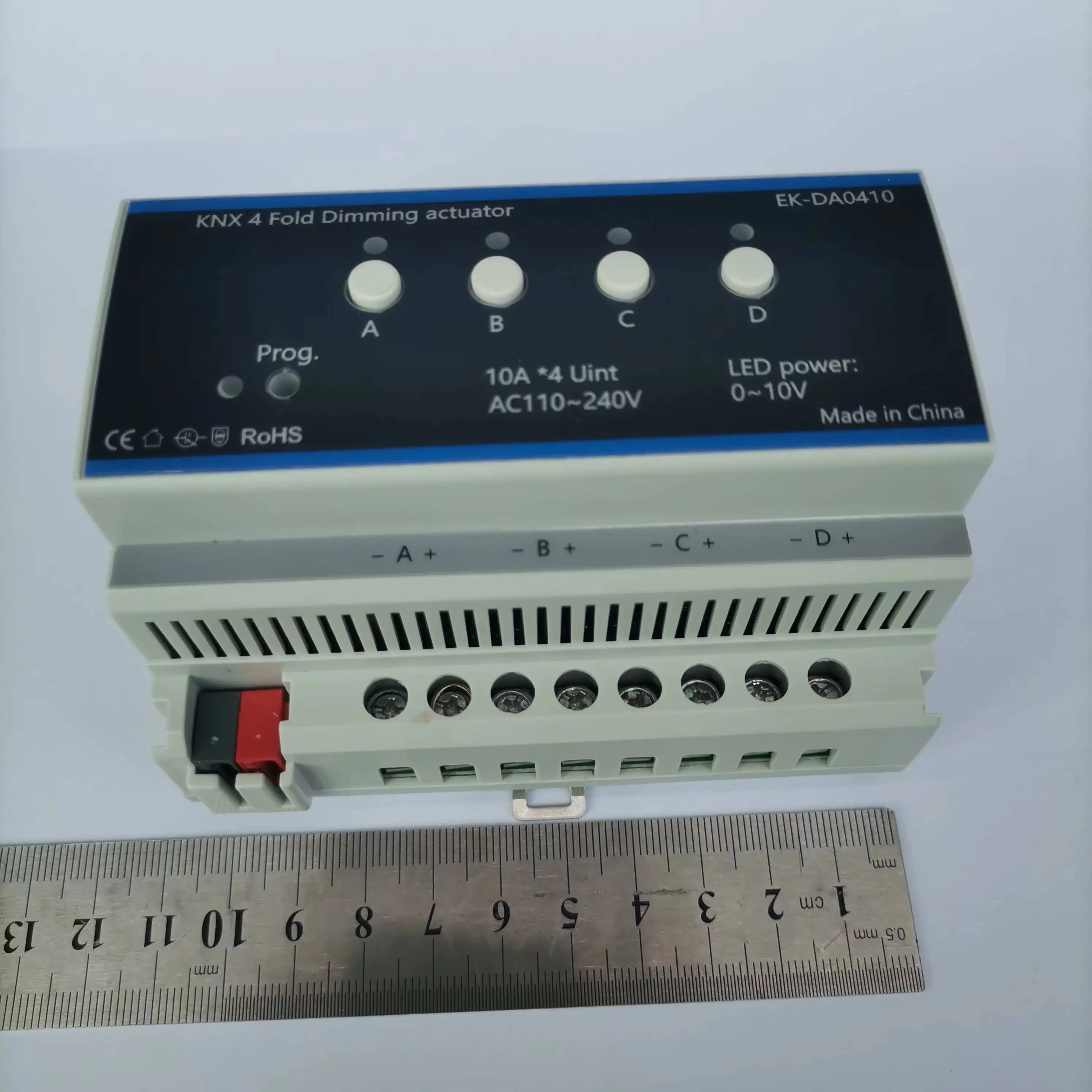

EIB/KNX Switch 400W Dimming Controller Actuator

4 folds

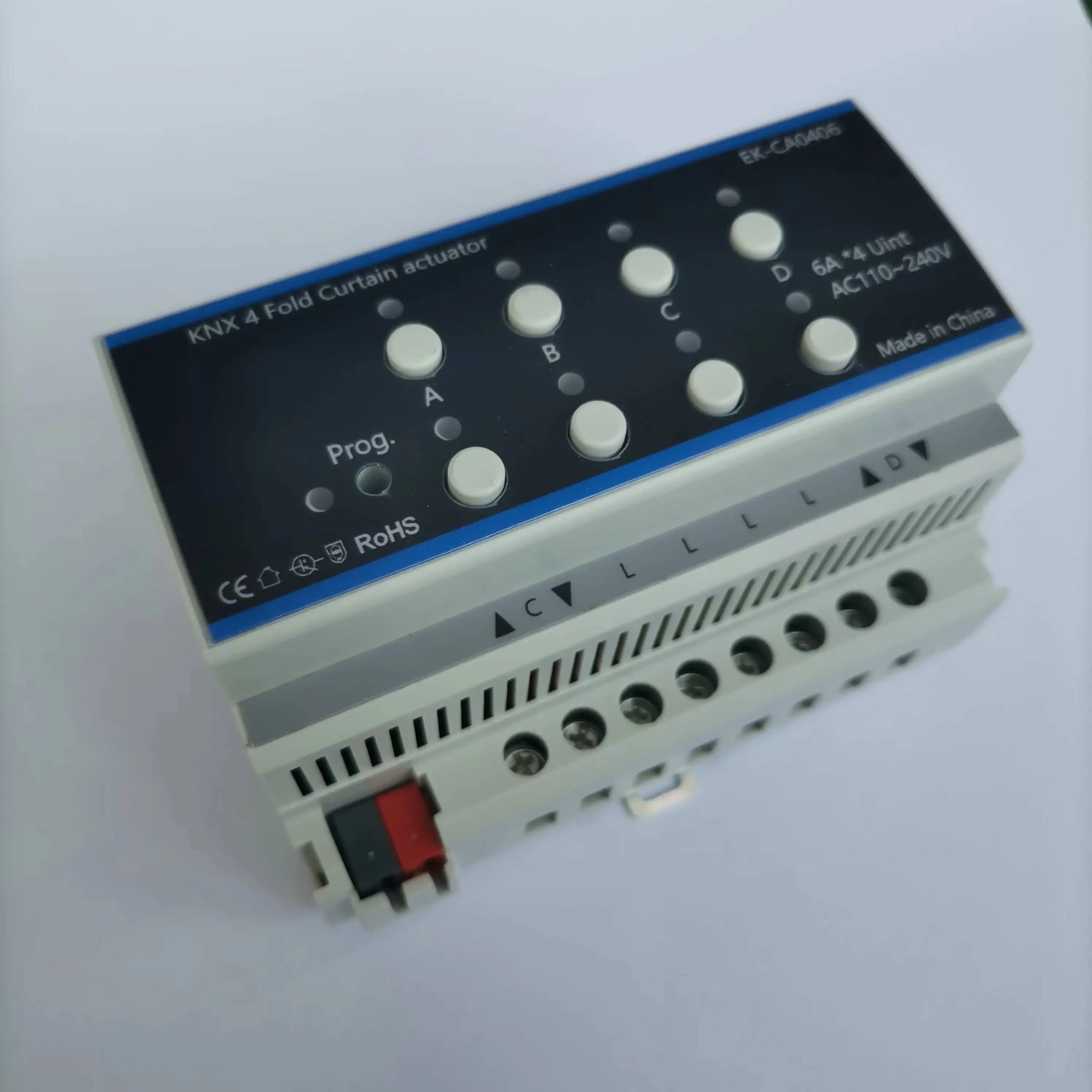

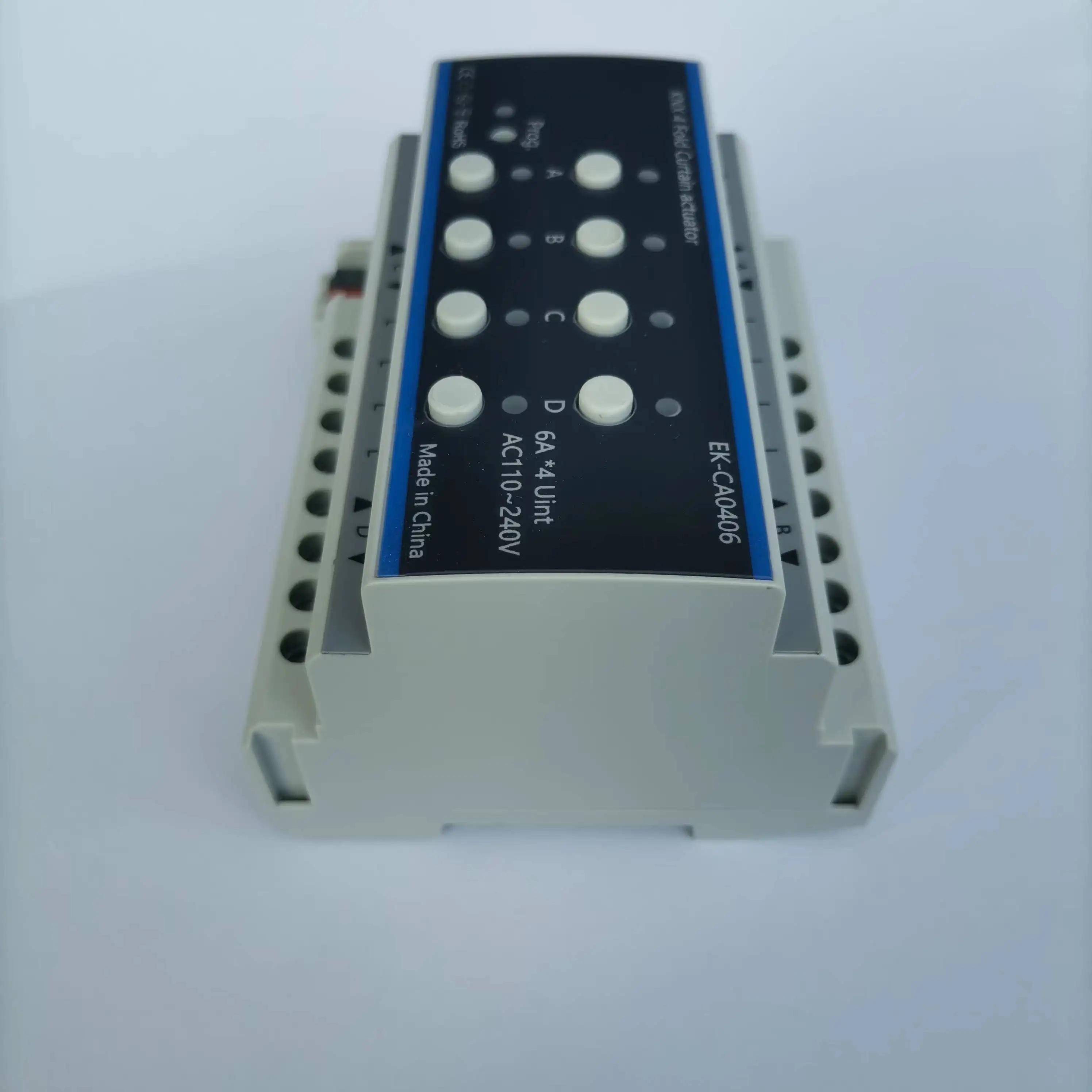

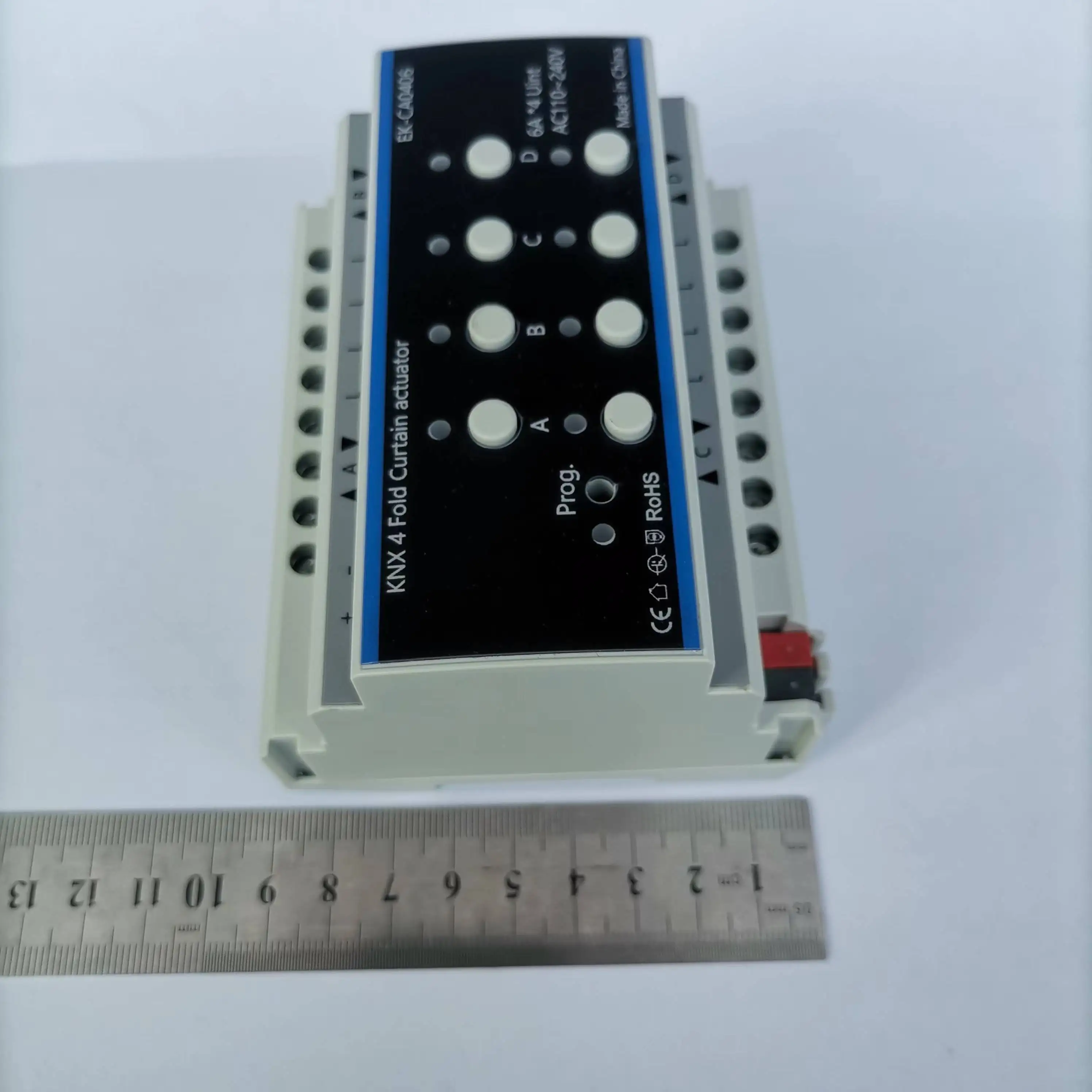

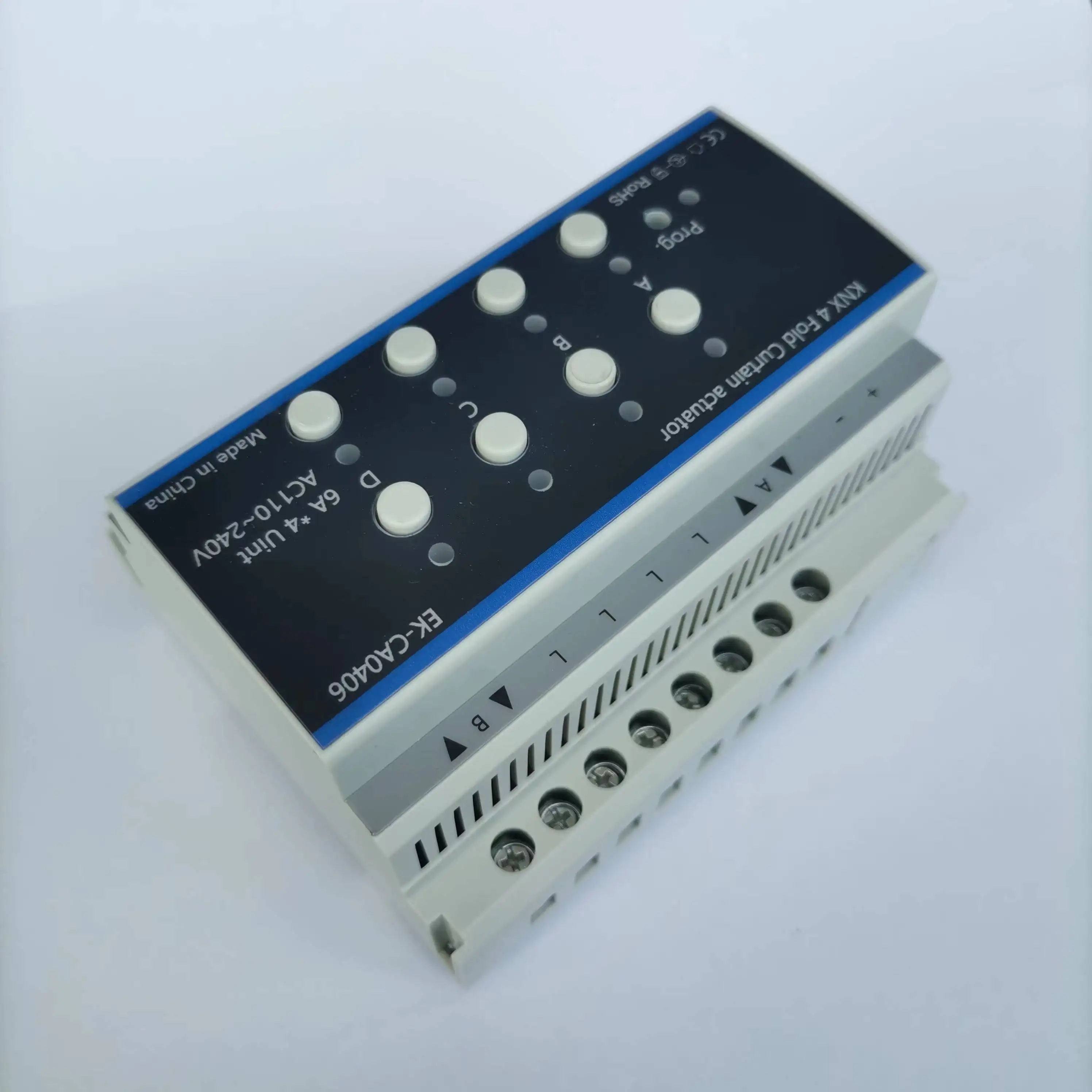

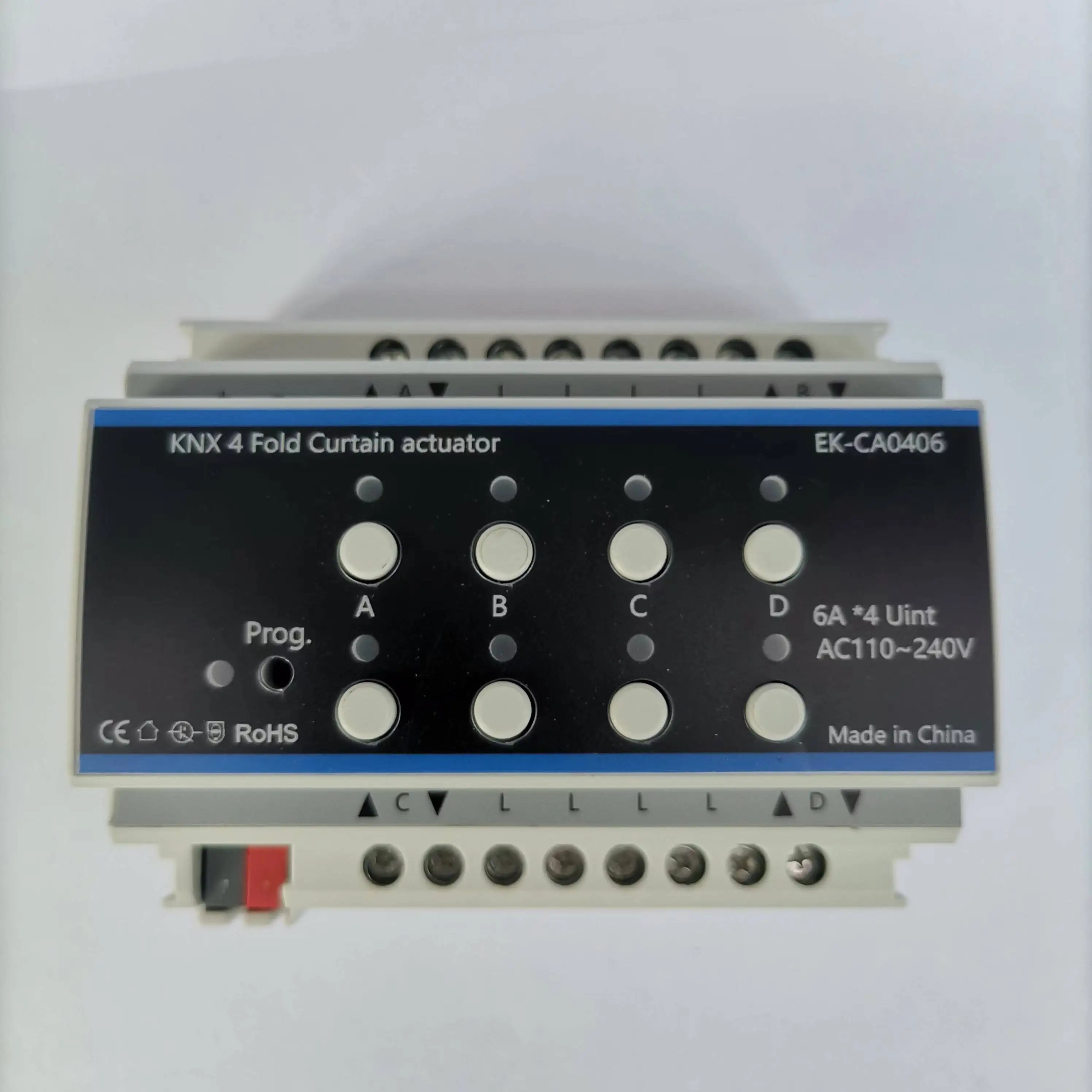

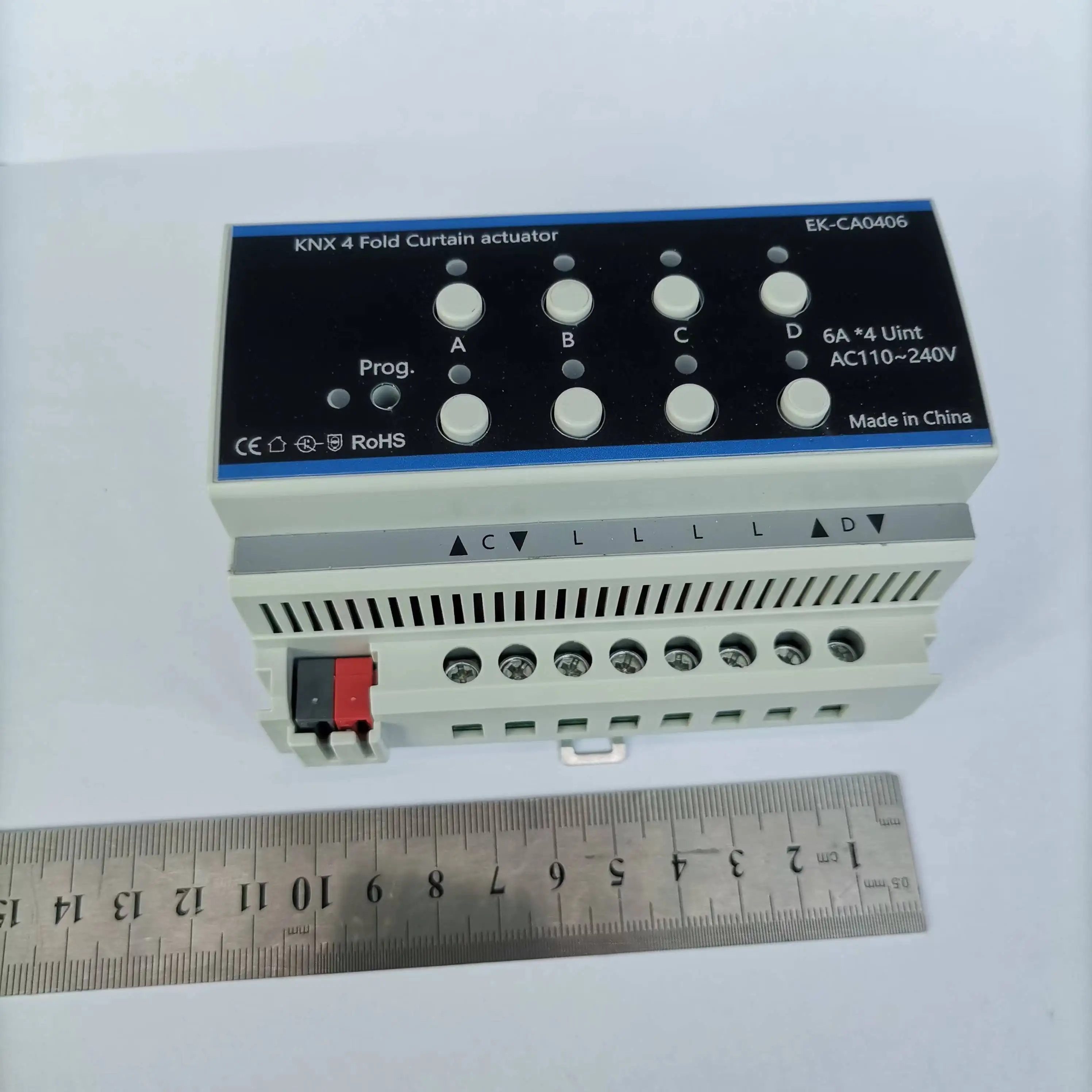

EIB/KNX 10A, Curtain Controller Actuator

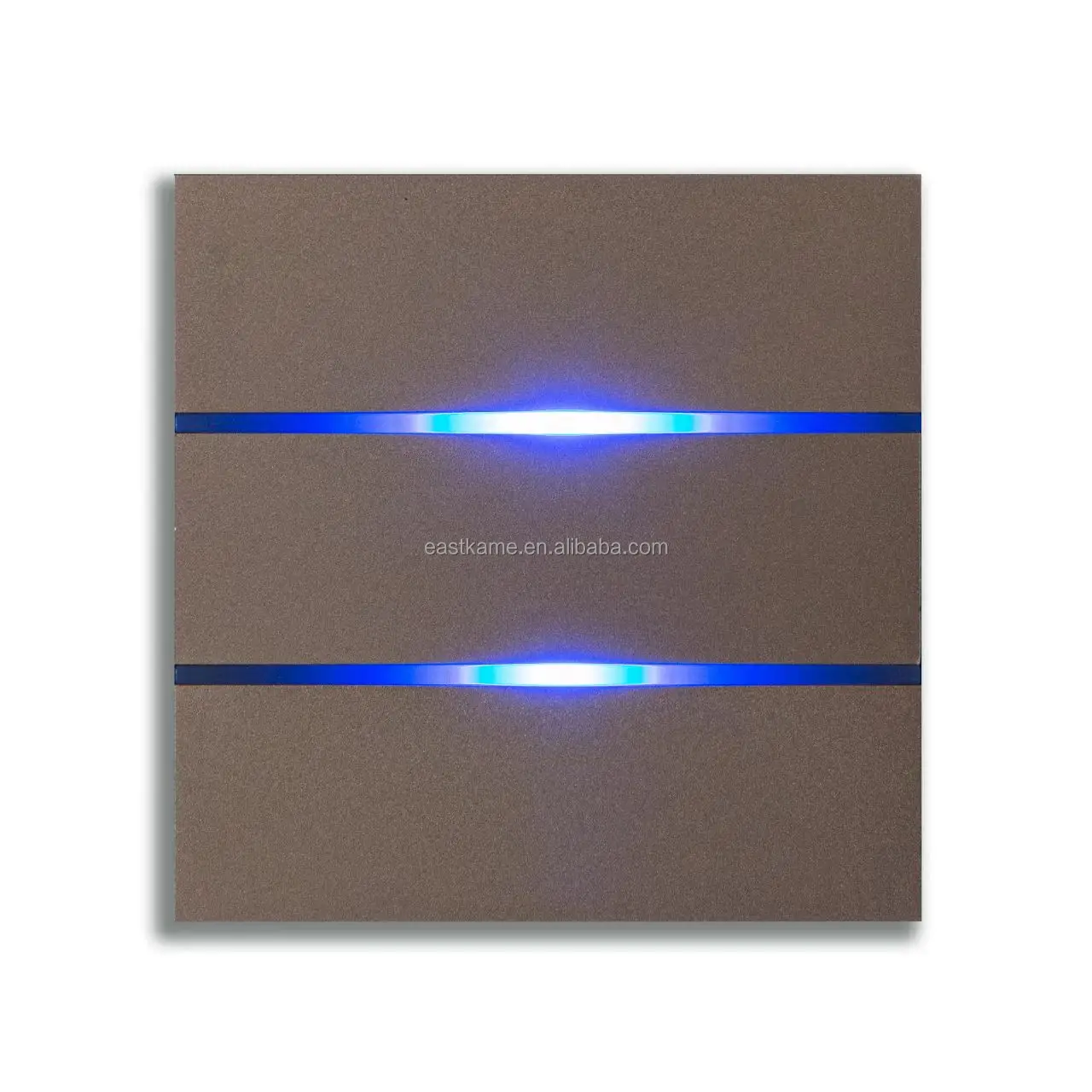

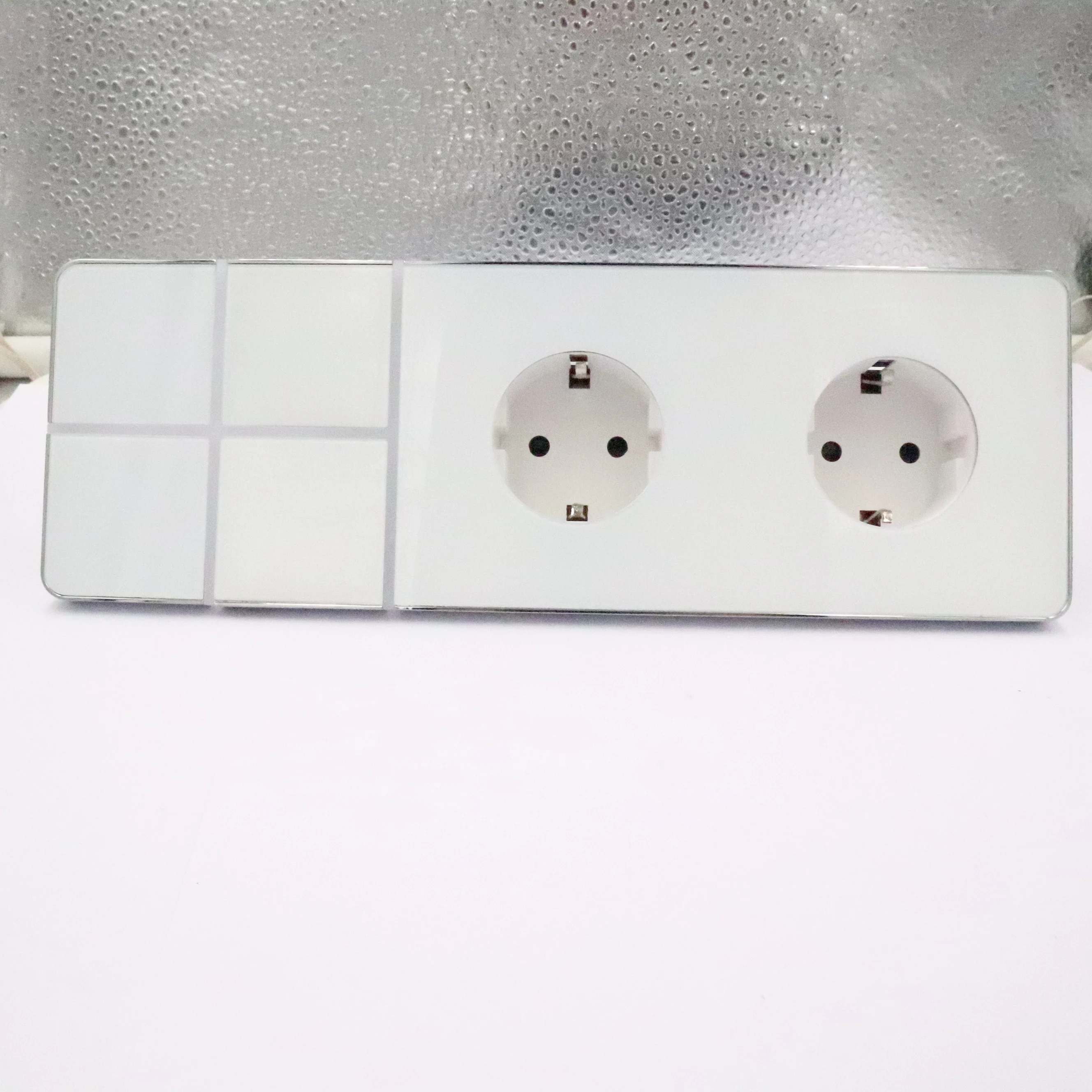

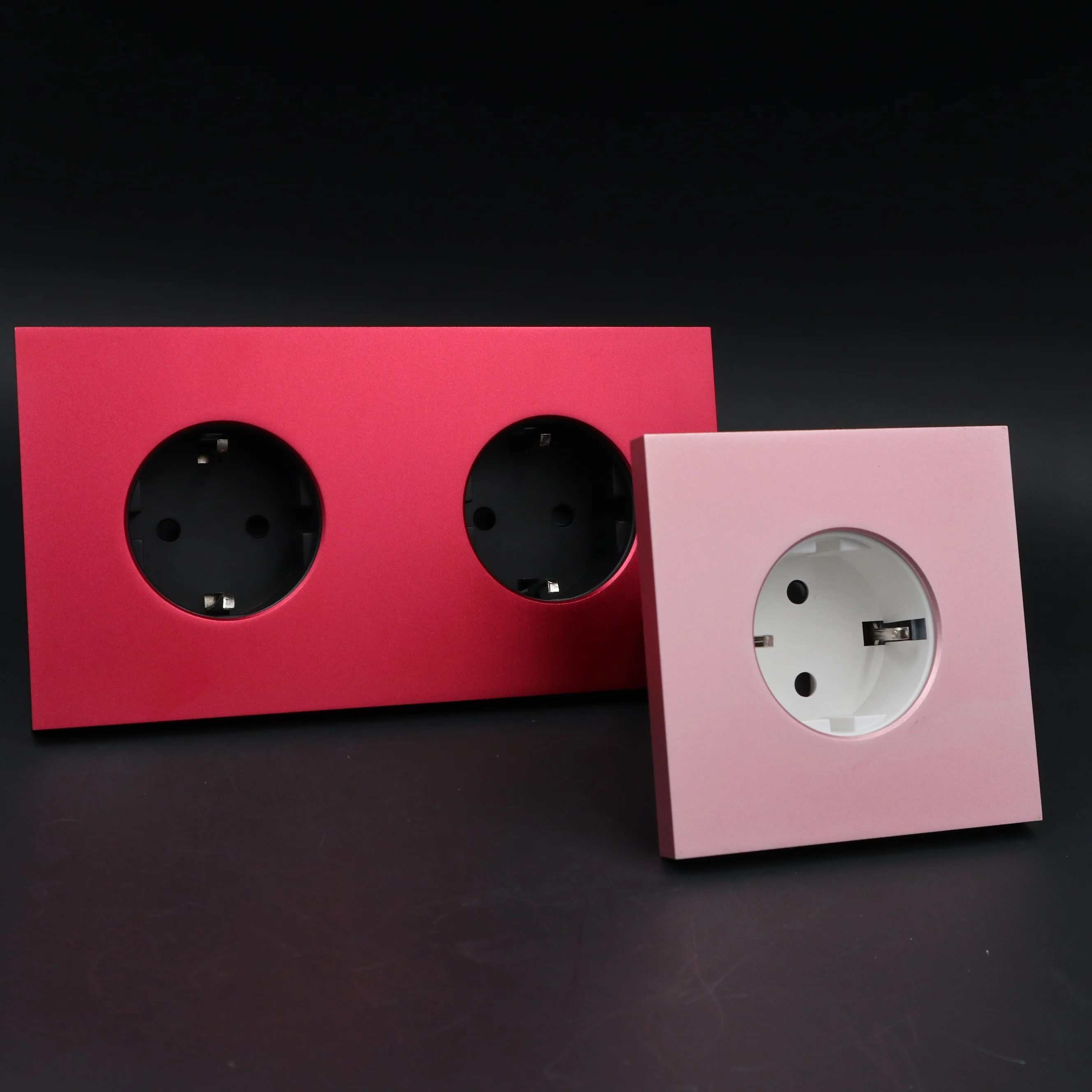

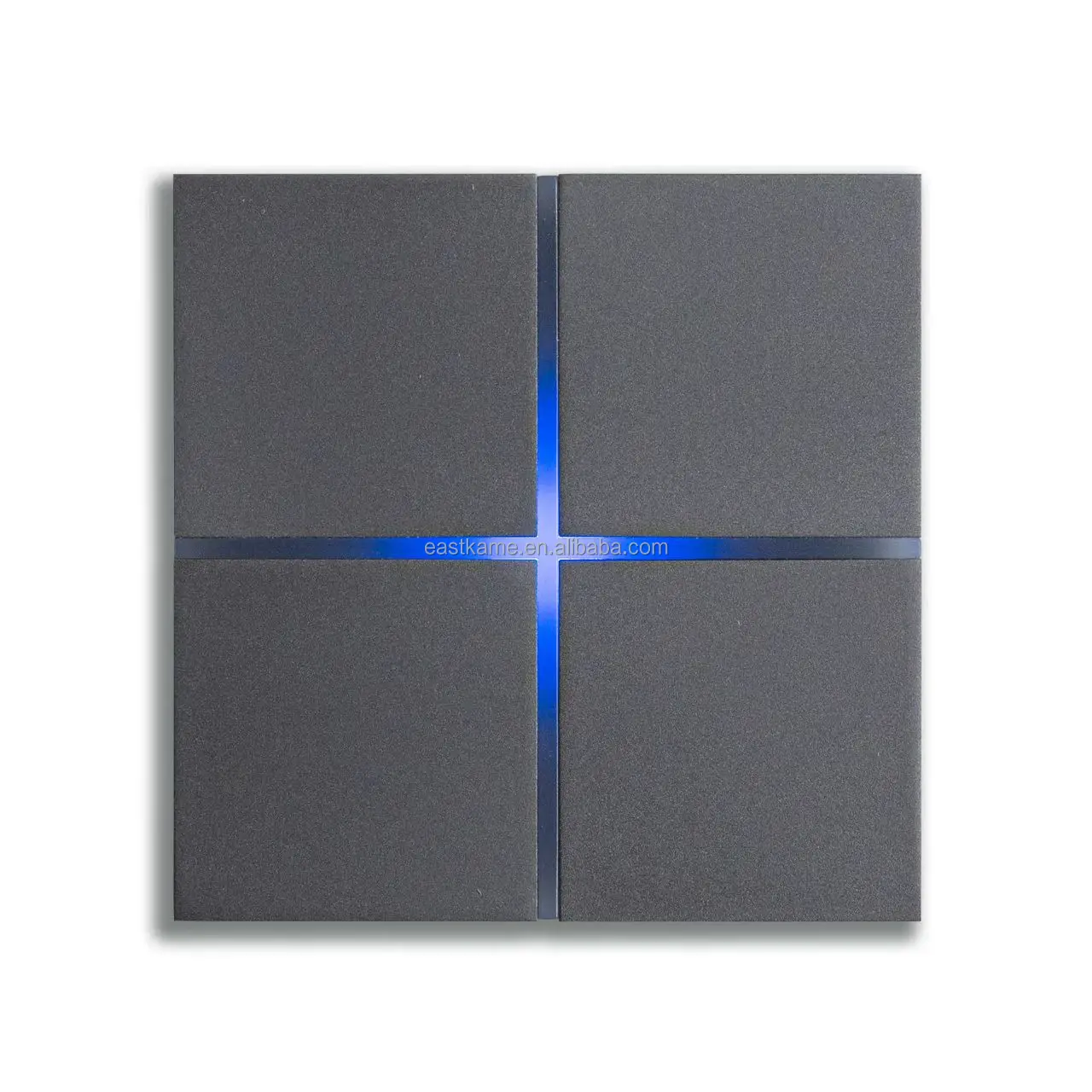

KNX SWITCHES SOCKET

MORE DETAILS

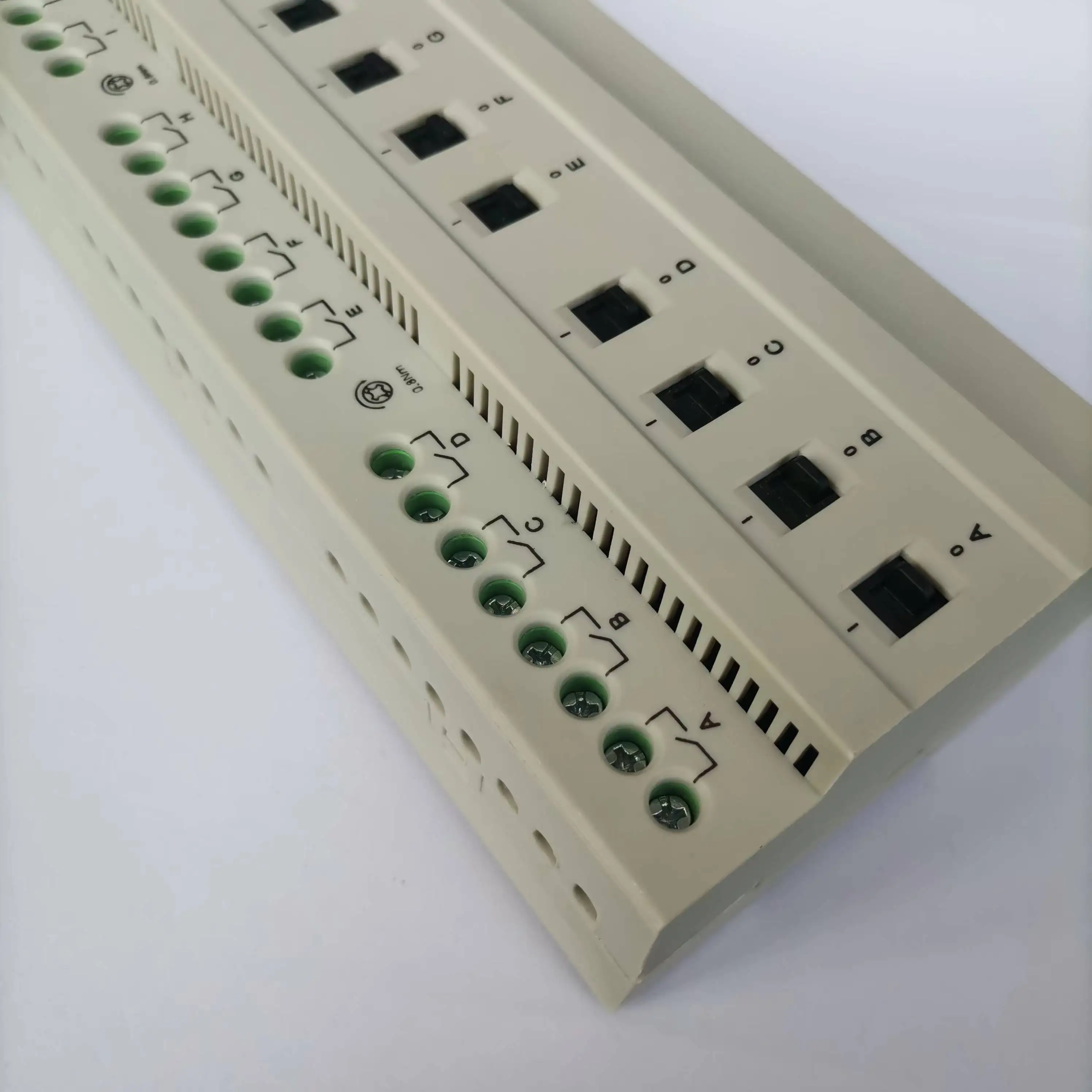

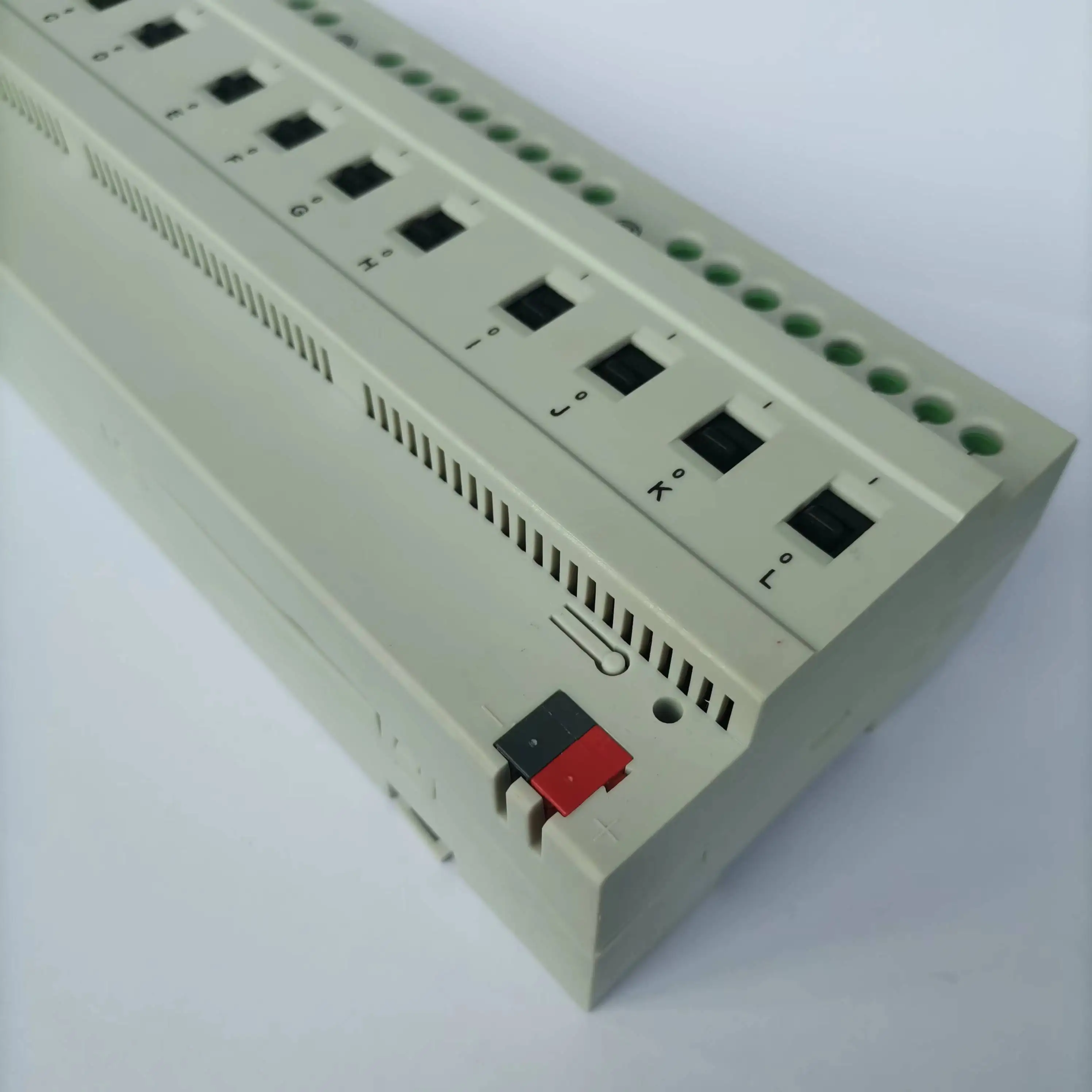

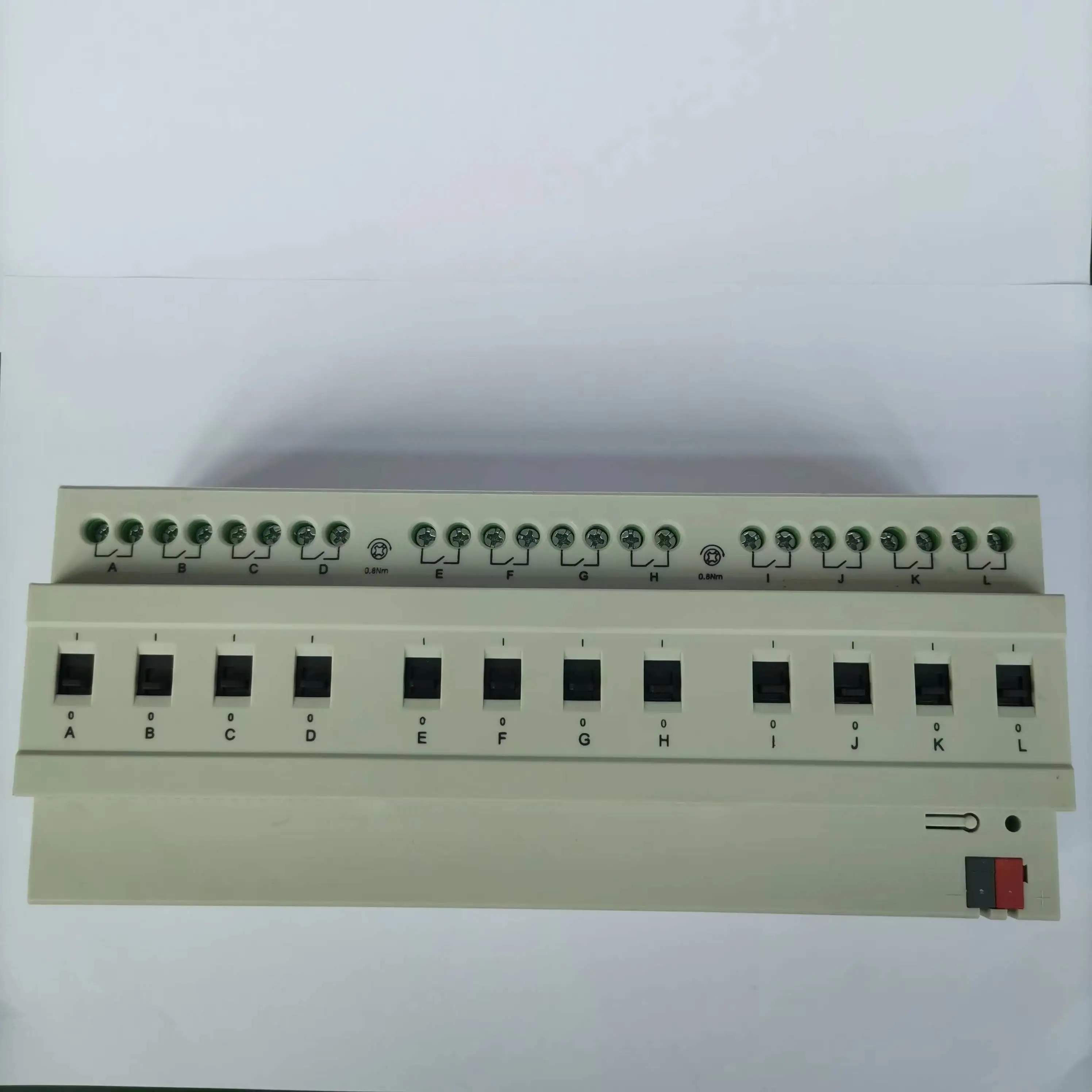

This manual provides you with powerful cutting switch actuator detailed technical information, including installation and programming details, and according to the actual use of example explains how to use the strong cutting switch actuator. For the convenience of installation to the distribution box, strong cutting switch actuator designed modular equipment installation, can be installed on the 35 mm DIN rail.

Strong switch actuator is used to control load, such as lighting, has the function of magnetic hold.
Through the EIB/KNX bus with other load to install the system.
Using the engineering design tool software ETS setting and operating the system.

2. product overview and function.
Strong cut switch actuator is modular equipment installation, with 4, 8 and 12 road output.Through the EIB bus terminals connected to the EIB/KNX system, make the recruitment
Process design tools software ETS software version ETS3.0 f (above), physical address, and the distribution of the parameters set.
Each strong cut the maximum load current of the switch actuator output 20. A, containing 4, 8, 12 road intelligent relay, each circuit can be independently controlled 3300 w lamp switch, relay
Unit with manual cutting dial, with functions of magnetic hold.Eight strong cut switch actuator with 4 road I/O dry contact.
Functional description:

(1) independent control 4/8/12 loop lamp/load;
(2) with strong manual cutting dial;
(3) relay magnetic hold function;
(3) delay on/off function;
(4) the function of timing switches and loop switches;
(5) the scene with preservation, recovery of function;
(6) status value query response function;
(7) the bus power and voltage recovery when the selection of relay switch state function;
(8) combined with scene control function;

3. Detailed parameters

The main output 4/8/12 circuit design, each loop 250 vac (50/60 hz) 20 a
Bus 21-30 v DC input
The bus current 20 ma, or less
The power 0.6 W or less work
Output (circuit) pure resistive load: Max 20 a
Shell material PA66
Size (H x W x D) 92 mmx217mmx61. 5 mm (8/12) / 92 mmx72. 5 mmx61. 5 mm (4)

weight  (approx.) 0.4KG

Installation of DIN rail type installation

pollution (IEC 60664-1) 2

KNX/EIB BUS

SWITCHING ACTUATORS

3.Product Manual

Waterproof level (EN 60529) IP 20

Protection level (IEC 1140) III

Overload protection (IEC 664-1) III

Working temperature -5°C- 45°C

Storage temperature - 20°C- 70°C

Relative humidity max 90%

4 Size drawing and connection drawing

4.1 MR4812.12.20.2
