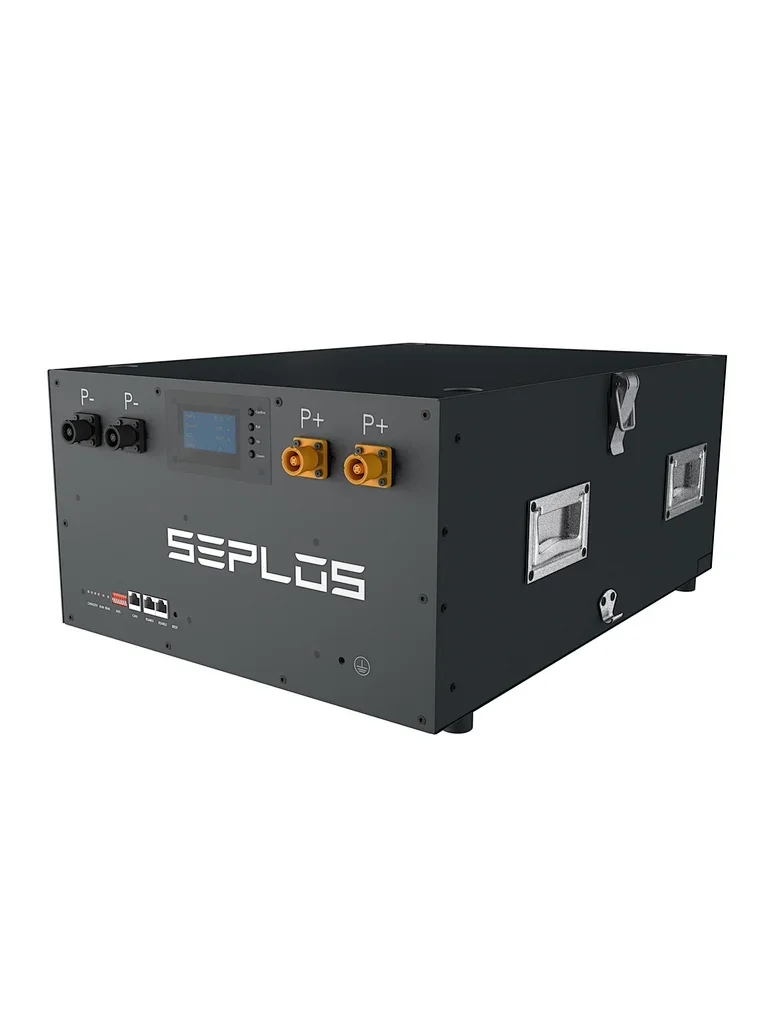

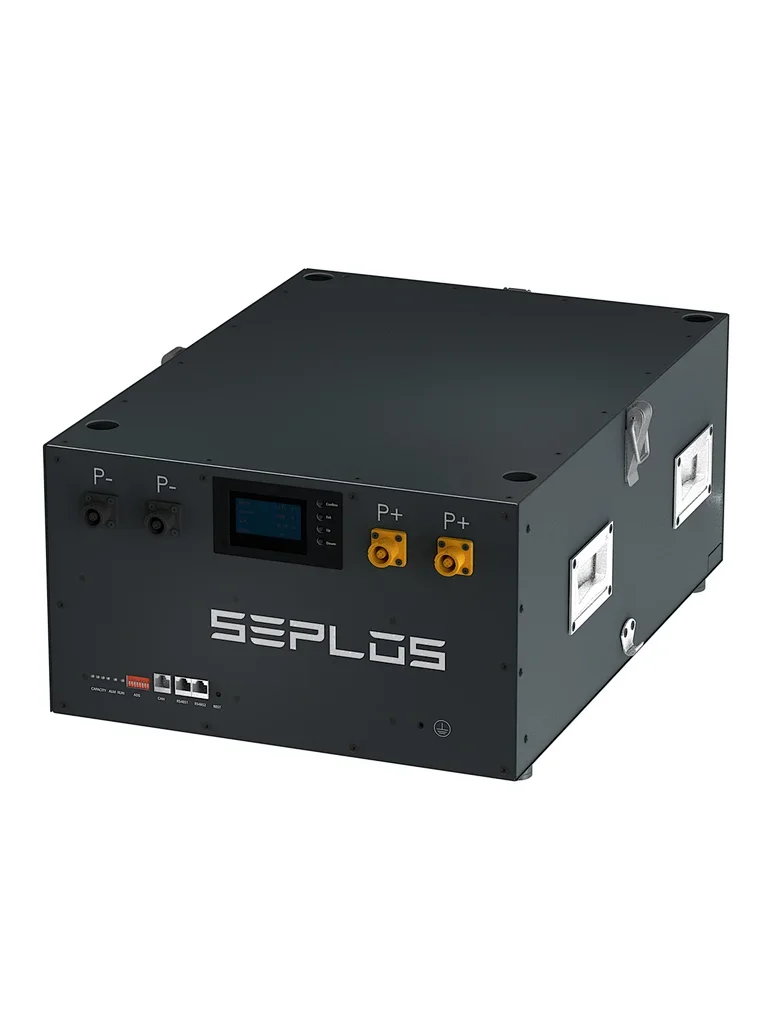

Seplos manson 48V 230Ah LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case with cabless Assemble Box Without Cells
- Category: >>>
- Supplier: Shenzhen Kingfung Technology Co. Ltd.
Share on (1600801948595):
Product Overview
Description
Brand | MASON-48230-DIY-Without Cells |
Application | Solar energy household system |
Battery type | 280Ah 302Ah 304H 310AH 320ah Lifepo4 battery pack |
Communication | CANBUS and RS485 |
BMS | 48V 16S 200A BMS |
Nominal Voltage | 48V/51.2V |
Battery Pack Type | Stackable |
Continuous current | 200A |
Material | Stainless Steel |
size | 440*750*270mm |
Sample OEM/ODM | Acceptable |

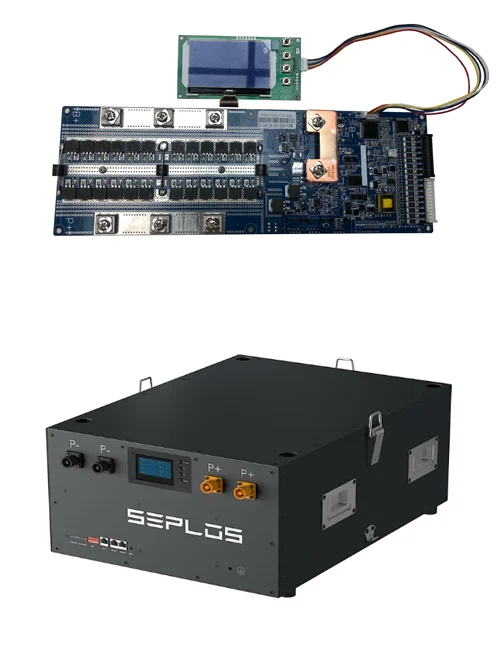

The battery pack DIY kits bundle including all the parts and materials to assemble a 51.2V 280Ah battery pack for home energy storage and solar battery storage.

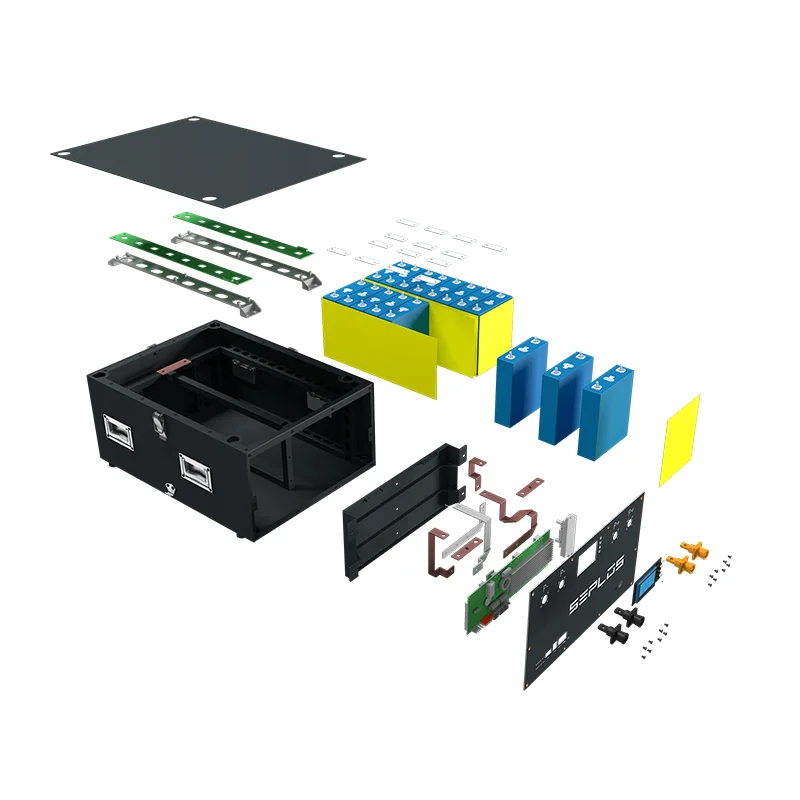

Package List:

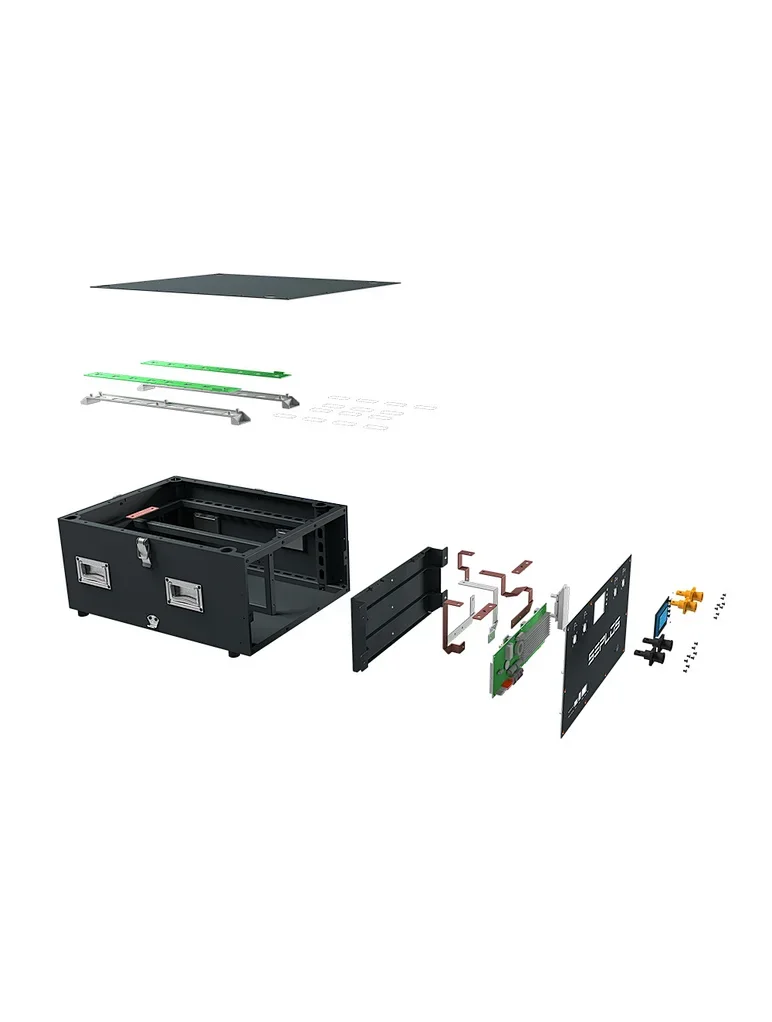

* 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)

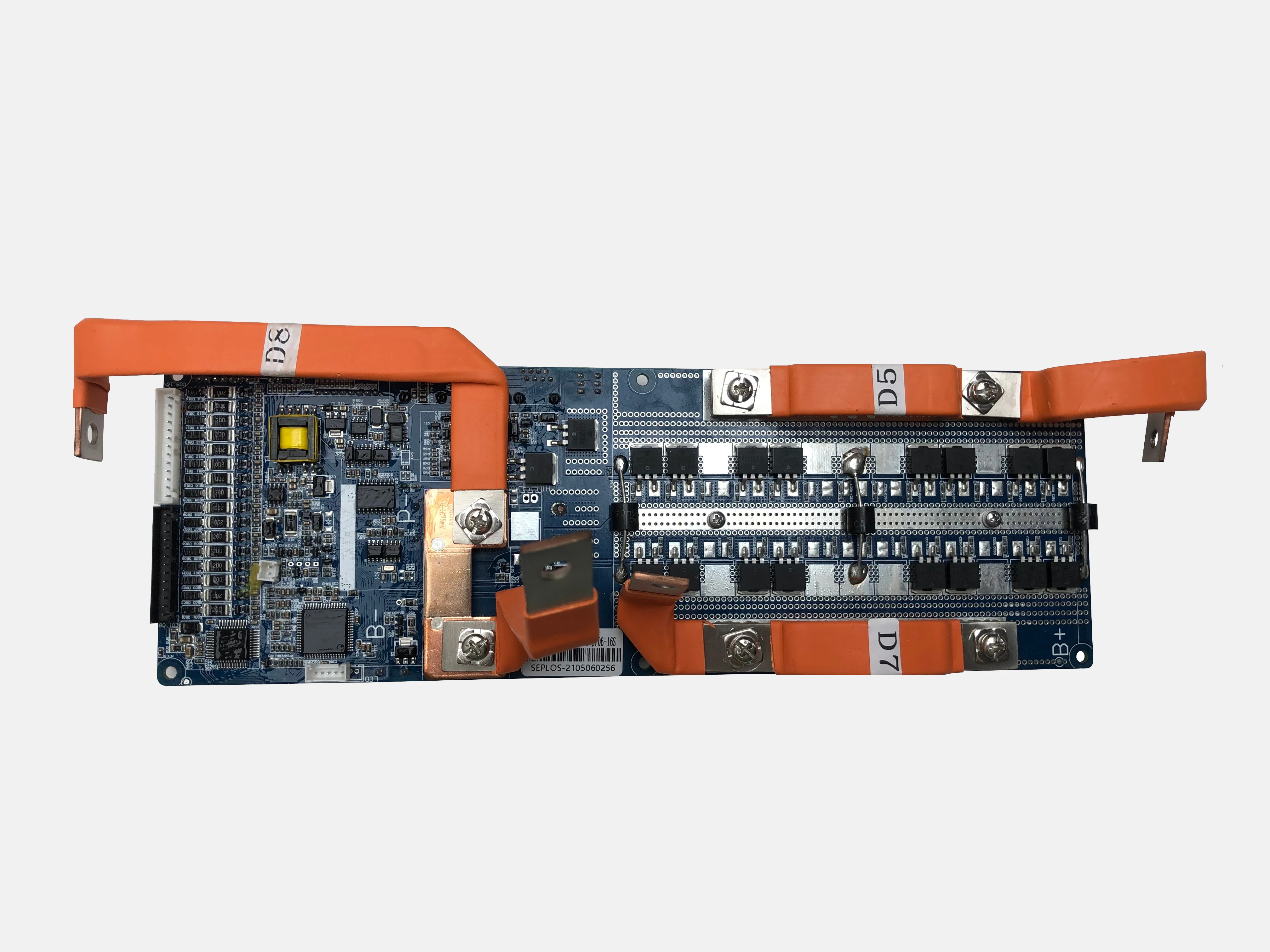

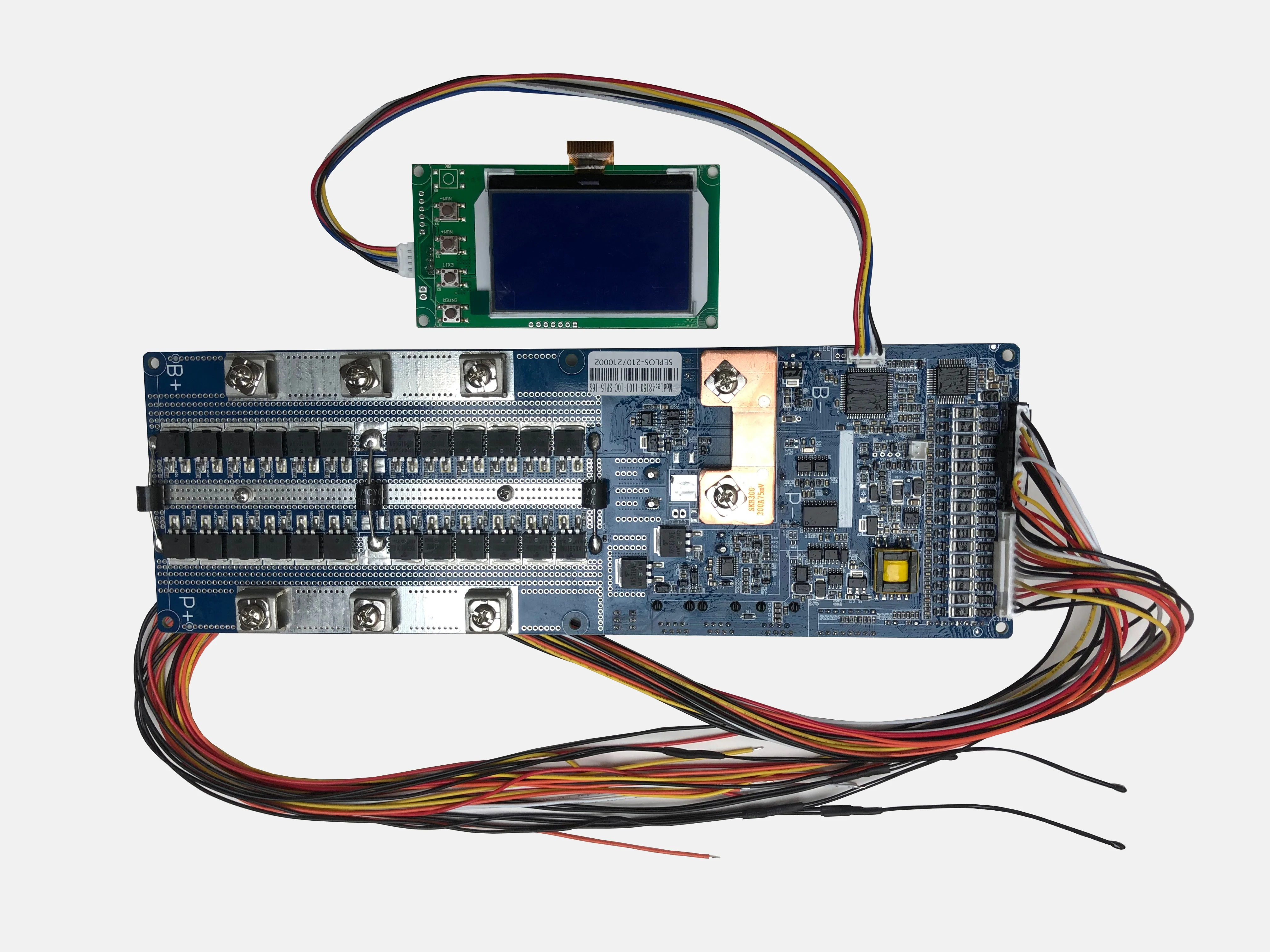

* 1 * 48V 200A 16S Seplos BMS
* 1 * 58V 400A Fuse
* 4 * Handle
* 2 * PCB Board for BMS and Cell Connection
* 3 * Upper and Lower Latch lock
* 1 * LCD Screen
* 1 * LCD Screen Sticker
* 4 * Button Cap
* 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
* 2 * Battery Terminals (P+ Terminal and P- Terminal)
* 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
* 1 * 48V 200A 16S Seplos BMS
* 1 * 58V 400A Fuse
* 4 * Handle
* 2 * PCB Board for BMS and Cell Connection
* 3 * Upper and Lower Latch lock
* 1 * LCD Screen
* 1 * LCD Screen Sticker
* 4 * Button Cap
* 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
* 2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
* 6 * Copper bus bars (BMS connection)

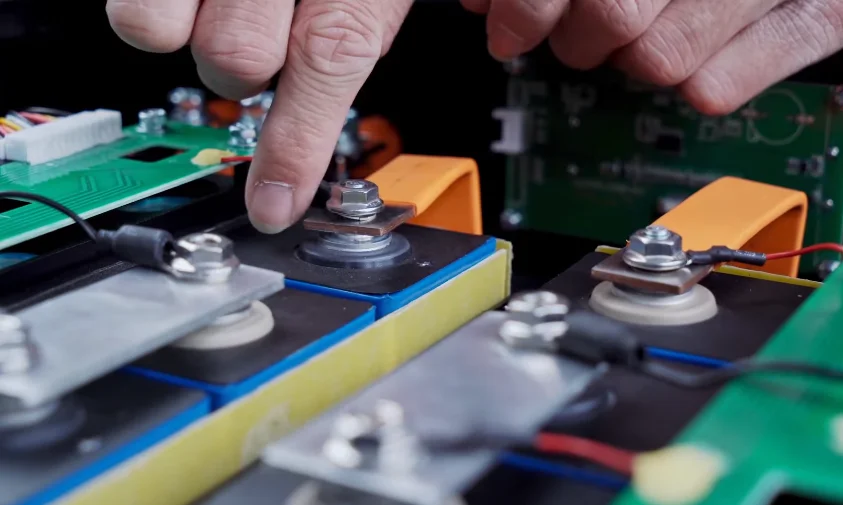

* 15 * Aluminum bus bars (Cell connection)

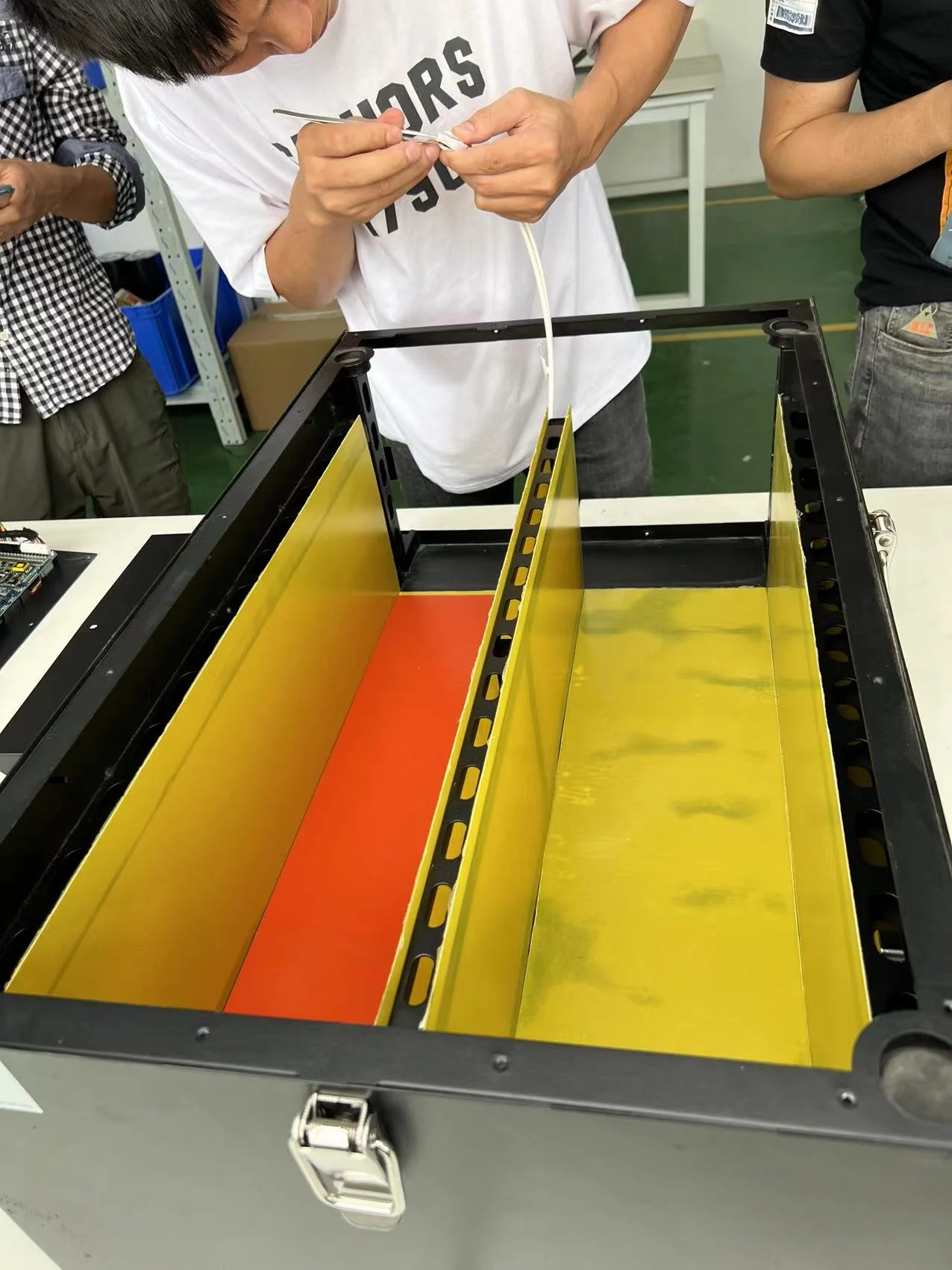

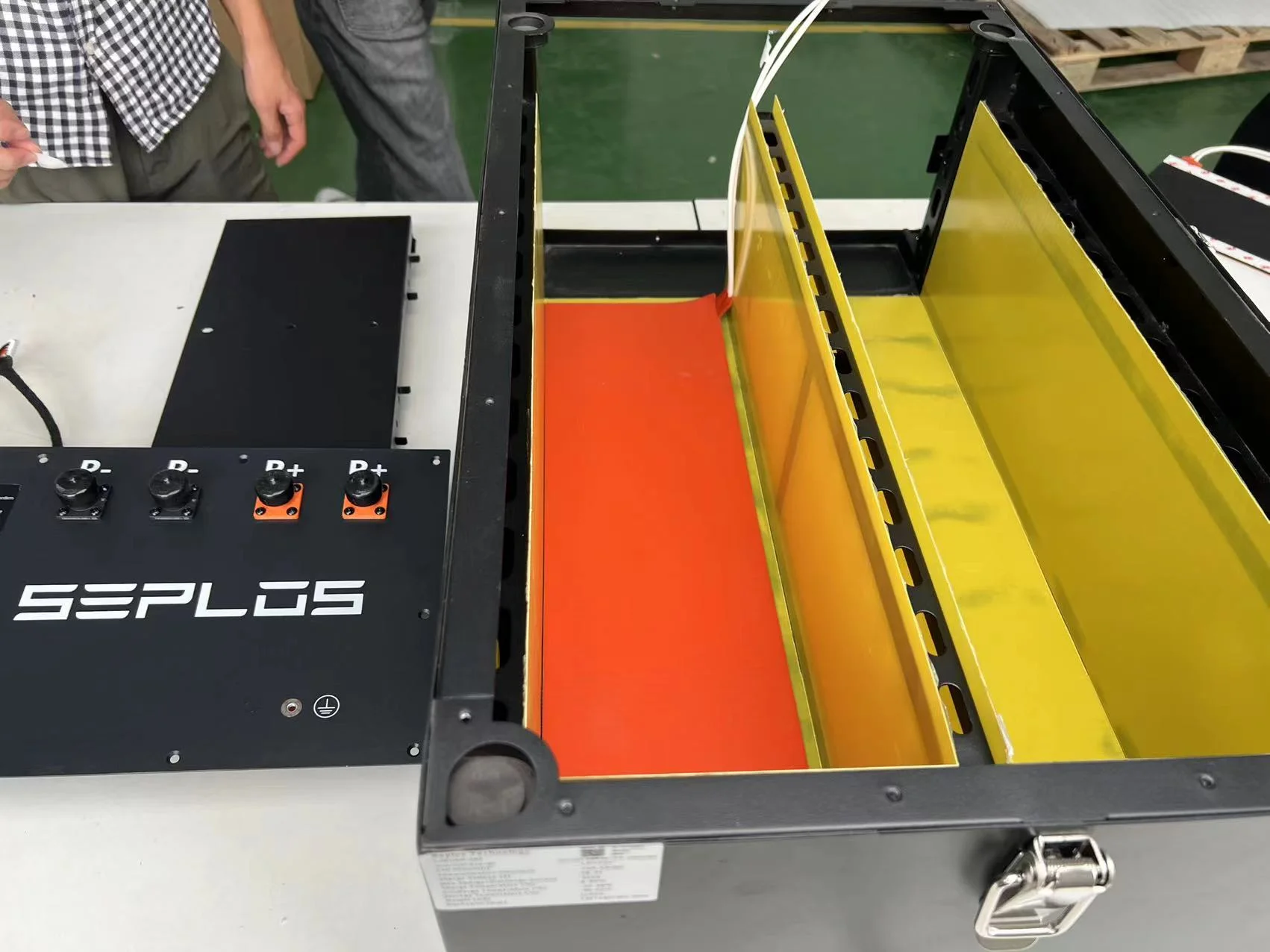

* 10 * Epoxy sheet (Between cell and the case)
* 26 * EVA Tape (Between cells)
* 1 * PC sheet (Top cover)
Screws Details:
* 12 * Phillip Hex M4 * 8mm (PCB board fix)
* 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
* 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
* 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
* 12 * Phillip Pan M5 * 10mm (Latch fix)
* 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
* 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
* 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
* 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
* 8 * Phillip Round M5 * 10mm + Washer
* 6 * Copper bus bars (BMS connection)
* 15 * Aluminum bus bars (Cell connection)
* 10 * Epoxy sheet (Between cell and the case)
* 26 * EVA Tape (Between cells)
* 1 * PC sheet (Top cover)
Screws Details:
* 12 * Phillip Hex M4 * 8mm (PCB board fix)
* 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
* 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
* 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
* 12 * Phillip Pan M5 * 10mm (Latch fix)
* 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
* 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
* 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
* 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
* 8 * Phillip Round M5 * 10mm + Washer
Product Description
We have professional installation demonstration videos and instruction manuals.
Please contact us for more information！
Our Advantages
Match all hybrid and off grid inverter brands in the world.

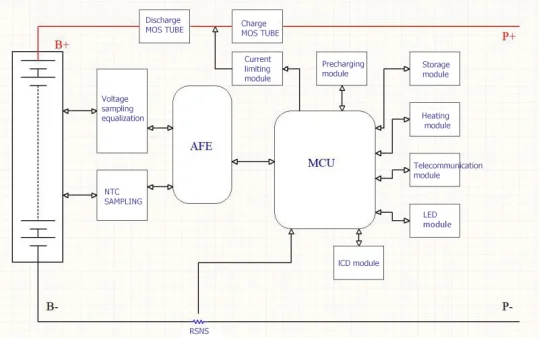

The eight functions of BMS
2.Over current detection function
3.Temperature detection function
4.Communicate function RS485,CANBUS
5.Over discharge detection function
6.Short detection function
7.Balance function
8.Alarm function
Company Profile
Certifications
We have a whole set of certificates related to bms
All certificates can be provided for your confirmation

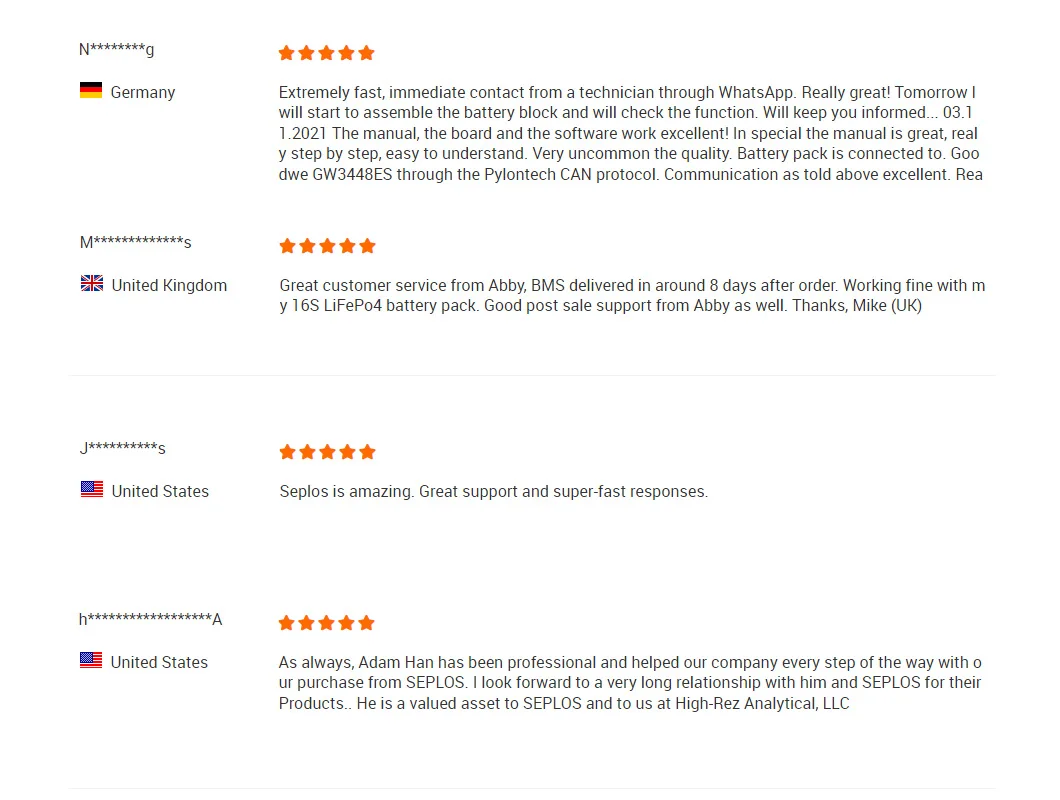

Customer praise
FAQ
Q: What's your warranty condition?
A: Our 48v series battery can provide 10 years warranty (7 years free warranty, 3 years paid warranty), cycle life more than 6000 times.
Q: Which inverters are your batteries compatible with?
A: Lithtech batteries can be compatible with 90% inverter brand, such as victron, growatt, Deye, goodwe....
Q: How much is the maximum parallel connection for your battery?
A: 48v/51.2v battery support max 15 units parallel
Q: I want to expand battery power, can I buy a new battery to connect with the old Lithtech batteries?
A: No, if the battery has been used for a period of time, the remaining capacity cannot reach the use effect of the new
battery,and it will affect the service life of the new batteries if connected in parallel.
Q: Could you offerhigher current solution for the 48V series?
A: Yes, our 48v series battery can be customized with BMS with different current range 50A, 100A, 150A .
Q: Which certificates do you have?
A: We have CE/UN38.3/MSDS for battery packs, and battery cells we have IEC and UL certification.
Q: Does the wall mounted battery with communication function?
A: Yes, not only the Lithtech wall mounted battery but also all the other Lithtech 48V series batteries are equipped with CAN and RS232&485 communication.
Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expectation.
Q:There is no question I want to ask above
A: For more questions, please contact us at any time.Always provide you with professional services.
A: Our 48v series battery can provide 10 years warranty (7 years free warranty, 3 years paid warranty), cycle life more than 6000 times.
Q: Which inverters are your batteries compatible with?
A: Lithtech batteries can be compatible with 90% inverter brand, such as victron, growatt, Deye, goodwe....
Q: How much is the maximum parallel connection for your battery?
A: 48v/51.2v battery support max 15 units parallel
Q: I want to expand battery power, can I buy a new battery to connect with the old Lithtech batteries?
A: No, if the battery has been used for a period of time, the remaining capacity cannot reach the use effect of the new
battery,and it will affect the service life of the new batteries if connected in parallel.
Q: Could you offerhigher current solution for the 48V series?
A: Yes, our 48v series battery can be customized with BMS with different current range 50A, 100A, 150A .
Q: Which certificates do you have?
A: We have CE/UN38.3/MSDS for battery packs, and battery cells we have IEC and UL certification.
Q: Does the wall mounted battery with communication function?
A: Yes, not only the Lithtech wall mounted battery but also all the other Lithtech 48V series batteries are equipped with CAN and RS232&485 communication.
Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expectation.
Q:There is no question I want to ask above
A: For more questions, please contact us at any time.Always provide you with professional services.
