SEWO Highend Tripod Turnstile Manufacturers Safety Gate Pedestrian Access Control Gate
- Category: >>>
- Supplier: Shenzhen Sewo Science & Technology Co. Ltd.
Share on (1600801950701):
Product Overview
Description
Product Description
SEWO Highend Tripod Turnstile Manufacturers Safety Gate Pedestrian Access Control Gate
Brief Introduce:
2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
5. When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection. When power on, the arm can lift by hand.
6. Emergency configuration: the tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency
7. Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing.
8. It can be used for intelligent control and management of the passage after equipped with different access control system.
9. A valid lock action can allow one passage at one time. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time(from 2-60 seconds, by default, it is 10 seconds) can be set up with the built-in small keyboard or software.
10. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
Features:
1. Elegant Design with nickle plating and rust-proof
2. 24 V DC brush-less motor+Encoder+Clutch brake provides a higher level safety
3. Uni-/Bi-direction passing
4. Higher speed. 0.4 second open/close speed
5. 5,000,000 cycles of MCBF
1. Elegant Design with nickle plating and rust-proof
2. 24 V DC brush-less motor+Encoder+Clutch brake provides a higher level safety
3. Uni-/Bi-direction passing
4. Higher speed. 0.4 second open/close speed
5. 5,000,000 cycles of MCBF

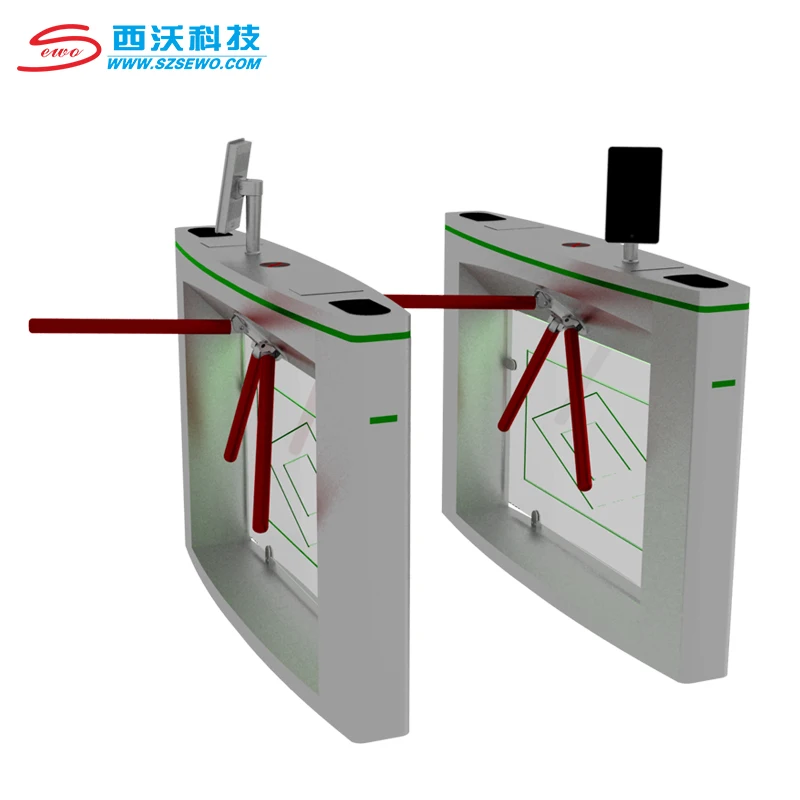

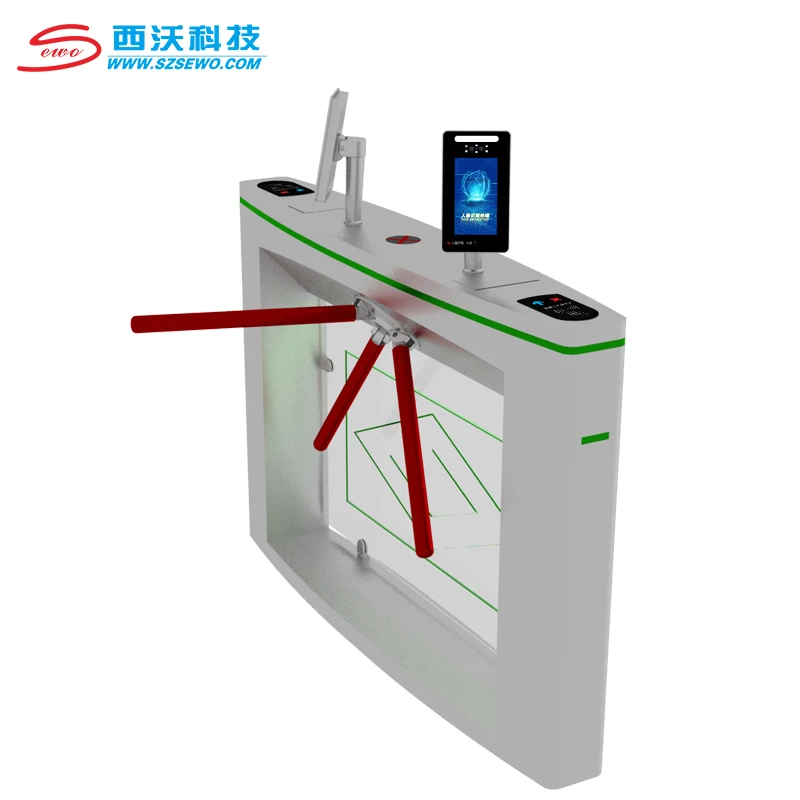

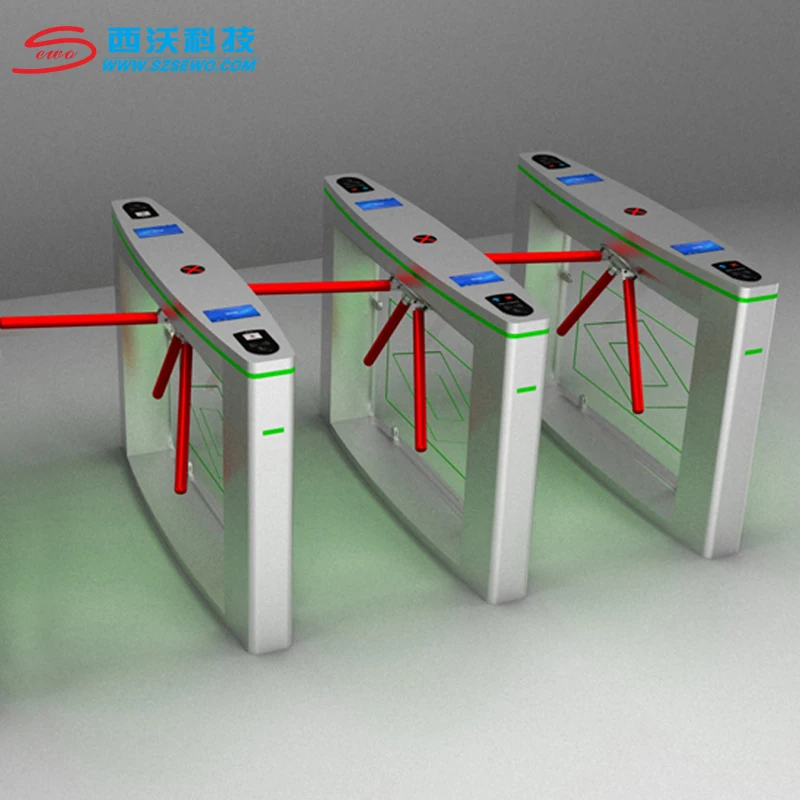

Details Images
Specification
Name | SEWO Fully Automatic Ticket Tripod Turnstile |
Model No. | SEWO-S1-260 |
Body Material | 304 stainless steel, thickness is no less than 1.5mm |
Overall dimension | 1500*250*1000 mm |
Working Voltage | AC110/AC220±10% V/50±10% Hz |
Optional Control type | IC Card, ID Card, QR Code, Finger Print，Face Recognition |
Working mode | one directional or bi-direcitonal |
Working temperature | -15°C--+70°C |
Relative humidity | ≤95%, no-condensation |
Temprature rise of motor | ΔT15° |
Number of statistics | judging of encorder |
Opertaing Time | 0.2s |
Passing Width | 550mm |
Passing speed | 45 people/min， no pause and pass freely 60 people/min |
Noise | <50DB |
Protection grade | IP43 |
Environment | indoor |
Lighting protection grade | 3 level |
MCBF | 5,000,000 cycle |
Operating places | Government agency, Residential area, School,etc |
Guarantee | 1 Year |
Full Automatic Motor
The Full Automatic machine is driven by the DC brushless Motor system, such motorized Machanism using the big and hard gears, no abrasive wear, small passing resistance, so hardly with the outside force, you can pass easily with the card. And the brake beam will be rising when the power is on, the beam will be down without the power.
It is the high intelligent turnstile, long life time, Low Attrition, Low-noise, High Intelligence
Semi-Automatic Motor
The Semi Automatic machine is driven by the heavy hard system, it does not have the auxiliary force, so you can pass after giving the outside force to it, it is traditional intelligent turnstile.
Comparison | Brushed Motor | Brushless Motor |
Construction | Magnetic on stator Windings on Rotor | Magnetic on rotor Windings on stator |
Efficient | 75%-80% | 85%-90% |
Noise | Low noise | Almost no noise |
Lifespan | About 1000 hours | More Than 5000 Hours |
Accessories& Maintanence | Need to replace brush after a period of time | Need encoder,Driver or Controller, Low maintenance costs |
Cost | Low | Comparely high |

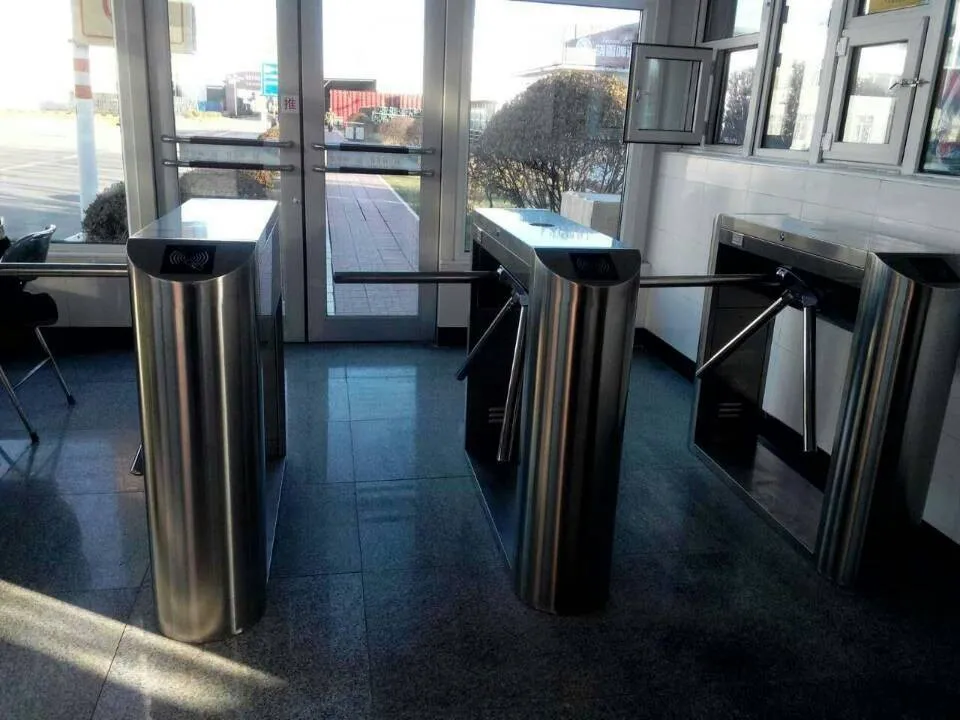

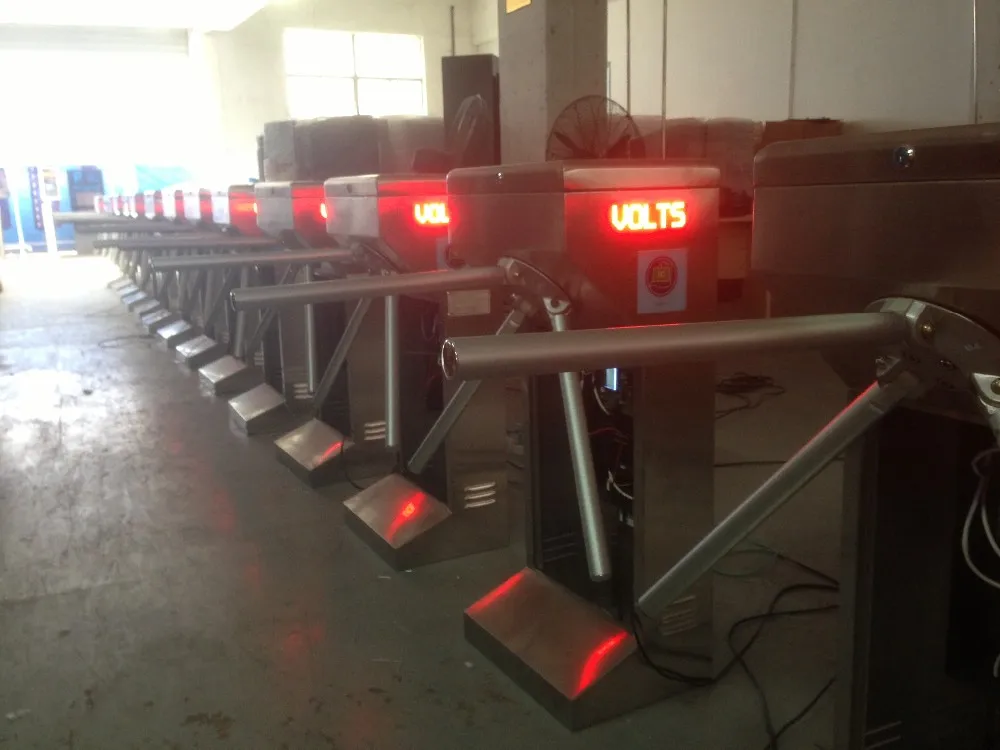

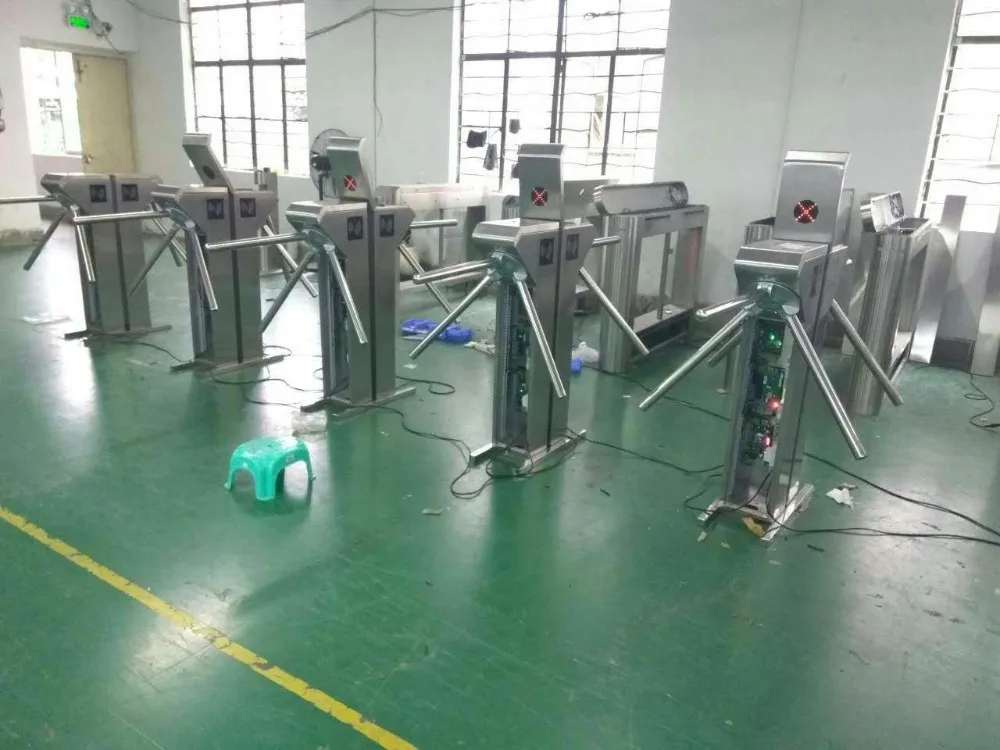

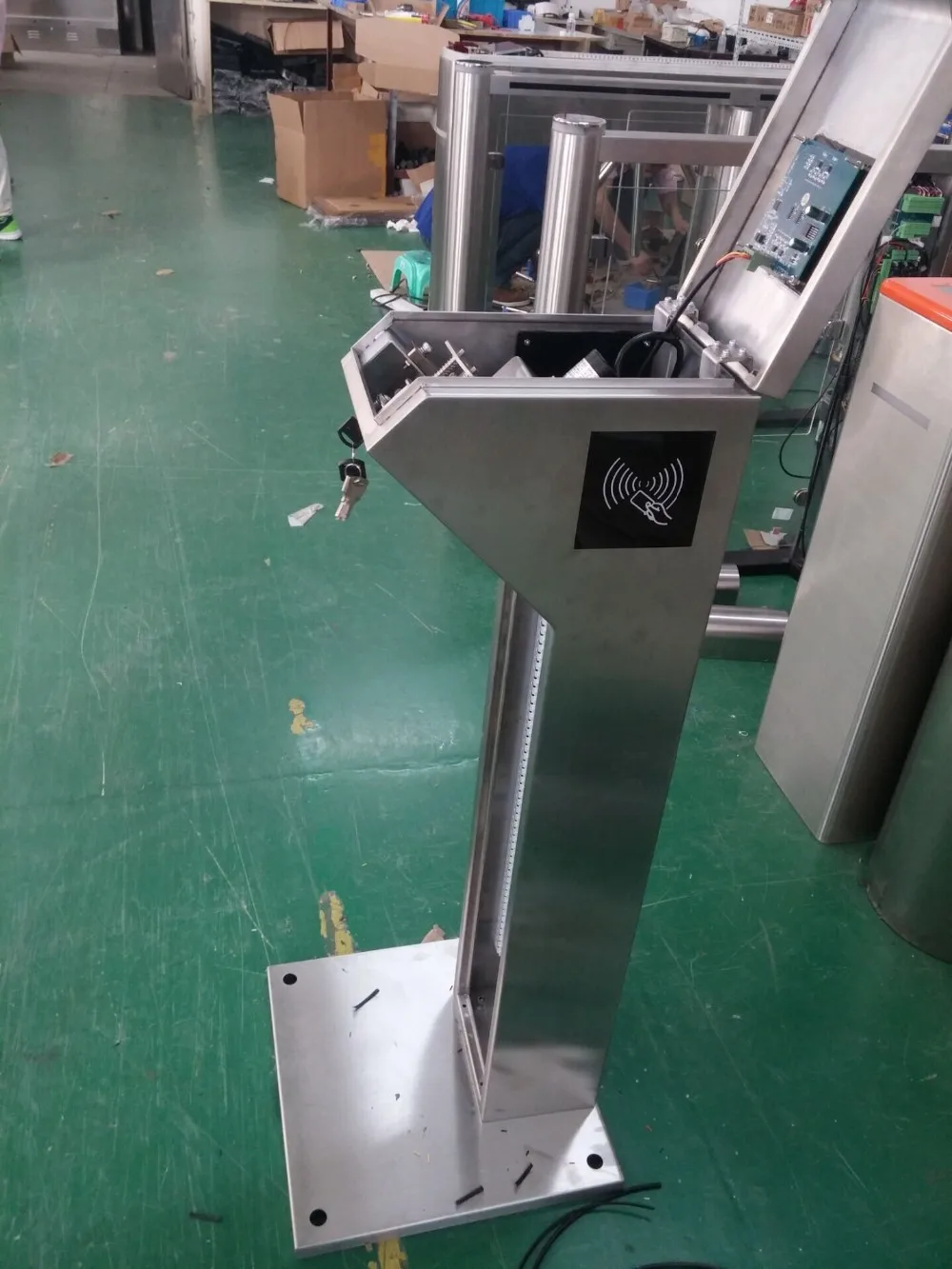

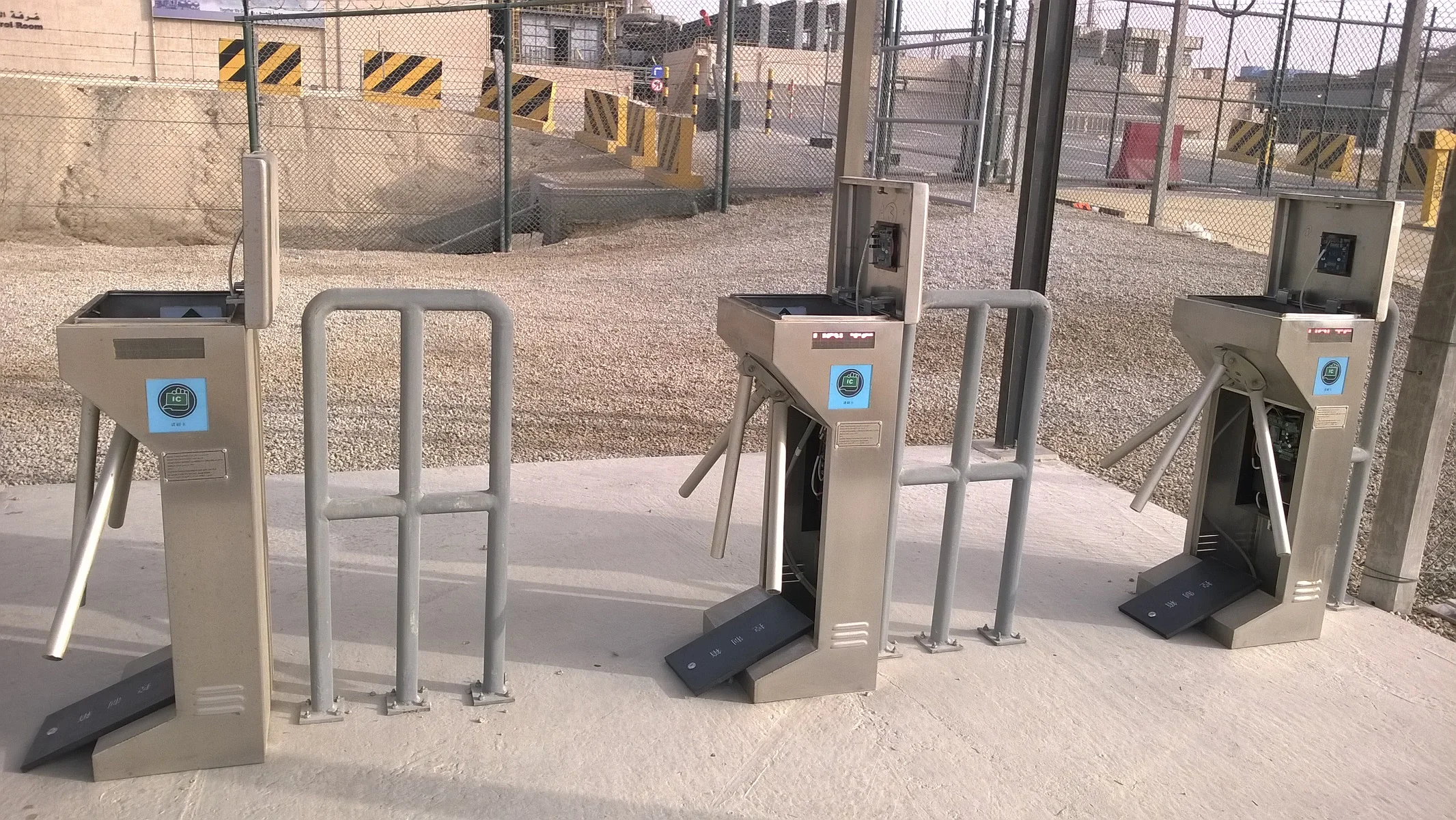

Customer Photos
Company Profile
Shenzhen Sewo Science & Technology Co., Ltd.
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
FAQ
1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.
2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.
4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.
5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
6, How about the delivery time?
Regular products need 5-10 working days.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
