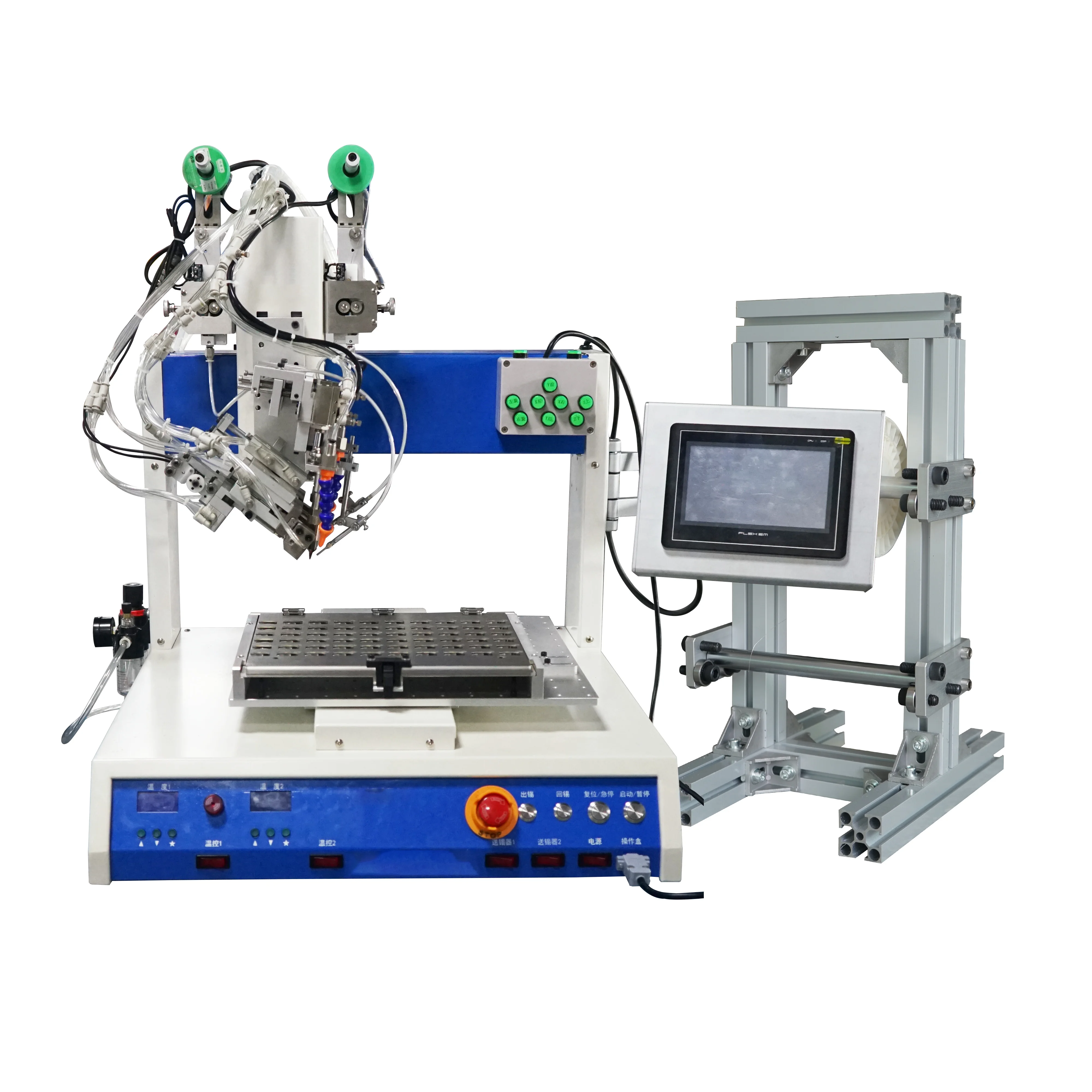

Automatic wire peeling cutting welding machine is specially designed for the purpose of stripping/peeling wire, cutting wire, and welding wire at the same time in one machine. The equipment realizes automatic wire feeding, automatic wire stripping/peeling, automatic wire cutting, and final wire welding, highly intelligent and efficient. Ii is wide apply to all kinds of wire welding on PCB board, lamp board, lamp strip, electronic components, switches, motors, three tubes, LED lights and other products, etc.
Features
1)With LCD touch screen, the operation is simple and convenient, can set the parameters of wire feeding length, tin feeding length, preheating time, welding time, tin back time, lifting height and other soldering parameters.
2)With the function of program editing for soldering points with parameter copy, position correct, position copy, array, batch editing and modification, as well as other fast editing function, can greatly improve editing efficiency and can be easily to operator.
3)High degree of automation, wire feeding, wire stripping, wire cutting, welding wire completed at one time, one person can operate multiple machines, much more efficiency improvement.
4)One out of two wires, can be welded 2 wires of the same color or different color at the same time, efficiency increased 2 times.
5)High reliability, if the wire was not welded it can be detected automatically and stop to alarm, and can continue to begin from this solder joint.
6)two options for soldering wire feeding devices: tin breaking function/no tin breaking function.
7)Accuracy of ±0.02mm ensures the accuracy of the welding position during production.
8)With function of spot welding, drag soldering, automatic cleaning, etc. Each solder joint has an independent parameters of preheating, the length of welding wire, preheating time, welding time, solder wire return time, lifting height, etc.
9)Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
10)With the sleeve design, the soldering tip can be replaced quickly and easily.
11)High power heating controller ensures the tip temperature to reach 350°C within 30 seconds
12)All kinds of parameters can be set to make sure the high welding quality.
1)With LCD touch screen, the operation is simple and convenient, can set the parameters of wire feeding length, tin feeding length, preheating time, welding time, tin back time, lifting height and other soldering parameters.
2)With the function of program editing for soldering points with parameter copy, position correct, position copy, array, batch editing and modification, as well as other fast editing function, can greatly improve editing efficiency and can be easily to operator.
3)High degree of automation, wire feeding, wire stripping, wire cutting, welding wire completed at one time, one person can operate multiple machines, much more efficiency improvement.
4)One out of two wires, can be welded 2 wires of the same color or different color at the same time, efficiency increased 2 times.
5)High reliability, if the wire was not welded it can be detected automatically and stop to alarm, and can continue to begin from this solder joint.
6)two options for soldering wire feeding devices: tin breaking function/no tin breaking function.
7)Accuracy of ±0.02mm ensures the accuracy of the welding position during production.
8)With function of spot welding, drag soldering, automatic cleaning, etc. Each solder joint has an independent parameters of preheating, the length of welding wire, preheating time, welding time, solder wire return time, lifting height, etc.
9)Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
10)With the sleeve design, the soldering tip can be replaced quickly and easily.
11)High power heating controller ensures the tip temperature to reach 350°C within 30 seconds
12)All kinds of parameters can be set to make sure the high welding quality.
Specification
Product Name | Automatic Wire Peeling Cutting and Welding Machine | ||
Mode | CBHX-331BX2 | CBHX-331BX2 | |
Axis range | 300X/300Y/100Zmm | 400X/400Y/100Zmm | |
Work range | 300X/270Y/100Zmm | 400X/370Y/100Zmm | |
@Can be customized | |||
Number of Axes | 3 Axes | ||
Number of platform | 1 sets | ||
Number of soldering | 1 sets | ||
Temperature error | ±1℃ | ||
Temperature range | 0 ~550℃ | ||
Temperature control Power | 150W(Optional 320W) | ||
Moving speed(mm/second) | 0~800 | ||
Repeatability precision | ±0.02mm/(X/Y/Z) | ||
Display mode | LCD touch screen | ||
Motor system | precision micro stepping motor | ||
Driving mode | Precision stepper motor + precision rail + precision belt | ||
@(optional closed-loop stepper motor) | |||
Control system | Special PLC control system | ||
Wire feeding mode | Automatic wire feeding(wire peeling & cutting) | ||
Applicable wire diameter | Φ0.3～2.0mm | ||
Peeling length of wire | any length available ( through changing the peeling knife) | ||
Voltage | AC110/220V, 50/60Hz | ||
Maximum load weight | 15kg for work platform | ||
Programming file capacity | 256MB, up to 9999 files, single file up to 8000 points | ||
Solder tin wire diameter | Φ0.3～1.6mm | ||
Tin feeding control | Precision stepper motor | ||
External dimensions(L*W*H) | 480*500*725mm | 580*600*725mm | |
Net weight | 50kg | 60kg | |
Working temperature | 0-40℃ | ||
Working humidity | 20-90% | ||
Air pressure | 0.4 to 0.6MPa(4～6kg cm2) as dry air | ||
