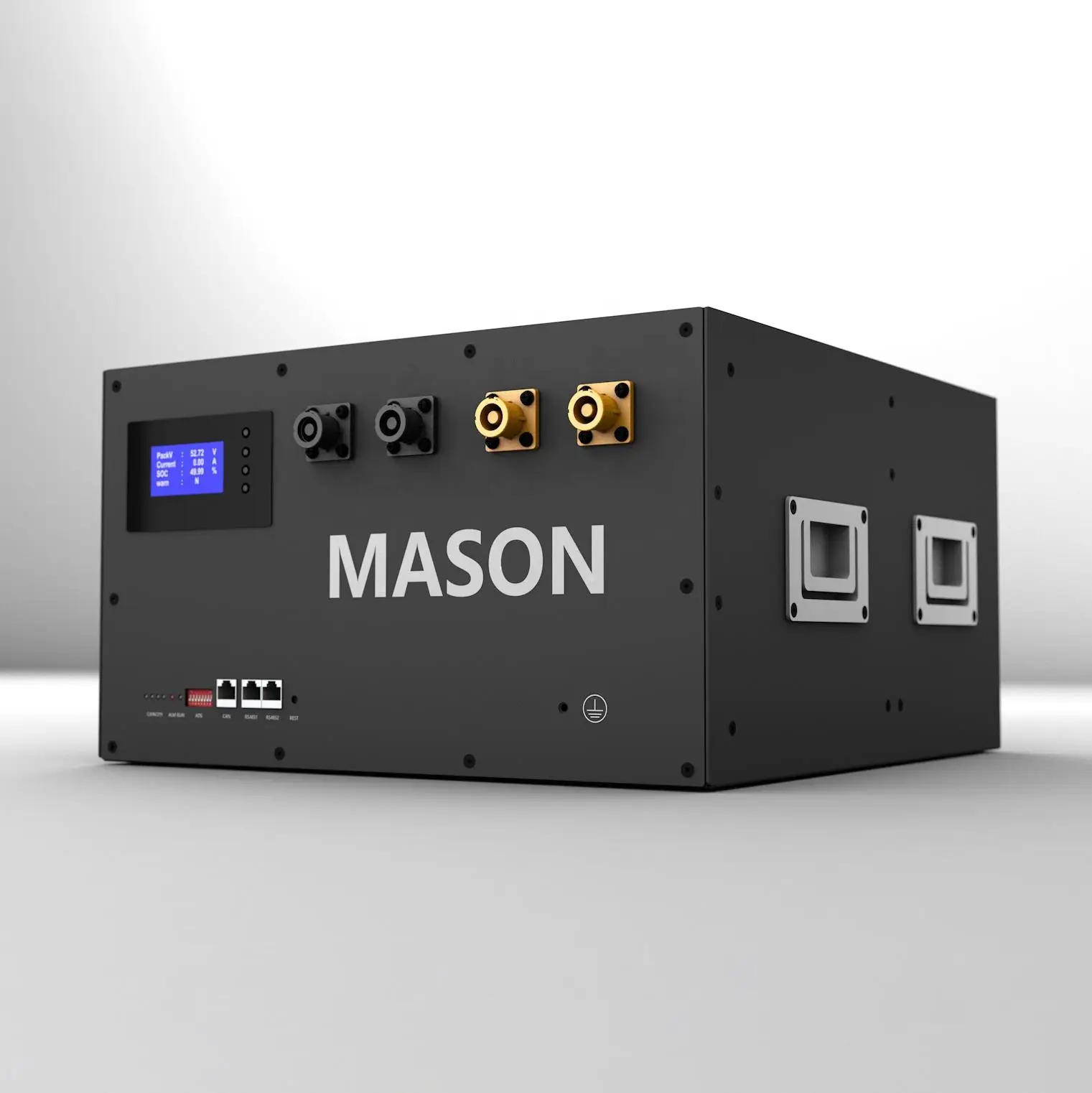

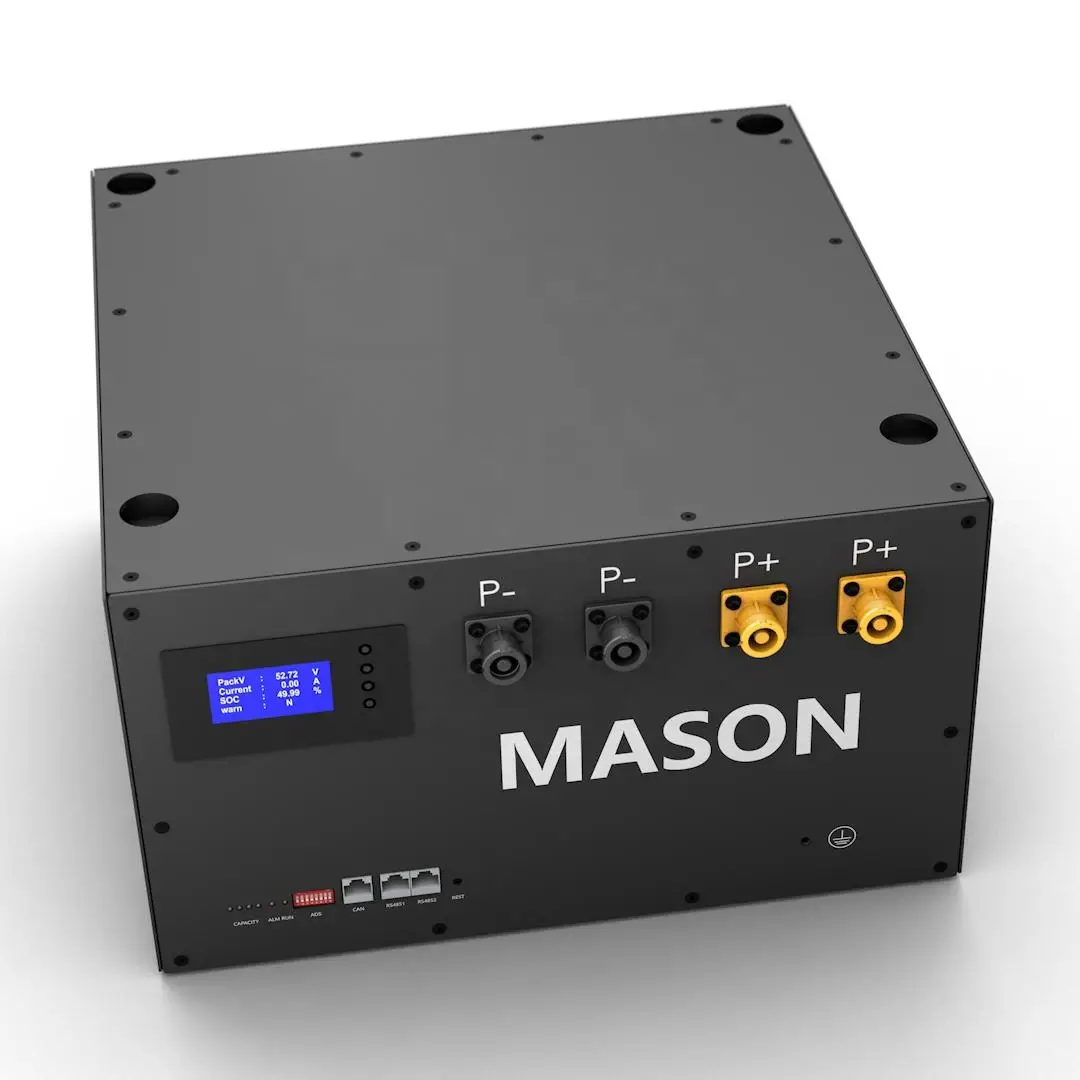

Seplos Diy kit Battery Cells Case 24v 48V 51.2v Lifepo4 280Ah 320Ah 105ah Lifepo4 Seplos Mason 280 Kits without battery cell
- Category: >>>
- Supplier: Shenzhen Kingfung Technology Co. Ltd.
Share on (1600802018530):
Product Overview
Description
Seplos Solar energy household Storage—MASON DIY battery box compatible LFP cell list
MASON280 DIY kits( including 48V 200A BMS): EVE 280Ah/ EVE 304Ah/ EVE 280K/ GFB 280Ah/ LISHEN 280Ah
MASON230 DIY kits (including 48V 200A BMS): LISHEN202Ah/CALB 230Ah/ EVE 230Ah/ CALT 228Ah
MASON105 DIY kits (including 48V 100A BMS): EVE 105Ah

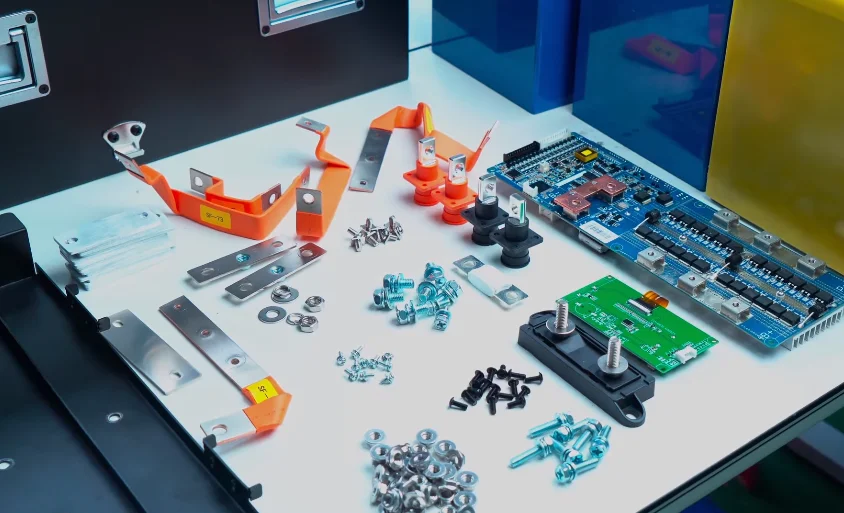

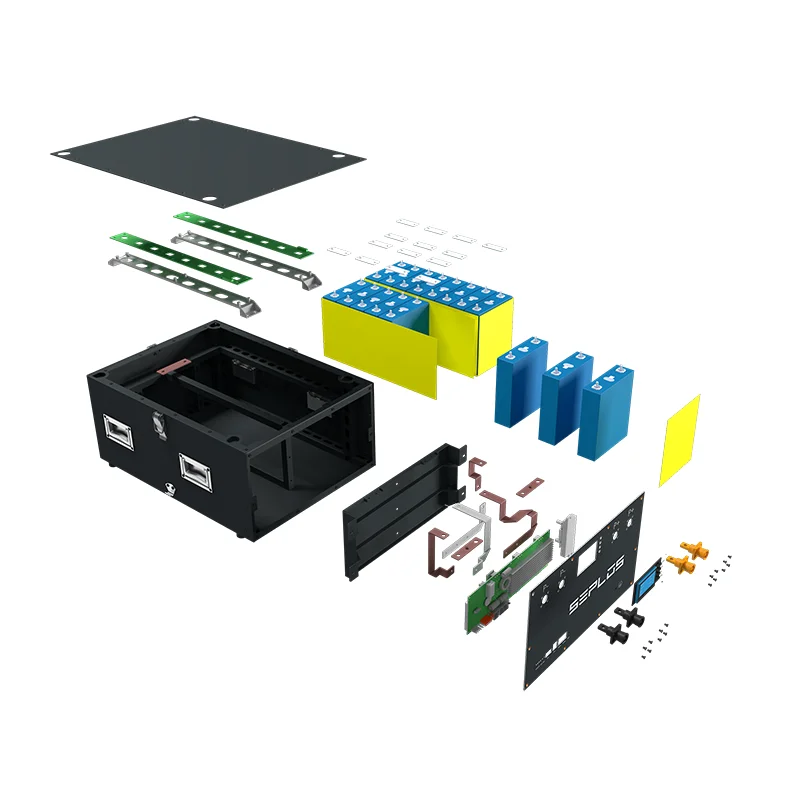

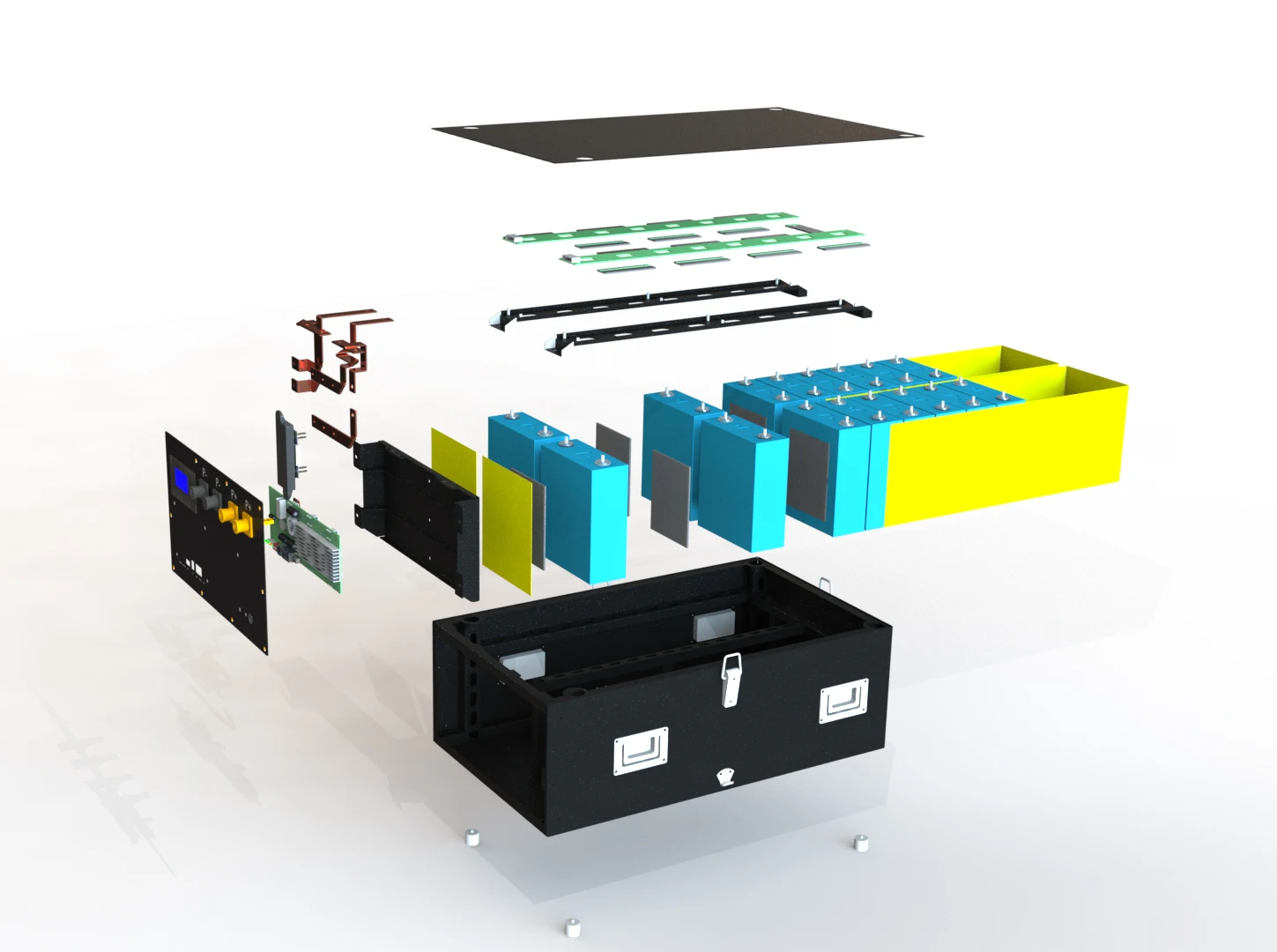

Package List of one full set of MASON DIY kits:

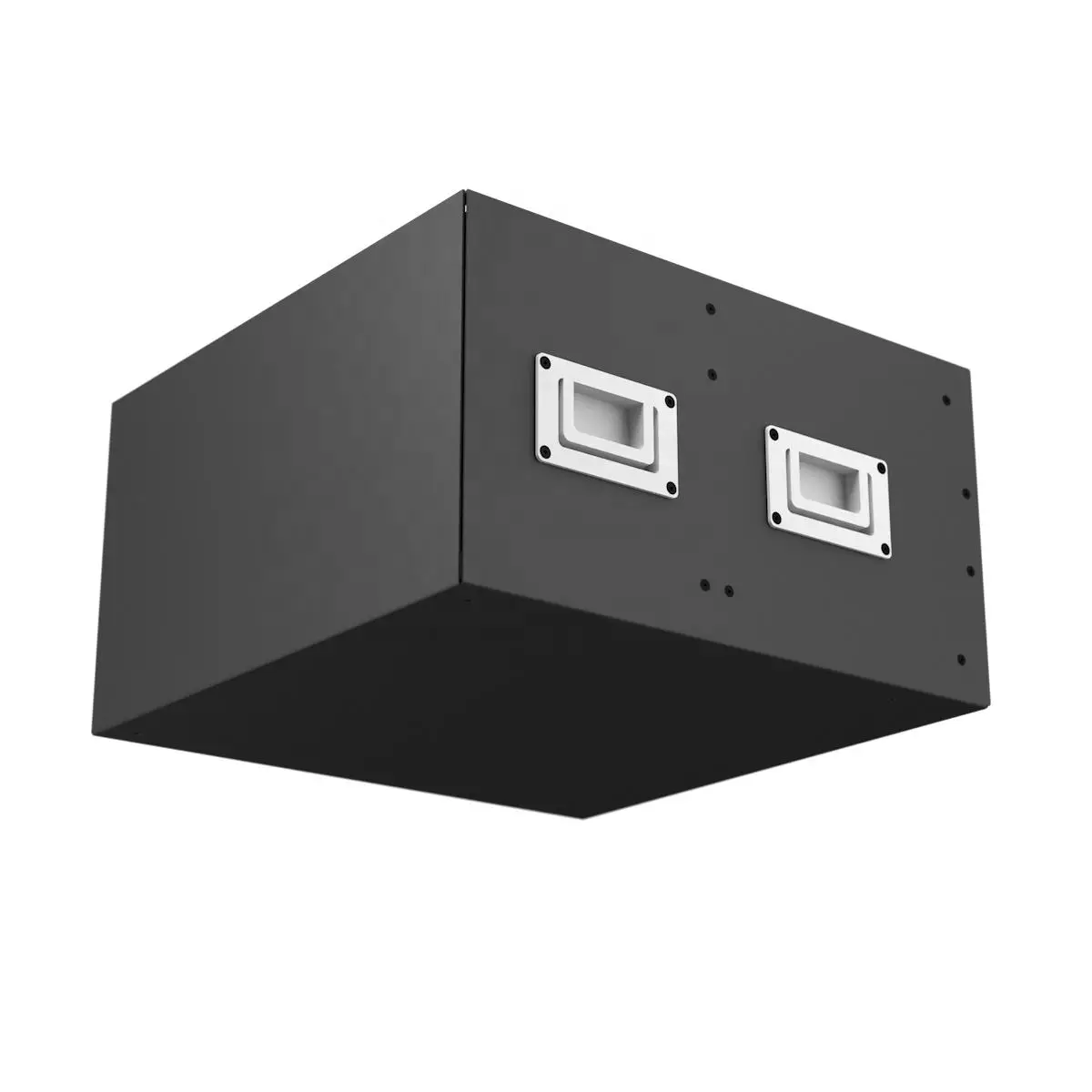

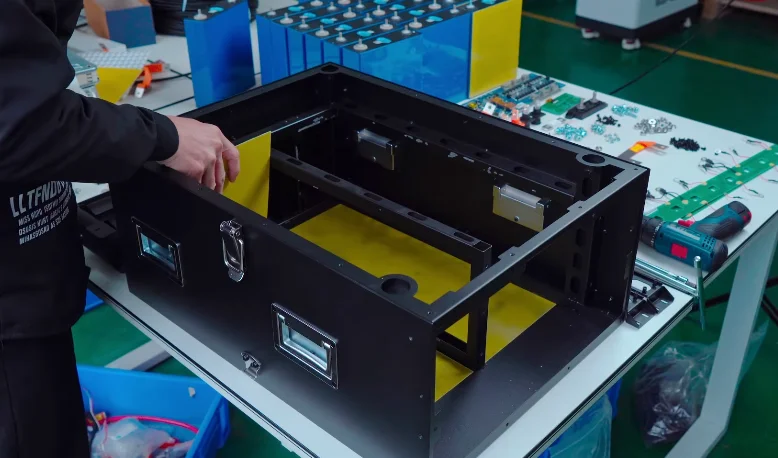

* 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
* 1 * 48V 200A 16S Seplos BMS (MASON230 and MASON280)/48V 100A 16S Seplos BMS (MASON105)
* 1 * 58V 400A Fuse
* 4 * Handle

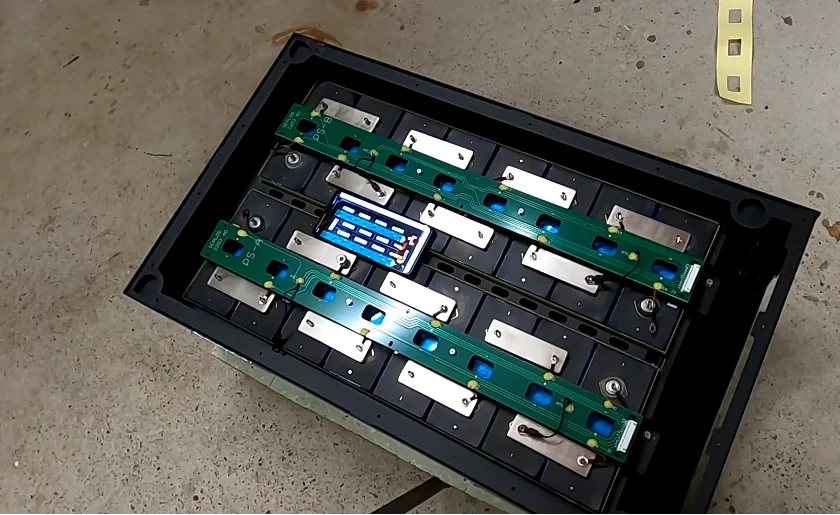

* 2 * PCB Board for BMS and Cell Connection
* 3 * Upper and Lower Latch lock
* 1 * LCD Screen
* 1 * LCD Screen Sticker
* 4 * Button Cap
* 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)

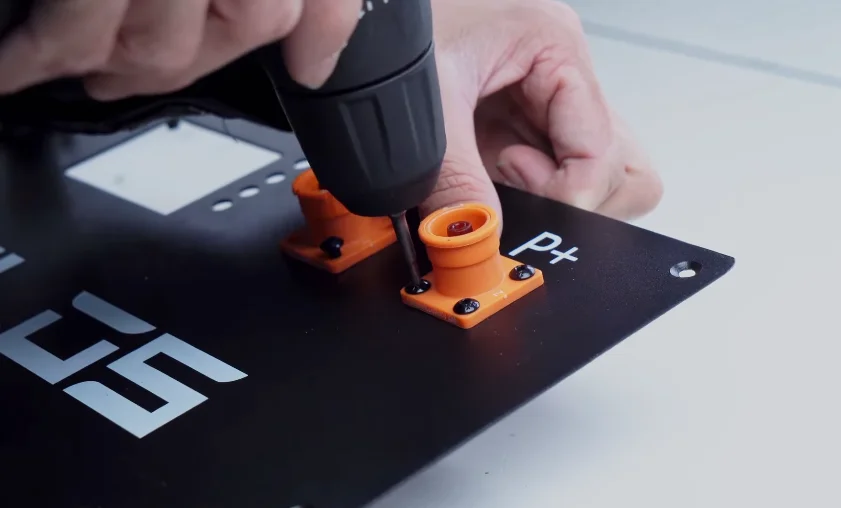

* 2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
* 6 * Copper bus bars (BMS connection)
* 15 * Aluminum bus bars (Cell connection)
* 10 * Epoxy sheet (Between cell and the case)
* 26 * EVA Tape (Between cells)
* 1 * PC sheet (Top cover)
Screws Details:
* 12 * Phillip Hex M4 * 8mm (PCB board fix)
* 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
* 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
* 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
* 12 * Phillip Pan M5 * 10mm (Latch fix)
* 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
* 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
* 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
* 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
* 8 * Phillip Round M5 * 10mm + Washer
* 6 * Copper bus bars (BMS connection)
* 15 * Aluminum bus bars (Cell connection)
* 10 * Epoxy sheet (Between cell and the case)
* 26 * EVA Tape (Between cells)
* 1 * PC sheet (Top cover)
Screws Details:
* 12 * Phillip Hex M4 * 8mm (PCB board fix)
* 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
* 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
* 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
* 12 * Phillip Pan M5 * 10mm (Latch fix)
* 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
* 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
* 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
* 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
* 8 * Phillip Round M5 * 10mm + Washer
Product Description
Our Advantages
Match all hybrid and off grid inverter brands in the world.
Company Profile

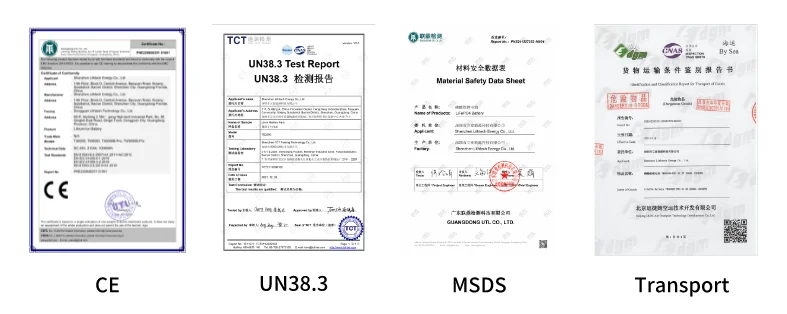

Certifications
We have a whole set of certificates related to lithium batteries
All certificates can be provided for your confirmation
Customer praise
FAQ
Q: What's your warranty condition?
A: Our 48v series battery can provide 10 years warranty (7 years free warranty, 3 years paid warranty), cycle life more than 6000 times.
Q: Which inverters are your batteries compatible with?
A: Lithtech batteries can be compatible with 90% inverter brand, such as victron, growatt, Deye, goodwe....
Q: How much is the maximum parallel connection for your battery?
A: 48v/51.2v battery support max 15 units parallel
Q: I want to expand battery power, can I buy a new battery to connect with the old Lithtech batteries?
A: No, if the battery has been used for a period of time, the remaining capacity cannot reach the use effect of the new
battery,and it will affect the service life of the new batteries if connected in parallel.
Q: Could you offerhigher current solution for the 48V series?
A: Yes, our 48v series battery can be customized with BMS with different current range 50A, 100A, 150A .
Q: Which certificates do you have?
A: We have CE/UN38.3/MSDS for battery packs, and battery cells we have IEC and UL certification.
Q: Does the wall mounted battery with communication function?
A: Yes, not only the Lithtech wall mounted battery but also all the other Lithtech 48V series batteries are equipped with CAN and RS232&485 communication.
Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expectation.
Q:There is no question I want to ask above
A: For more questions, please contact us at any time.Always provide you with professional services.
A: Our 48v series battery can provide 10 years warranty (7 years free warranty, 3 years paid warranty), cycle life more than 6000 times.
Q: Which inverters are your batteries compatible with?
A: Lithtech batteries can be compatible with 90% inverter brand, such as victron, growatt, Deye, goodwe....
Q: How much is the maximum parallel connection for your battery?
A: 48v/51.2v battery support max 15 units parallel
Q: I want to expand battery power, can I buy a new battery to connect with the old Lithtech batteries?
A: No, if the battery has been used for a period of time, the remaining capacity cannot reach the use effect of the new
battery,and it will affect the service life of the new batteries if connected in parallel.
Q: Could you offerhigher current solution for the 48V series?
A: Yes, our 48v series battery can be customized with BMS with different current range 50A, 100A, 150A .
Q: Which certificates do you have?
A: We have CE/UN38.3/MSDS for battery packs, and battery cells we have IEC and UL certification.
Q: Does the wall mounted battery with communication function?
A: Yes, not only the Lithtech wall mounted battery but also all the other Lithtech 48V series batteries are equipped with CAN and RS232&485 communication.
Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expectation.
Q:There is no question I want to ask above
A: For more questions, please contact us at any time.Always provide you with professional services.
