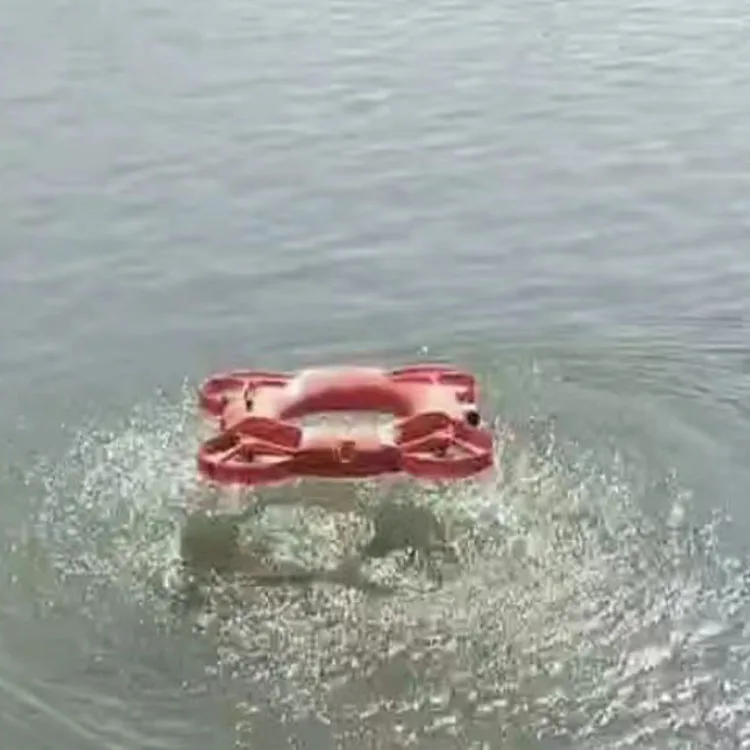

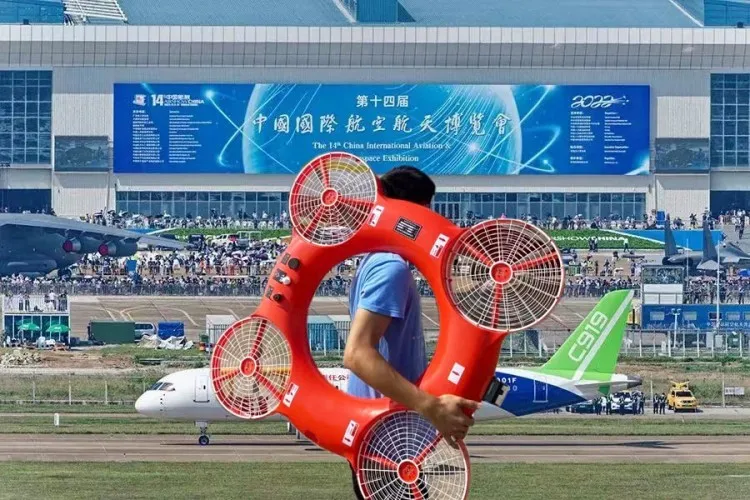

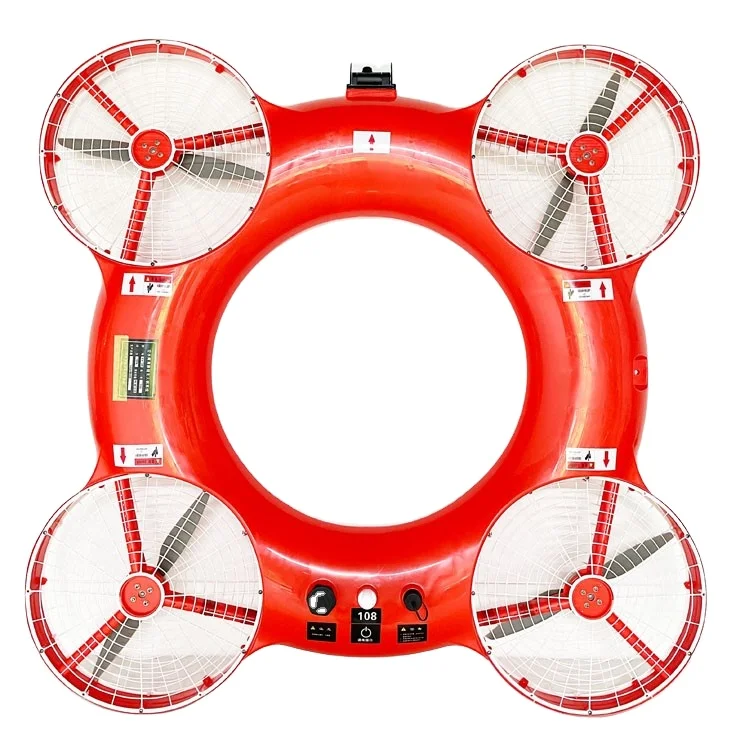

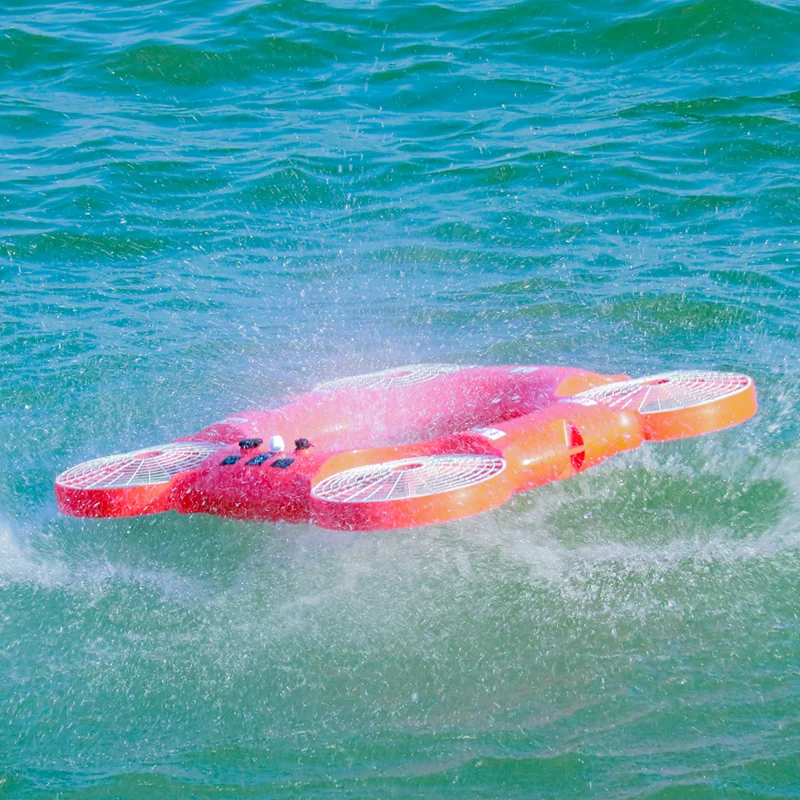

TY-3R Air-Water Dual-Role Rescue Drone System
"TY-3R Air-Water Dual-Role Rescue Drone System" is the first mass-produced Drone Lifesaver System in market, it is a transformation product of science and technological achievements of the Key Laboratory of Fire Emergency Rescue Equipment Emergency Management Department.This new Drone System not only enriches the types of water rescue equipment in China and improves the water emergency management system, but also effectively reduces the risk of water rescue and improves the chances of successful water rescue, which can protect the safety of people's lives and property in a better way


FEATURES AT A GLANCE

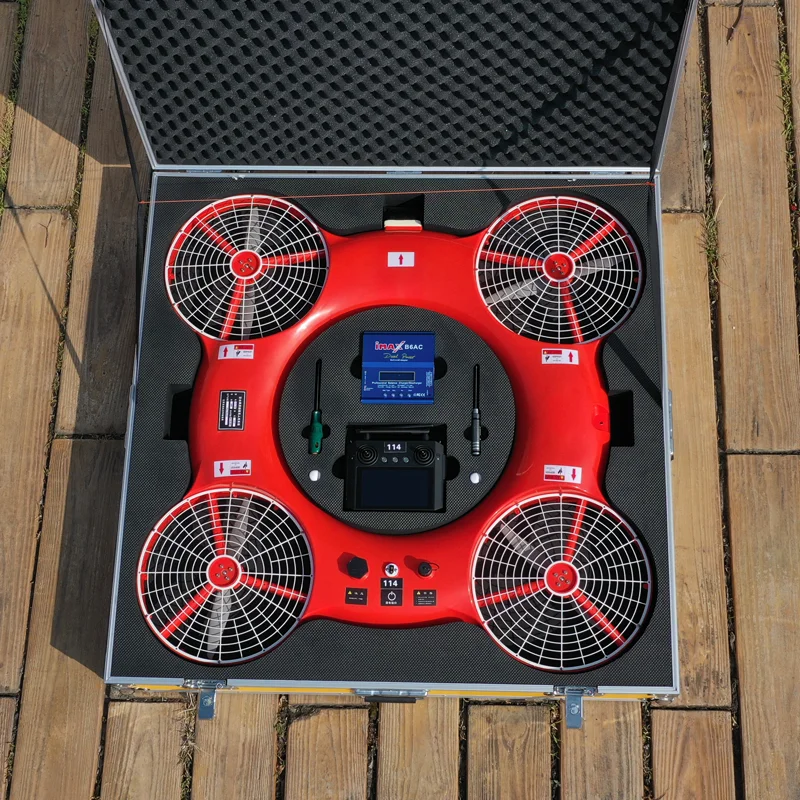

Main Unit and

Its Accessories


Battery supply
Remote Control
Grille


PRODUCT SPECIFICATIONS


No
Item
Data
1
Lifebuoy Shell Size
935 x 935 x 121mm (+/- 10.5mm)
2
Lithium Battery
22.2V /7 Ah
3
Single Axis Camera
single axis movement range: +/-90˚, resolution 720 P
4
Maximum Flight Time
>10Mins
5
Maximum Flight Altitude
4200M
6
Remote Control Communication Distance
1100M
7
Device protection Class
IP68 Water depth of 1.5 meters for 1 hour
8
Maximum Flight Speed
>13m/s


MAIN FUNCTIONS


"TY-3R Air-Water Dual-Role Rescue Drone System" has the characteristics of compact structure, light appearance, stable flight and reliable performance.
The main functions are as follows:

1.Strong wind resistance. It can resist level 7 wind and no affected by sea conditions
2.Remote control. The remote control distance can reach 1.1 Km on the water surface and 11 km for 100 meters height in the air.
3.Light weight. The model is small, weight less than 4 kg which can be easily carried by one person. It is very convenient to bring with and enhance the rescue speed.
4. Simple operation. Turning on the power switch and pressing a button to fly.
5.Transmission of live pictures. There is a two-axis Gimbal camera in the head of the drone, this helps to send back the searching and rescuing pictures when the situation is out of eye distance.
6.Heavy load. It can load two adults at the same time on the water.
7.Long flight time. The maximum flight time is 10 minutes.
8.High strength material. It is integrally formed with high-strength composite ductile materials,which is not easy to be damaged.
9.Working day and night. It is designed with two high-intensity LED lights.With an orange-red appearance,the rescue work can work on smoothly even in dark conditions.
10.Safe and Reliable. It has a dense grille design and a fast locking setting to prevent the hair and clothing of the drowning person from getting involved in the machine and causing secondary damage.
11.Return autonomously. In case the remote control signal loss, it can follow the rescue routing to come back.


APPLICATION SENARIOS AND SECTORS


Roof Evacuation
Sea Rescue


Coast Guard
Haiphong


Company Profile




Guangzhou Didiok Makings Co.,Ltd ( hereafter referred to as:Didiok Makings) was established in 2015,located in Panyu District,Guangzhou City, China. Didiok Makings has been strived to innovate for the benefit of its customers since foundation.Our company has been committed to the research and development of new energy products, new material technology and service promotion,as well as the sales of insulation materials, fireproof materials, emergency rescue equipment, intelligent wearable equipment and the import and export of goods and its technology, which successively obtained a number of invention patents and technical achievements.
Didiok has been specially concentrated about the development of cutting-edge technology and integration products. In 2022, we became the sole distributor of Jiangsu Tanyo emergency rescue series spare products in Guangdong Province. Tanyo Group is a national key secret-related unit and has passed the national military GJB 9001c-2017 standard: weapons and equipment quality management system certification. With a total investment of over one billion dollars, we have our stable and reliable team of cutting-edge projects, including 56 leaders with PHD's degree. "Tanyo Group" mainly develops and produces unmanned aerial vehicles and related supporting facilities and equipment: wearable intelligent products, satellite receivers, individual equipment, radar equipment, the third generation Beidou centimeter precision positioning, application platform development for multimedia education and conference.
We has specially set up a Sales Service Department and a flight test base,together with timely train relevant operators to provide customers with thoughtful and efficient pre-sale and after-sale service.With the strong support and guidance of Jiangsu Tanyo Aviation Technology Group and the dedicated service of Guangzhou Didiok Makings Co.,Ltd, We sincerely hope that all our rescue products can be applied to more life-saving fields, so that to make greater contributions to the safety of people's lives and property and produce good social benefits. Always welcome value customers to enjoy and share the benefits of our products.
