Thermal Dynamics Plasma consumables
US $3.00-$8.00
High Quality MIG Welding Consumable Contact Tip Welding Torch Accessory CuCrZr Contact Tips M6 1.2mm Wire Diameter for Car Body
- Category: Welding Tips >>>
- Supplier: Nanjing,Dianjin,Welding,And,Cutting,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
A contact tip – often referred to as a contact tube, power contact tube or contact nozzle – is a consumable in MIG/MAG welding and has become a mass-produced article today. Accordingly, there is a wide range of welding accessories and wear parts on the market. Every original Dianjin contact tip is a quality product, inspected in the production, which fulfils all requirements of the welding process.
The contact tip is certainly the smallest, but also the most important wear part needed for MAG welding. A contact tip is used in a manual torch as well as in an automatic torch or a robot welding torch. The quality of the material and processing has a significant influence on the entire welding process as well as the service life and thus the machine uptime or availability of the welding torch. Therefore, it is important to pay attention to the quality of the contact tip when choosing. Dianjin contact tips fulfil the criteria required for the respective welding process and ensure long service life and machine uptime.
Depending on the use of the contact tip, several kilometres of wire can pass through this small wear part per day. Therefore, it is even more important to use the right type of contact tip for the welding application and torch in good quality. Standard-threaded connections are available in sizes M6, M8, M10 or larger. The overall geometry, the precise centred hole for the wire diameter and the contact tip material are also important. Dianjin uses a professional manufacturing process for the exact drilling. The basic rule for welding: the higher the welding power, the larger the dimensions of the contact tip.
Contact tips – Regular Material & properties
For welding the contact tip materials E-Cu (electrolytic copper), CuCrZr (copper-chrome-zirconium) . Their properties and advantages at a glance:
1. E-Cu contact tip
Manufactured from pure electrolytic copper, this contact tip has a Vickers hardness (HV) of approx. 110 to 115. The purity of its copper ensures very good current transfer, heat transfer and thermal conductivity. As it softens already at a temperature of approx. 260° C, it is more suitable for the low ampere range.
2.CuCrZr contact tip
The alloying elements chrome and zirconium of this contact tip are suitable for higher thermal loads, because they are very hard. Compared to the E-Cu contact tip, their electrical conductivity is slightly lower, but this is not a significant factor for most processes. The CuCrZr contact tip has a hardness of approx. 168 HV and can withstand temperatures up to approx. 500° C. It has established as the standard contact tip for the medium to high ampere range with low wear as well as high process load capacity and is mainly used for liquid cooled applications and robot welding.
3. Higher Quality Contact Tips can be also communicated.
| Product Name | Welding Contact Tips |
| Material | CuCrZr / E-Cu |
| Color | Coppery |
| Design | Customers' Requirements |

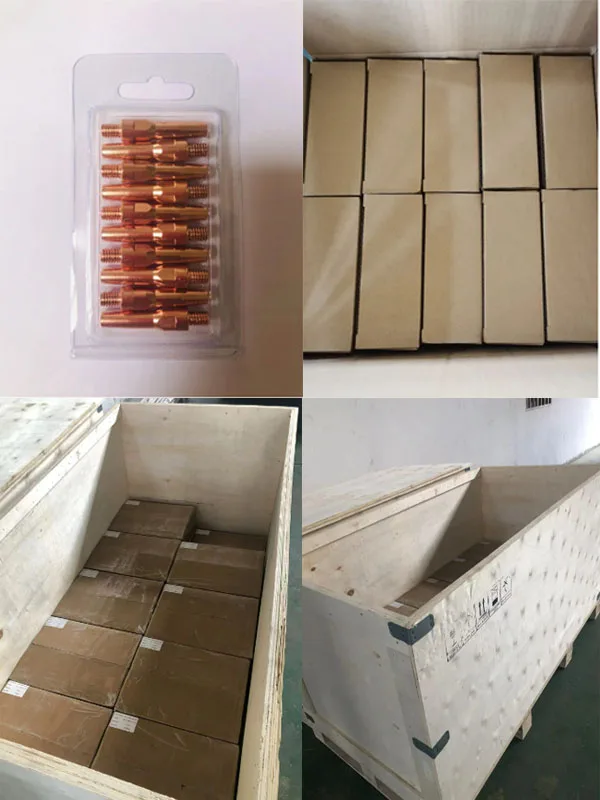

Packaging & Shipping
Poly bag/Innner box/Carton box/wooden case
Port of Loading: Shanghai
Company Information
We are a group company which focus on welding solution. We have three subsidiaries:
Nanjing Dianjin Welding and Cutting Equipment Co.,LTD
Nanjing FST Welding Technology Co.,LTD
XY(Nanjing) Industry Equipment Co.,LTD.
Our company is located in the South of Nanjing City, Jiangsu Province, China which was established in 2003 with more than 20 years manufacturing experience in this field.
We have ISO900I Certificate and have been sold in lots of countries all around the world and gained good reputation widely with excellent quality. In order to meet customers’ requirements and improve product quality, our company has already realized mechanical processing numerical control automatization production, and been committed to manufacturing products with best quality.
Our company adopts modern management mode and devotes itself to new high performance design and production of welding&cutting equipments, with continuous technique advantages innovation
Certificiation
Production Line
FAQ
Q1: What does your factory produce?
A: We produce and export all kind of welding consumables, welding torch, resistance welding gun and welding working station.
Q2: How can you gurantee quality?
A: Pre-production samples can be provided before mass production and 100% inspection before shipment.
Q3:What is your terms of payment?
A:T/T or L/C at sight. We’ll show you the photos of the products and packages before the shipment.
Q4:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: Where do your factory located?
A: Our factory located in No.16 Songyuan North Road, Chunxi Street, Gaochun, Nanjing, Jiangsu Provice, China
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
