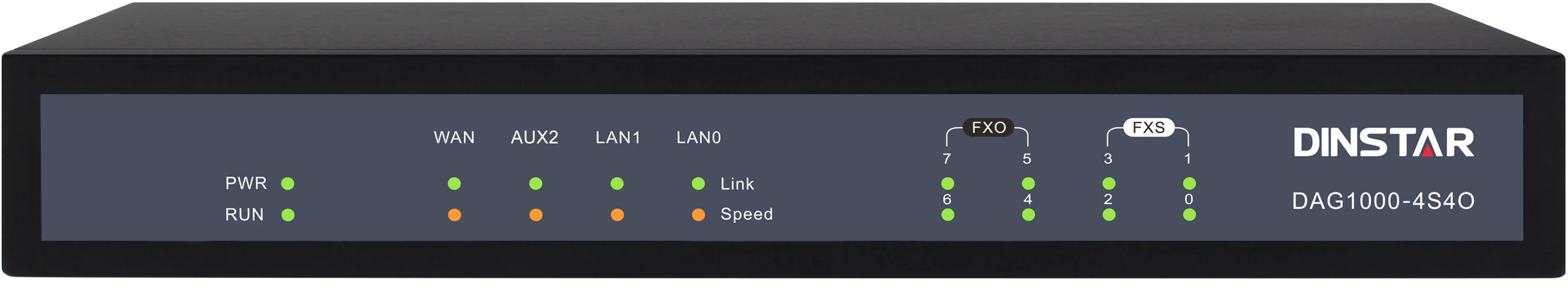

Dinstar 4FXS4FXO ports Hybrid Analog VoIP Gateway, cost effective
- Category: >>>
- Supplier: Shenzhen Dinstar Co. Ltd.
Share on (1600802108907):
Product Overview
Description
Product Description
Product Paramenters
Overview
DAG1000 series hybrid analog gateway are versatile IP-based voice and fax gateway. For small business, the family office, remote office and branch businesses provide a low cost, simple operation VoIP solutions. FXS/FXO hybrid gateway support network failure and power failure lifeline feature , flexibly realize interoperability with simulation PBX and provide reliable voice quality assurance for the traditional voice transition to IP voice. Support standard SIP protocol and compatible mainstream IPPBX and soft switch platform.
Key Features
4 FXS and FXO hybrid
Flexible port group
IP trunk
Flexible routing and manipulation
Data/ Voice/ Management VLAN
Voice and FAX all in one
Power and network failure lifeline
Firmware update automatically /configure update
Flexible port group
IP trunk
Flexible routing and manipulation
Data/ Voice/ Management VLAN
Voice and FAX all in one
Power and network failure lifeline
Firmware update automatically /configure update

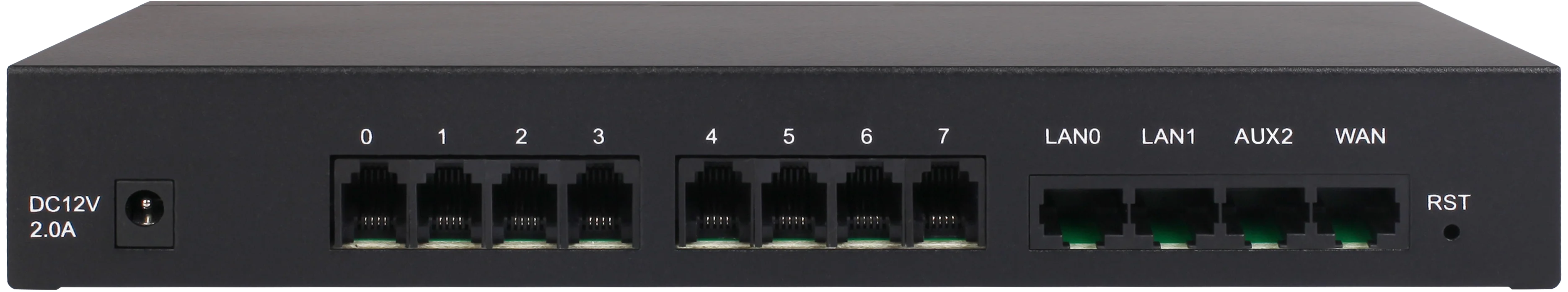

Physical Interfaces
Phone Interfaces:
4FX and 4FXO, RJ-11
Ethernet Interfaces:
1*WAN, 2*LAN,10/100Mbps
Phone Interfaces:
4FX and 4FXO, RJ-11
Ethernet Interfaces:
1*WAN, 2*LAN,10/100Mbps
FXS
Connector: RJ11
Dial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Reversed Polarity
Programmable Call Progress Tone
Max Cable Length: 3 km
Connector: RJ11
Dial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Reversed Polarity
Programmable Call Progress Tone
Max Cable Length: 3 km
FXO
Connector: RJ11
Dial Mode: DTMF/Pulse Dialing
Caller ID: FSK, DTMF
Polarity Reversal
Answer Delay
Busy Tone Detection
No Current Detection
Connector: RJ11
Dial Mode: DTMF/Pulse Dialing
Caller ID: FSK, DTMF
Polarity Reversal
Answer Delay
Busy Tone Detection
No Current Detection
VoIP
Protocol:
SIP v2.0 (UDP/TCP),RFC3261
SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
SIP TLS/SRTP
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT, rport
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Protocol:
SIP v2.0 (UDP/TCP),RFC3261
SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
SIP TLS/SRTP
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT, rport
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Software Features
Port Group
Web ACL
Telnet ACL
Action URL
Digitmap
Routing Rules based Prefixes
Caller/Called Number Manipulation
Speed Dial
Port Group
Web ACL
Telnet ACL
Action URL
Digitmap
Routing Rules based Prefixes
Caller/Called Number Manipulation
Speed Dial
Environmental
Power supply:
Input 100~240VAC Output 12VDC, 2A
Power consumption(W): 20W
Operator Temperature: 0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~80 ℃
Humidity: 10%-90% no condensation
Compliance: CE, FCC
Power supply:
Input 100~240VAC Output 12VDC, 2A
Power consumption(W): 20W
Operator Temperature: 0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~80 ℃
Humidity: 10%-90% no condensation
Compliance: CE, FCC
Company Profile
Why Choose Us
Certifications
Exhibition
Payment & Delivery
FAQ
1. Can I get a free sample?
We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
2.What's your MOQ?
No MOQ for any sample test
3.OEM/ODM service is available?
Yes, DINSTAR have strong ability to offer customers ODM&OEM products for highest quality. And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime?
Payment Term: we mainly support T/T bank transfer, Paypal, Western Union
We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
2.What's your MOQ?
No MOQ for any sample test
3.OEM/ODM service is available?
Yes, DINSTAR have strong ability to offer customers ODM&OEM products for highest quality. And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime?
Payment Term: we mainly support T/T bank transfer, Paypal, Western Union
Shipping method: DHL, Fedex, TNT, UPS, by sea, or your own shipping agent
5. How about the warranty?
12 months
While the warranty is not responsible for those broken by violence or updated with other brands.
5. How about the warranty?
12 months
While the warranty is not responsible for those broken by violence or updated with other brands.
