growatt 50kw inverter complete energy solar 5kw hybrid systems growatt
- Category: >>>
- Supplier: Shenzhen Huaxu New Energy Co. Ltd.
Share on (1600802117352):
Product Overview
Description
Product Description
Datasheet | 3500ES | 5000ES | ||||||
Battery Voltage | 48VDC | |||||||
Battery Type | Lithium/Lead-acid | |||||||
INVERTER OUTPUT | ||||||||
Rated Power | 3500VA/ 3500W | 5000VA/ 5000W | ||||||

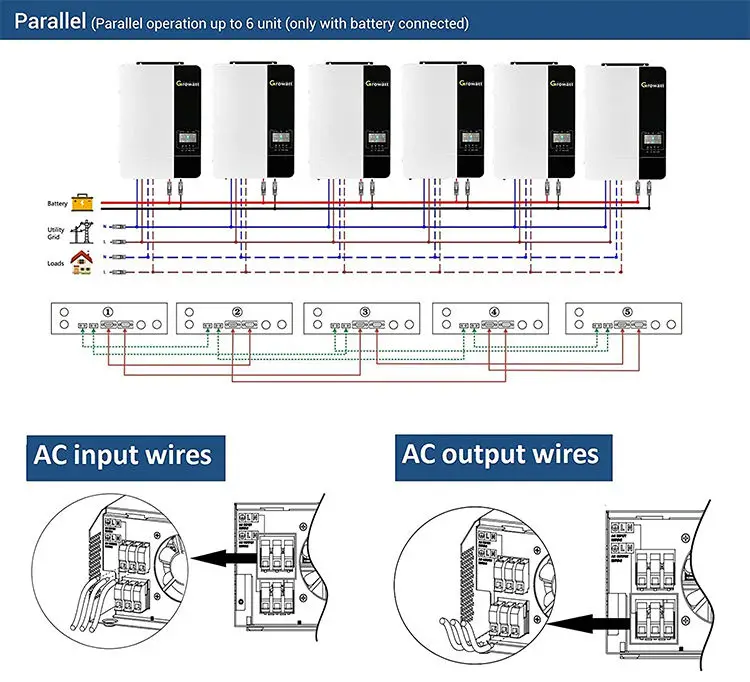

Parallel Capability | Yes, 6 units maximum | |||||||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||||||
Surge Power | 7000VA | 10000VA | ||||||
Efficiency (Peak) | 93% | |||||||
Waveform | Pure sine wave | |||||||
Transfer Time | 10ms typical, 20ms Max | |||||||
SOLAR CHARGER | ||||||||
Maximum PV Array Power | 4500W | 6000W | ||||||
MPPT Range @ Operating Voltage | ||||||||
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | |||||||
Maximum PV Array Open Circuit Voltage | 450VDC | |||||||
Maximum Solar Charge Current | 80A | 100A | ||||||
AC CHARGER | ||||||||
Charge Current | 60A | 80A | ||||||
AC Input Voltage | 230VDC | |||||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||
PHYSICAL | ||||||||
Protection Degree | IP20 | |||||||

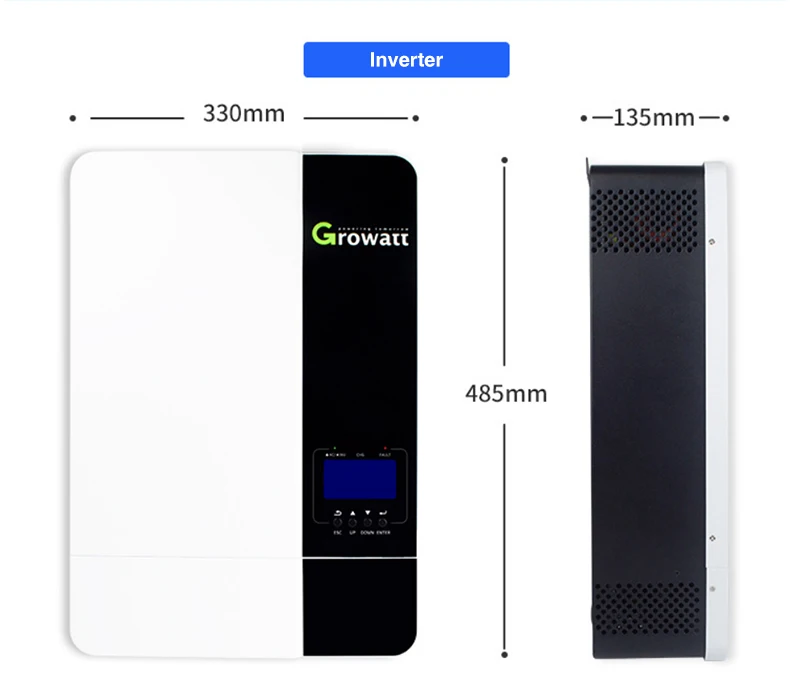

Dimension (W/H/D) | 330/485/135mm | 330/485/135mm | ||||||
Net Weight | 11.5kgs | 12kgs | ||||||
OPERATING ENVIRONMENT | ||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||
Altitude | ＜2000m | |||||||
Operating Temperature | 0℃~55℃ | |||||||
Storage Temperature | -15℃~60℃ | |||||||

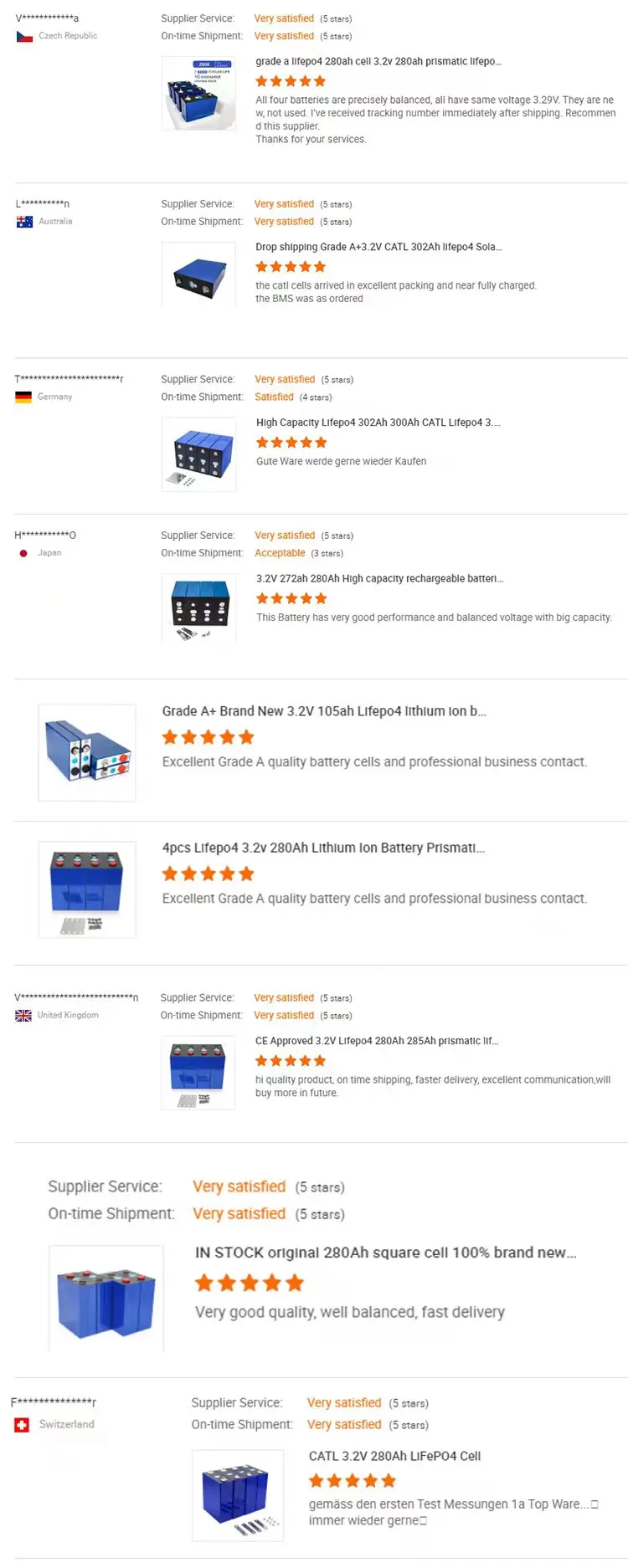

Customer Feedback
Shipping & Payment
About the Shipping and delivery(In stock) | ||||||||
Ship to US/USA | ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | ||||||
Ship to EU | ETA:40-55 days after delivery | |||||||
ETD:2-5 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By railway+UPS(DDP,Tax free) | ||||||
ETA:40-55 days after delivery | ||||||||
ETD:7-10 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | |||||||
ETA:40-55 days after delivery | ||||||||
Company Profile
COMPANY PROFILE
the products are widely used in home solar energy storage, communication base station backup power supply, UPS system, RV, golf cart, forklift, yacht and other power supply fields.
Whichensure the stability,security,capacity of the battery. Rapid inbound channel and mature personnel management system can promptly provide you with best quality and most convenient & attentive service. Our company always hold the sustained business conception of "credit is the basis, quality is the first". We are committed to providing customers with competitive price and high quality products. We sincerely look forward to cooperating with you and hope that we can create the glorious future together.
Certifications
Here is the Certification that you need
FAQ
1) Is the product original?
A: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy.
2) Can I have a sample order?
A: Yes, but only free samples for our brand cylaid battery, and the freight cost should be on buyer's account.
A: Yes, but only free samples for our brand cylaid battery, and the freight cost should be on buyer's account.
3) What's your MOQ(minimum order quantity)?
A: No limited. Sample order and trail order are accepted.
A: No limited. Sample order and trail order are accepted.
4) What's your delivery time?
A: The cargo will be shipped out within 2-3 working days and 7-15 days to arrive to your hand.
A: The cargo will be shipped out within 2-3 working days and 7-15 days to arrive to your hand.
5) How can I place order?
A: You can place order on Alibaba directly or contact us by email about your order details.
A: You can place order on Alibaba directly or contact us by email about your order details.
6) How do you ship the goods?
A: Usually by UPS,TNT, DHL,Fedex...(We will choose the best available shipping methods for you always)
A: Usually by UPS,TNT, DHL,Fedex...(We will choose the best available shipping methods for you always)
7) How can i pay you?
A: We accept T/T and Paypal, Western Union.
A: We accept T/T and Paypal, Western Union.
8) How do i take care when your client received defective products?
A:replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
A:replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
