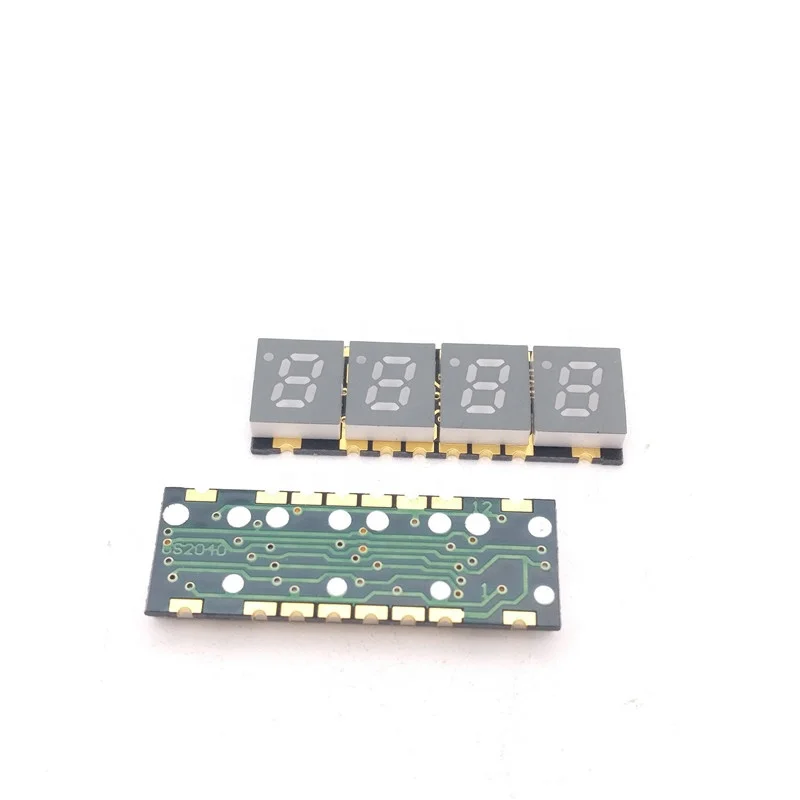

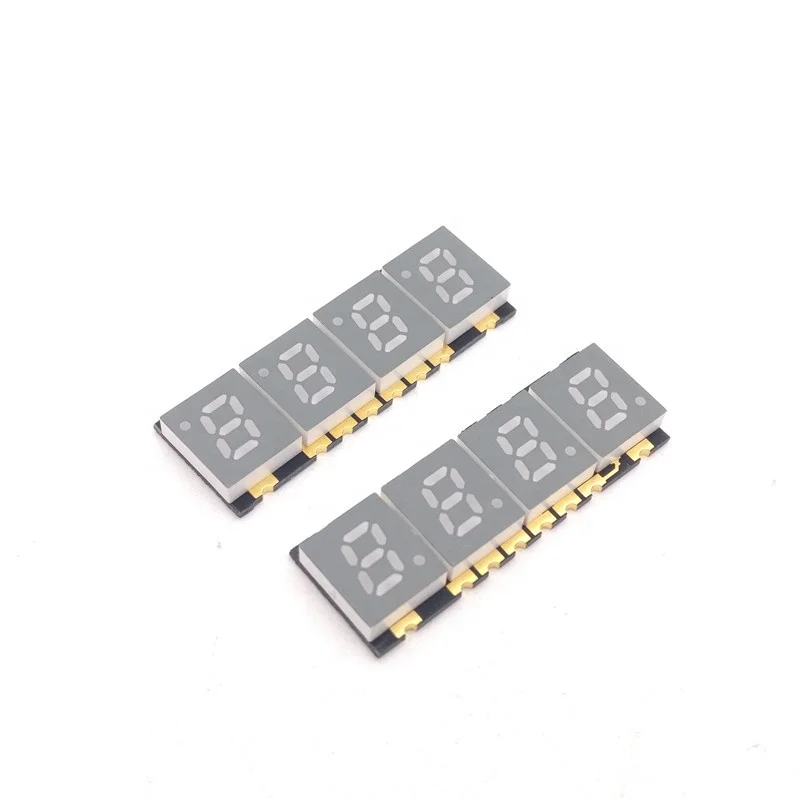

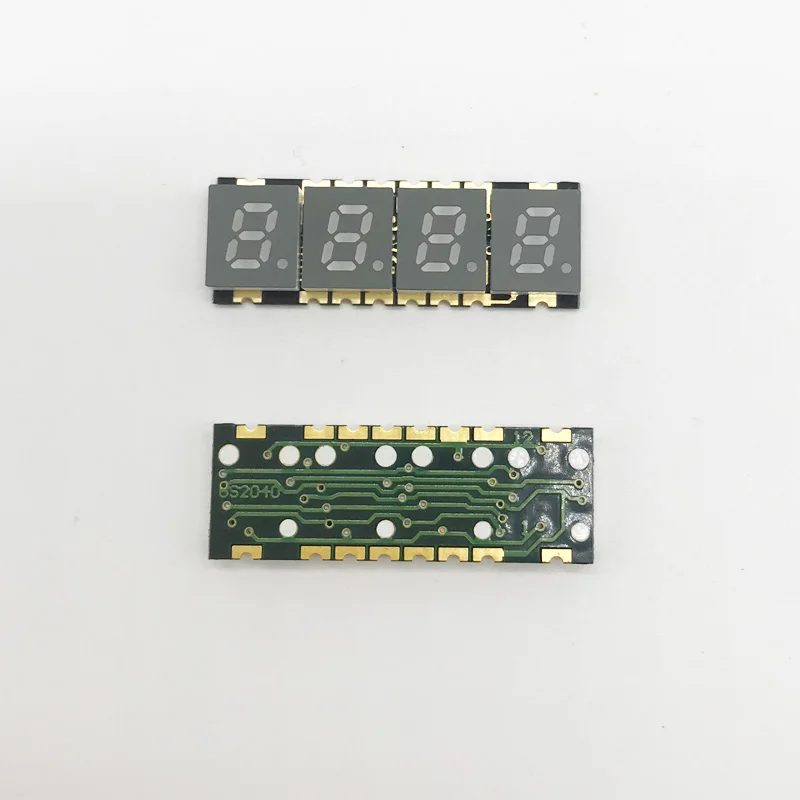

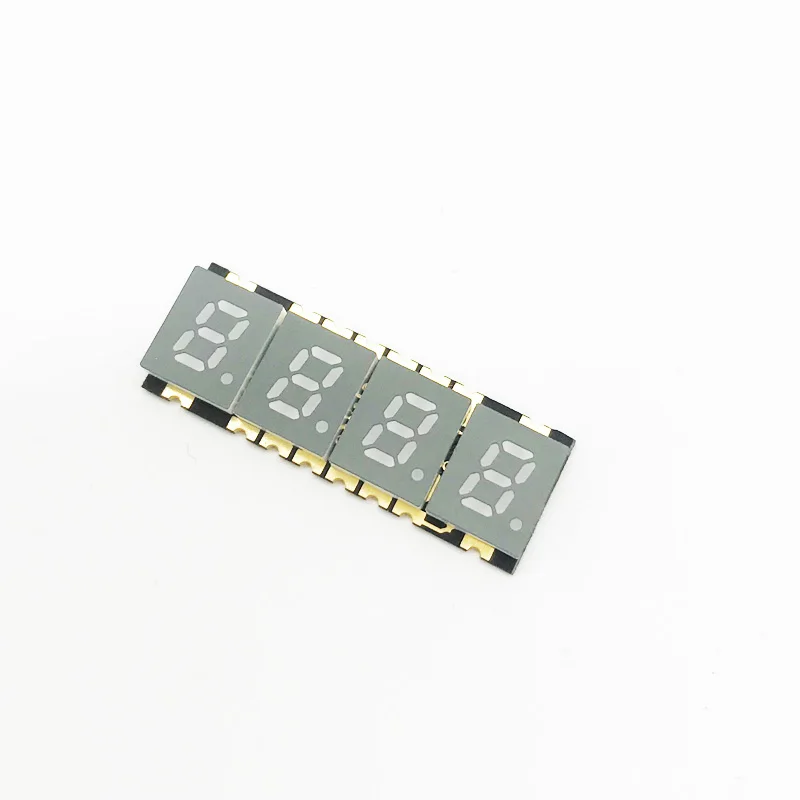

Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display
Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display
Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display
Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display
Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display
Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display
Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display

Jstronic White color 4 digits seven segment 0.2 inch 4 digit smd 7 segment led display

Share on (1600802138263):


Price:$0.85 - $1.10

Quantity:


Product Overview

Description



Product Description

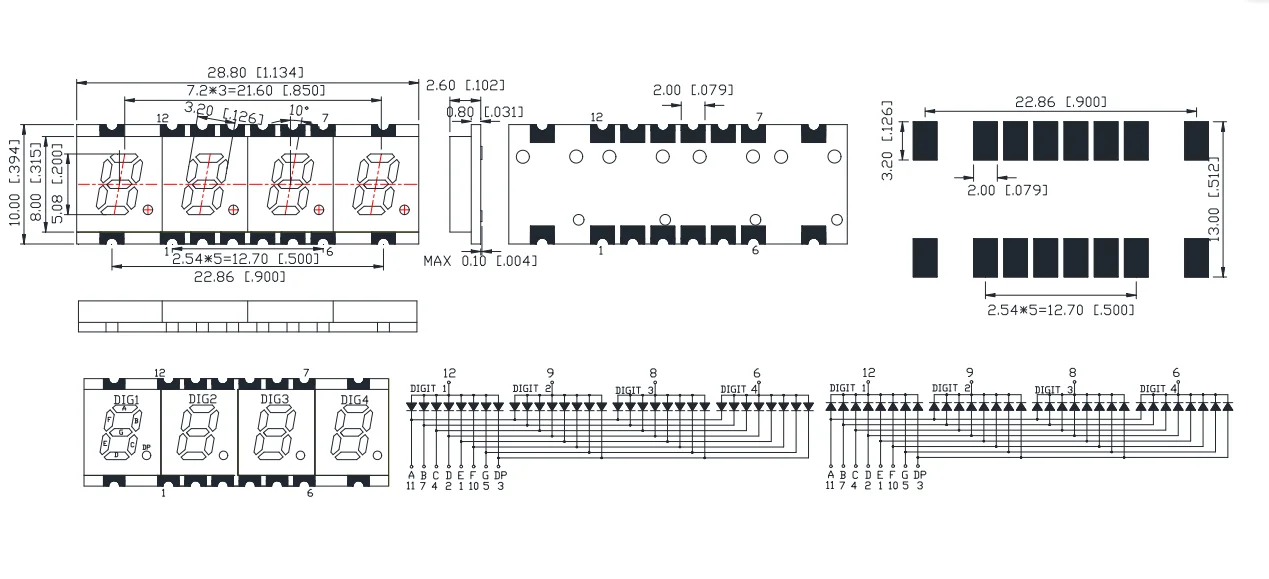

Outer Dimension & INTERNAL CIRCUIT DIAGRA




Specification


*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*0.2 inch 7 segment smd

Electro/Optical Characteristics If=20mA Ta=25 C


Part Number
EMITTED COLOR
Peak
Wavelength
(mn)
Vf(V)
Iv(mcd)
Common Cathode
Common Anode
Type
Max
Min
Typ
JSS-2041AUR
JSS-2041BUR
AlGaInP/GaAs Super red
640
2.0
2.5
10
20
JSS-2041ASR
JSS-2041BSR
AlGaInP/GaAs Ultra red
625
2.0
2.5
40
80
JSS-2041AUA
JSS-2041BUA
AlGaInP/GaAs Ultra Amber
605
2.0
2.5
40
60
JSS-2041AUY
JSS-2041BUY
AlGaInP/GaAs Ultra Yellow
590
2.0
2.5
40
60
JSS-2041AUG
JSS-2041BUG
AlGaInP/GaAs Yellow Green
574
2.0
2.5
10
15
JSS-2041APG
JSS-2041BPG
InGaN/Sic Pure Green
525
3.2
3.8
150
200
JSS-2041AUB
JSS-2041BUB
InGaN/Sic Ultra Blue
470
3.2
3.8
40
50
JSS-2041AUW
JSS-2041BUW
InGaN/Sic Ultra White
------
3.2
3.8
200
400


Related Product




1.We can supply all kinds of SMD 7 segment led display from 0.20inch to 0.80inch
Digit number:1,2,3 and 4 digits
2.We can offer both 7 segment and 14 segment SMD led display
3.Avaliable color:red,yellow,green,blue,white etc
4.Face color:Grey
5.Lens color:white diffused

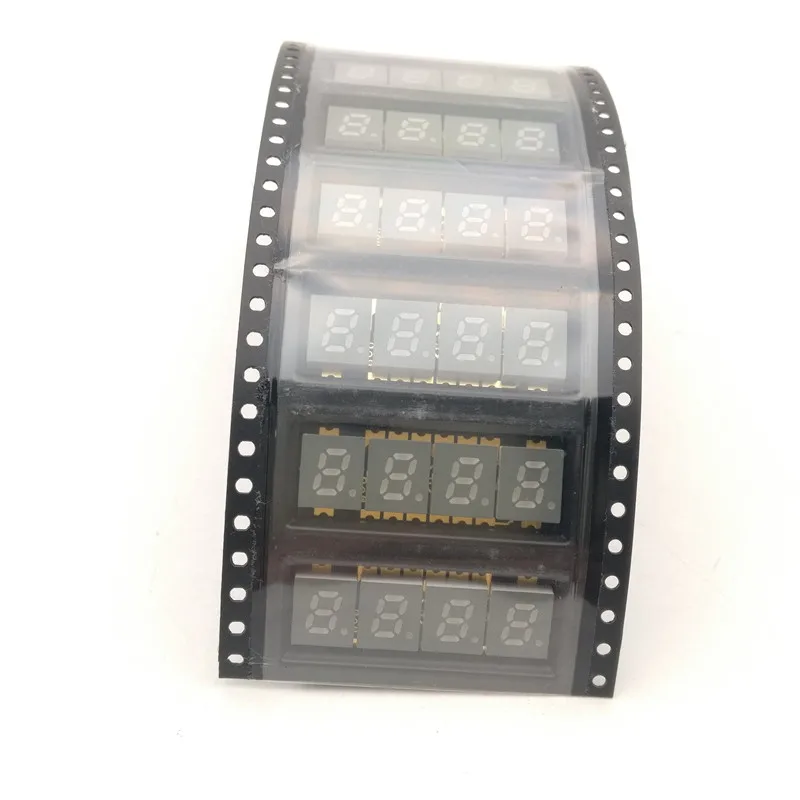

Application & Delivery






Company Profile




FAQ


1. How to shipping ?

(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small
.
(2) it will be shipping out by air or sea once the weight and size is huge enough.

(3) the shpping way from our clients' advise.

2.what will be the types of payment?

The payment we can accept are T/T transaction,Paypal,Western Union,etc.

3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.




Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely
welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please"send"now.
