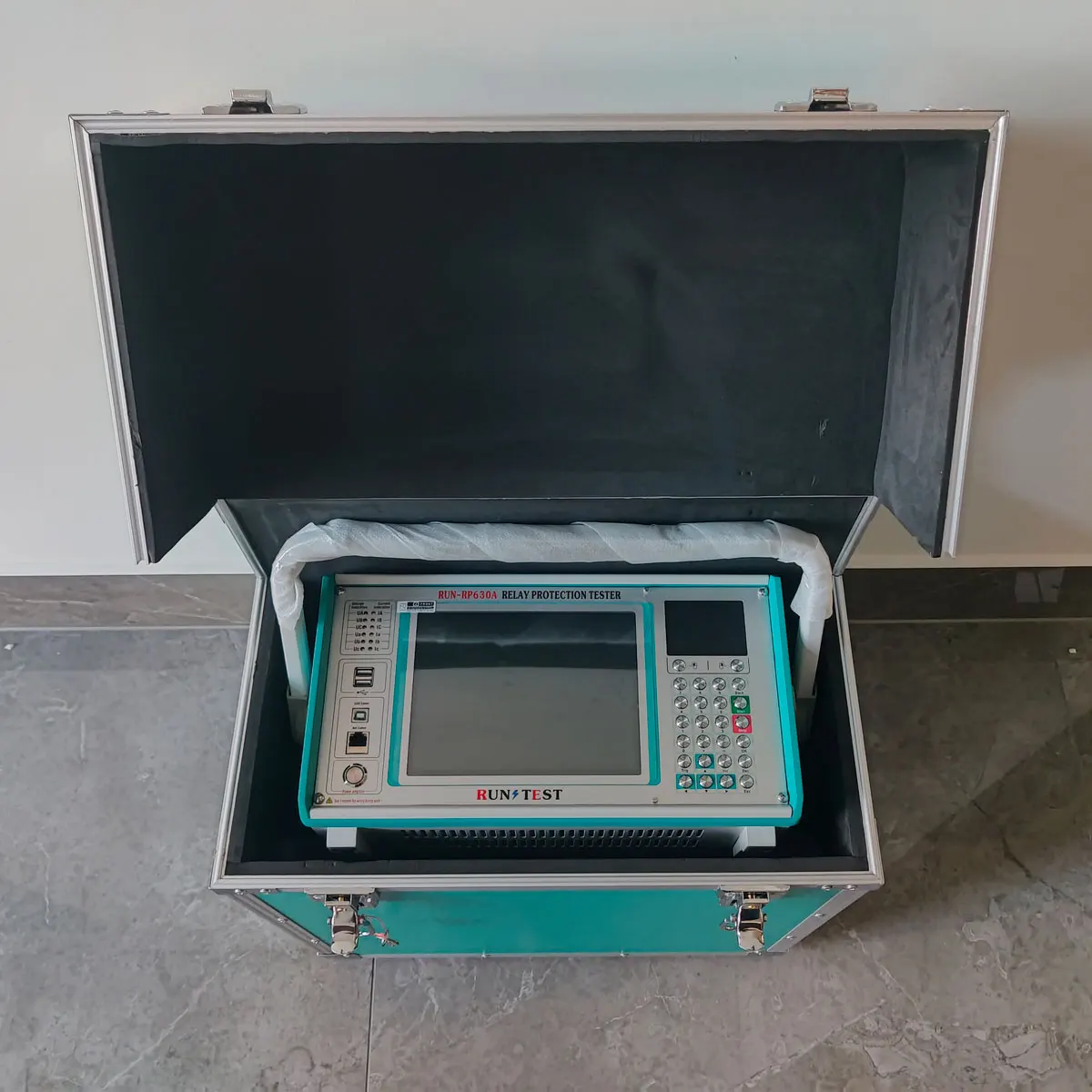

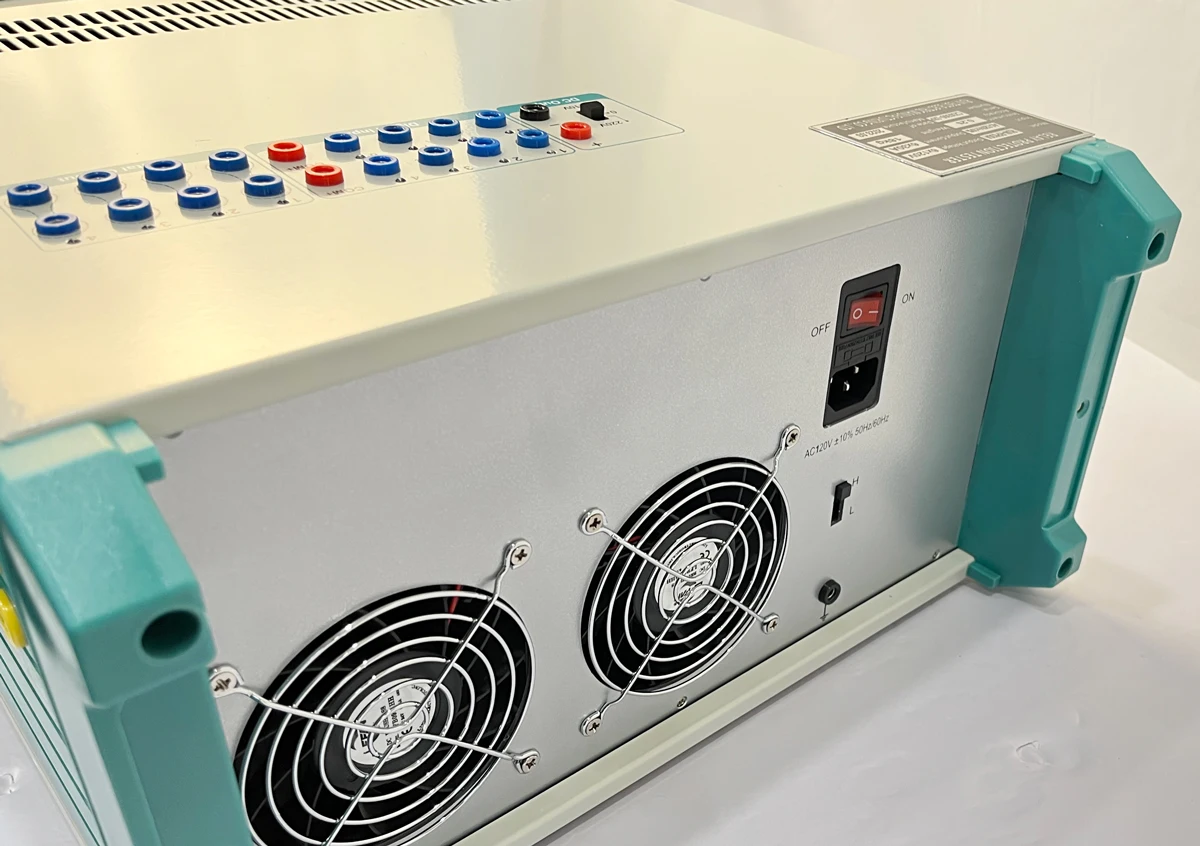

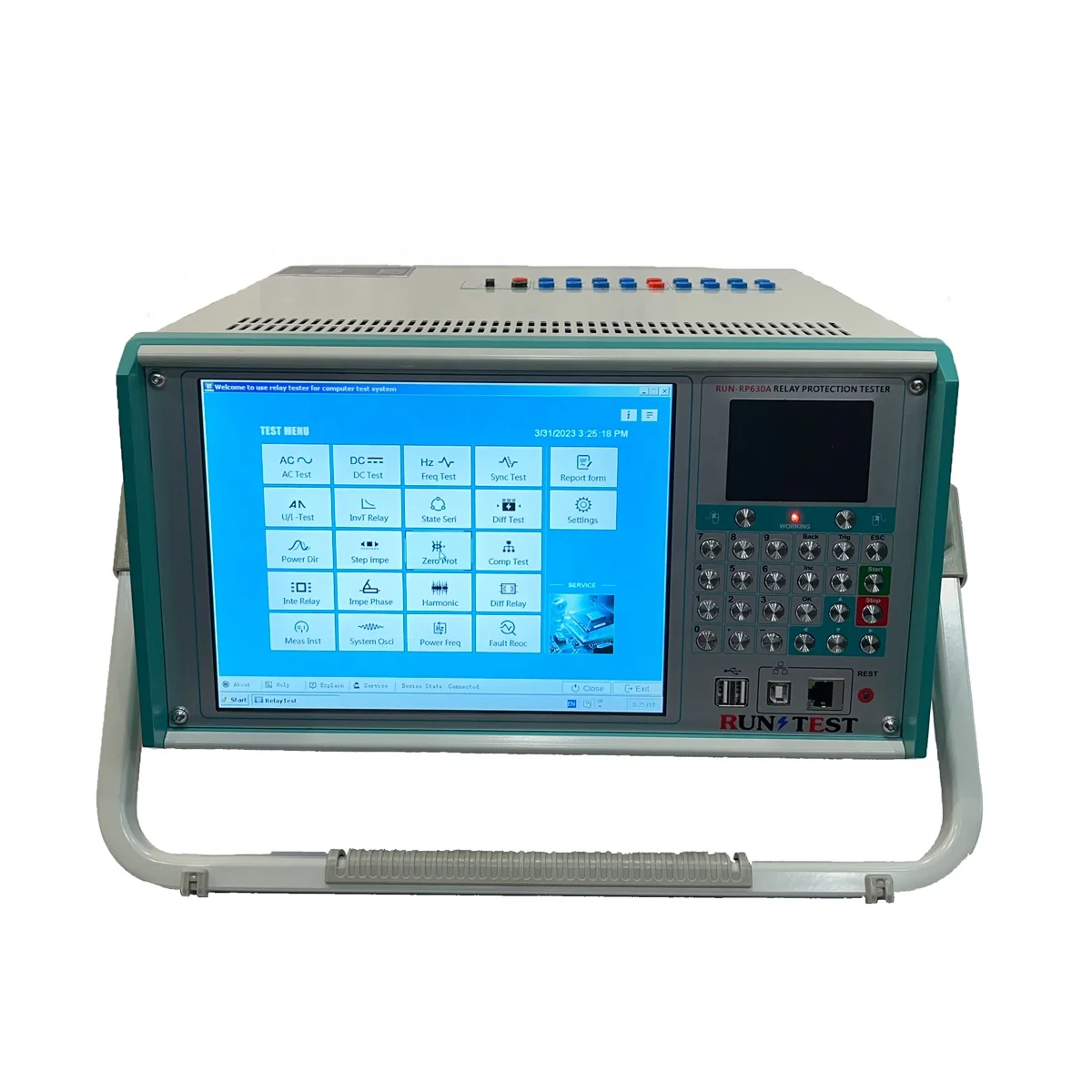

Well-Exported Relay Testing Machine Good Price Relay Test Set 6 Phase Protection Relay Tester
6 voltage and current output channel. It can test not only traditional relays and protection devices, but also modern micro-computer protection devices, especially for transformer differential protection and standby automatic switching device. The test is more convenient.
Independently complete device testing in professional fields such as microcomputer protection, relay protection, excitation, measurement, fault recording, etc. It is widely used in scientific research, production and electrical test sites in electric power, petrochemical, metallurgy, railway, aviation, military and other industries.
Specification
Accuracy | 0.2%±5mA |
Per Channel Output | 0~30A |
Six Currents in Parallel | 0~180A |
Duty Cycle | 10 A continuous |
Per Channel Maximum Power Rating | 300VA |
Operating Temperature | -10℃ ~ 50℃ |
Relative Humidity | ≤85%, non-condensing |
Product name | 6 Phase Relay Protection Tester |
Dimension | 410*190*420mm |
Instrument weight | 19.8 KG |
AC Current output：
Single phase current output (RMS) | 0 -- 30A / phase, accuracy: 0.2% ± 5mA |
Six currents in parallel (RMS) | 0 – 180A / 6 same phase parallel output |
Duty Cycle | 10A continuous |
Maximum output power per phase | 320VA |
Max. output power of three phase parallel current | 1000VA |
Max. output allowable working time of triple parallel current | 5s |
Frequency range | 0 -- 1000Hz, accuracy 0.01Hz |
Harmonic number | 2—20 times |
Phase | 0—360o accuracy: 0.1o |
DC current source：
DC current output | 0--± 10A / phase, accuracy: 0.2% ± 5mA |
AC voltage source：
Single phase voltage output (RMS) | 0 -- 120V / phase, accuracy: 0.2% ± 5mv |
Line voltage output (RMS) | 0--240V |
Phase voltage / line voltage output power | 75VA/100VA |
Frequency range | 0 -- 1000Hz, accuracy: 0.001Hz |
Harmonic number | 2—20 times |
Phase | 0—360o, accuracy: 0.1o |
DC voltage output：
Single phase voltage output amplitude | 0--± 160accuracy: 0.2% ± 5mv |
Output amplitude of line voltage | 0--±320 |
Phase voltage / line voltage output power | 90VA/180VA |
Numbers of Switch& Measuring time range：
Switch input terminal | 8 Pairs |
Air contact | 1 -- 20 mA, 24 V, internal active output of the device |
Reversal Potential | Passive contact: low resistance short circuit signal Active contact: 0-250V DC |
Switch output terminal | 4 Pairs, no contact, breaking capacity: 110V / 2A 220V / 1A |
Feature

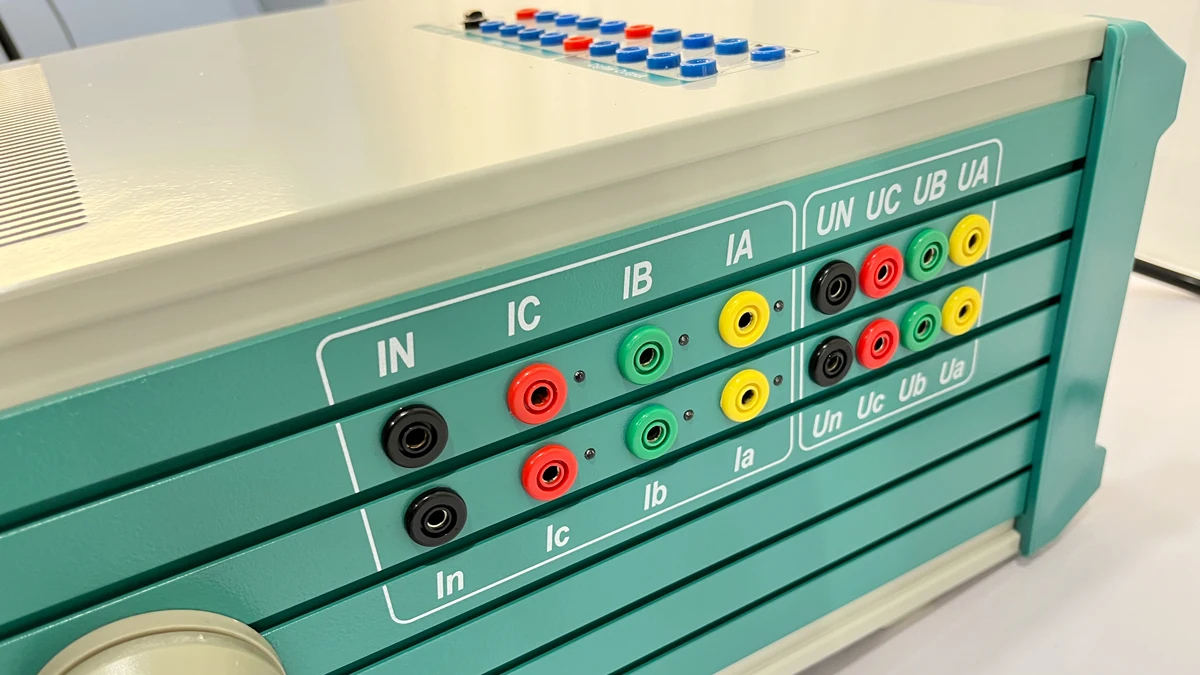

1. 6 voltage and current output channel. It can test not only traditional relays and protection devices, but also modern micro-computer protection devices, especially for transformer differential protection and standby automatic switching device. The test is more convenient.

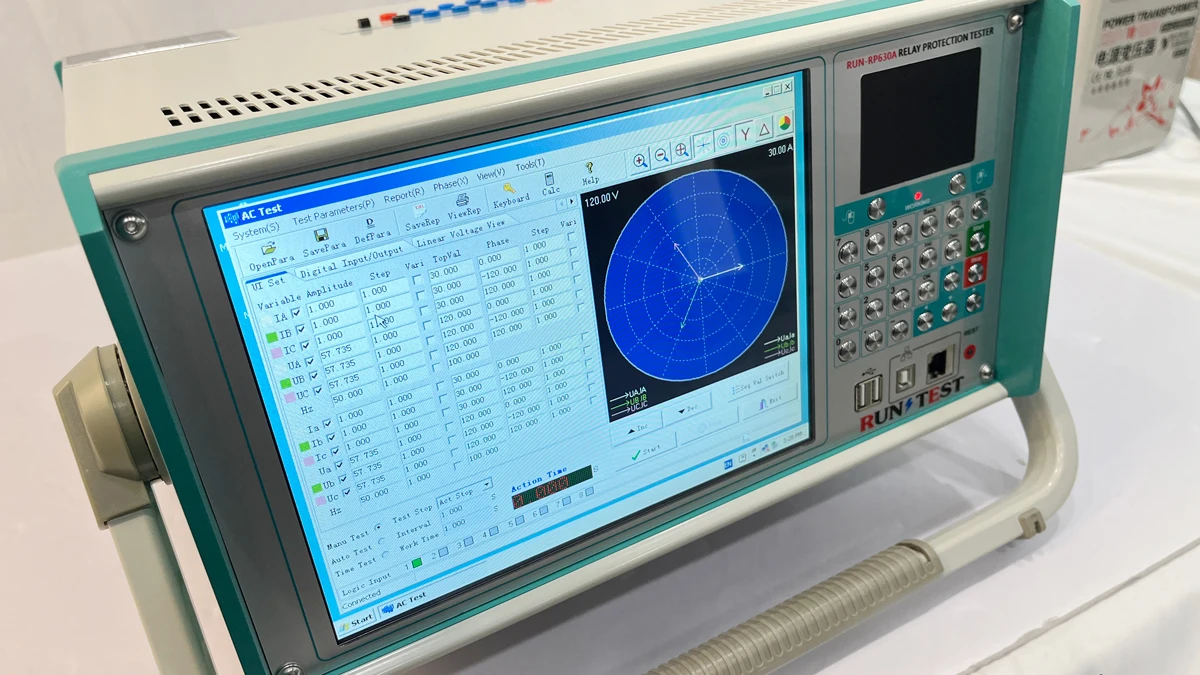

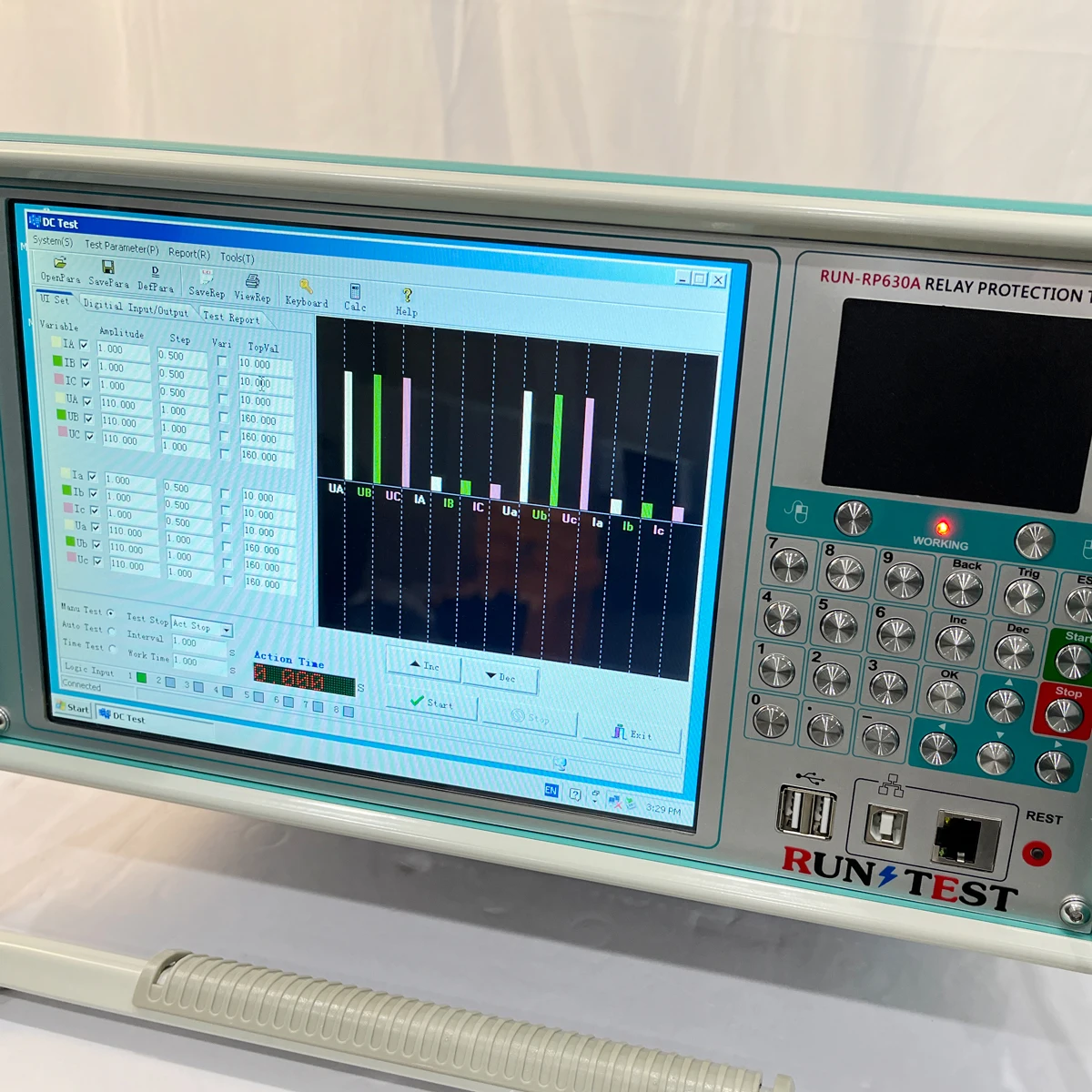

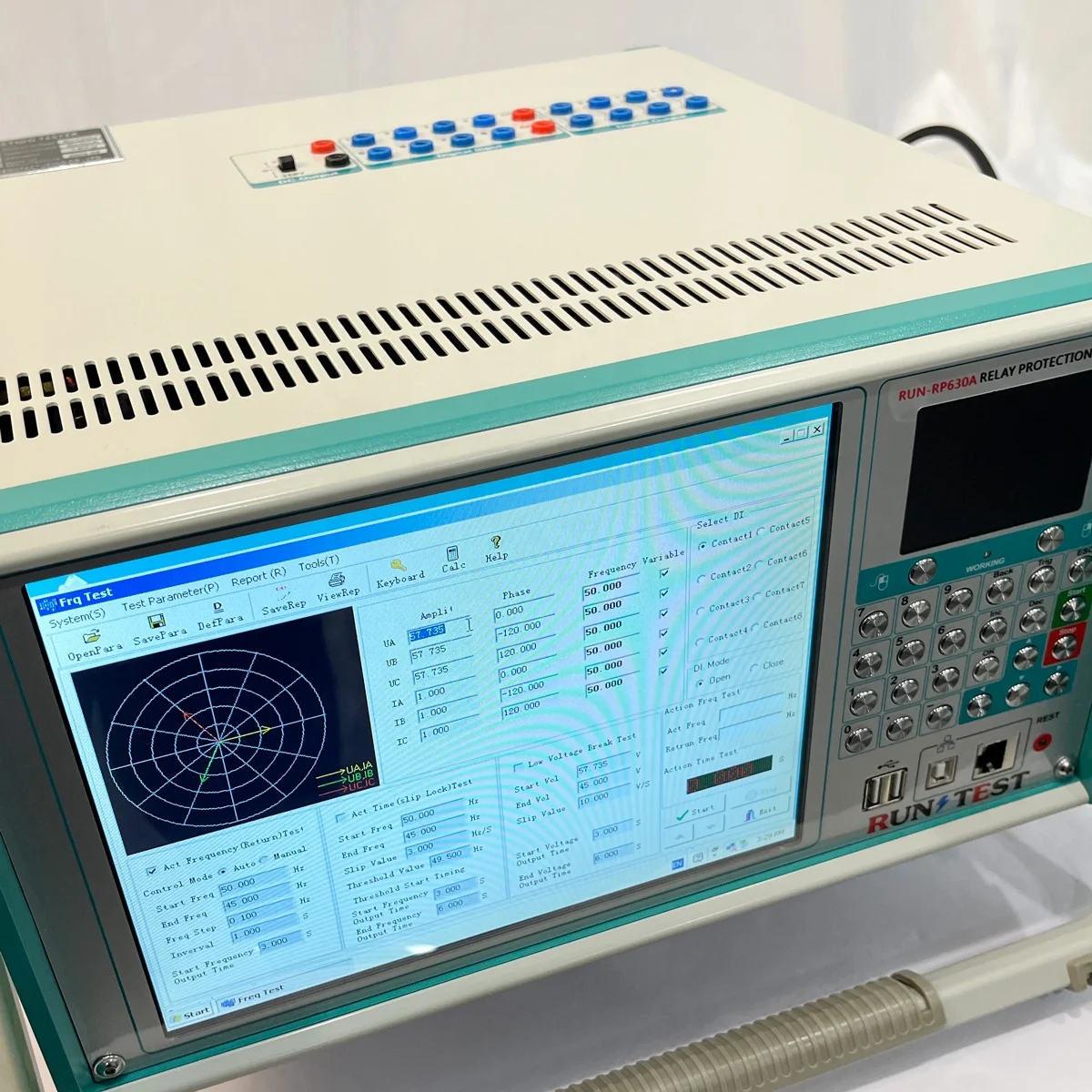

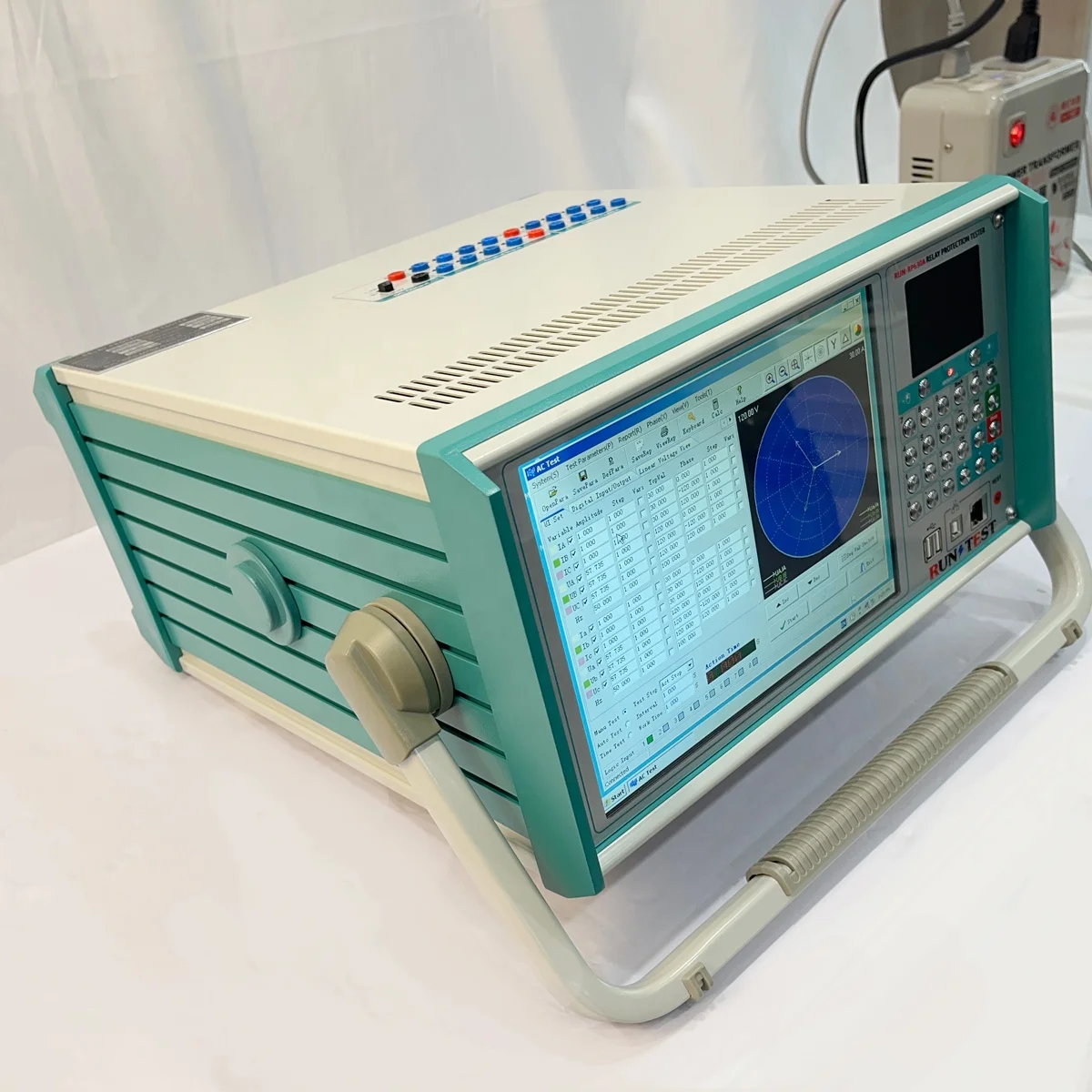

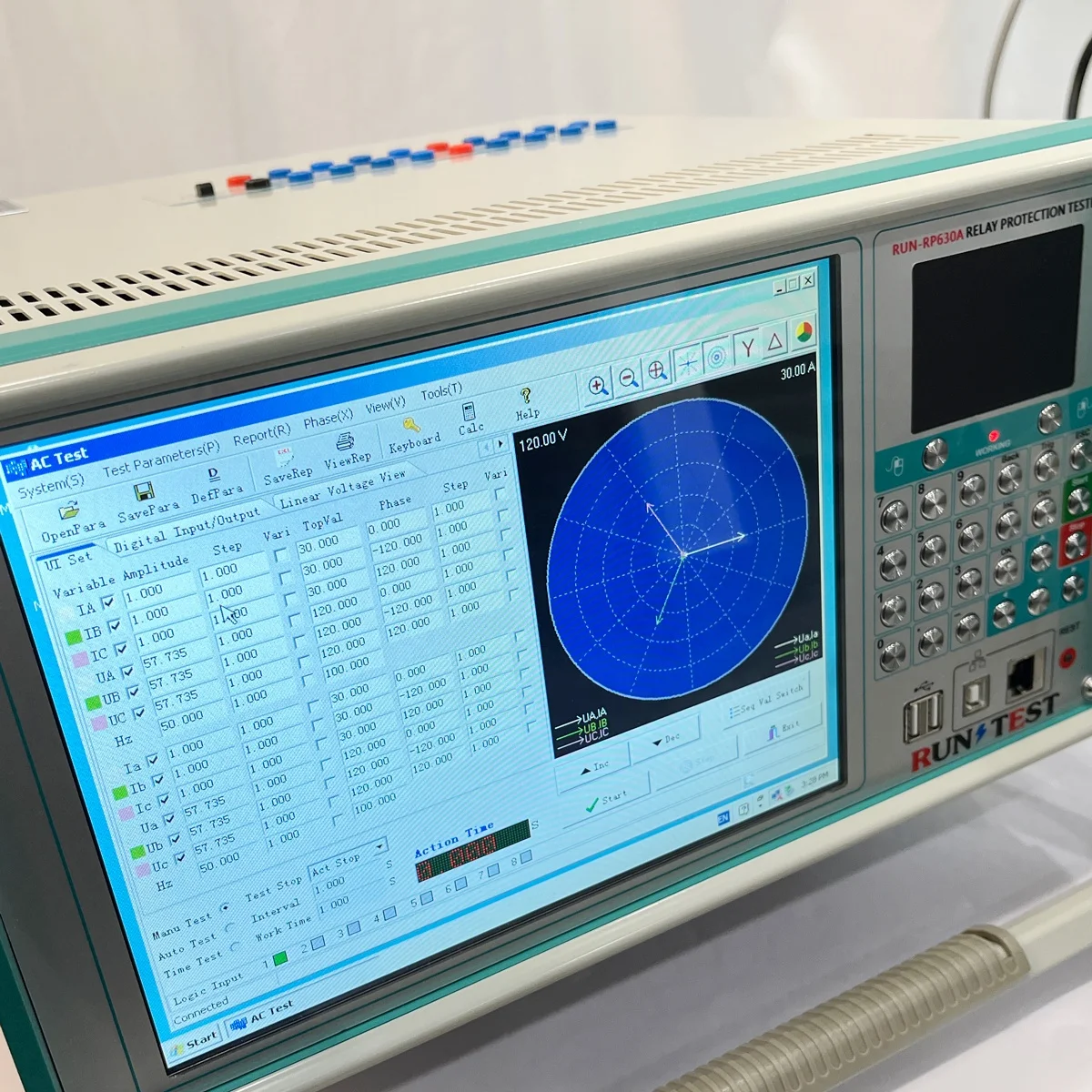

2. Classic Windows operation interface, friendly human machine interaction, easy and fast operation; high performance embedded IPC and 10.4 inch resolution 800 × 600 TFT true color display screen, which can provide rich and intuitive information, including the current working state of the equipment and various help information.
3. Self-recovery function to avoid system crash caused by illegal shutdown or mis-operation.
4. Equipped with ultra-thin industrial keyboard and photoelectric mouse, which can complete all kinds of operations through keyboard or mouse just like PC.
5. The main control board adopts a DSP+FPGA structure, 16-bit DAC output, and can generate a high-density sine wave of 2000 points per cycle for the fundamental wave, which greatly improves the quality of the waveform and the accuracy of the tester.
6. The high fidelity linear power amplifier ensures the accuracy of small current and the stability of large current.
7. USB interface is used to communicate with PC directly without any connecting line, so it is convenient to use.
8. can be connected to laptop (optional) to run. Laptops and industrial computers use the same set of software, so there is no need to relearn the operation method.
9. It has the function of GPS synchronization test. The device can be built-in GPS synchronous card (optional) and connected with PC through RS232 port to realize synchronous test of two testers in different places.
10. Equipped with independent dedicated DC auxiliary voltage source output, the output voltage is 110V (1A), 220V (0.6A).It can be used for relays or protection devices that need DC power supply.
11. It has the function of software self-calibration, which avoids opening the case to calibrate the accuracy by adjusting the potentiometer, thus greatly improving the stability of accuracy.
2. Classic Windows operation interface, friendly human machine interaction, easy and fast operation; high performance embedded IPC and 10.4 inch resolution 800 × 600 TFT true color display screen, which can provide rich and intuitive information, including the current working state of the equipment and various help information.
3. Self-recovery function to avoid system crash caused by illegal shutdown or mis-operation.
4. Equipped with ultra-thin industrial keyboard and photoelectric mouse, which can complete all kinds of operations through keyboard or mouse just like PC.
5. The main control board adopts a DSP+FPGA structure, 16-bit DAC output, and can generate a high-density sine wave of 2000 points per cycle for the fundamental wave, which greatly improves the quality of the waveform and the accuracy of the tester.
6. The high fidelity linear power amplifier ensures the accuracy of small current and the stability of large current.
7. USB interface is used to communicate with PC directly without any connecting line, so it is convenient to use.
8. can be connected to laptop (optional) to run. Laptops and industrial computers use the same set of software, so there is no need to relearn the operation method.
9. It has the function of GPS synchronization test. The device can be built-in GPS synchronous card (optional) and connected with PC through RS232 port to realize synchronous test of two testers in different places.
10. Equipped with independent dedicated DC auxiliary voltage source output, the output voltage is 110V (1A), 220V (0.6A).It can be used for relays or protection devices that need DC power supply.
11. It has the function of software self-calibration, which avoids opening the case to calibrate the accuracy by adjusting the potentiometer, thus greatly improving the stability of accuracy.
Transaction-and-Feedback
Packing & Delivery

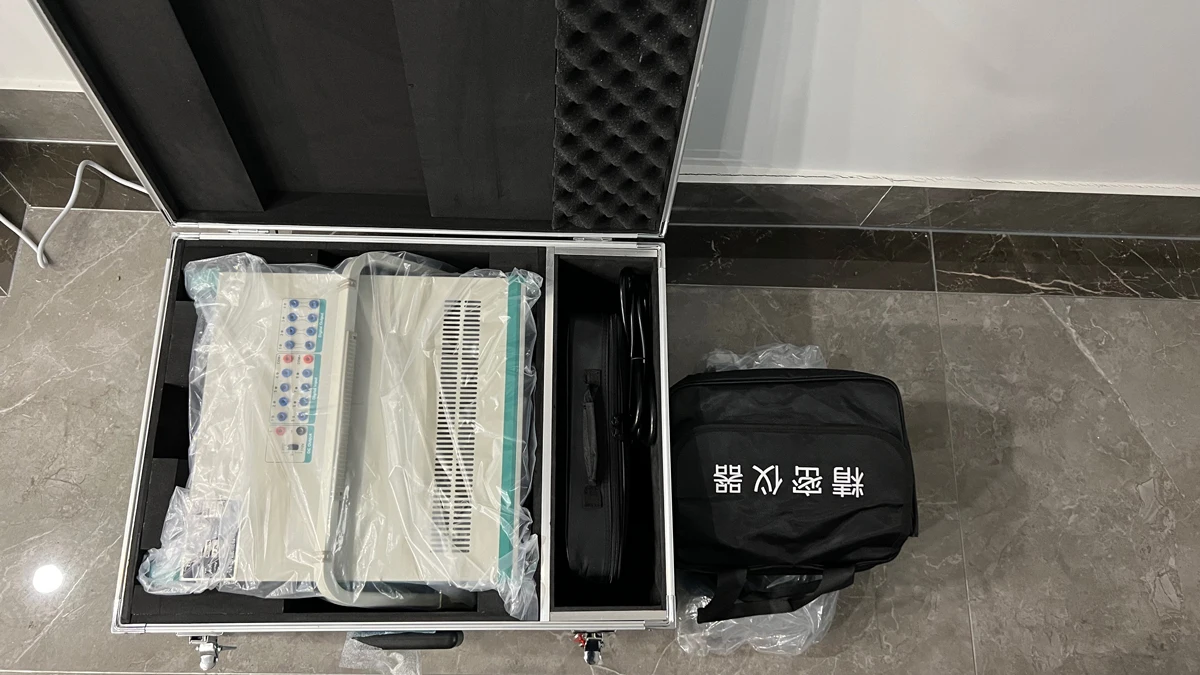

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
