Product Overview
Description
Product information

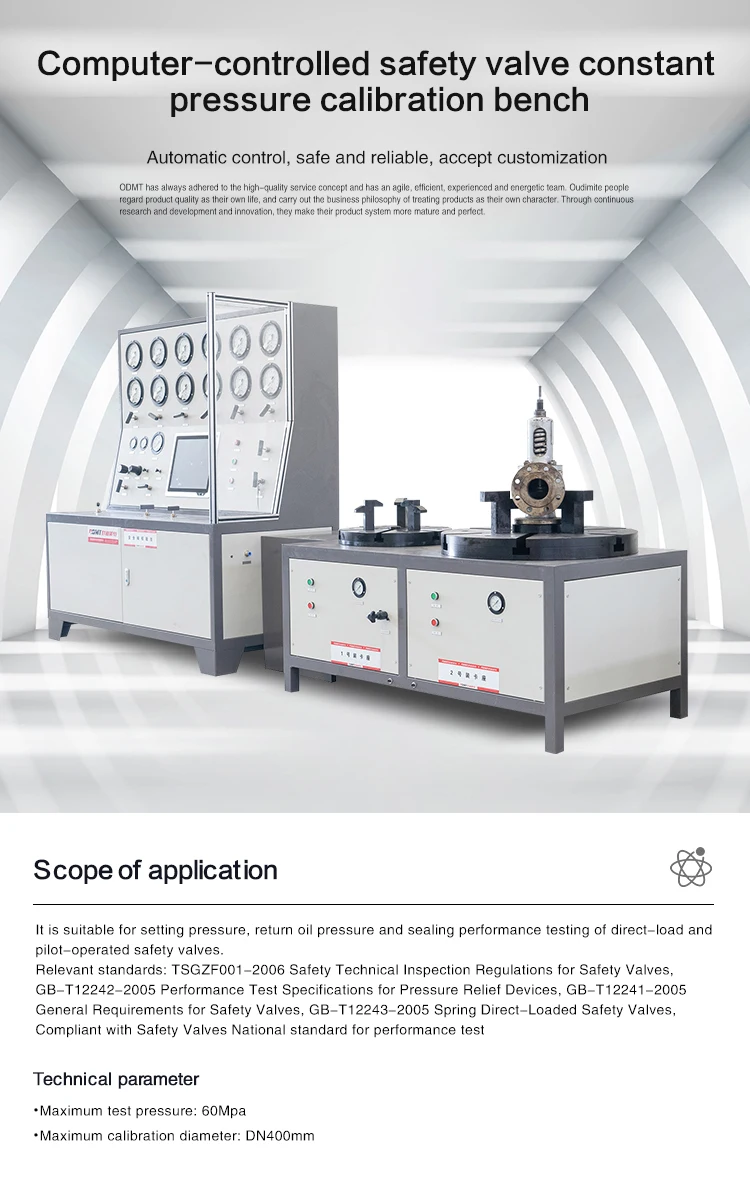

Range of application: Test the set pressure, setback pressure and tightness performances of direct loaded safety valves and pilot
operated safety valves.
Executive standard: TSGZF001-2006, GB-T12242-2005, GB-T12241-2005, GB-T12243-2005
Technical Parameters:
(1) Maximum drift diameter: DN400mm
(2) Maximum test pressure: 60 MPa
(3) Pressure test precision: Pressure gauge of 0.4 grades (More precise pressure gauge can be chosen.)
(4) Test medium: Nitrogen, compressed air or clean water (Medium with dual-use for gas or liquid can be produced.)
operated safety valves.
Executive standard: TSGZF001-2006, GB-T12242-2005, GB-T12241-2005, GB-T12243-2005
Technical Parameters:
(1) Maximum drift diameter: DN400mm
(2) Maximum test pressure: 60 MPa
(3) Pressure test precision: Pressure gauge of 0.4 grades (More precise pressure gauge can be chosen.)
(4) Test medium: Nitrogen, compressed air or clean water (Medium with dual-use for gas or liquid can be produced.)
Specification

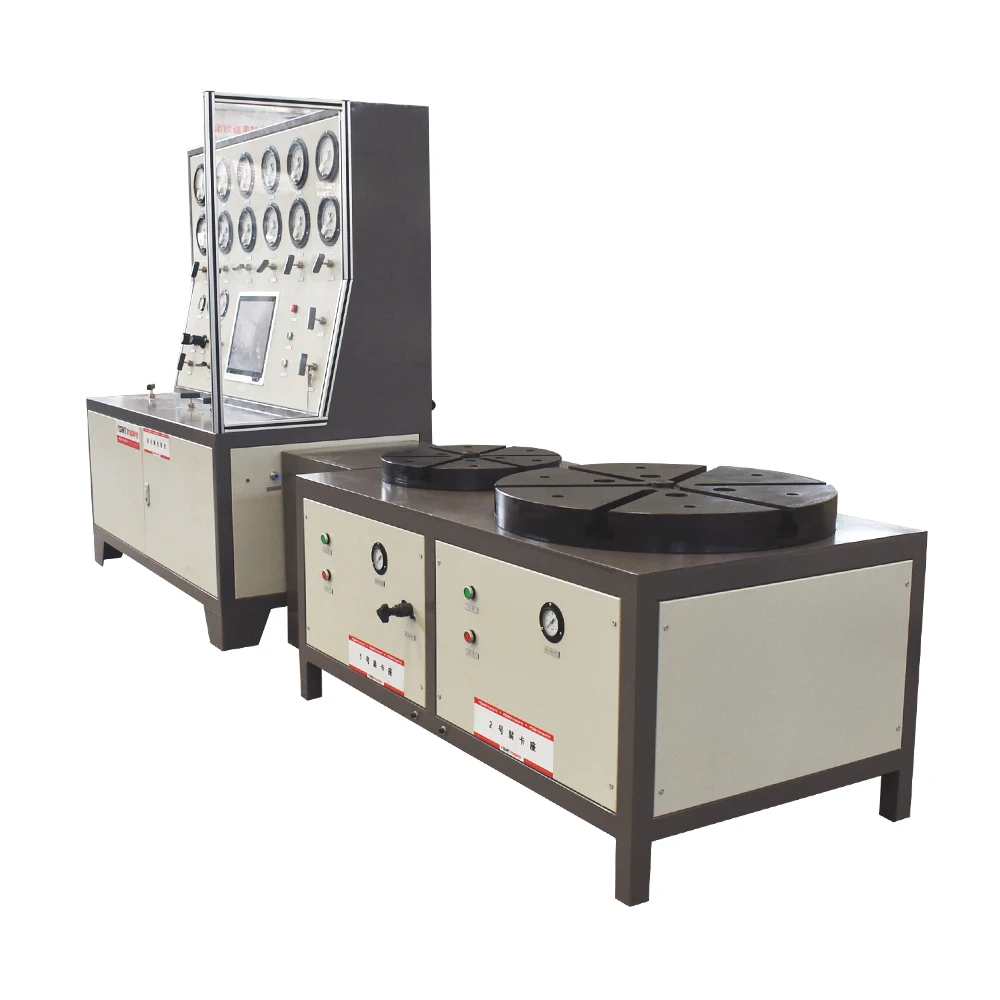

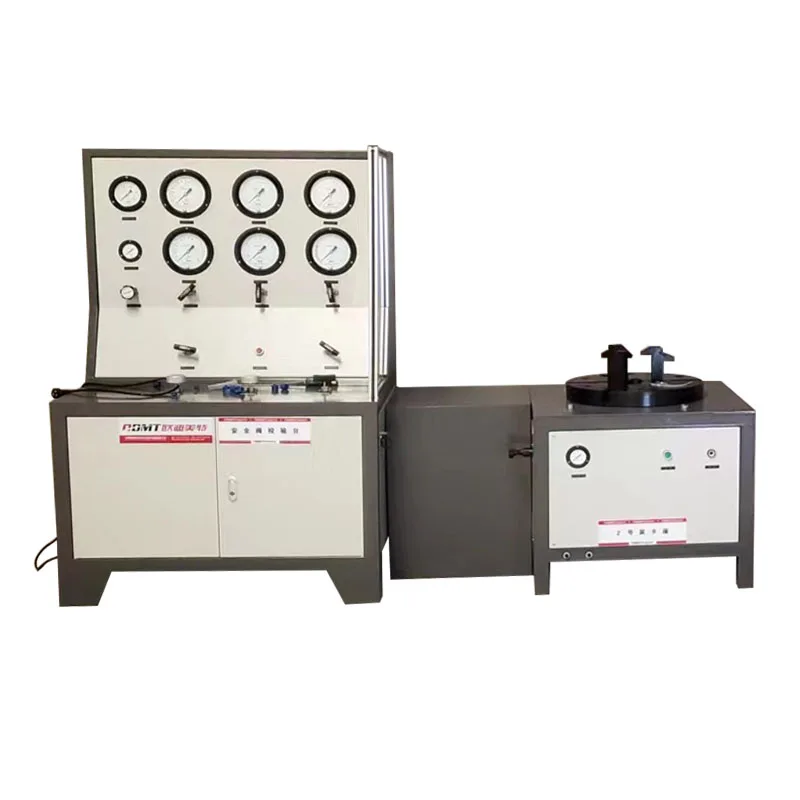

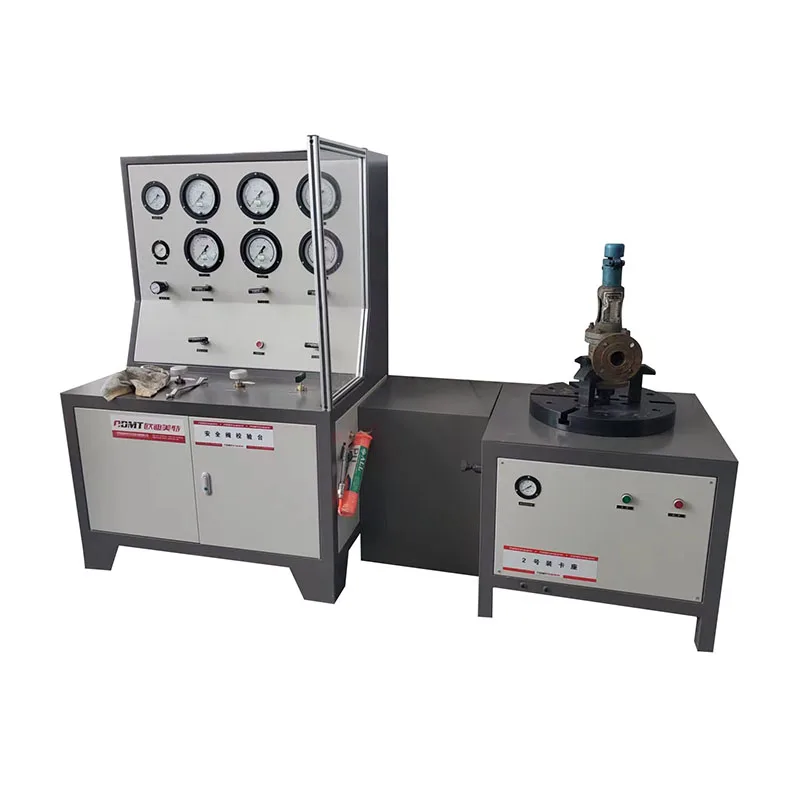

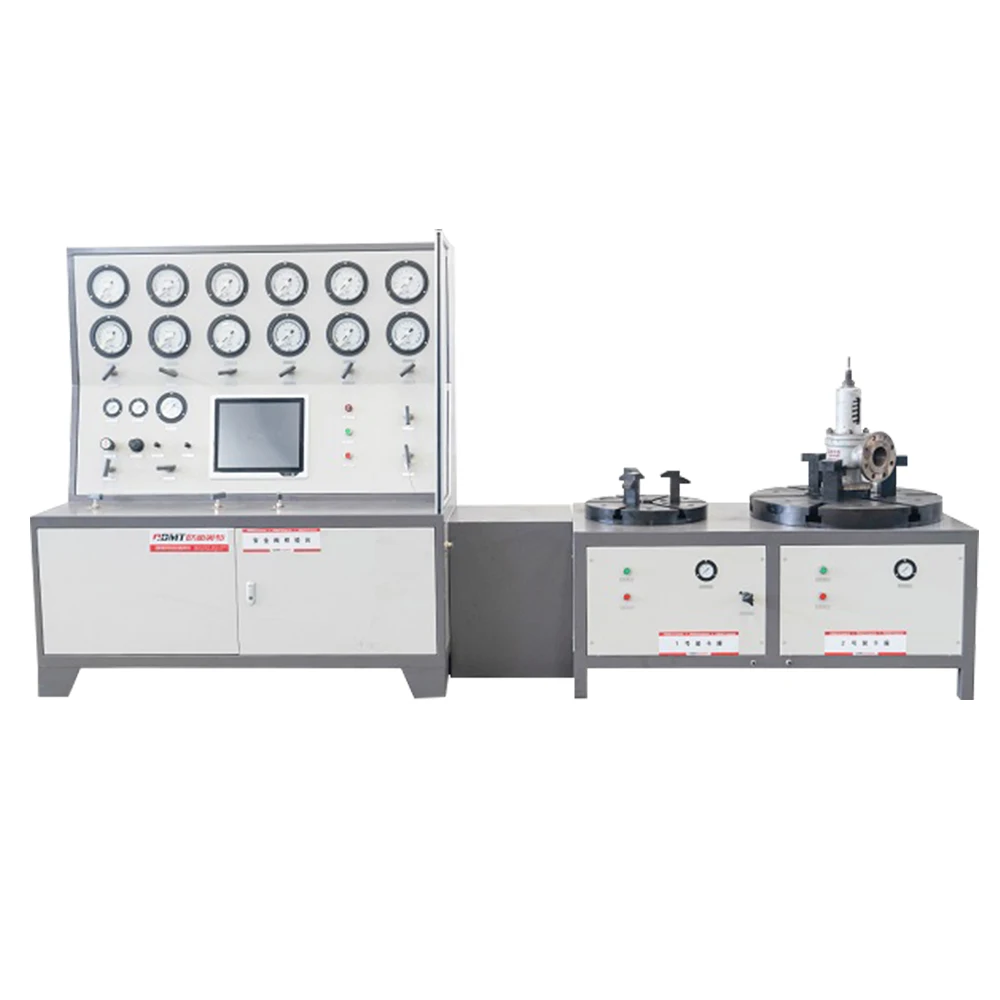

Machine Name | Safety valve test and calibration bench Computer control |
type Model | HD-400/40BA-C |
Test media | Nitrogen |
Maximum Test Pressure | Gas testing 40Mpa |
Maximum drift diameter | DN15-DN400 |
Calibration accuracy | ±0.4% |
Quantity of test | 1 |
Wooden Cases | Export standard fumigation wooden cases |

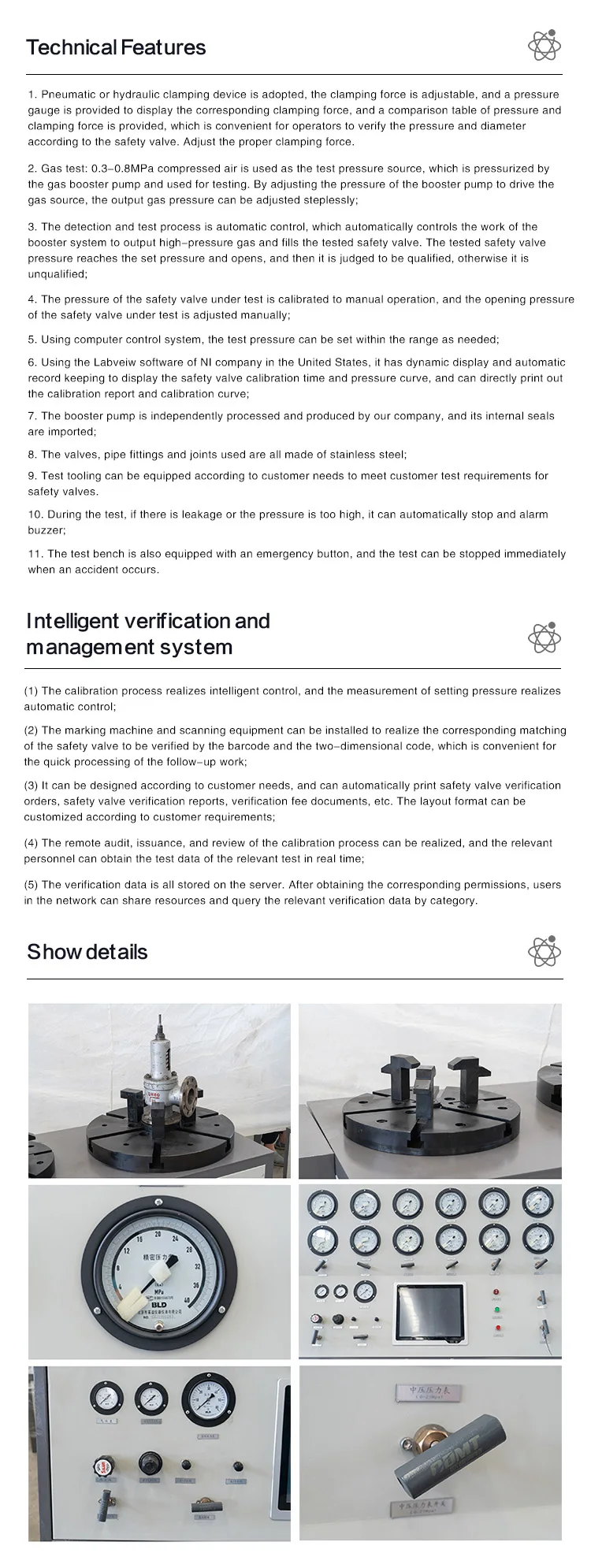

Technical Features

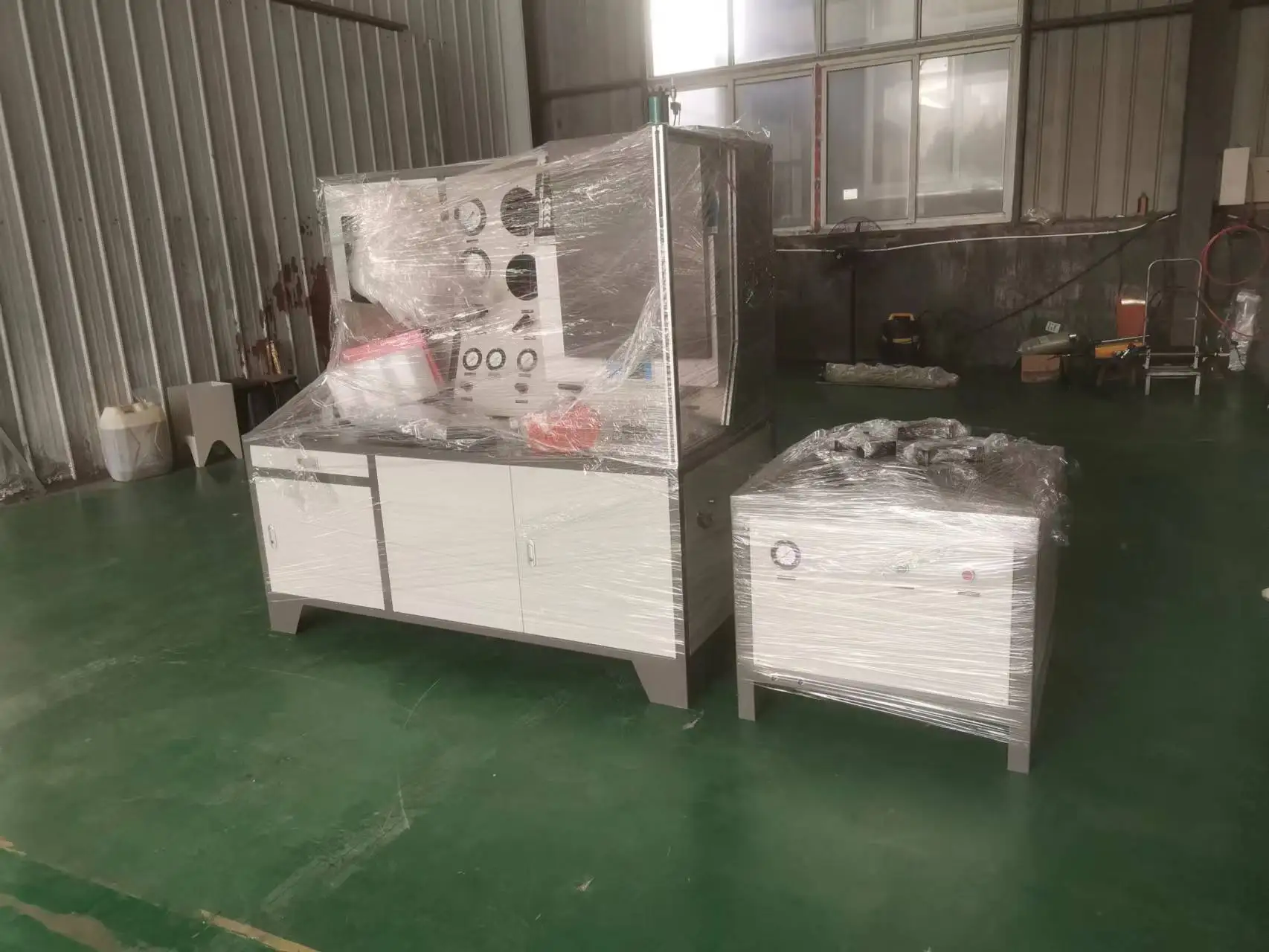

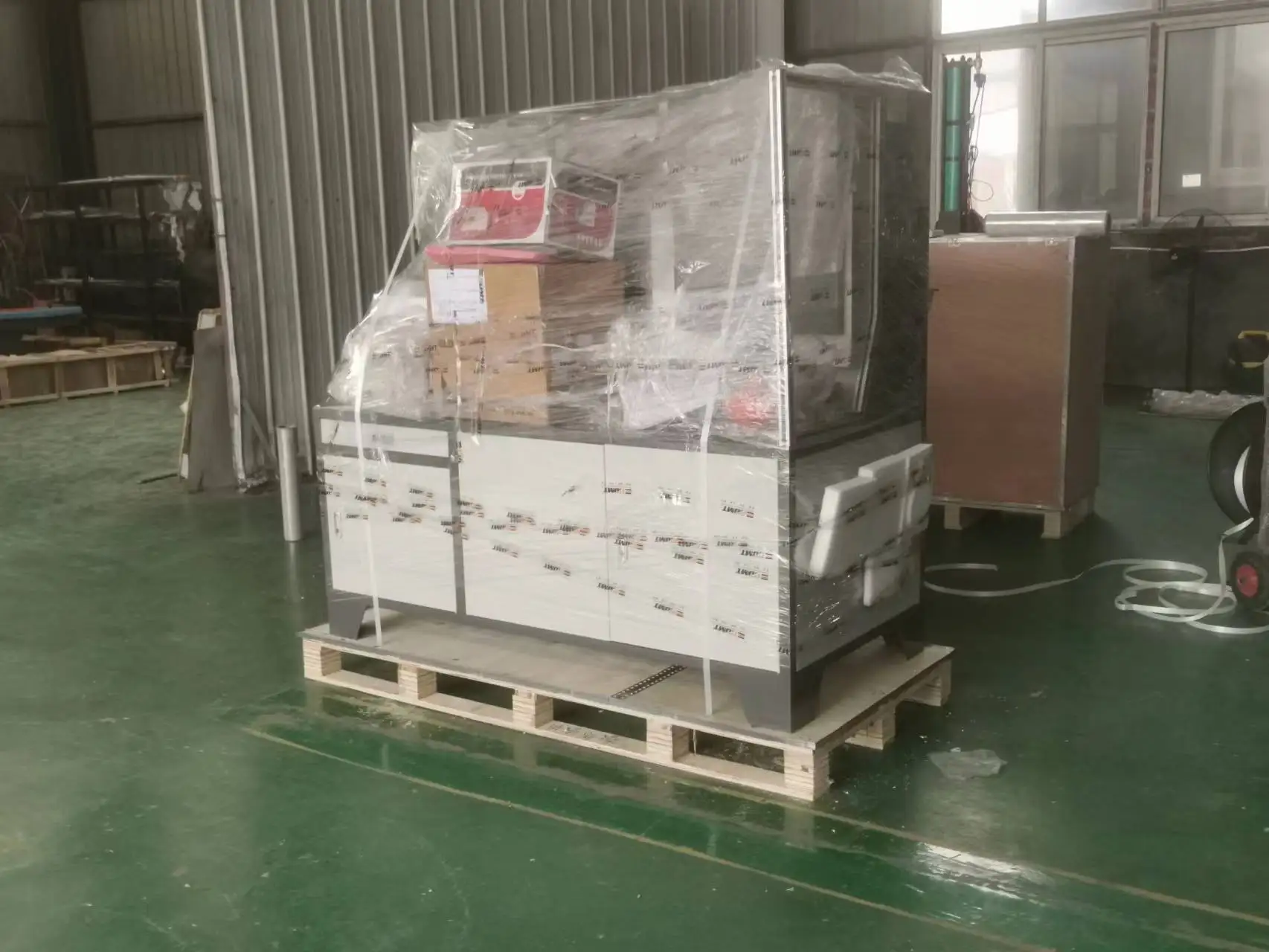

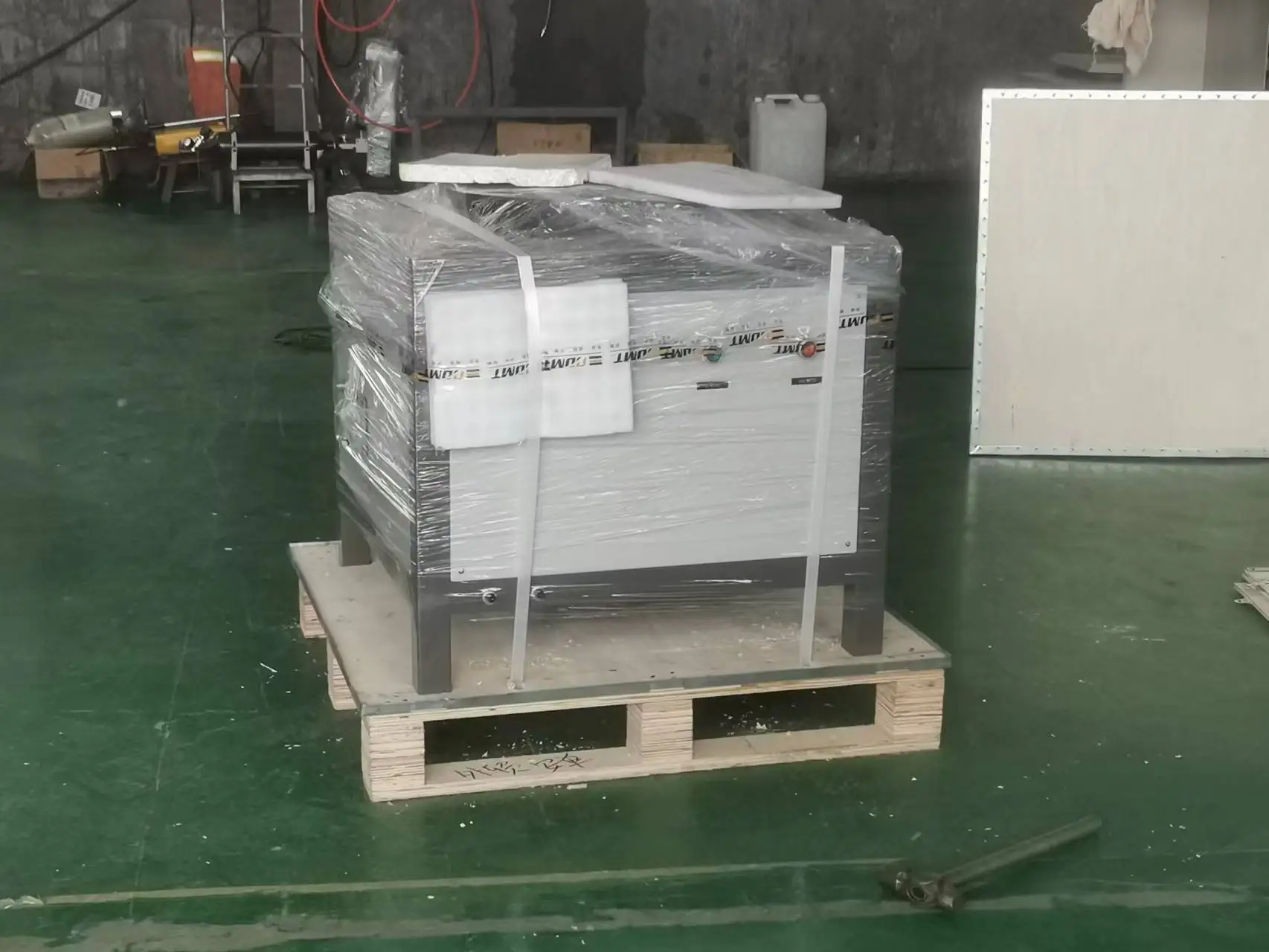

Packaging display
