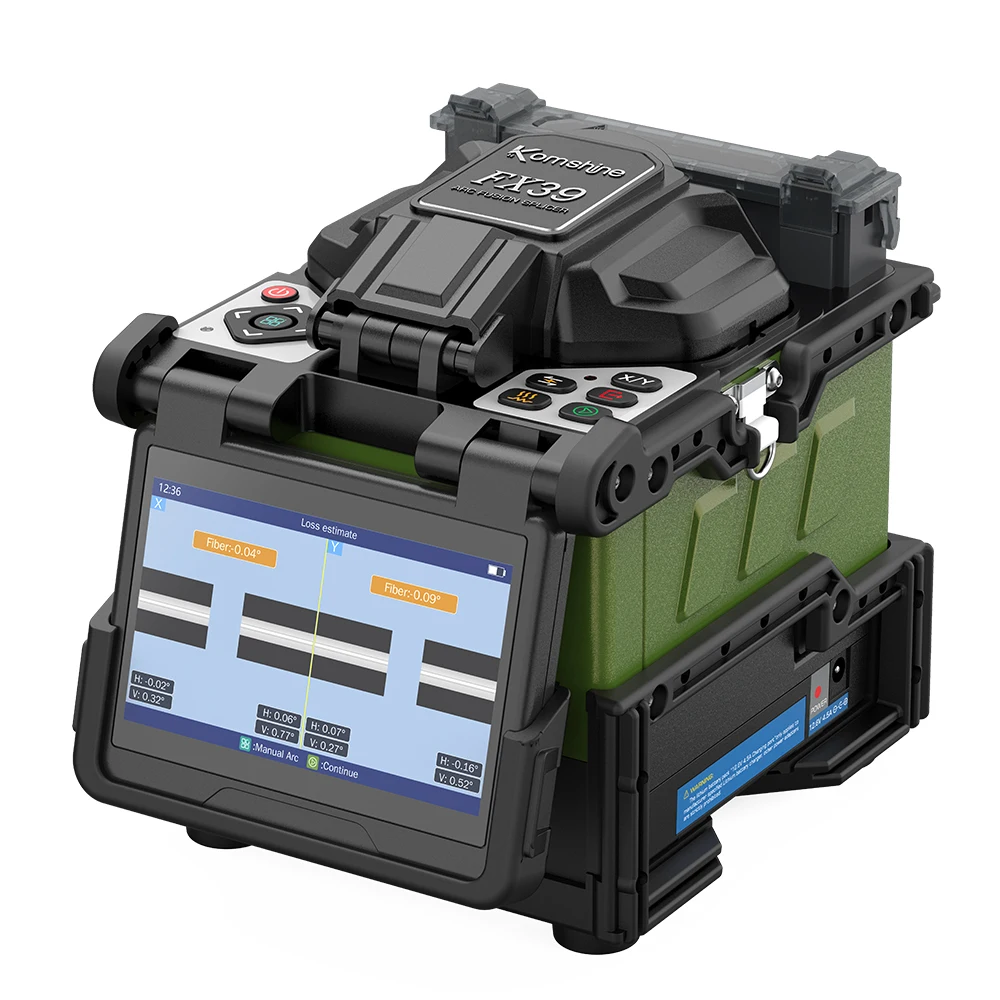

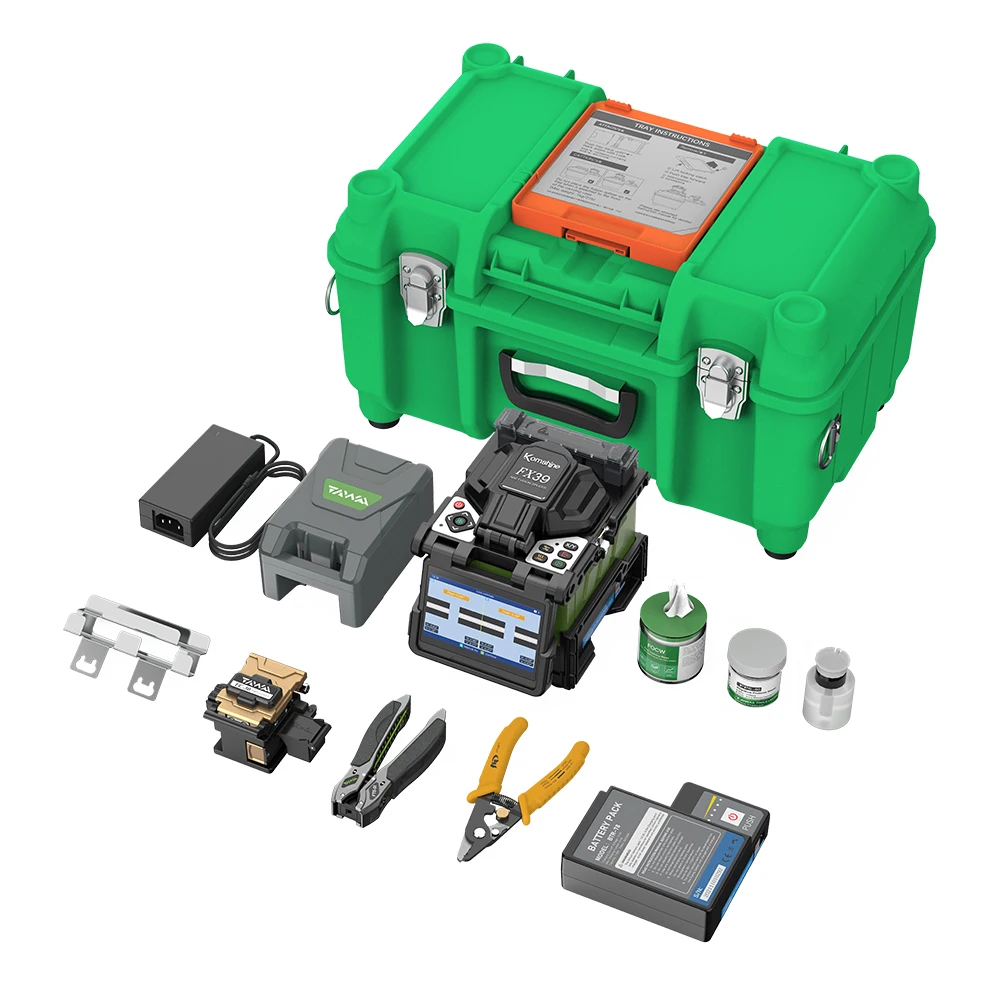

Fusionadora Komshine Fx 37 Fx 39 Gx 39 Fusion Splicer Optic Automatic Splicer Fx37 Fx39 Gx39 Optical Fiber Welding Machine Price
- Category: >>>
- Supplier: Guangzhou Starlink Electronic Technology Co. Ltd.
Share on (1600802419442):
Product Overview
Description
Product Description
Ausrichtung methode | Core core-ausrichtung |
Anwendbar faser typ | SM(ITU-T G.652 & G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
Faser typ | Austauschbare universal leuchte, SOC leuchte (optional) |
Faser durchmesser | Verkleidung durchmesser: 80-150μm, Beschichtung durchmesser: 100 ~ 100 0μm |
Schneiden länge | 8 ~ 16mm |
Spleißen modus | Maximale 128 gruppen |
Spleißen verlust | SM: 0,02 dB / MM: 0,01 dB / DS: 0,04 dB / NZDS: 0,04 dB / G.657: 0,02 dB★① |
Rückkehr verlust | >>60dB |
Spleißen zeit | 6 sekunden(SM G652 SCHNELL modus) |
Verlust schätzung | Ja |
Heizung zeit | 16 sekunden(SM G652 250um 40mm schrumpf schlauch, basierend auf schnell modus) Benutzer einstellbar |
Anwendbar wärme schrumpf länge | 20mm, 30mm, 40mm, 50mm, 60mm |
Heizung modus | Maximale 32 gruppen |
Batterie kapazität | 7800mAh lithium-batterie, jeder zyklus unterstützt 400 mal spleißen und heizung★ |
Elektrode lebensdauer | Über 5000 mal entlädt★③ |
Automatische entladung kalibrierung | Automatisch kalibrieren nach umgebungs temperatur und luftdruck änderungen |
Ergebnis lagerung | 100 00 sets von splice daten, oder 100 sätze von splice bilder |
Tension testing | 1.96 ~ 2,25 N |
Betriebs bedingungen | Höhe: 0 ~ 5000meter, Relative feuchtigkeit: 0 ~ 95%,-20 ~ 50, Maximale wind geschwindigkeit: 15meter/sekunde |
Lagerung zustand | Relative feuchtigkeit 0 ~ 95% , -20 ~ 60 °C temperatur |
Display screen | 4,3 zoll, hohe-definition LCD display |
Zoom in und display | X, Y, XY, X/Y : 320 mal vergrößerung |
Gewicht | 1,72 kg ohne batterie/2,25 kg mit batterie |
Größe | 158H x 132W x 157D mm (einschließlich gummi stoßstange |
Port | USB 2,0 |
Specification
Model Number | Fx39 |
Type | FTTx Solutions |
Place of Origin | GUA |
Use | FTTH |
Warranty Time | 1 year |
Network | None |
Model | Fx39 |
Product name | Fx39 Fusion Splicer |
Manufacturing Technique
Features:

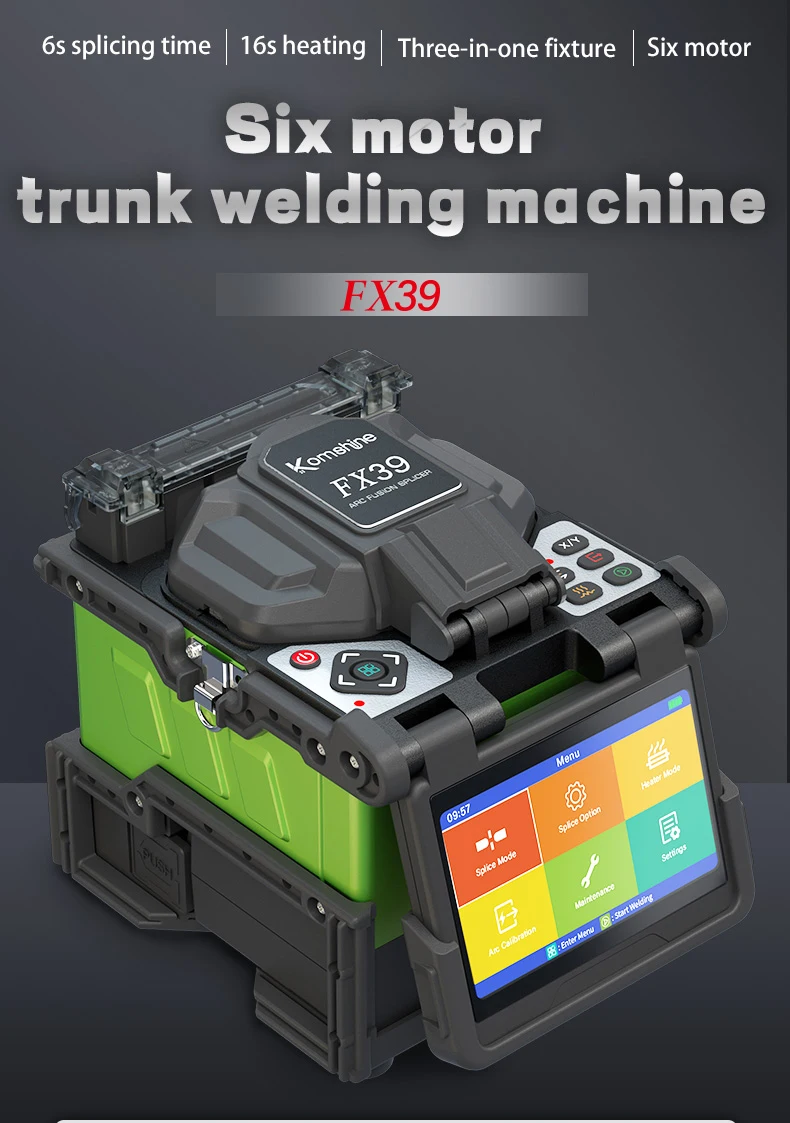

● 6S fast splicing, 16S fast heating
● 5000 times electrode service life
● 7800mAh battery, 400 cycles of splicing and heating
●Average splice loss 0.01dB
● Can store 10000 sets of splicing results and 2000 sets of images
● 4.3 inch LCD color display
● USB interface, convenient for data download and software update

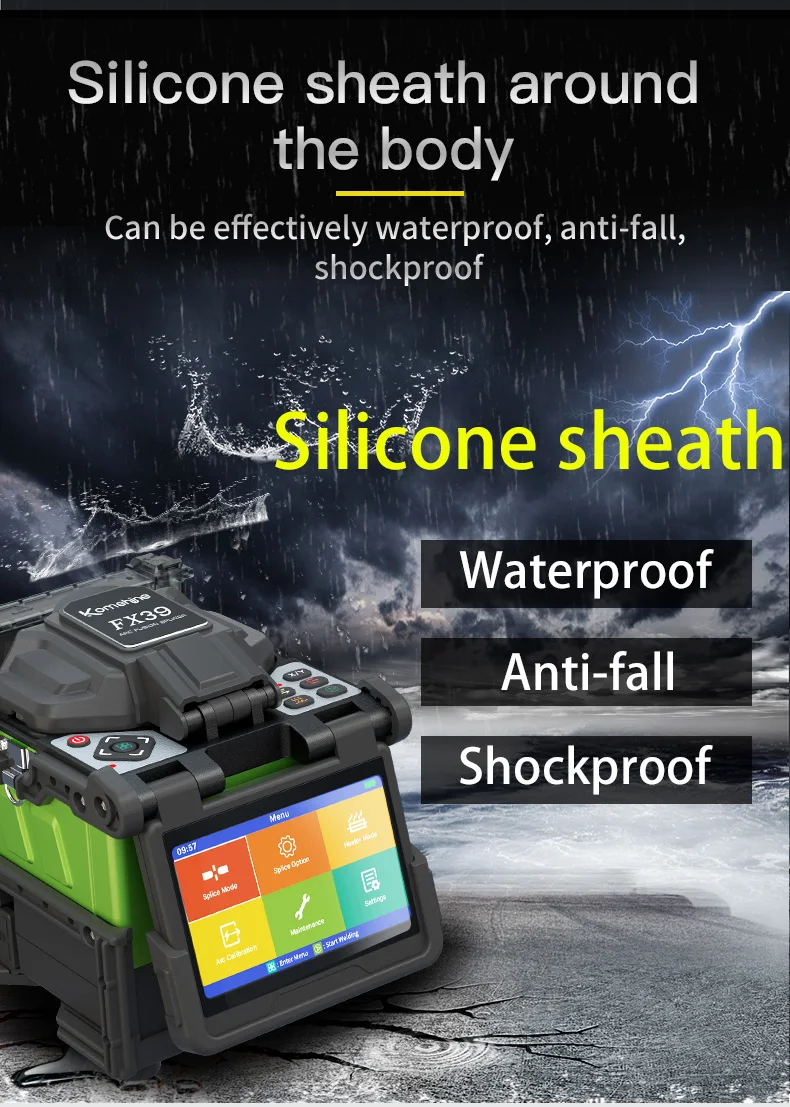

● Silicone protective cover, can effectively waterproof, anti-fall, anti-vibration
● Real-time discharge correction, stable splicing accuracy
● Small size, easy to carry and transport
● 6S fast splicing, 16S fast heating
● 5000 times electrode service life
● 7800mAh battery, 400 cycles of splicing and heating
●Average splice loss 0.01dB
● Can store 10000 sets of splicing results and 2000 sets of images
● 4.3 inch LCD color display
● USB interface, convenient for data download and software update
● Silicone protective cover, can effectively waterproof, anti-fall, anti-vibration
● Real-time discharge correction, stable splicing accuracy
● Small size, easy to carry and transport
