7 Inch 1024*600 IPS TFT LCD P+G USB Capacitive Touchscreen Raspberry Pi 3 4 Touch Display module
DESCRIPTIONS:
(1). 7" standard display, 1024 × 600 Hardware resolution, Up to 1920x1080 software configuration resolution.
(2). Capacitive touch screen, maximum support 5 point touch
(3). Support backlight control alone, the backlight can be turned off to save power
(4). Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
(5). Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display
(6). Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
(7). Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive
(8). CE, RoHS certification
(1). 7" standard display, 1024 × 600 Hardware resolution, Up to 1920x1080 software configuration resolution.
(2). Capacitive touch screen, maximum support 5 point touch
(3). Support backlight control alone, the backlight can be turned off to save power
(4). Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
(5). Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display
(6). Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
(7). Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive
(8). CE, RoHS certification
Product Paramenters
Size | 7 inch |
Driver | RTD2660H |
TFT LCD Resolution | 1024*600 (dots) |
Software adjustable resolution | 800x480-1920×1080(dots) recommended 3: 2 |
Touch | capacitive touch screen |
Power Dissipation | 0.74A*5V |
Package Size | 164.9*124.27 (mm) |
Details Images
7 Inch 1024*600 IPS TFT LCD P+G USB Capacitive Touchscreen Raspberry Pi 3 4 Touch Display module
7" TFT LCD 1024x600 IPS Capacitive touch screen 7 inch Raspberry Pi Touch Screen for Raspberry Pi 3B 4B

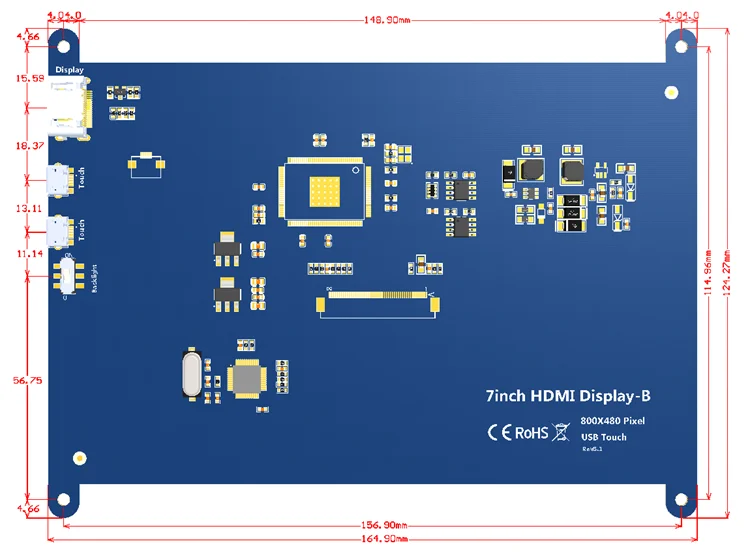

PCBA Size
Hardware Description
————————————————————————————————————————————————————

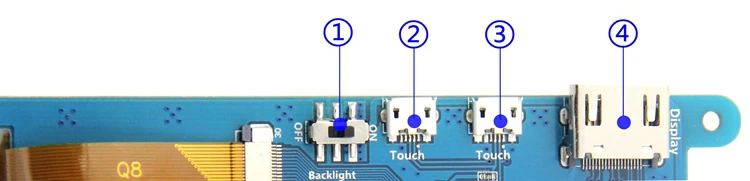

① Backlight Power switch: Controls the backlight turned on and off to save power.
②&③ USB Touch / power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.
④ HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.
②&③ USB Touch / power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.
④ HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.
How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System
————————————————————————————————————————————————————————————
Step 1, Install Raspbian official image
1. Download the latest image from the official download.
2. Install the system according to the official tutorial steps.
Step 2, modify the “config.txt”
After the programming of Step1 is completed, open the config.txt file of TF card root directory and
add the following code at the end of the file, save and eject Micro SD Card safely:
1. Download the latest image from the official download.
2. Install the system according to the official tutorial steps.
Step 2, modify the “config.txt”
After the programming of Step1 is completed, open the config.txt file of TF card root directory and
add the following code at the end of the file, save and eject Micro SD Card safely:
Step 3, Drive the 5inch HDMI Display-B with the Raspberry Pi

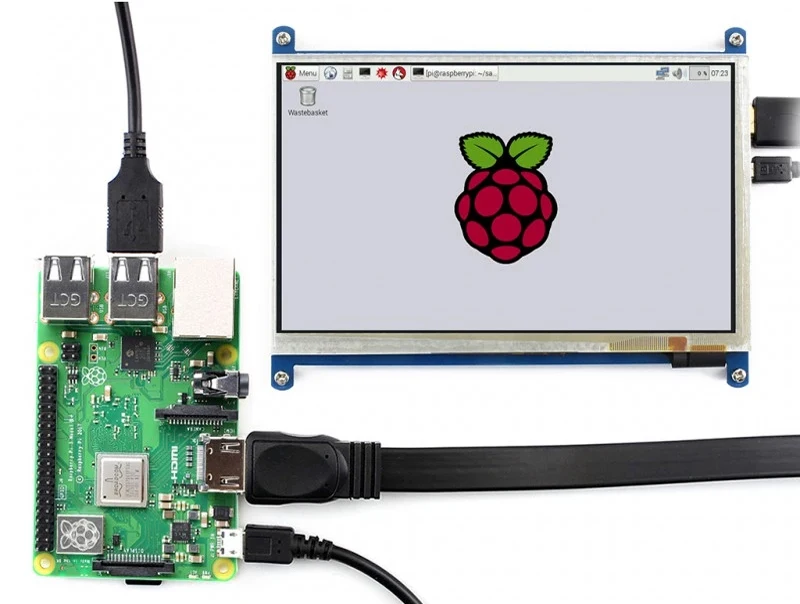

Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable; connect USB cable to one of the four USB ports
of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD; then supply power to Raspberry Pi; after
that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).
Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable; connect USB cable to one of the four USB ports
of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD; then supply power to Raspberry Pi; after
that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).
How to use as PC monitor
—————————————————————————————————————————————————————————————————————
* Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
* Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
* If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
* Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
* Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
* If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
For more technical resources please contact us please ！
1080P Industrial capacitive touch screen 1024x600 7 inch Raspberry pi HDMI Display Module
Application case
Product packaging
Packing Details for volume production order:
(1) Packed the Monitor into air bubble bag/film
(2)Put the above together into color box
(3) Packed the color box into a carton box to protect the Monitor during transportation.
(4) Seal the carton by tape
Packing List

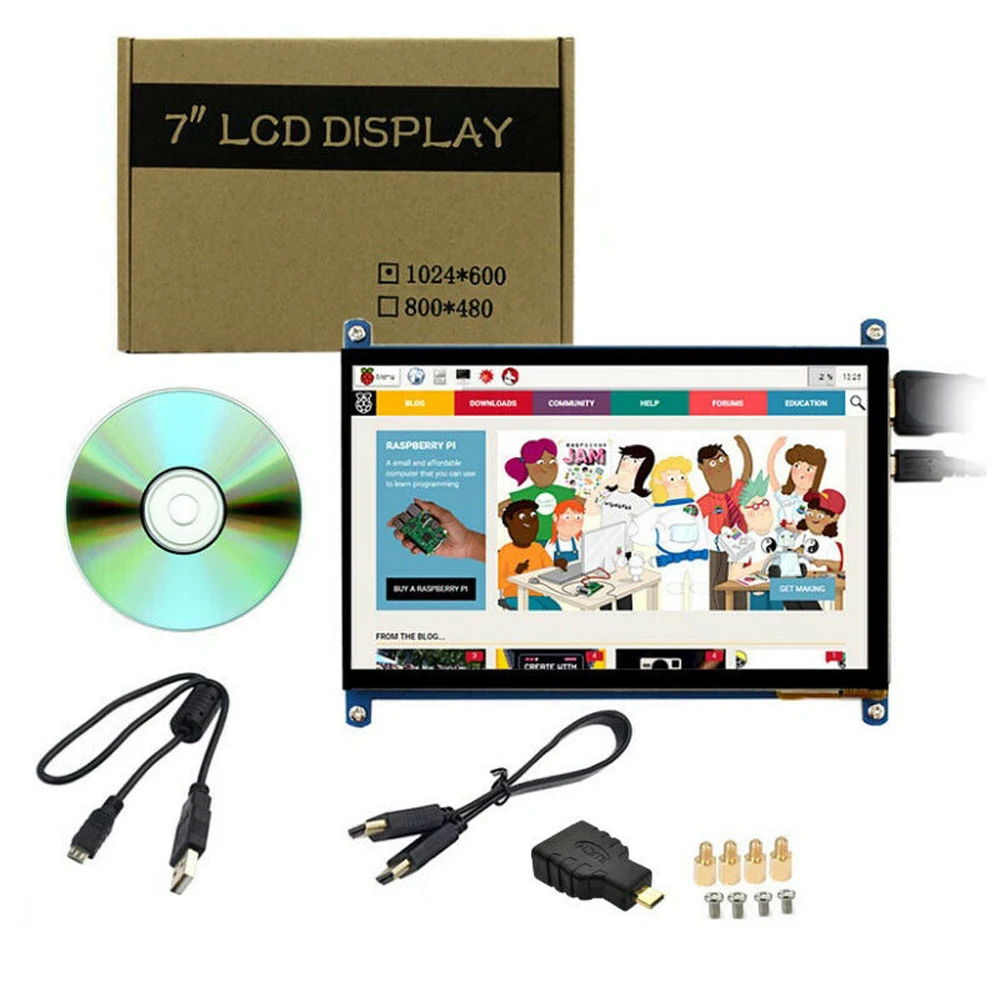

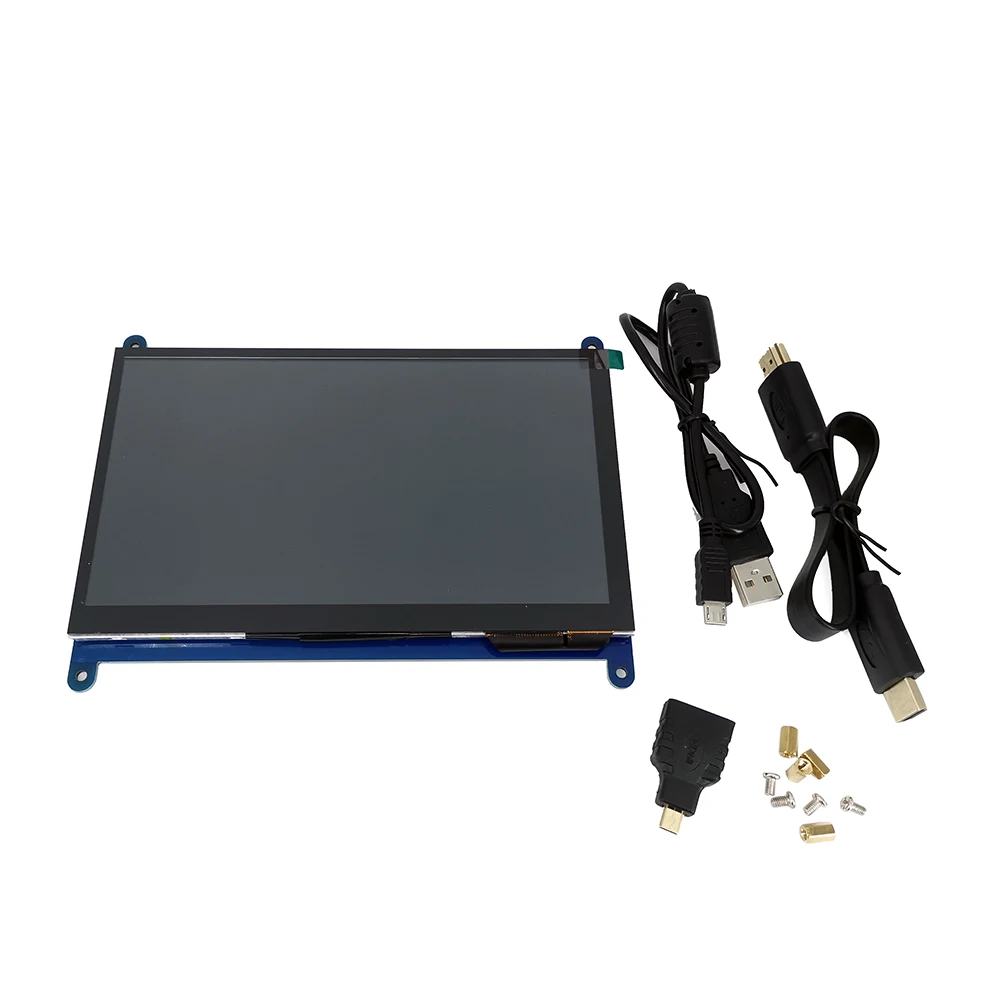

1x 7 inch Display
