titanium electrode for electrolysis

Share on:

Price in USD:Details


Product Overview

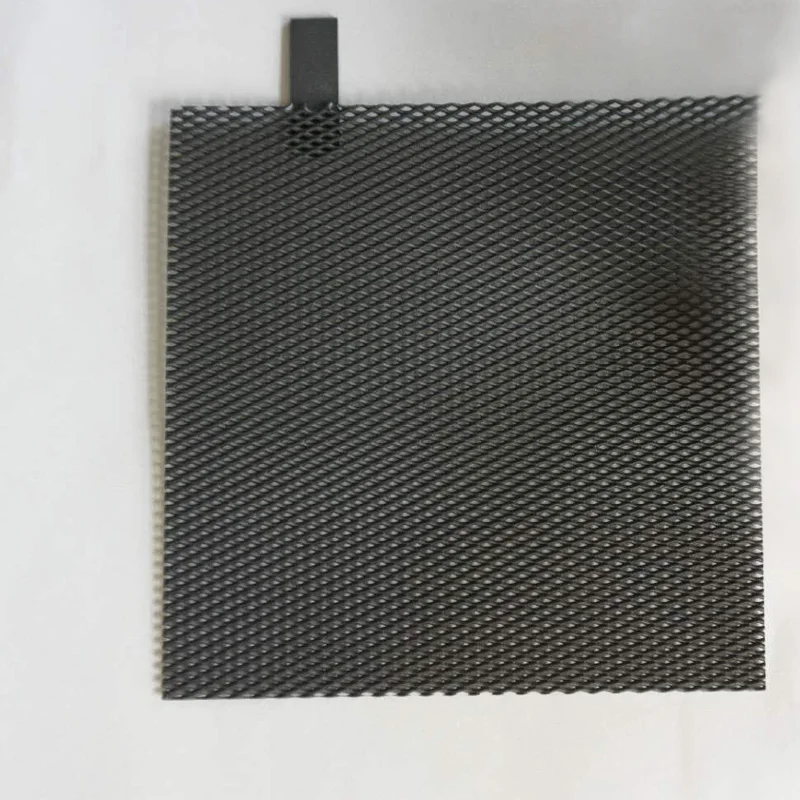

titanium anode 1.jpg

Related product

 titanium anode 3.jpg

Product Description


Substrate: pure titanium Grade1 or Grade2

Surface: Will be coated with Ruthenium and Iridium,platinum,PbO2

Specification: according to customer's drawing

Our different types of Anodes with MMO (Mixed Metal Oxides) coatings are:

Ruthenium-Iridium titanium anode

Ruthenium-Iridium-stannum titanium anode

Iridium-Tantalum titanium anode

Ruthenium-titanium anode

Platinum titanium anode

Lead dioxide titanium anode .

Manufacturing processes:

1)Pretreatment:choosing right material, cutting ,welding accordingly , annealing ,cleansing ,acid etching

2) Preparing noble metal: be made up in proportion of mol according to customer's application

3) Brush painting :coated by 12 to15 times

4) thermal decomposition of oxidation

1) Stable working ability under high current density & Voltage

2) High electrolysis efficiency

3) Stable electrolysis ability

4) High anti-corrosion property

5) The matrix can be recycled and recoated with MMO for reuse

6) Long working life etc.


Water ionizer, alkaline & Acidic water production, deionized water in cosmetic,

disinfection, clean etc.

For sodium hypochlorite disinfecting machine, titanium electrode for spot ozonolysis,

titanium electrode for sewage treatment and cathodic protection.

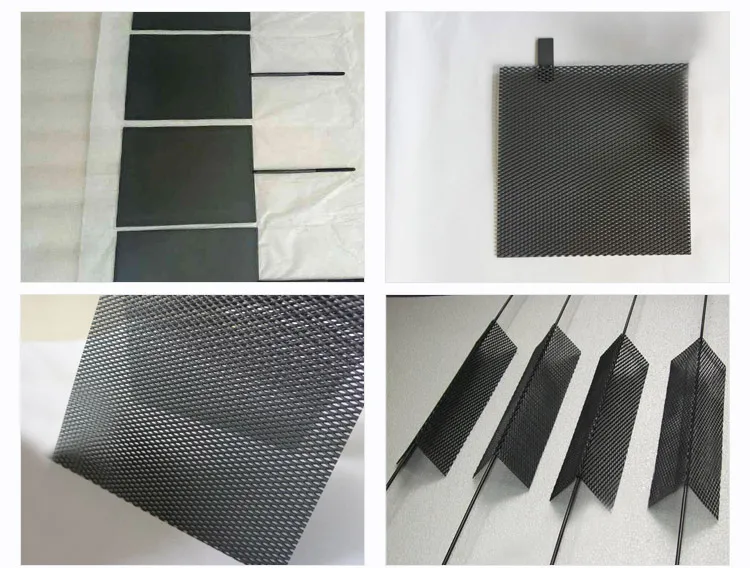

Product Images

 titanium anode 6.jpg

titanium anode 7.jpg



Titanium anode (MOx anode) is made of ruthenium, iridium, tantalum, rhodium,

palladium and other precious metal salts coated on a titanium substrate and then

sintered at high temperature.

The size of the titanium anode is stable, and the distance between the electrodes

does not change during the electrolysis process, which can ensure that the

electrolysis operation is performed under the condition of stable voltage.

2. The working voltage of the titanium anode is low, so the power consumption is

small, which can save the power consumption, and the DC power consumption can

be reduced by 10%-20%.

3. Titanium anode has a long working life, and the diaphragm method produces


titanium anode 9.jpg
