Composite Brazing Rods with Tungsten Carbide Grit in a Nickel/Bronze Alloy Matrix
- Category: >>>
- Supplier: Zhuzhou Chutian Cemented Carbide Co. Ltd.
Share on (1600802745274):
Product Overview
Description
Composite Brazing Rods with Tungsten Carbide Grit in a Nickel/Bronze Alloy Matrix
Product Description
1.Tungsten carbide composite rod is made of cemented carbide/ crushed carbide and Ni/Ag(Cu)alloy. The cemented carbide/crushed carbide with sharp edge has excellent wear resistance and cutting ability.
2.The hardness is HRA 89-91, tire body metal is Ni and copper alloy, strength can up to 690MPa, hardness HB≥160.
Usage
Stabilizers, Reamers, Drill Pipe Jjoints, Construction Drilling, Hydraulic-cutter, Pipe Cutter Blades, Core Bit, Scraper, Twist Drill, Milling and Grinding Shoes etc.
| Grade | Chemical Composition (Wt%) | |||
| Ni+Cu+Zn+Sn | Cu+Zn+Sn | WC | Co | |
| Cu-30 | -- | 30±2 | 63-65 | 5.2-6.0 |
| Cu-40 | -- | 40±2 | 53-56 | 4.6-4.8 |
| Cu-45 | -- | 45±2 | 48-52 | 4.2-4.5 |
| Cu-50 | -- | 50±2 | 44-48 | 3.8-4.2 |
| Ni-Cu-30 | 30±2 | -- | 63-65 | 5.2-6.0 |
| Ni-Cu-40 | 40±2 | -- | 53-56 | 4.6-4.8 |
| Ni-Cu-45 | 45±2 | -- | 48-52 | 4.2-4.5 |
| Ni-Cu-50 | 50±2 | -- | 44-48 | 3.8-4.2 |
Tungsten Carbide welding Composite Rod for Surfacing oil/diggings
| Metric (mm) | Inch |

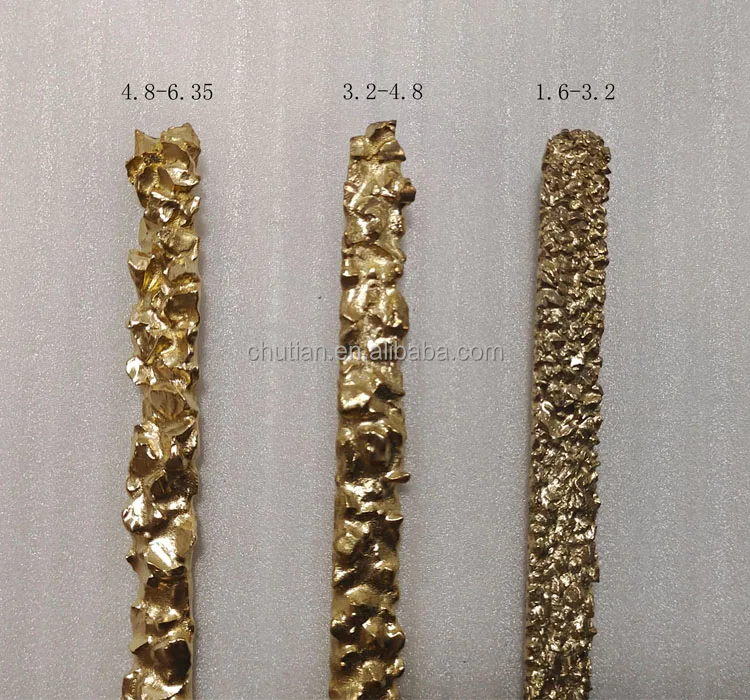

Grain Size | 1.6-3.2 | 1/16”-1/8” |
3.2-4.8 | 1/8”-3/16” | |
4.8-6.4 | 3/16”-1/4” | |
6.4-8.0 | 1/4”-5/16” | |
8.0-9.5 | 5/16”-3/8” | |
| Special Shape Sintered Tungsten Carbide Tips | |
Size can be customed by customer's request.

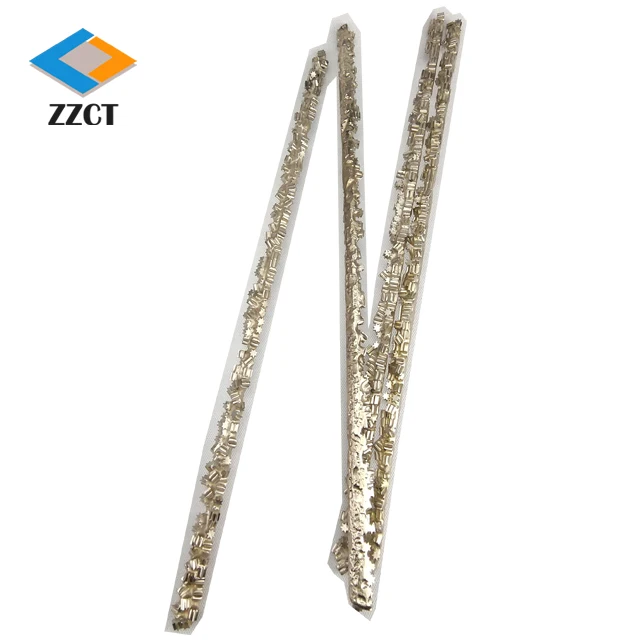

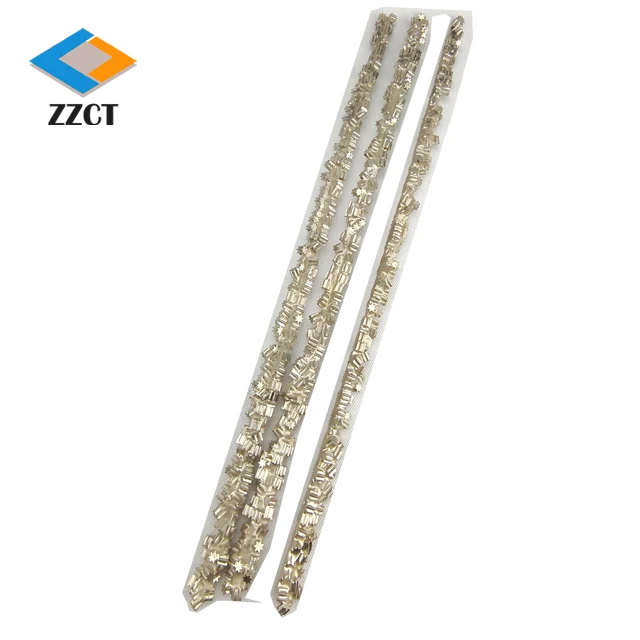

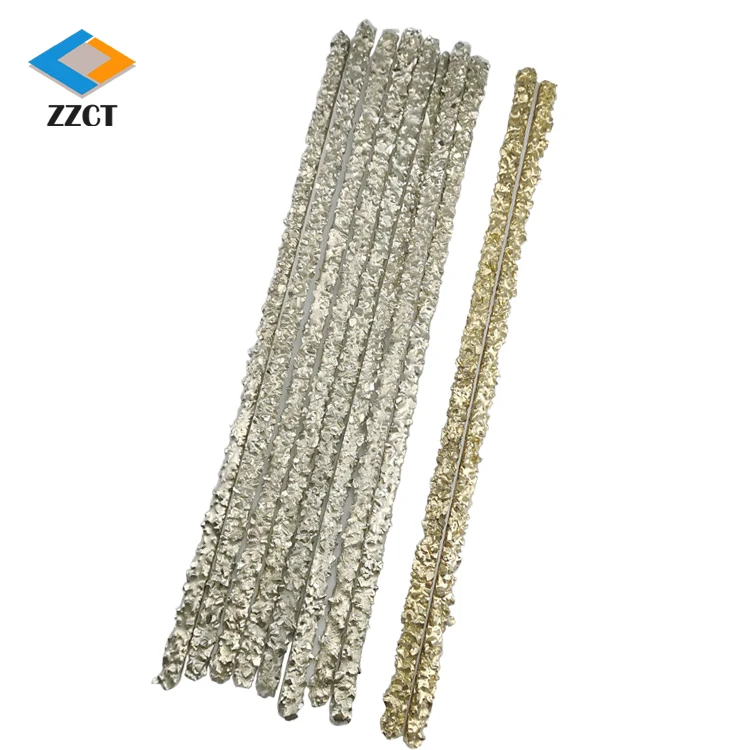

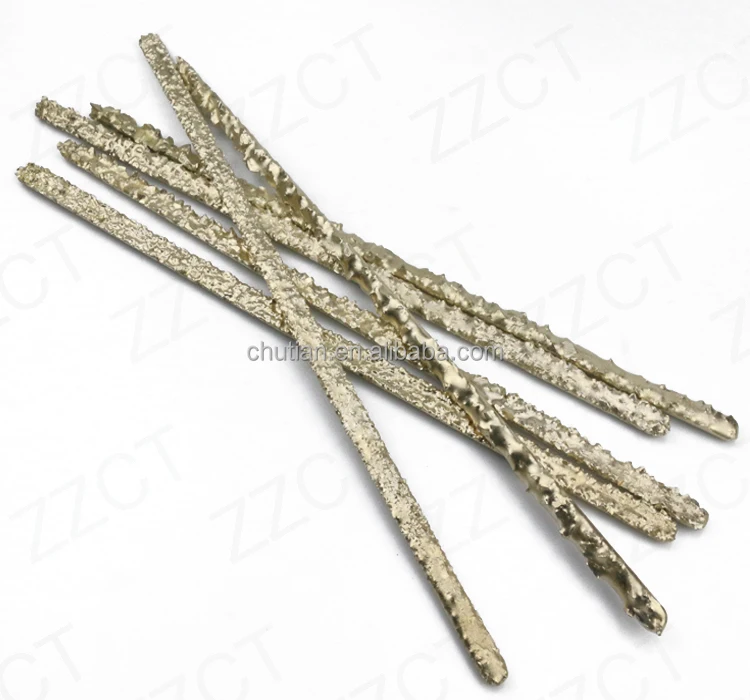

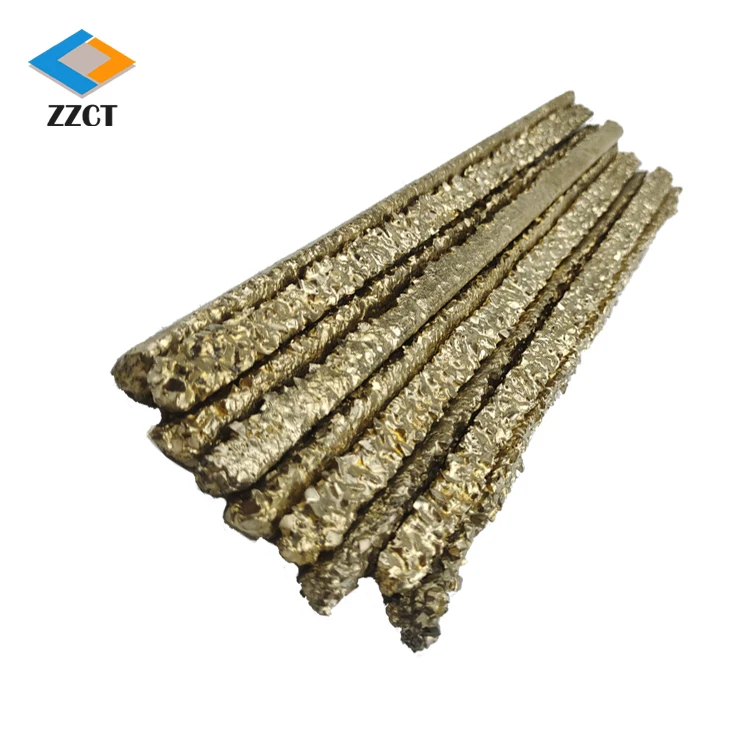

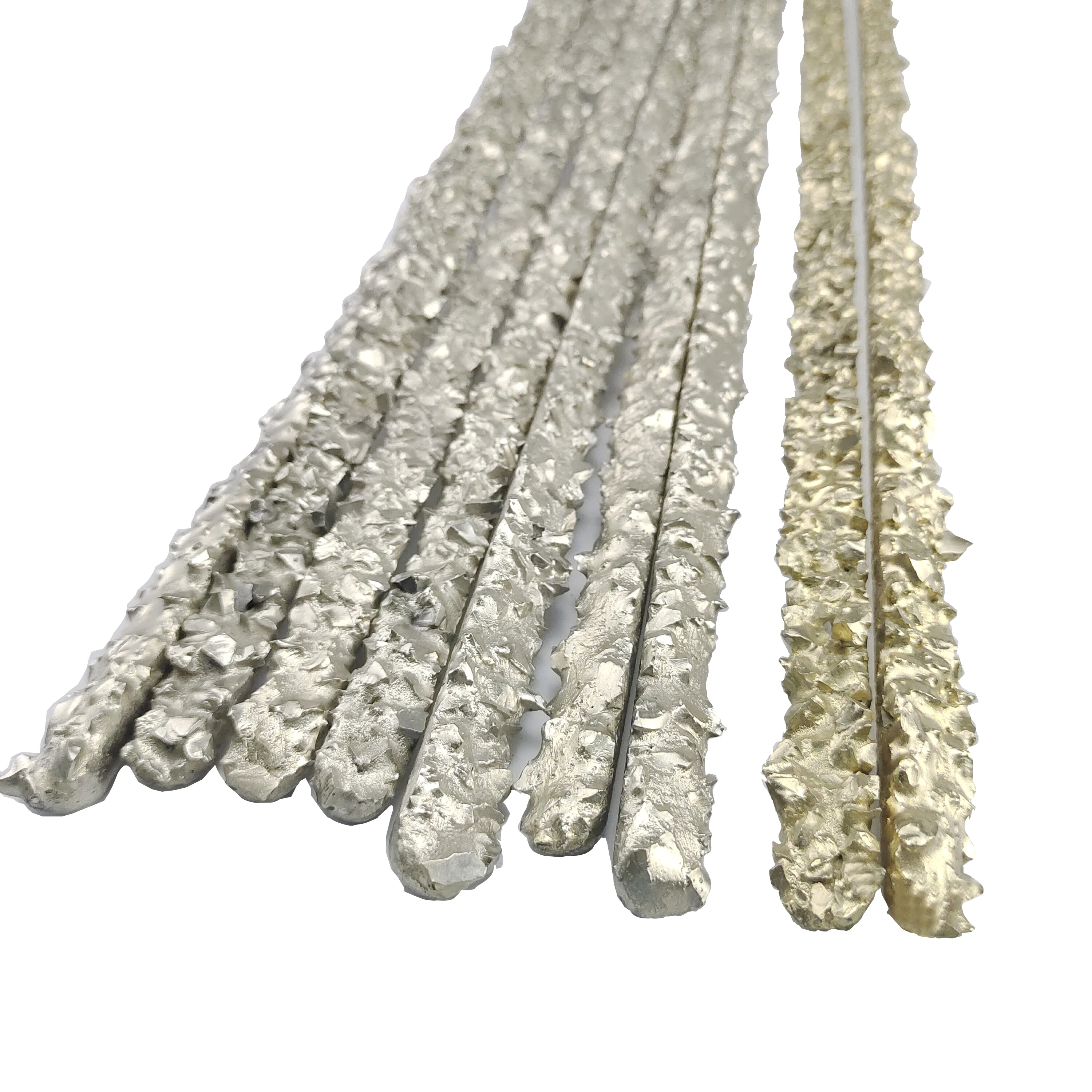

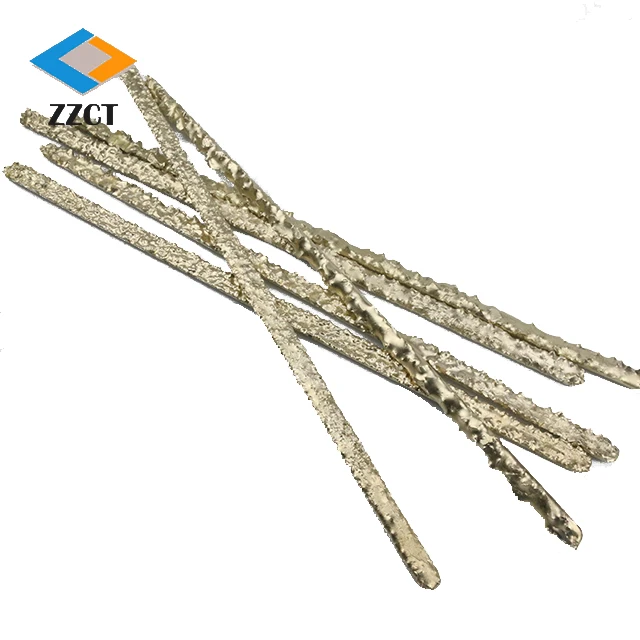

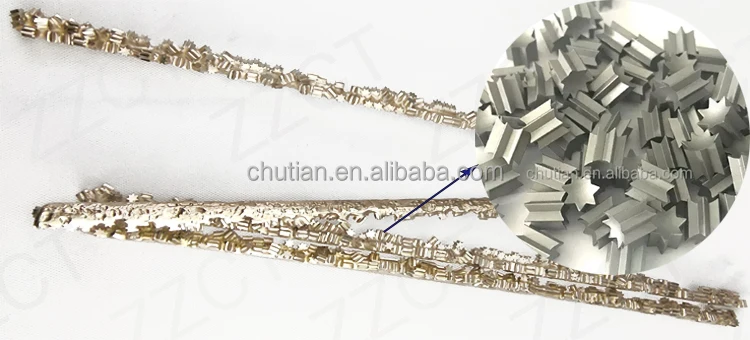

Products Photos

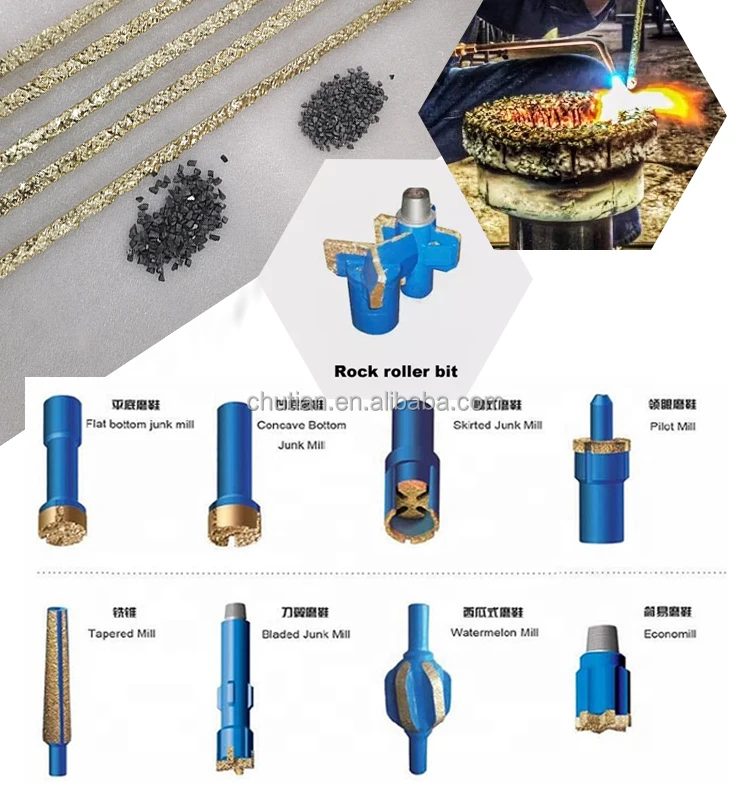

Products Application

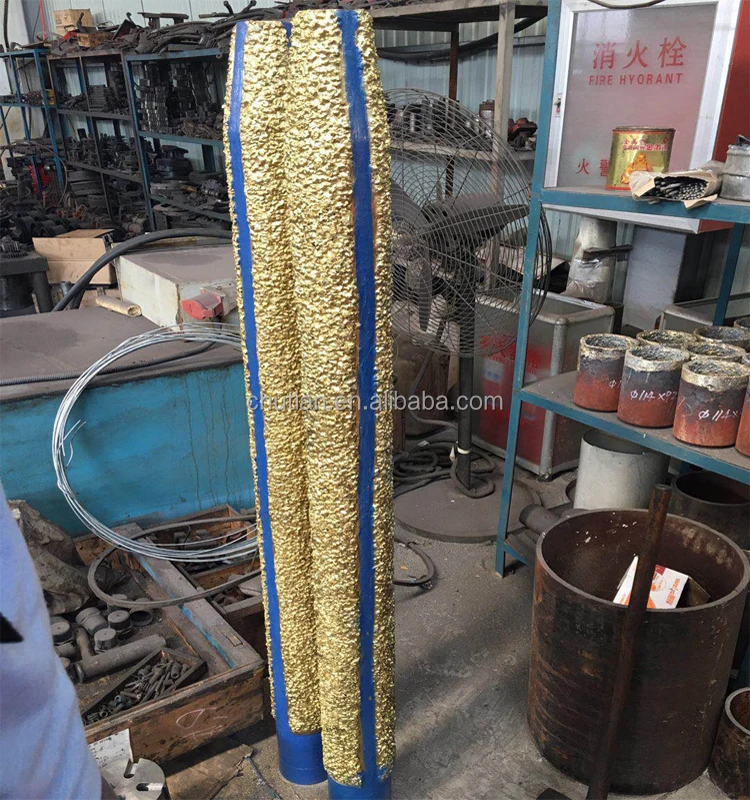

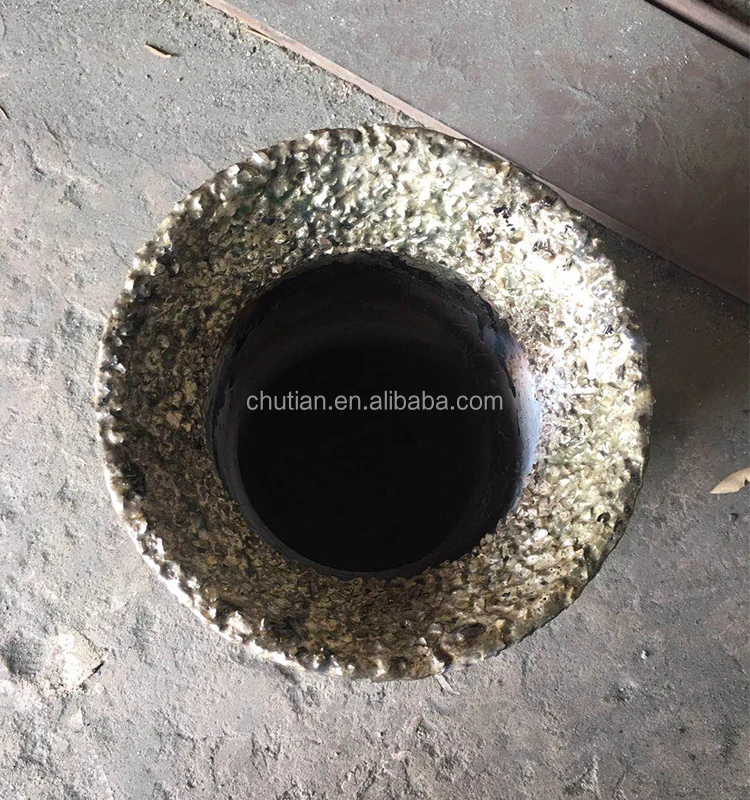

Tungsten Carbide Composite Welding Bar are used to hard surface on drill milling ect to increase the wear-resistance and cut ability to long the lifetime.
Tungsten Carbide welding Composite Rod for Surfacing oil/diggings
Application: Apply to mining drill and other machinery industry to improve the wear resistance
Company Information
| Established in 2008, Zhuzhou Chutian Cemented Carbide Co., Ltd.(ZZCT) is a high-tech enterprise in cemented carbide production.Company passed ISO9001:2015 quality assurance system to provide customers with high-quality alloy products and technical services. | ||
ZZCT products main in: Tungsten Carbide Strip / Plate Tungsten Carbide Rod / Round Bar Tungsten Carbide Disc Cutter Tungsten Carbide CNC Inserts Tungsten Carbide Cold Heading Die Tungsten Carbide Milling Cutter Tungsten Carbide Mining Tools Tungsten Carbide Brazed Insert Tips Tungsten Carbide Broken Particles Tungsten Carbide Particles Composite Welding Rod Cast Tungsten Carbide Powder / Tubular Welding Rod Polycrystalline Diamond Compact (PDC) PCD/PCBN |  |  |
Produce & Inspection
Question & Answers
1) When can I get the price?
We usually need check or ask for details for your inquiry and quote within 24 hours.
If you are in urgent, please call us or noted time indeed.
2) How can I get a sample to check your quality?
After the price and product details are confirmed, samples can be provided.
Samples and freight are not free, but can be deducted from future bulk orders.
3) How long can I expect to get the sample?
After sample cost paid and ship detail confirmed, it will be ready for delivery in 1-5 days. It will be sent to you via express and arrive in 3-5 workdays usually.
You can use your own express account too.
4) How long does the whole procedure being worked out?
Production handling time is about 7-30 days depends.
5) What about the transportation and delivery date?
Shipment depends on destination, ship way (by express, by air, by sea, by train etc).
6) Are you trading company or manufacturer?
We are professional manufacturer established in 2008.
7) Where is your factory located?
We are located in Tiantai Golded Valley Industrial Park, South Huanghe Road, Tianyuan Distric, Zhuzhou, Hunan Province, China
8) How about your stock?
We have large quantity products in stock for regular types and sizes.
9) Is free shipping possible?
No offer free shipping service.
But we have cooperated ship company to make our transport safe, quick in good price.
