Product Overview

Description



Product Description


Combining the advantages of traditional solenoid testers with features designed for added user protection, ruggedness and reliability, the T+PRO Electrical Tester is suitable for use in most residential, industrial and commercial environments. The testers have a hazardous voltage warning light and are capable of detecting voltage even when the battery is dead. The testers GFCI trip capability, built-in flashlights, continuity beeper and extra heavy-duty test leads and probes (both replaceable).




ELECTRICAL TESTER
* Backlit LCD display for easier viewing
* Display resolution of 0.1 V, ideal for troubleshooting low-voltage lighting
* Resistance (Ohms) to 9.99 kOhms
* Rotary Field Indication
* Display Hold for easier viewing in hard-to-test areas
* 3 forms of ac/dc voltage indication: light, sound, and vibration for added user protection and convenience
* Detect live voltage even when the batteries are dead

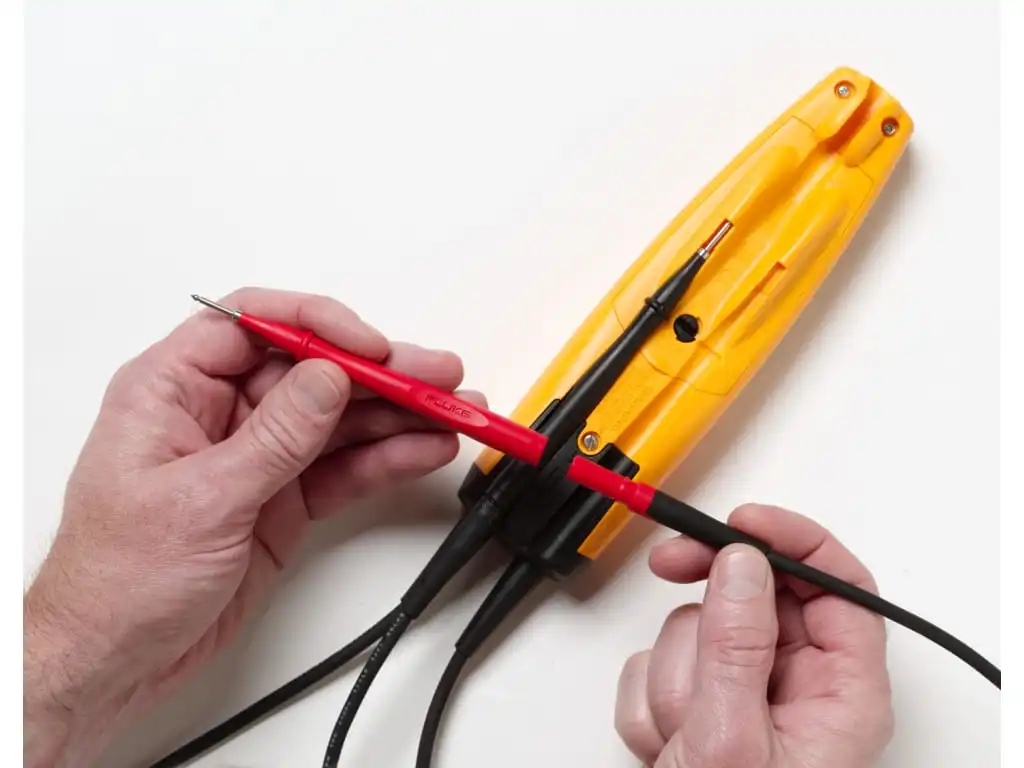

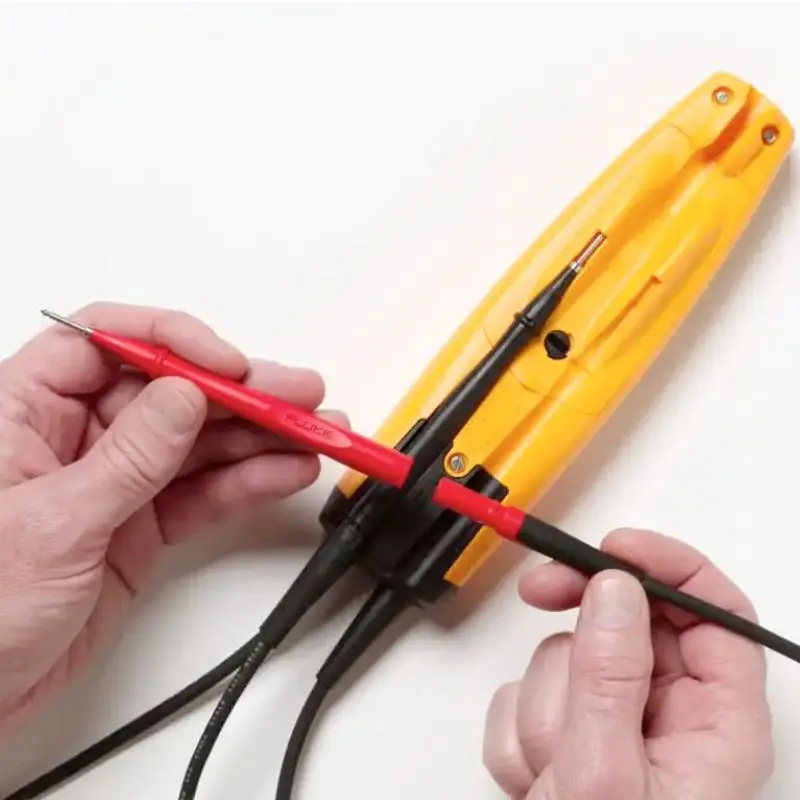

* Extra heavy-duty, replaceable test leads for more flexibility and durability
* CAT IV 600 V, CAT III 1000 V rated for added user protection
* Continuity beeper
* Bright LED flashlight for work in poorly lit areas
* GFCI Trip
* On/Off switchable beeper, selectable according to your environment
* Compliant with latest NFPA 70E recommendations


The expert’s choice for building diagnostics.

The Fluke T+PRO is the ideal, full-featured tester for the demanding commercial and industrial electrician. They have all of the advantages of a traditional solenoid tester, with added functionality, but none of the typical drawbacks. With voltage
measurement, continuity, built-in flashlights, GFCI trip capability, and Fluke’s legendary ruggedness and reliability, the tester is an excellent choice for most residential, commercial, and industrial applications.

The T+PRO helps electricians comply with NPFA 70E Article 110.9 (A), which states that “Test equipment … shall be rated for circuits and equipment to which they will be connected. The T+PRO Electrical Tester carries a CAT IV 600 V and CAT III 1000 V rating, appropriate for most environments where electricians work.

Applications:
* Industrial electricians, commercial electricians, particularly those who work on low-voltage lighting.
* Front-line electrical troubleshooting
* AC/DC voltage measurement
* Continuity testing
* Testing GFCI circuits
* Resistance measurement
* Checking the rotation of electrical motors
* Checking the proper set up of 3-phase systems
* Troubleshooting low-voltage lighting




Specification


Temperature
Operating: -10 C to 55 C (14 F to 131 F)
Storage: -30 C to 60 C (- 22 F to 140 F)
Relative humidity
0 C to 30 C (3 F to 86 F): 90 %
30 C to 40 C (86 F to 104 F): 75 %
40 C to 50 C (104 F to 1 F): 45 %
Altitude
Operating: 2,000 m (approx. 6,561.6 ft
Storage: 10,000 m (approx. 3 ,808.4 ft)
Battery type/life
AAA (2); 40 hours
Shock, vibration
Sinusoidal vibration per MIL-PRF- 8800F for a Class instrument
Safety
ISA-8 .0 .01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C . No. 61010-1
Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV
Compliance to NFPA 70E1
AC Bandwidth
45 Hz to 66 Hz
Maximum working voltage
1000 V ac/dc
Maximum measurable voltage
600 V ac/dc
Duty cycle
Indefinitely for voltages up to 240 V.
For voltages between 40 V and 600 V the duty cycle is 30 s on / 300 s off.
For voltages above 40 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM
of 300 s.
Voltage hazard LED
LEDs turn on at voltages > 30 V ac/dc + 35 %
LED voltage indication levels
1 V, 4 V, 48 V, 1 0 V, 08 V, 40 V, 77 V, 480 V, 600 V
LED voltage indication levels for Canadian version
1 V, 4 V, 48 V, 1 0 V, 08 V, 40 V, 347 V, 480 V, 600 V
LEDs
LEDs turn on between 70 % and 85 % of the indicated voltage on the LED, except for the 1 V LED which turns on between 50 % and 100%.
Accuracy
AC voltage: + (3 % rdg + digits)
DC voltage: + (2 % rdg + digits)
Resistance: + (5 % rdg + 3 digits)
LCD Resolution
0.1 V for voltages < 50 V, 1 V for voltages >50 V
0.01 k ¸ for resistance measurement (For T+PRO Only)
GFCI Test current
100 V - 00 V at 0 mA - 35 mA for 1 s
Standard input test current
< 5 mA
Size (H x W x L)
1.3 in x .15 in x 7.6 in (3.3 cm x 5.46 cm x 19.3 cm )
Weight
9.9 oz (0.28 kg)
