Гибкий упаковочный пакет, тестер сопротивления, утечки и уплотнения, тестер сопротивления положительному давлению

Product Overview

Description



Technical indicators
test range	0 ~ 600 KPa;  0 ~ 87.0 psi(Standard) 0 ~ 1.6 MPa;  0 ~ 232.1 psi(buy separately)
inflatable head	Φ10 mm (Standard) Φ4 mm,Φ1.6 mm (buy separately)
Air source pressure	0.4 MPa ~ 0.9 MPa(Gas source user-provided)
Air source interface	Φ8 mm Polyurethane tube
Dimensions	300 mm (L) × 360 mm (W) × 180 mm (H)
power supply	220VAC 50Hz / 120VAC 60Hz
net weight	18kg

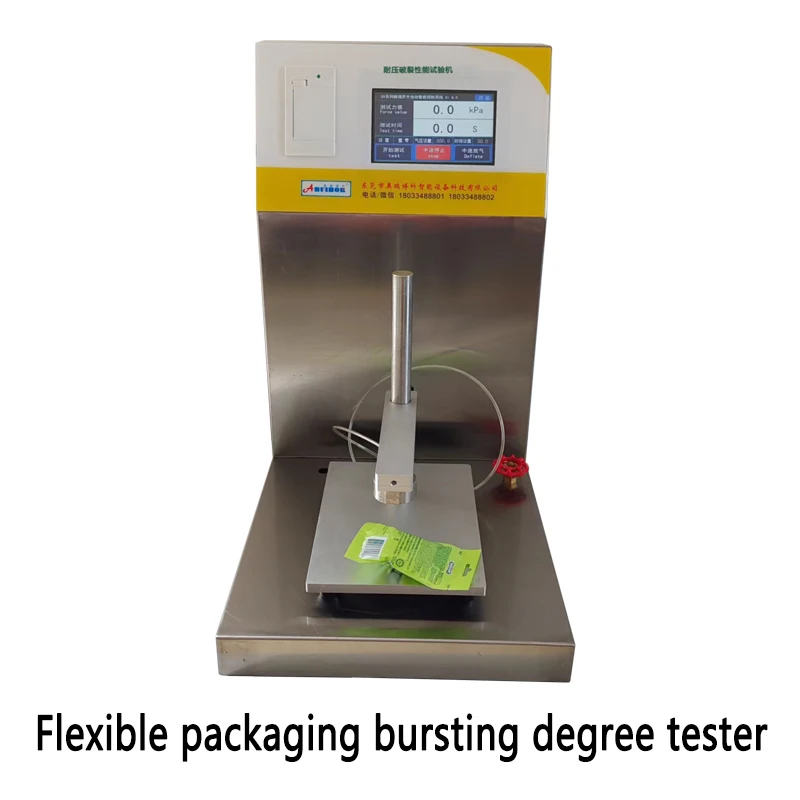

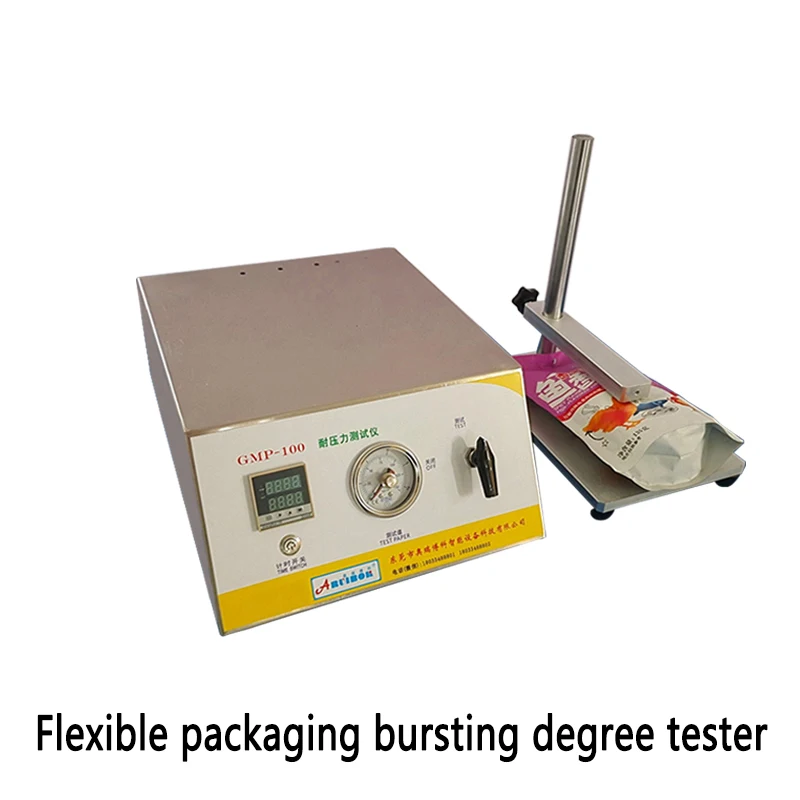

GMP-100  Flexible packaging bursting degree tester

Product use

Flexible packaging bursting degree tester (leakage and sealing strength tester - also known as positive pressure sealing instrument) is professionally suitable for the sealing strength, heat sealing quality, and quantitative determination of the expansion pressure and sealing leakage performance of the whole bag of flexible packaging parts, heat sealing, aseptic packaging formed by various bonding processes, and the quantitative determination of various hose overall sealing performance, compressive strength, heat sealing edge sealing strength, cap body connection strength, trip strength, tie strength and other indicators; At the same time, it can also evaluate and analyze the compressive strength, bursting strength and other indicators of the materials used in flexible packaging bags, the torque sealing index of the cap, the trip strength of the cap connection, the stress strength of the material, and the sealing, compression resistance, and bursting resistance of the entire bottle.



Product Features

The system adopts the positive pressure test principle, controlled by microcomputer, with menu-type interface, PVC operation panel and LCD display screen (optional touch screen and software), which is convenient for users to carry out rapid test operation and data viewing expansion inhibition, expansion non-inhibition dual test methods, users can freely choose according to different test purposes

Crack test, creep test, creep to rupture test, multiple test modes to meet the different test needs of users, the test range is optional, the test process "one-button" operation and other intelligent design, easy to achieve non-standard testing

Test standard

The instrument meets several national and international standards:

ISO 11607-1,ISO 11607-2,GB/T 10440,GB 18454,GB 19741,GB 17447,ASTM F1140,ASTM F2054,GB/T 17876,GB/T 10004,BB/T 0025,QB/T 1871,YBB 00252005,YBB 00162002

Test application

 Basic application of plastic composite bags is suitable for pressure fracture testing of various packaging bags such as various plastic films, aluminum films, paper-plastic composites, and aluminum-plastic composites

 Hose testing Hoses for packaging various washing products and hoses for packaging items in other fields. Hoses can include toothpaste tubes, facial cleanser, cosmetics, various medicinal ointment tubes, food packaging hoses, and more

 Creep test Suitable for creep performance test of various packaging bags, boxes, etc

Creep to rupture is suitable for creep to rupture performance testing of various packaging bags, boxes, etc

extended application

Blister pack rupture test Suitable for pressure resistance test of various blister packs

 Aerosol valve testing Suitable for testing the sealing performance of various aerosol valves. Aerosol valves include various insecticides, mousse, gel water, pharmaceutical sprays, self-spray paint, and so on

Three-sided heat sealing material is suitable for pressure resistance test where the packaging bag has only three sides of heat sealing and one side opening

 High Pressure Test Test pressures up to 1.6 MPa can be reached

 Anti-theft caps are suitable for sealing performance testing of various anti-theft caps. Anti-theft bottle caps can include cola bottle caps, mineral water purified water bottle caps, beverage bottle caps, vegetable oil barrel caps, side food seasoning bottle caps (soy sauce, vinegar, cooking wine, etc.), easy-to-open three-piece cans (beer, beverage cans, etc.), paper packaging cans (cylindrical, various potato chips and shrimp strips), etc





Product configuration

Standard configuration: host, test rack

Options: touch screen and professional software, communication cable, test accessories (restraint plate test device; Open packaging test device; Hose sealing performance test device; Aerosol valve sealing performance test device), pharmaceutical blister sealing test device

Note: The air source interface of this machine is Φ8 mm polyurethane pipe; The air source is provided by the user
