Воздухопроницаемый тестер для ванны с аэрозольным резервуаром, тестер производительности вакуумной герметизации, детектор утечки газа с пустой резервуаром

Product Overview

Description

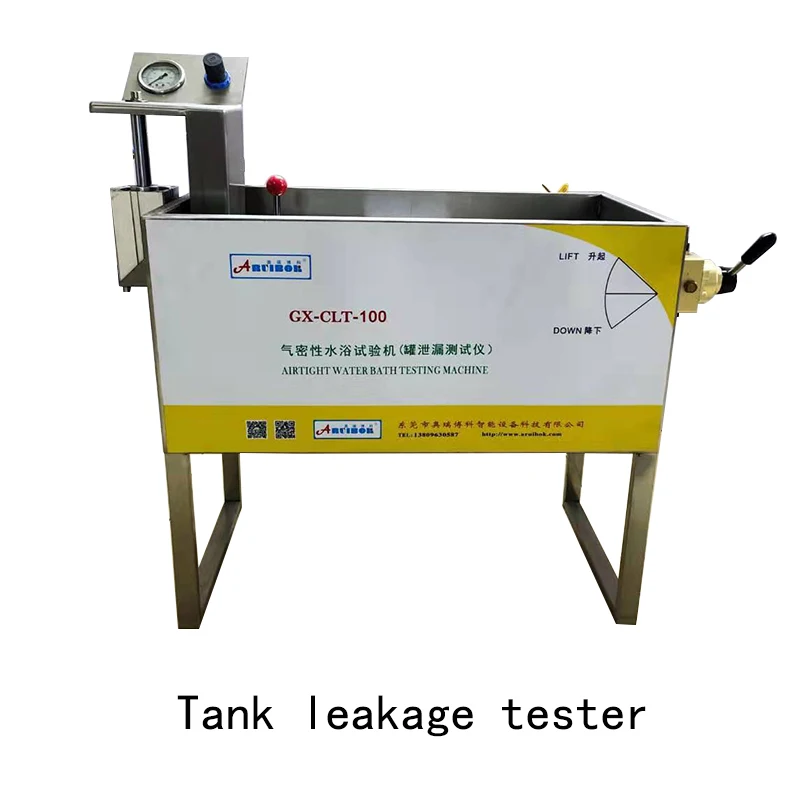

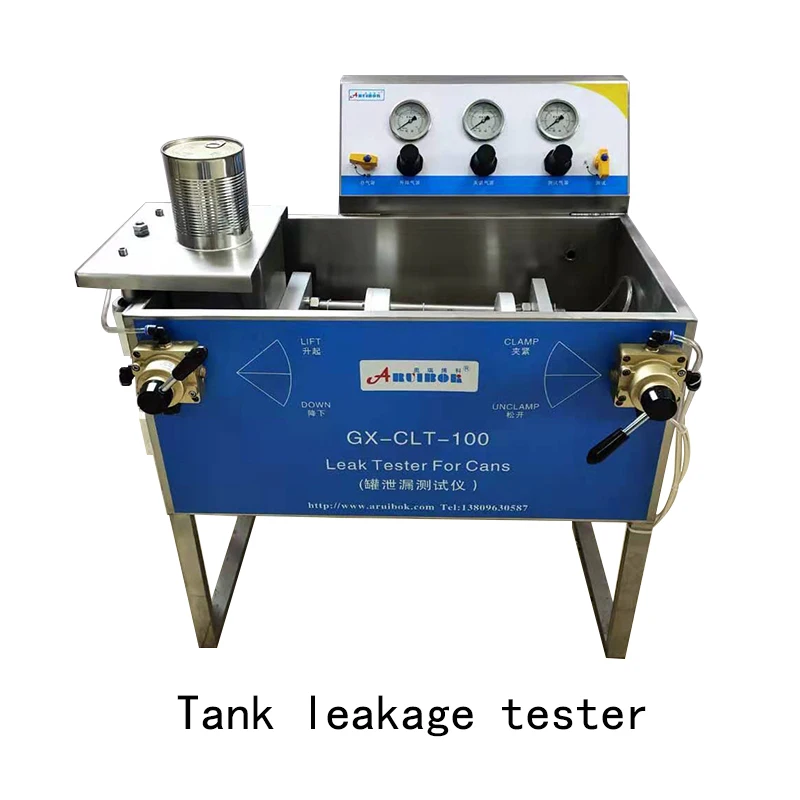

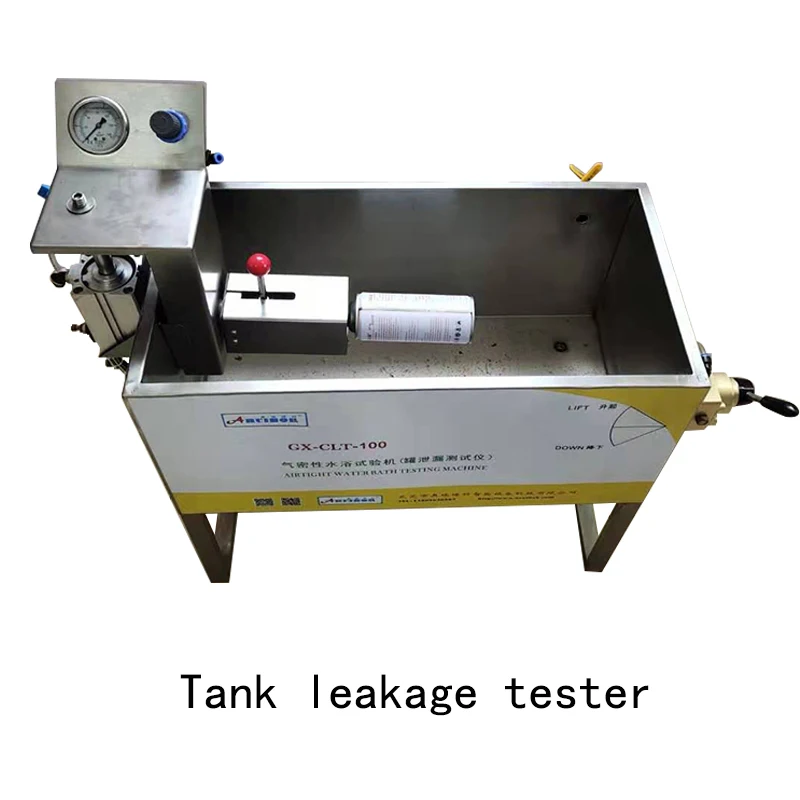

GX-CLT-100 aerosol tank airtightness water bath testing machine (aerosol tank leakage tester, sealing instrument)

GX-CLT-100 aerosol tank airtightness water bath tester (aerosol tank leak tester) is a necessary instrument for aerosol tank manufacturers, scientific research institutions, and testing institutions; Put the spray tank into the water tank to inflate and pressurize to detect whether there is leakage. If there is leakage, bubbles will be observed. The measured pressure is 0.8-0.9Mpa.

Product features:

1. The spray tank is free floating and is not affected by additional clamping force;

2. The sample tank is clamped with a fast mechanical clamping mechanism, and it only takes 1 second to clamp and remove the sample tank;

3 - Universal fixture is not limited by the diameter of spray tank

4 - Just simply toggle the control handle, and the pneumatic lifting mechanism quickly and automatically submerges and raises the spray tank into the water surface

5 - Tank top, tank bottom, and tank body side welds are easy to observe

6 - Can freely rotate the sample tank to observe product leakage

7 - Can freely rotate the sample tank to observe product leakage when pressurizing

8 - Can simultaneously test 1-12 products (optional)

System parameters:

Air source pressure: 0-1.6Mpa

Maximum test pressure: 1.0Mpa

Graduation: 0.05 Mpa

Dimensions: 620 x 420 x 560 mm L x W x H

Weight: 30kg
