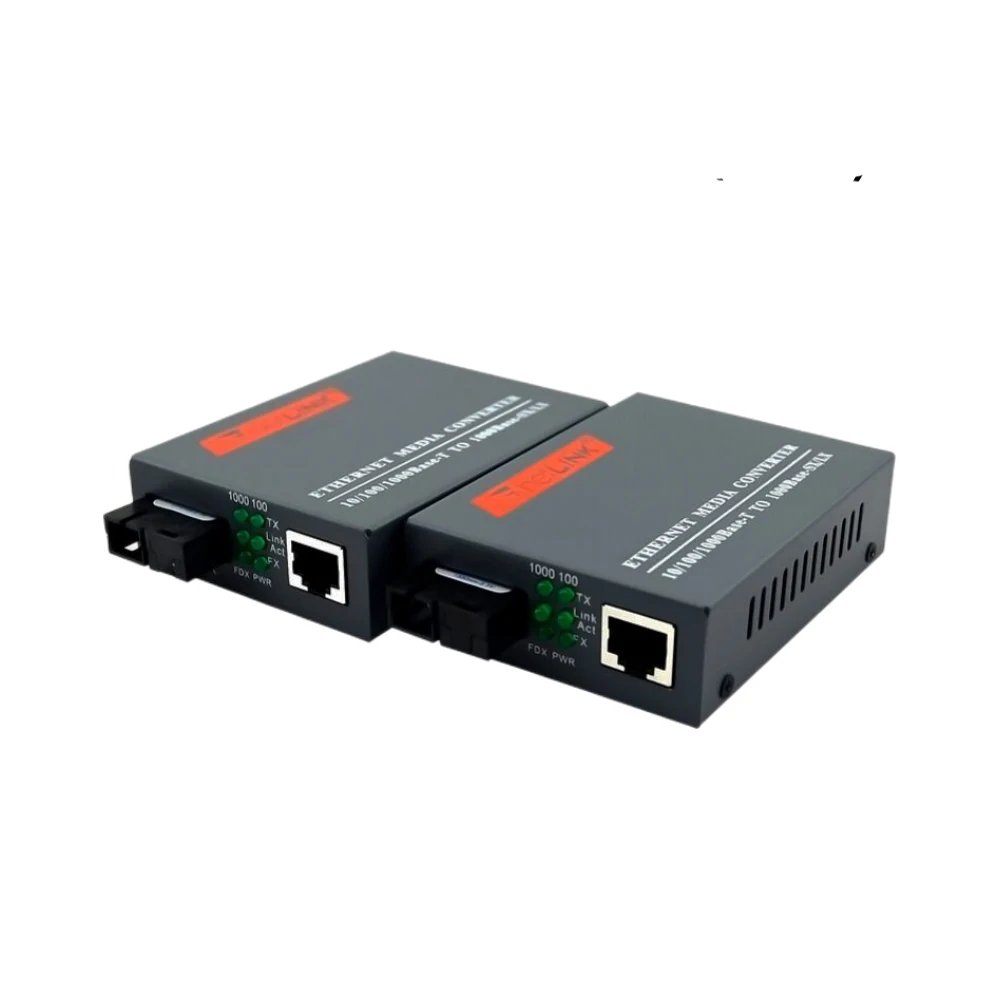

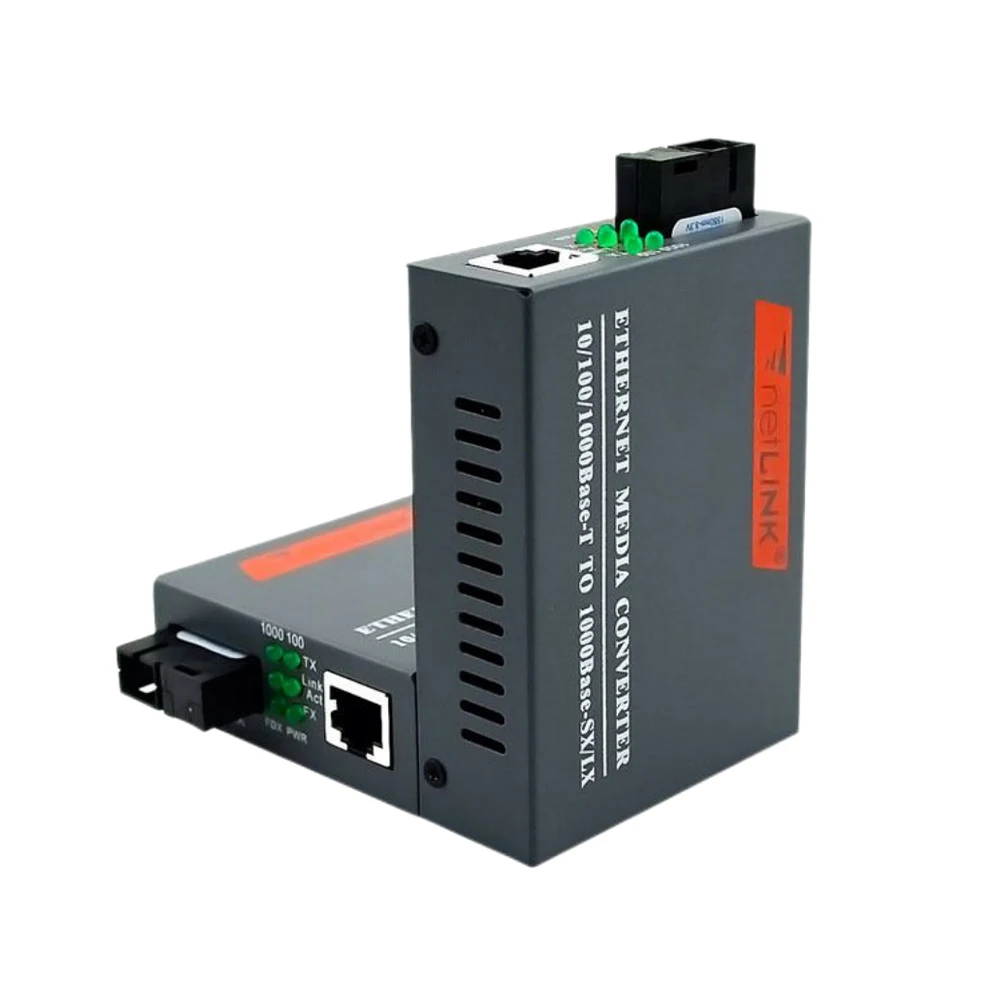

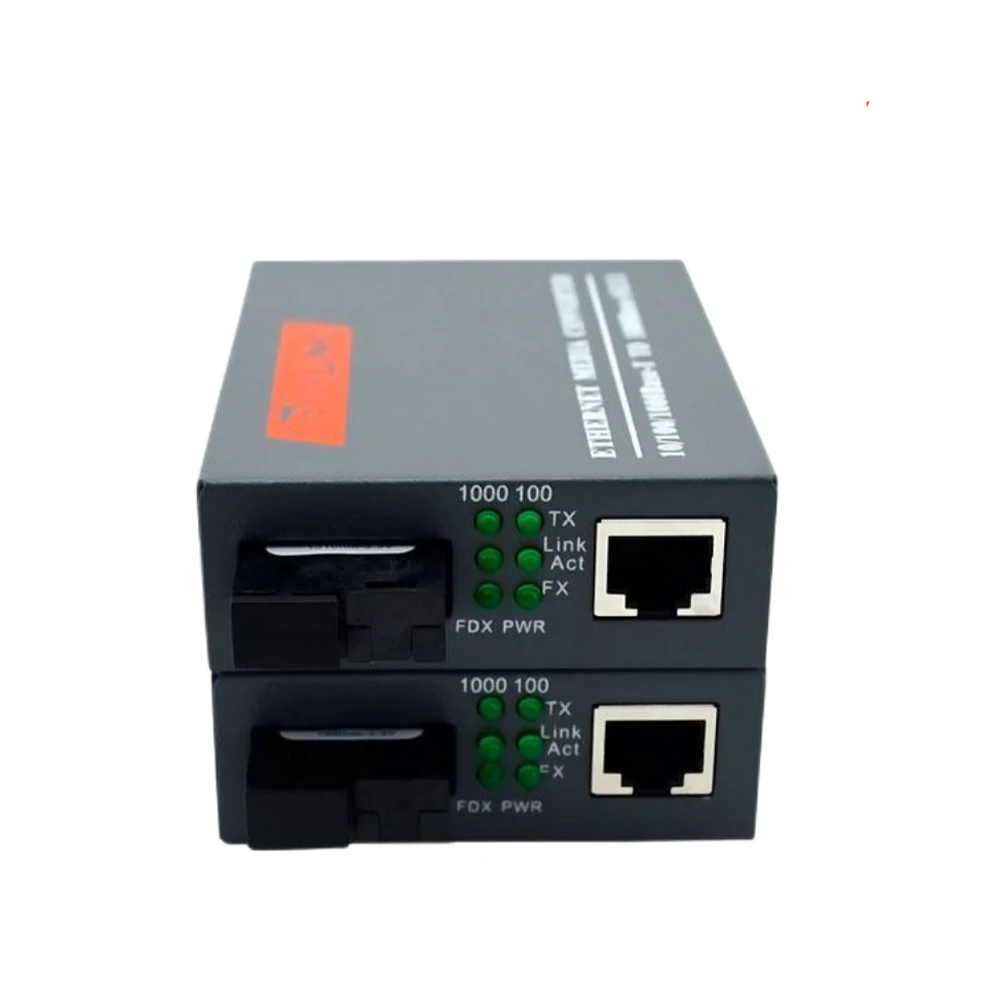

Gigabit Fiber Optical Media Converter 10/100/1000Mbps Single Fiber SC Port
- Category: >>>
- Supplier: Henan DK Fiber Communication Co. Ltd.
Share on (1600802901334):
Product Overview
Description
The Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Features
1.Support the switch between 1000Base-T and 1000Base-SX/LX
2.1*1.25Gbps full-duplex fiber port and 1*1000M Ethernet port
3.Each port has the complete LED Indicator light for installation, commissioning and maintenance
4.Support 9K Jumbo Packet
5.Support direct forwarding mode, which support less time delay
6.Low power consumption, only 1.5W in full load condition
7.Support isolation protection function, good data security
8.Small size, suitable for installation in various places
9.Auto-negotiation low power consumption chips to ensure very longtime and stable operation
2.1*1.25Gbps full-duplex fiber port and 1*1000M Ethernet port
3.Each port has the complete LED Indicator light for installation, commissioning and maintenance
4.Support 9K Jumbo Packet
5.Support direct forwarding mode, which support less time delay
6.Low power consumption, only 1.5W in full load condition
7.Support isolation protection function, good data security
8.Small size, suitable for installation in various places
9.Auto-negotiation low power consumption chips to ensure very longtime and stable operation
Product Paramenters
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree | ||||||
Ethernet Port | Connector: RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level | ||||||
Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate: 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km | ||||||
Performance | Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space: 500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth: 3.8G/5.6G/7.2G Time Delay: ＜150μs | ||||||
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 2.2W～3.5W | ||||||
Transmissin Distance | Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode: 3/20/40/60/80/100km | ||||||
MTBF | 100, 000 hours | ||||||
Warranty | 1 Year | ||||||
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) | ||||||
Mechanical Structures | Dimension: 215×107×26mm Weight: 0.15 PCB main board | ||||||
OEM&ODM | Supportive | ||||||
