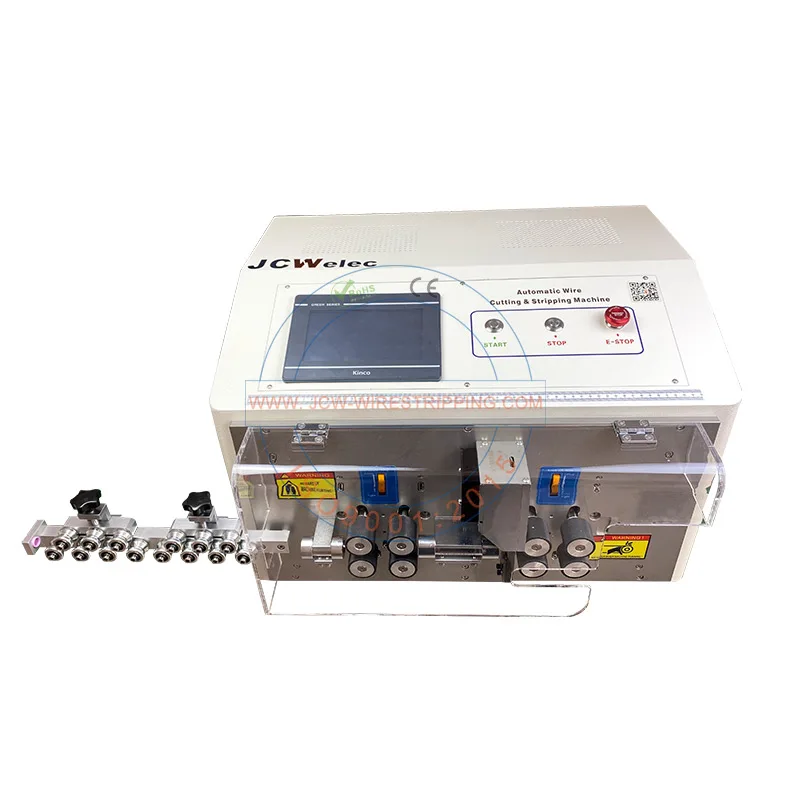

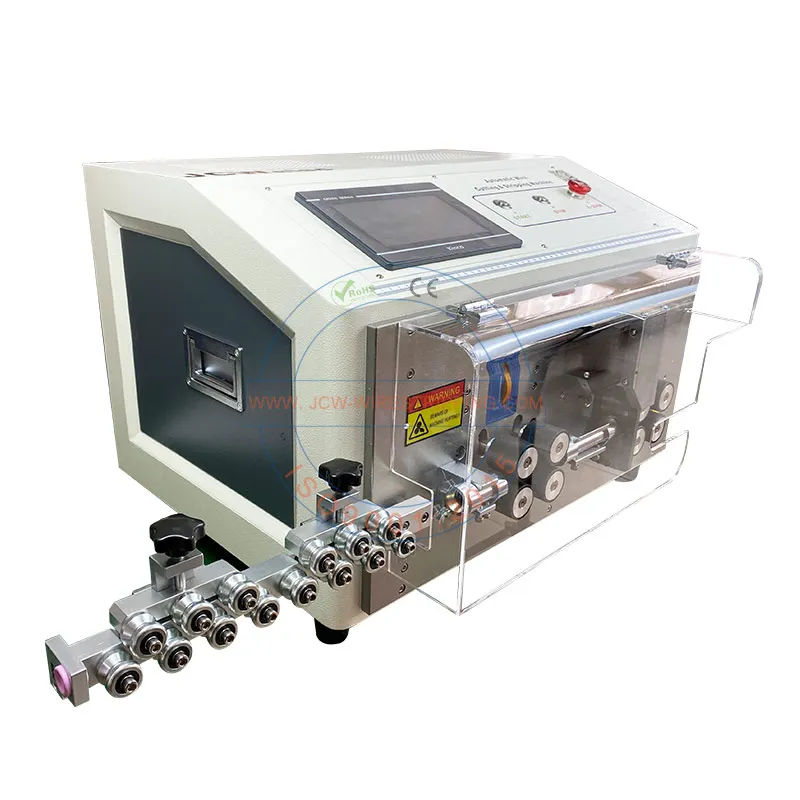

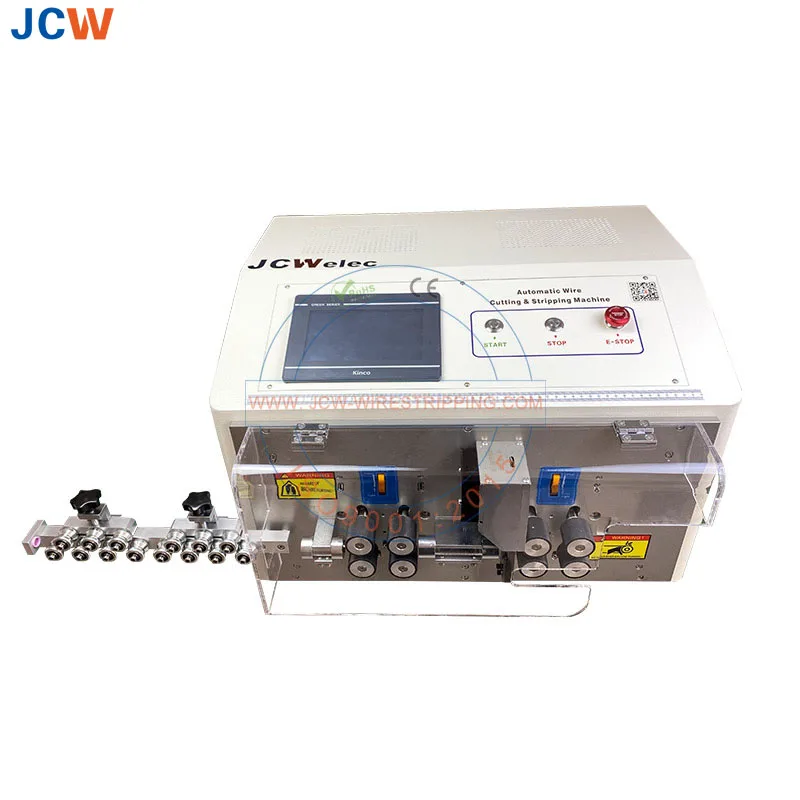

Фотоавтоматическая машина для резки и зачистки больших кабелей 1,5 25 кв. мм

Price:

Quantity:

Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.1 - 25 mm², 12 mm diameter
Cutting length ( L )	0.1 - 999999 mm
Stripping length	Front ( right ) side: 250 mm [ partial stripping ]
Stripping length		Rear ( left ) side: 120 mm [ partial stripping ]
Middle strip	13 sections
Production rate	1000 pcs/h by 100mm wire length
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt
Power supply	AC 220 V ± 10%, 50 / 60 Hz [110V on request]
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 650 x W 580 x H 450 mm. 70KG
