TS2900 Tape Autoloader
IBM TS2900 Tape Autoloader for Lenovo (Machine Type 6171) is an entry-level compact 1U tape unit that offers IBM tape reliability, density, and performance for entry-level and compact tape libraries at a costeffective price.
With a capacity of nine cartridges, the TS2900 Tape Autoloader is a rack-mountable or deskside unit that contains a single IBM LTO Ultrium half-high SAS tape drive. The choice of the tape drives includes:
IBM LTO Ultrium 9 Half-High SAS Tape Drive (Model S9H)
IBM LTO Ultrium 8 Half-High SAS Tape Drive (Model S8H)
IBM LTO Ultrium 7 Half-High SAS Tape Drive (Model S7H)
The TS2900 is an ideal solution if you need an entry-level larger capacity or higher performance tape backup with or without random access and for tape automation used along with Lenovo servers.
With a capacity of nine cartridges, the TS2900 Tape Autoloader is a rack-mountable or deskside unit that contains a single IBM LTO Ultrium half-high SAS tape drive. The choice of the tape drives includes:
IBM LTO Ultrium 9 Half-High SAS Tape Drive (Model S9H)
IBM LTO Ultrium 8 Half-High SAS Tape Drive (Model S8H)
IBM LTO Ultrium 7 Half-High SAS Tape Drive (Model S7H)
The TS2900 is an ideal solution if you need an entry-level larger capacity or higher performance tape backup with or without random access and for tape automation used along with Lenovo servers.
Key features
The TS2900 delivers the following features:
Adherence to LTO specifications.
Support for one half-height LTO Ultrium 9, 8, 7 SAS tape drive.
Native cartridge capacity of up to 18 TB (Ultrium 9), 12 TB (Ultrium 8), 9 TB (Ultrium 7 initialized LTO 8 Type M), 6 TB (Ultrium 7).
Native data transfer rate of up to 300 MB/s (Ultrium 9, 8 or 7) .
Support for LTO 9 media specification tape cartridge compressed capacity of up to 45 TB, 30 TB for LTO8, and 15 TB for LTO7 with 2.5 to 1 compression per cartridge
12 Gbps SAS interface attachment
Support for media partitioning and self-describing tape
Support for encryption capabilities with IBM SecurityTM Guardium(R) Key Lifecycle Manager
(GKLM)

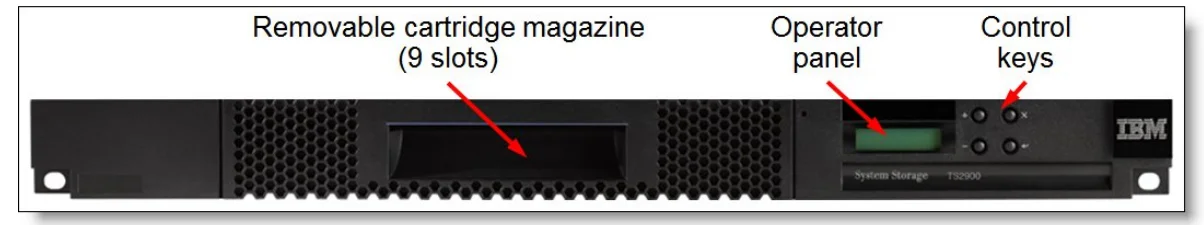

One removable magazine providing nine cartridge slots, including a single I/O station
A bar code reader that is standard and enables operation of the TS2900 in sequential or random access mode
Remote management capabilities to enable remote administration of the TS2900 through a web interface
Optional features such as rack mount kits and additional cartridge magazines
Adherence to LTO Generation 9 media specifications
Adherence to LTO specifications.
Support for one half-height LTO Ultrium 9, 8, 7 SAS tape drive.
Native cartridge capacity of up to 18 TB (Ultrium 9), 12 TB (Ultrium 8), 9 TB (Ultrium 7 initialized LTO 8 Type M), 6 TB (Ultrium 7).
Native data transfer rate of up to 300 MB/s (Ultrium 9, 8 or 7) .
Support for LTO 9 media specification tape cartridge compressed capacity of up to 45 TB, 30 TB for LTO8, and 15 TB for LTO7 with 2.5 to 1 compression per cartridge
12 Gbps SAS interface attachment
Support for media partitioning and self-describing tape
Support for encryption capabilities with IBM SecurityTM Guardium(R) Key Lifecycle Manager
(GKLM)
One removable magazine providing nine cartridge slots, including a single I/O station
A bar code reader that is standard and enables operation of the TS2900 in sequential or random access mode
Remote management capabilities to enable remote administration of the TS2900 through a web interface
Optional features such as rack mount kits and additional cartridge magazines
Adherence to LTO Generation 9 media specifications
The features in the IBM LTO 9 tape drive:
Servo and track layout technology: There are 6,656 data tracks in LTO 9 versus 3,584 data tracks in LTO 8. The high-bandwidth servo system features a low-mass servo to help more effectively track servo bands and improve data throughput with damaged media in less-than-optimal shock and vibration environments.
Surface Control Guiding Mechanism: Designed to guide the tape along the tape path in the LTO 9, 8, 7, and 6 tape drive. This method is designed to use the surface of the tape, rather than the edges, to control tape motion to reduce tape damage (especially to the edges of the tape) and tape debris, which comes from the damaged edges and accumulation in the head area.
Robust drive components optimized for automation environments: With the most robust components available, steel ball bearings in loader, robust leader block design, and single circuit card, the drives offer enhanced reliability and prolonged life.
Surface Control Guiding Mechanism: Designed to guide the tape along the tape path in the LTO 9, 8, 7, and 6 tape drive. This method is designed to use the surface of the tape, rather than the edges, to control tape motion to reduce tape damage (especially to the edges of the tape) and tape debris, which comes from the damaged edges and accumulation in the head area.
Robust drive components optimized for automation environments: With the most robust components available, steel ball bearings in loader, robust leader block design, and single circuit card, the drives offer enhanced reliability and prolonged life.
Product Specification
Form factor | 1U rack mount or standalone |
Drive technology | LTO Ultrium 9, 8, 7 half-high drives |

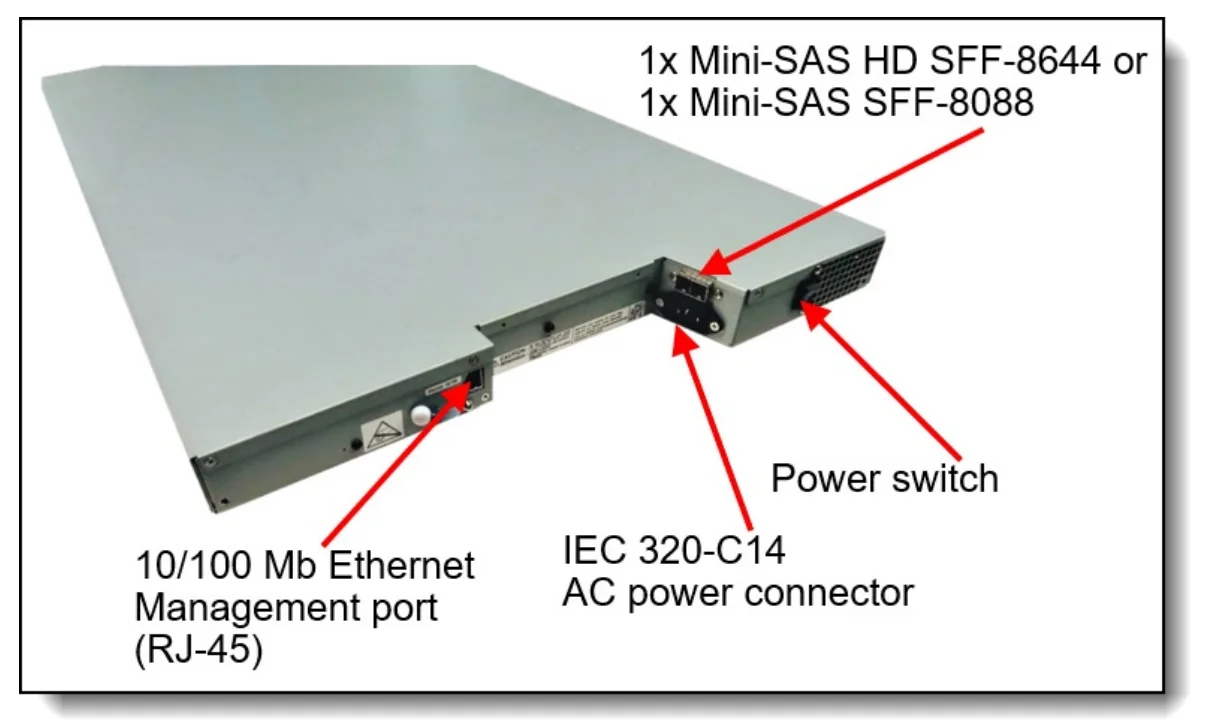

Drive interface | The Ultrium 9 SAS drive uses the SFF-8644 connection at the drive end and a SFF-8644 connection at the host adapter end. The Ultrium 8 and 7 SAS drives use the SFF-8088 connection at the drive end and the SFF-8088 or SFF-8470 connection at the host adapter end. |
Number of drives | 1 |
Number of cartridge slots | 9 |
Cartridge capacity (native / compressed) | LTO 9 (L9): 18 TB/ 45 TB* LTO 8 (L8): 12 TB / 30 TB* LTO 7 initialized LTO 8 Type M (M8): 9 TB / 22.5 TB* LTO 7 (L7): 6 TB / 15 TB* |
Total backup capacity (native / compressed) | LTO 9 (L9): Up to 162 TB / up to 405 TB* LTO 8 (L8): Up to 108 TB / up to 270 TB* LTO 7 (M8): Up to 81 TB / up to 202.5 TB* LTO 7 (L7): Up to 54 TB / up to 135 TB |
Data transfer rate (native / compressed) | LTO 9: Up to 300 MB/s up to 750 MB/s* LTO 8: Up to 300 MB/s / up to 750 MB/s* LTO 7: Up to 300 MB/s / up to 750 MB/s* |
