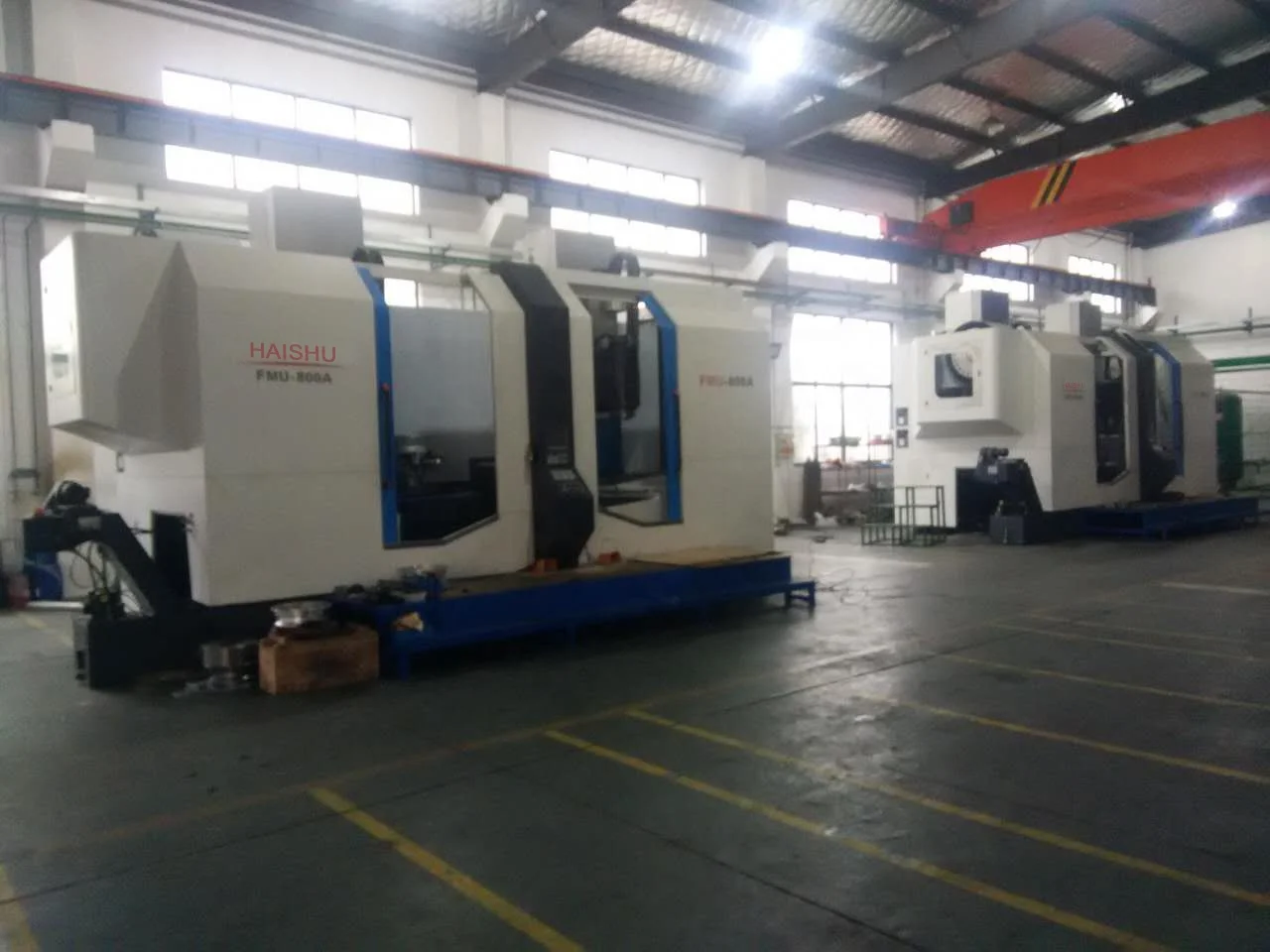

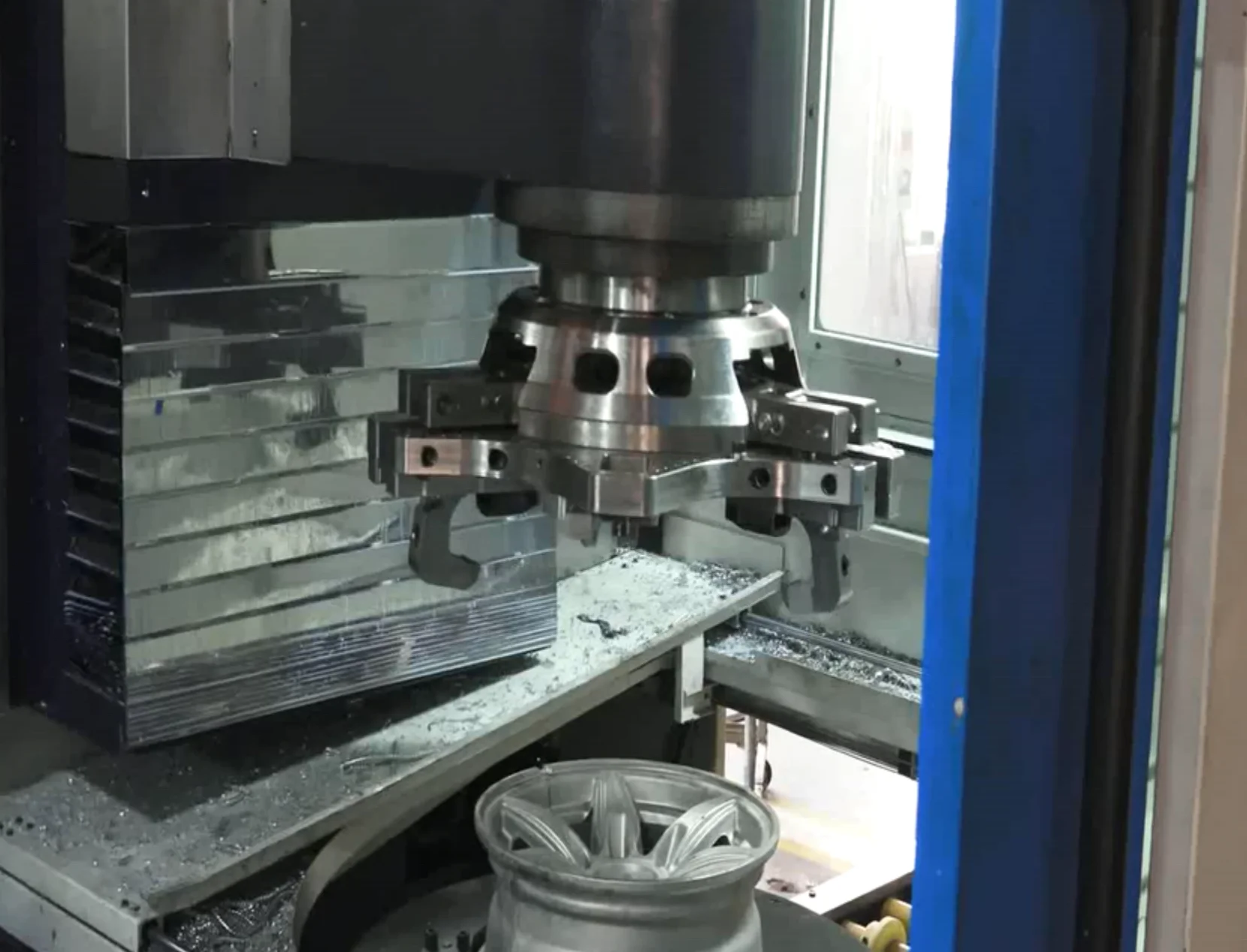

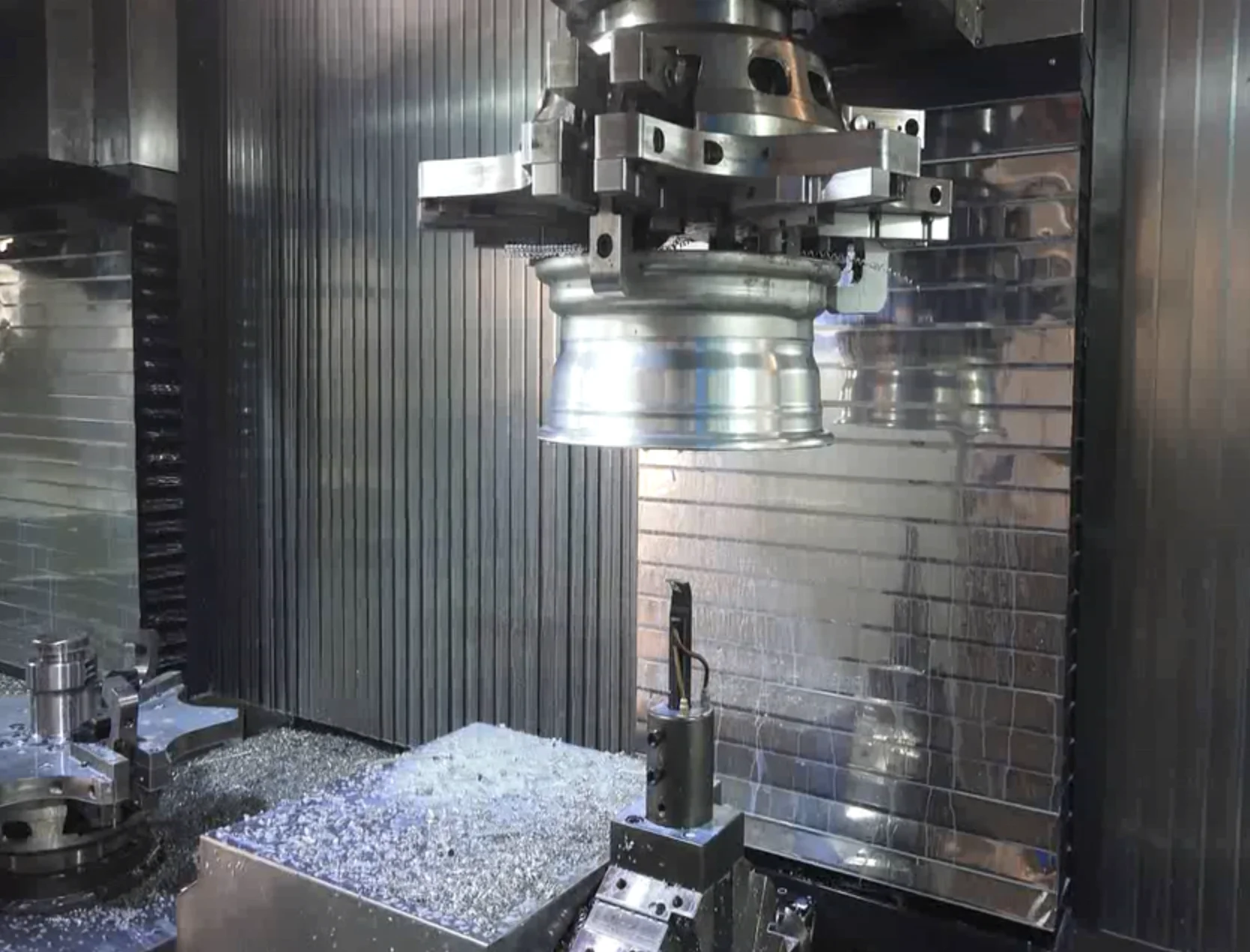

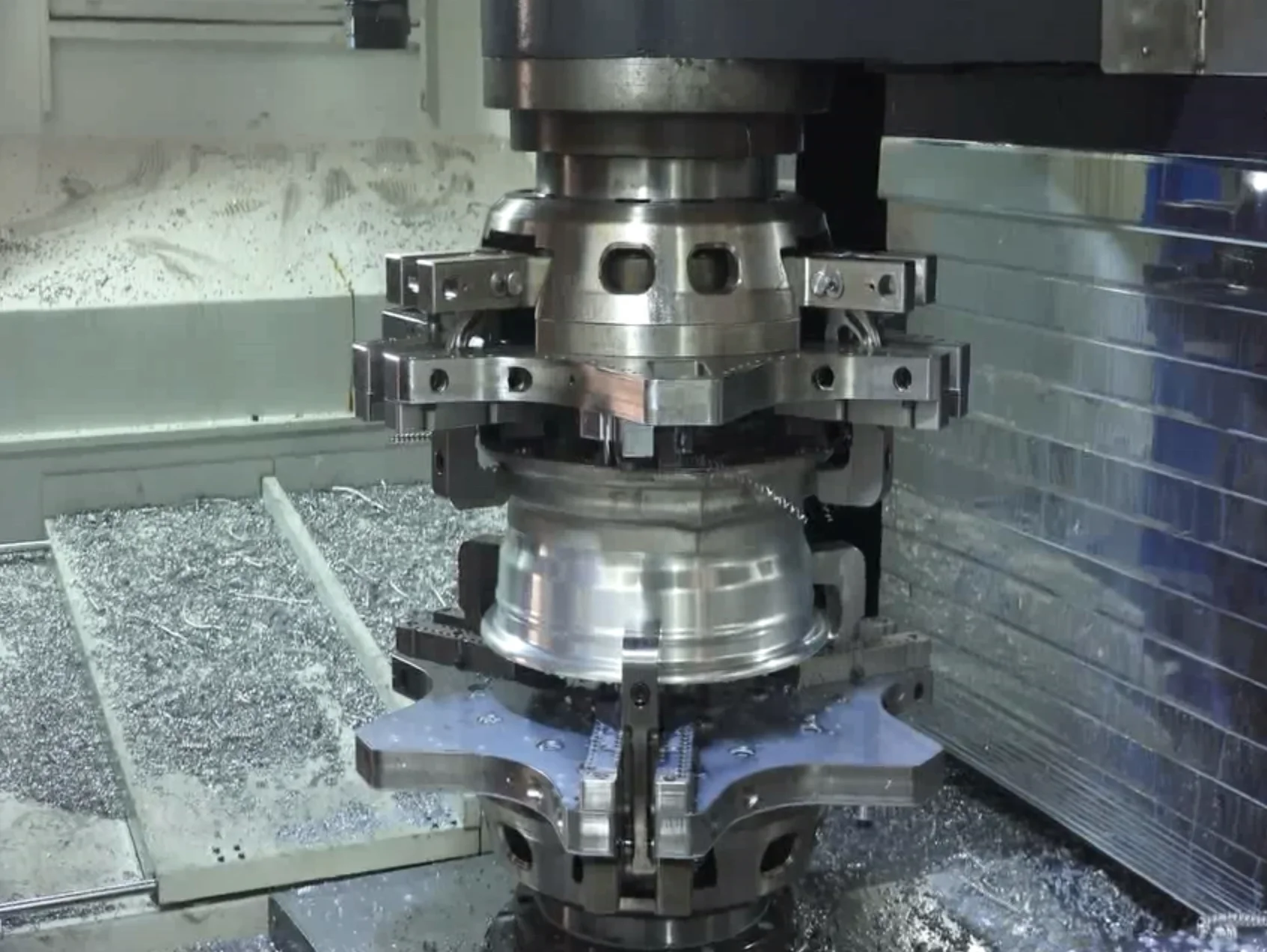

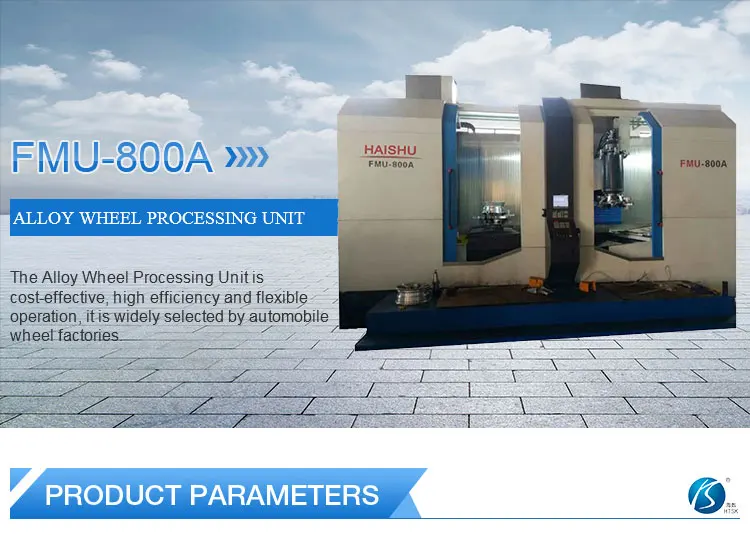

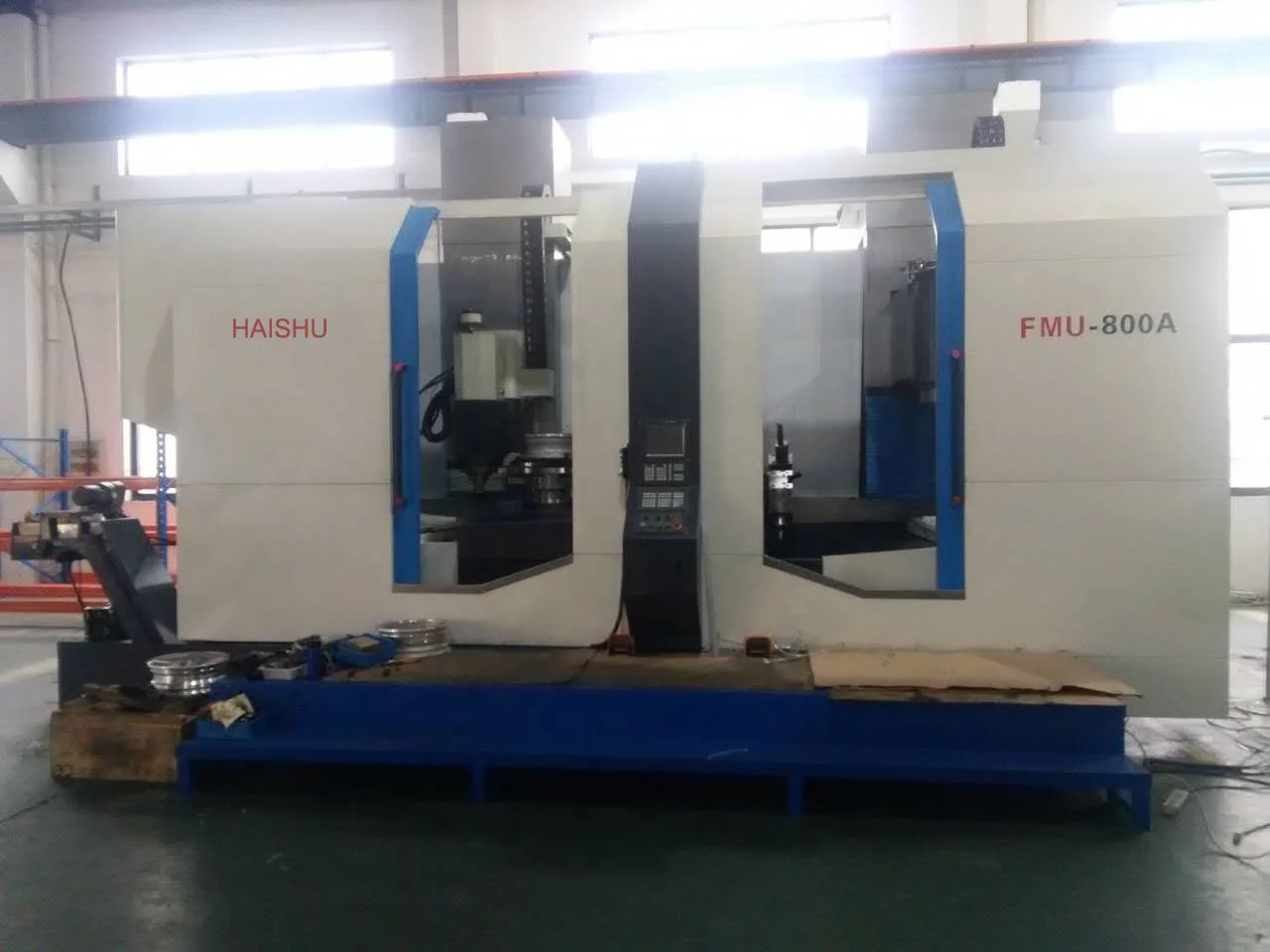

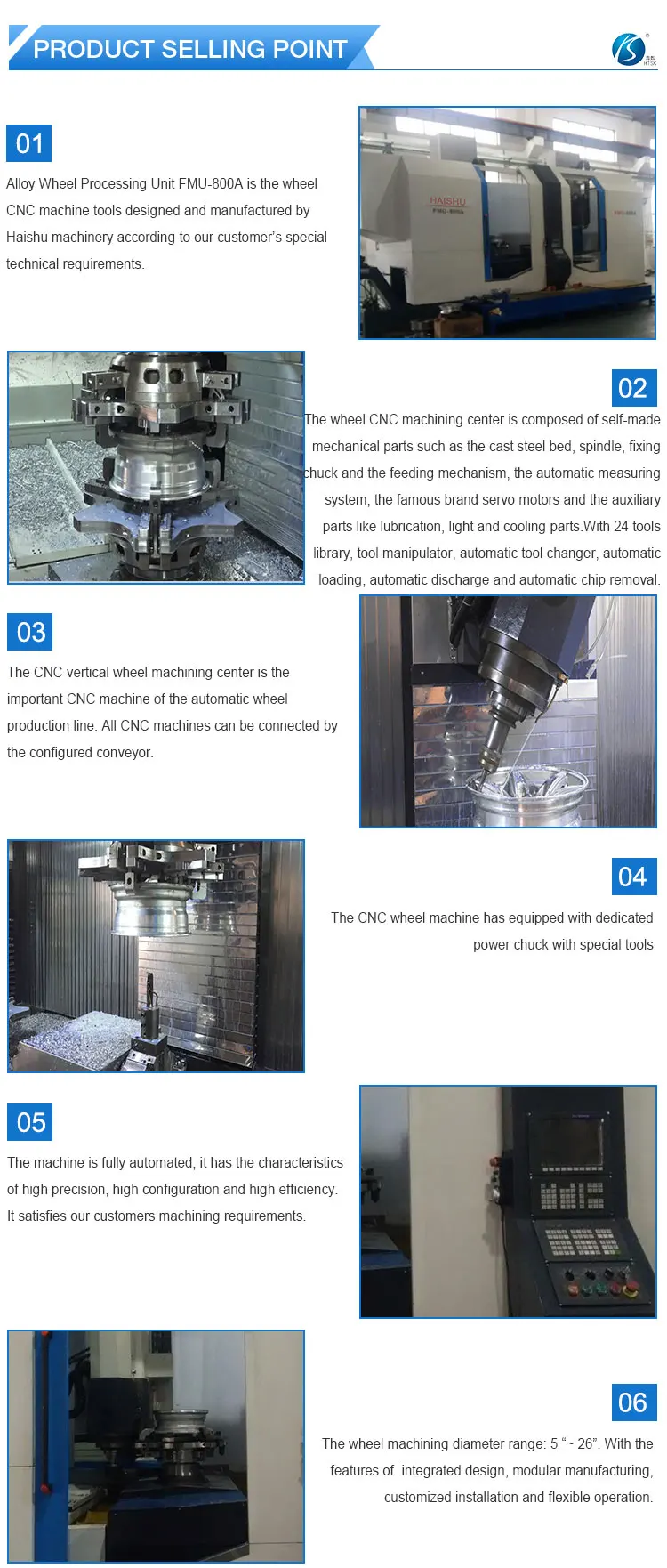

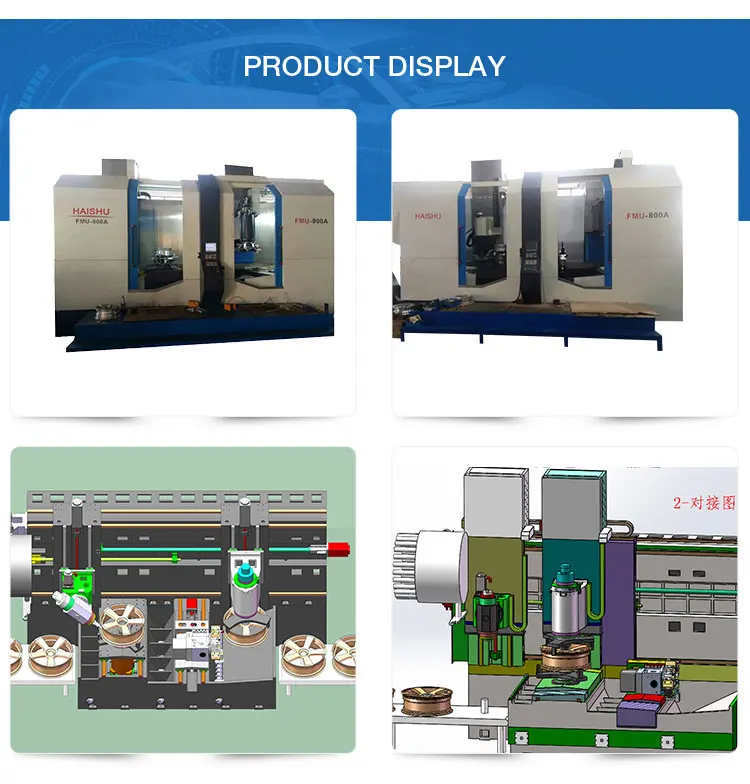

Modern Machine Tools Customized Rim Processing CNC Center FMU800A

NO.	ITEM	UNIT	Parameters
Vertical Wheel Machining Center Table
1	Table size	mm	800
2	Spindle speed	rpm	6500
3	Max. load on table	kg	500
4	Distance from floor to table top	mm	700
Machining Capacity
5	X-axis Movement	mm	800
6	Y-axis Movement	mm	150
7	Z-axis Movement	mm	400
8	Distance from spindle face to table top	mm	500
9	Distance from spindle center to column guideways	mm	300
10	Coolant supply – Flood coolant around the spindle	lpm	50
Spindle parameters
11	Spindle nose tapper	BT	7/24 No. 30
12	Spindle speed	rpm	80-8000
13	Spindle speed – Std. direct drive (D.D)	rpm	60-6000
14	Spindle bearing diameter – Opt. indirect drive (D.D)	mm	70
15	Tool clamping force	Kgf	450
Feed parameters
16	Rapid traverse X/Y/Z	m/min	30/30/30
17	Cutting feed	mm	1-10000
18	Ball screw diameter for X/Y/Z	mm	35/45/45
19	Guideways for  X/Y/Z		Linear
Automatic tool changer
20	Number of tools		24
21	Max. tool diameter	mm	60
22	Max. tool diameter with adjacent pocket empty	mm	155
23	Tool to tool time	sec	1.4
24	Max. tool height	mm	200
25	Max. tool weight	Kg	15
Accuracy with rotary encoder
26	Positioning for X,Y, Z & Z axis as per JIS B6330	mm	0.005
27	Repositioning for X,Y, Z & Z axis as per JIS B6330	mm	±0.003
Motors
28	Spindle motor 15/30 min/cont (GSK)	Kw	7.5/5.5
29	Feed motor for X,Y, Z axis (GSK)  (Y Axis optional)	Nm	10/10/10
Installation data
30	Wheel machining center width	mm	2500
31	Wheel machining center height	mm	1100
32	Wheel machining center depth	mm	1950
33	Wheel machining center weight – net	Kg	8400
34	CNC control (7.2 ” monochrome LCD / 10.4″ color LCD)		GSK988 (Optional)
Tank capacity
35	Coolant tank	litre	300
36	Lubrication  tank (useful quantity)	litre	5 (4)
Machine features / accessories -standard
37	Panel cooler for electronics (Optional)
38	Counter Balancing  for Z axis
39	Fall safe break for Z axis
40	Flexible coupling for X, Y, Z axis
41	Standard work light
42	Manual – 1 set
43	Manual pulse generator (Optional)
44	Rapid tapping
45	Total machine enclose
46	Coolant tank & chip tray
47	X; Z; CS1; CS2 (Optional)
48	Chip disposal to the rear side
