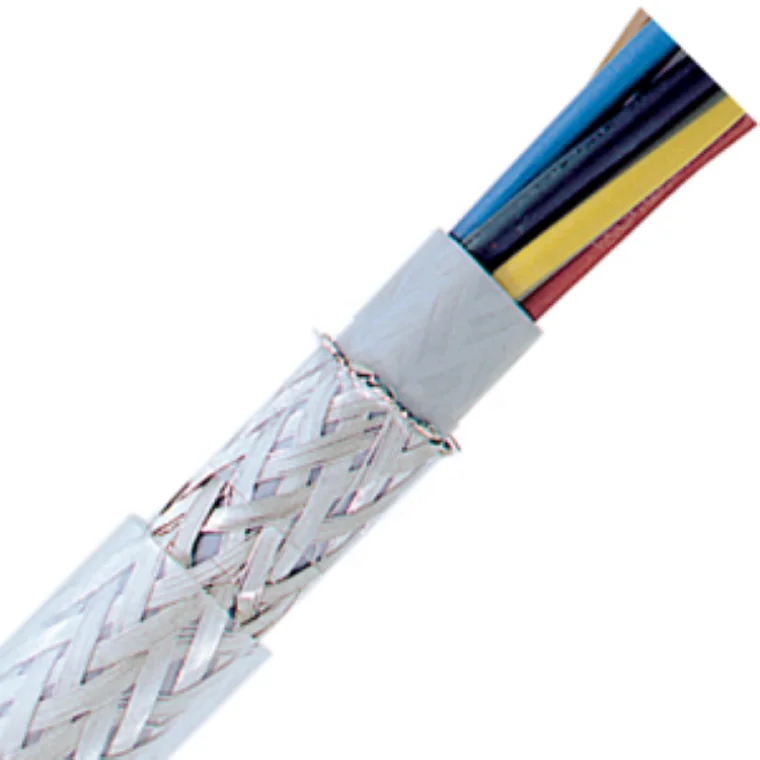

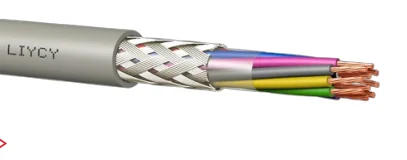

Tinned Copper Wire Braid LIYCY Shielded Control Cable For Date

Tinned Copper Wire Braid LIYCY Shielded Control Cable For Date

Application:

This PVCscreened cables areusedinindustrial applications forsignal transmission. Thesecanbeeasilyused withtheir flexibleconstructioninnarrowapplications likeelectroniccontrol systemsof computeroraudiosystemsor thecommunicationsector, electroniccircuits, measurementdevices, machine design,officeequipment, etc.Screeningprotects thecablefrom theouterelectrical effects.

Conductors: Plain annealed flexible copper

Insulation: PVC (Polyvinyl chloride)

Conductor identification: 2 core: brown & blue, 3 core: brown, blue & green/yellow, 4 core: brown, grey, black & green/yellow, 5 core: brown, blue, grey, black & green/yellow

Bedding: PVC (Polyvinyl chloride)

Armour/Jacket: Tinned Copper Wire Braid

Sheath: PVC (Polyvinyl chloride)

Colour: Grey, Black,Transparent

Voltage: 250/250V 300/500V

Operating temperature: Maximum 70°C, Minimum bending 0°C

Q1: Are you trading company or Manufacturer ?

A: We are factory.

Q2: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q3. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q4. Do you have any MOQ limit for electrical cable order?

A: Low MOQ, usually it is 1000m for big size cable and 5km for small size cable.

Q5. Is it OK to print my logo on electrical cable product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.
