XB D2500 Syble Raspberry PI Barcode Scanner Mini Linear 1D CCD Barcode Scanner Module
- Category: >>>
- Supplier: GUANGZHOU SYBLE CO. LTD
Share on (1600803115148):
Product Overview
Description
Product Description

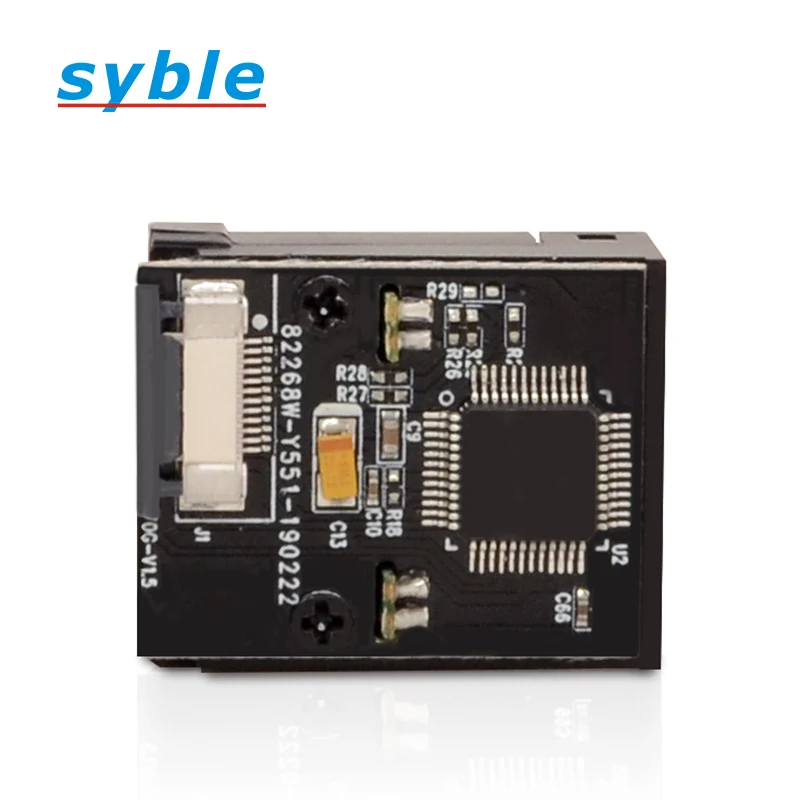

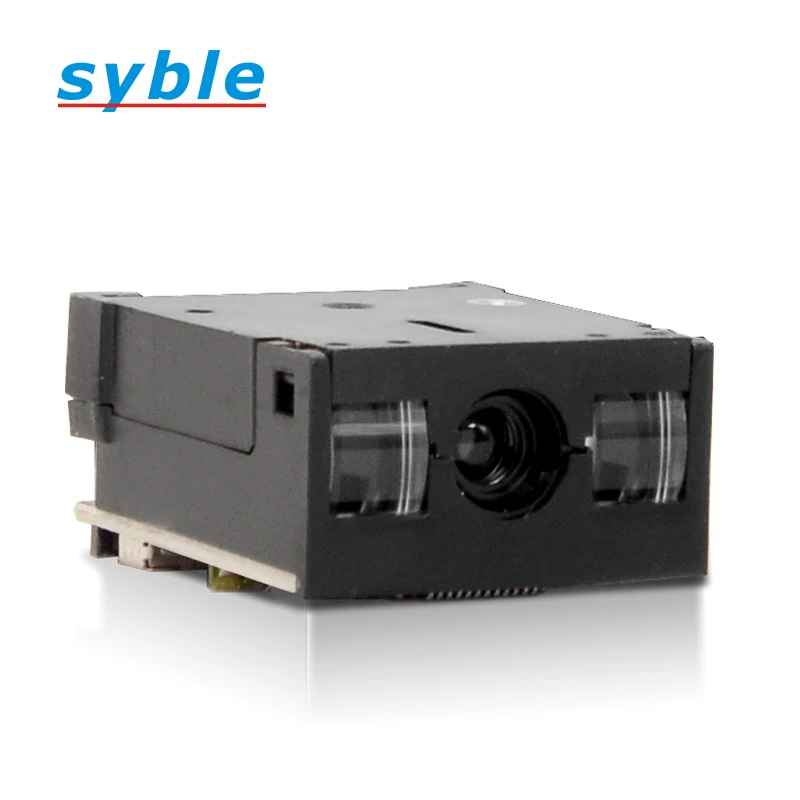

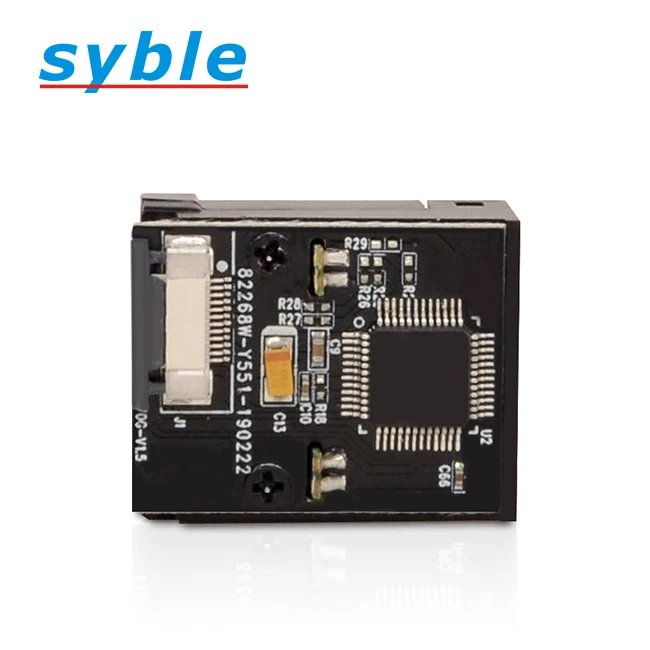

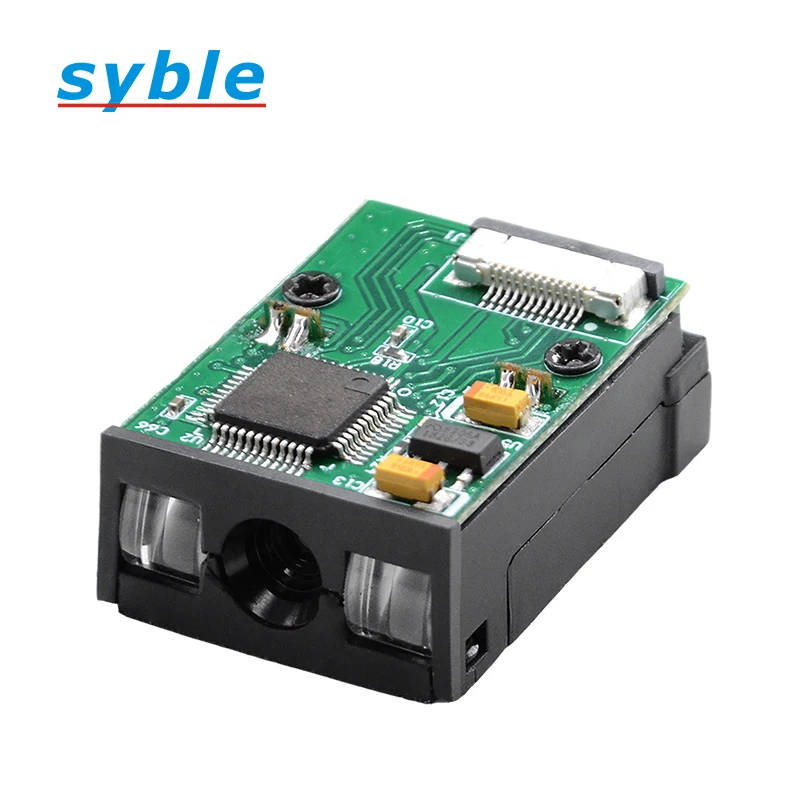

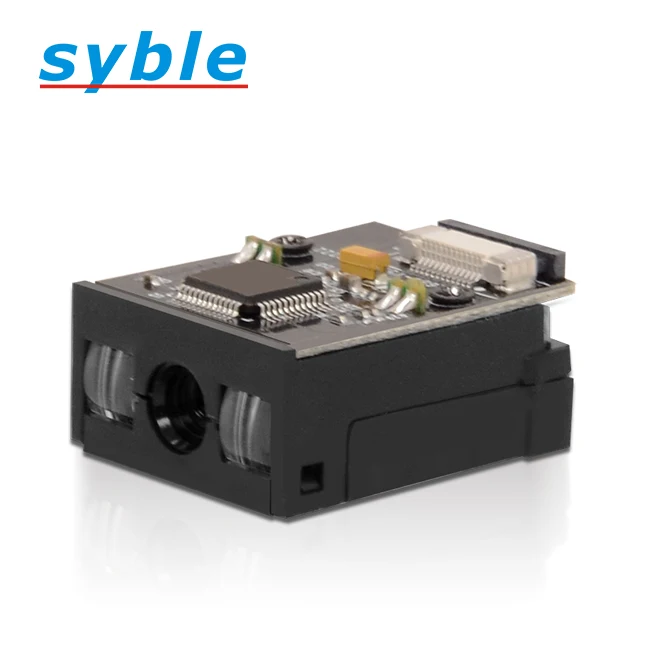

XB-D2500 Syble Raspberry PI Barcode Scanner Mini Linear 1D CCD Barcode Scanner Module
Model:XB-D2500
| Performance Parameters | |
| Light Source | 617nm visible Red LED |
| Scan type | Image linear CCD |
| Scan speed | over 270times/second |
| Scan method | Manually/Automatic inductive/Successive Scanning (Optional) |
| Scan Angle | Yaw 65°,Pitch 55°,Rotation 30° |
| Precision | 4mil |
| Depth of scan field | 20-330mm |
| Bite Error | 1/5million |
| Supported Symbologies | EAN-8, EAN-13, UPC-A, UPC-E, CODE39, CODE93, CODE128, EAN128, Codebar, MSI, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, China Post Code, all 1D codes/LCD screen codes. |
| Physical Parameters | |
| House Materail | ABS+PC |
| Dimensions | 22*12.5*25.6mm |
| Weight | 6.2g |
| Environmental Parameters | |
| Operating Temperature | -20℃-50℃ |
| Storage Temperature | -40℃-70℃ |
| Relative Humidity | 0~95%(Non-condensing) |
| Drop Resistance | withstand multiple 3m drops onto concrete |
| Electronic Parameters | |
| Voltage | DC 5V±1% |
| Working Current | 150mA |
Product Feature
Features:
--scan speed reach 270times per second
--Working with IOS and Android hardwares such as table and iPad
--Withstands multiple times 3 meters drops to concrete
--2500 point pixel ccd image sensor
Applications
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
FAQ
Q1. Are you a manufacturer?
Yes, our factory locates in Guangzhou.
Q2. Do you have stock products to sell?
Yes, we work on OEM/ODM orders, like printing with your brand & label design.
Q3. What's the time of delivery?
It's subject to your order quantity and our production schedule. Usually, 3-5 working days for sample order,
15-20 working days for mass production after receipt of payments.
Q4. What information should i let you know if i want to get a quotation?
-The type you need, if possible, the specific product name
-Quantity of order
-Market of country
If possible, let us know if you have any experience on barcode scanner business.
Q5. Can i get a sample? And how i get it? How many days will sample be finished?
Yes, sample can be supplied, but to be paid by customers. Most of samples are in stock,
it takes 3-7 days for express delivery.
Q6. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC
department before shipping.

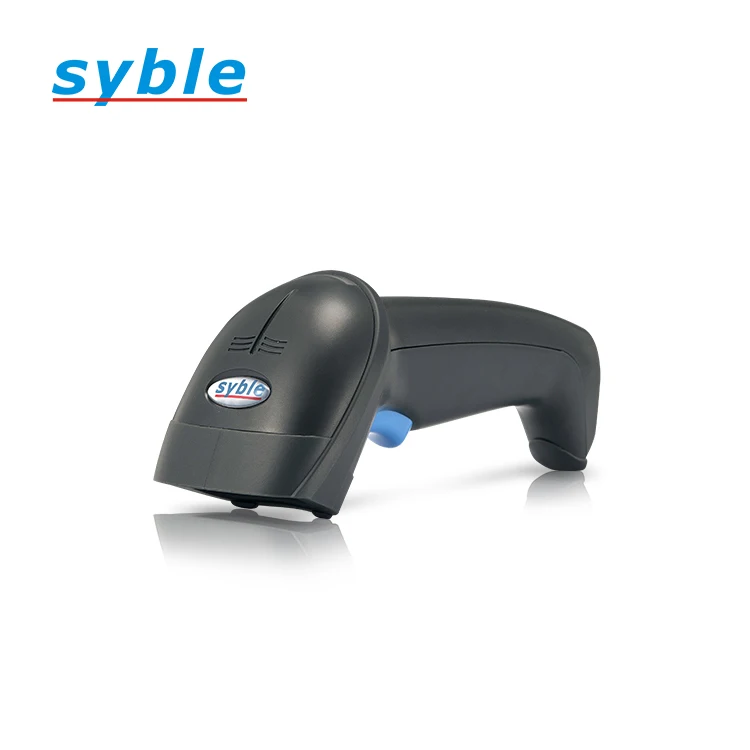

Health Care Scanner
General Purpose Corded Barcode Reader represents the premium level of data collection devices from Syble Scanning for health care applications. Designed with people in mind, the advanced CCD Image, 2D decoding with motion sensing technology, producing a user-friendly device with outstanding performance.
More Information
Our barcode scanners have been exported to many countries:
Singapore, Philippines, Vietnam, Indonesia, Malaysia, Thailand, Dubai, Saudi Arab, Turkey, Russia, Ukraine, Germany, UK, France, Denmark, Netherland, Peru, Columbia, Canada, USA, Australia, Newzeland, etc.
Looking forward to your joining!
