Three Phase Inverter 6.4KW Solar Hybrid Inverter 48V Industry Power Energy System MPPT
- Category: >>>
- Supplier: Guangzhou Voita Electronic Technology Co. Ltd.Guangzhou Ltd.
Share on (1600803120700):
Product Overview
Description
Feature
1. Pure sine wave output;
2. Low DC voltage, saving system cost;
3. Built-in PWM or MPPT controller optional;
3. Built-in PWM or MPPT controller optional;
4. AC charge current 0-45A adjustable;
5. Wide LCD screen, clearly and precisely shows icon data;
6. 100% imbalance loading design, 3 times peak power.;
7. Setting different working modes based on variable usage requirements
8. Various communication ports and Remote monitoring RS485/APP (WIFI/GPRS) (Optional).
5. Wide LCD screen, clearly and precisely shows icon data;
6. 100% imbalance loading design, 3 times peak power.;
7. Setting different working modes based on variable usage requirements
8. Various communication ports and Remote monitoring RS485/APP (WIFI/GPRS) (Optional).
Specification
Model | HDSX-64248 (8KVA) |
Rated Power | 6.4KW |
Peak Power(20ms) | 19.2KVA |
Start Motor | 4HP |
Battery Voltage | 48V DC |
DC Input Voltage | 10.5-15VDC (Single battery voltage) |
AC Input Voltage | 380Vac/400Vac±10%(customized 190Vac/200Vac) |
AC Input Frequency Range | 45Hz-55Hz (50Hz) / 55Hz-65Hz (60Hz) |
AC charging method | Three-stage (constant current, constant voltage, floating charge) |
Efficiency | >85%(Battery Mode); >99%(AC Mode) |
Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) |
Output Voltage(AC Mode) | Conforming to AC input |
Output Frequency | 50/60Hz±1% |
Output Waveform | Pure sine wave |
Protection | Battery undervoltage protection; Battery overvoltage protection; Overload power protection; Inverter output short circuit protection; Temperature protection |
Charging Mode | PWM or MPPT |
Working Mode | Battery First/AC First/Saving Energy Mode |
Transfer Time | <4ms |
Display | LCD |
Thermal method | Forced air cooling |
Communication | RS485/APP (WIFI monitoring or GPRS monitoring) |
Operating temperature | -10°C~40°C |
Storage temperature | -15°C~60°C |
Product Dimension | 565*300*775mm |
Product Weight | 80kg |

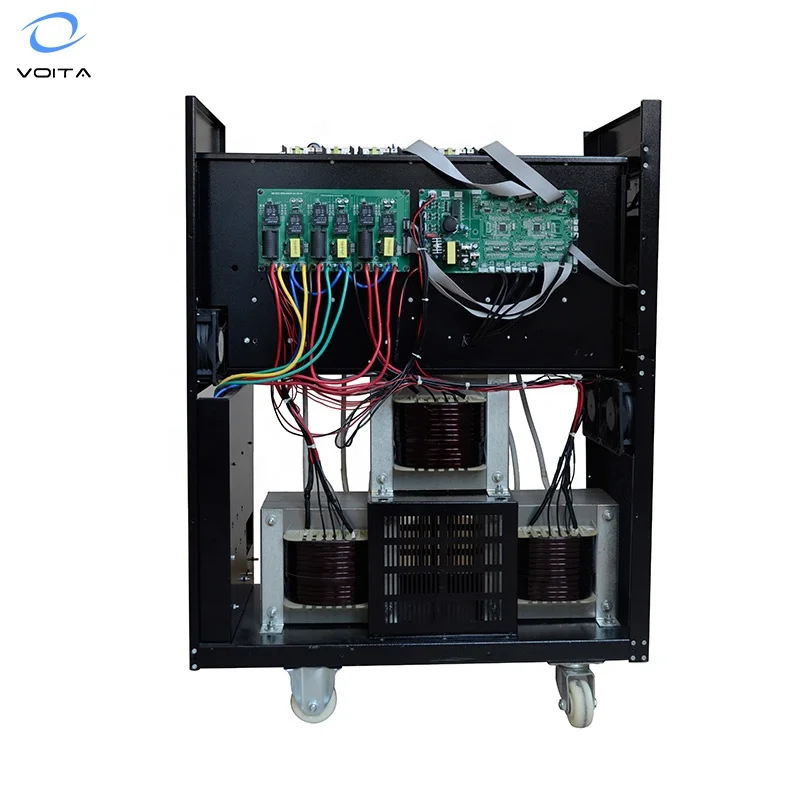

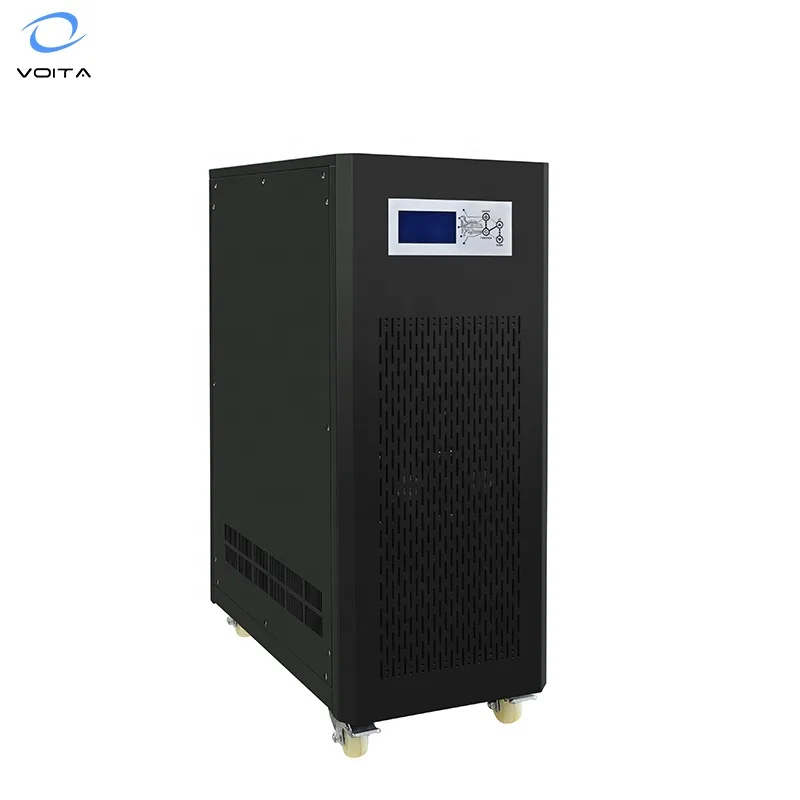

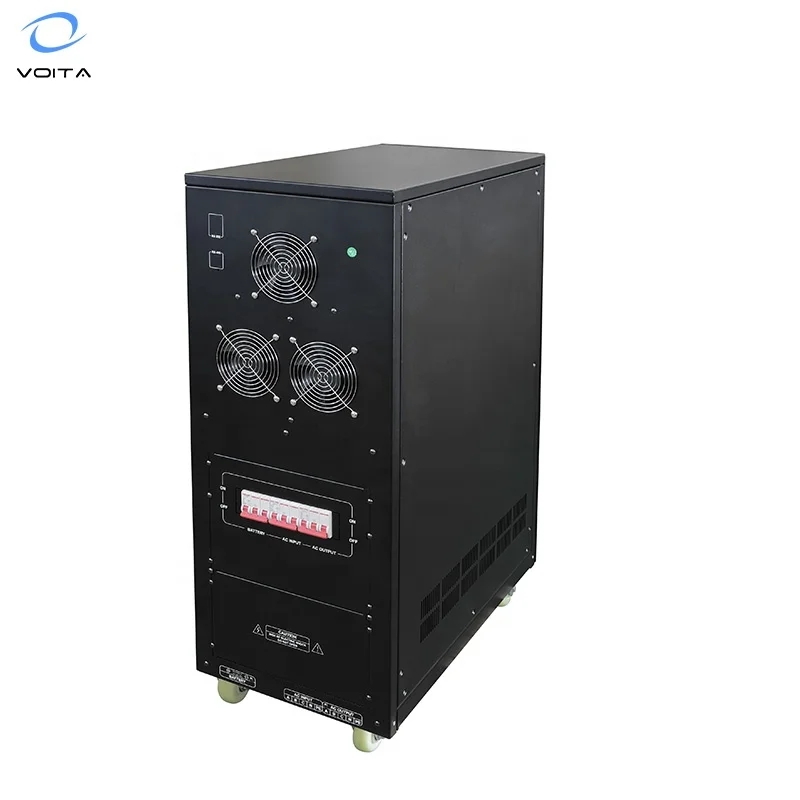

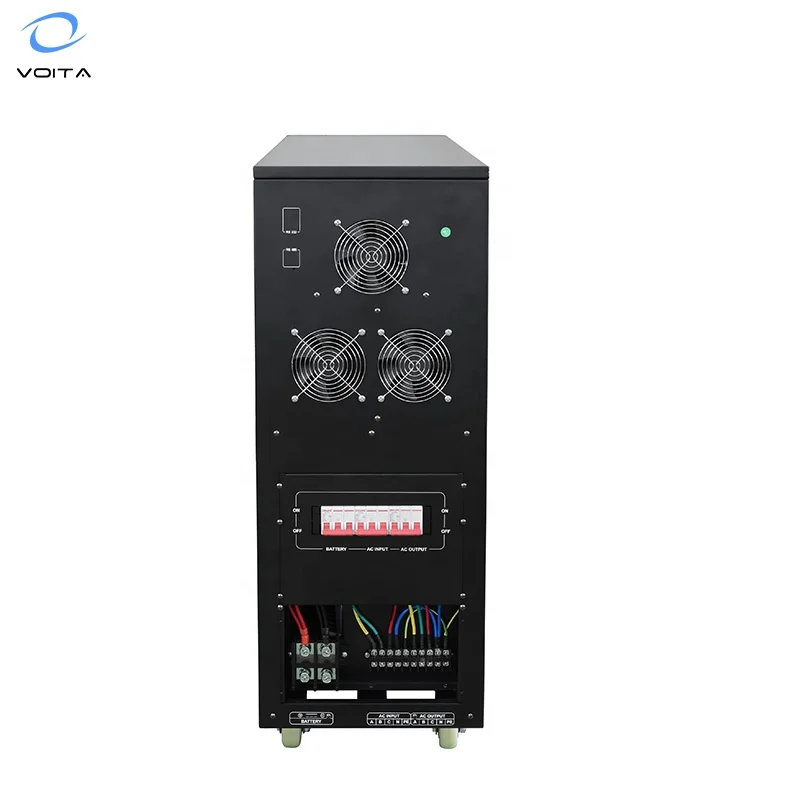

Detailed Images
Our Service
1. Your inquiry will be replied within 24hrs.
2. OEM&ODM are welcome.
3. Distributorship will be offered for your unique design and some of our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. Free replacement and maintaining are guaranteed in warranty period.
6. Skilled workers and strict quality inspection(QA Report)
7. 100% product quality protection. All of our products will be tested 100% before packing.
2. OEM&ODM are welcome.
3. Distributorship will be offered for your unique design and some of our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. Free replacement and maintaining are guaranteed in warranty period.
6. Skilled workers and strict quality inspection(QA Report)
7. 100% product quality protection. All of our products will be tested 100% before packing.
