Hot selling Lifepo4 Battery Energy Storage System 15000w 15kw 15kwh solar home system
- Category: >>>
- Supplier: Foshan Suoer Electronic Industry Co. Ltd.
Share on (1600803136342):
Product Overview
Description

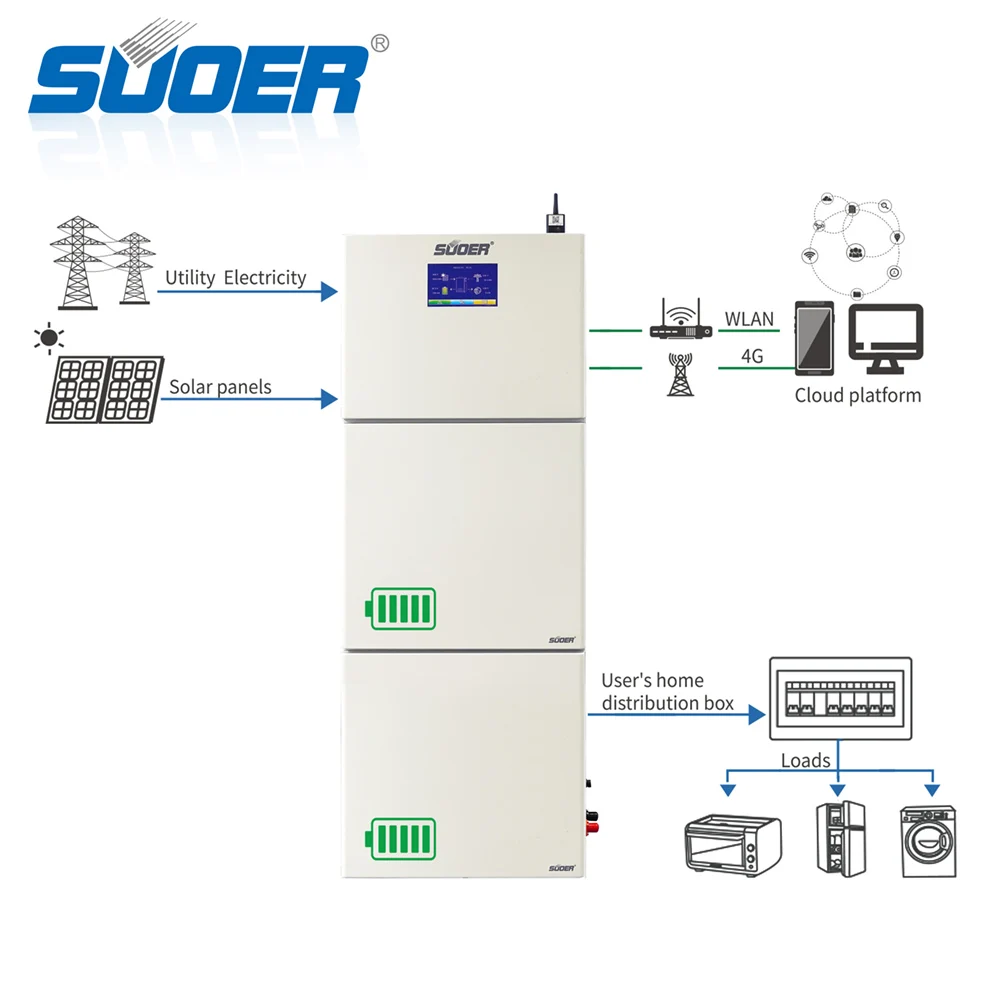

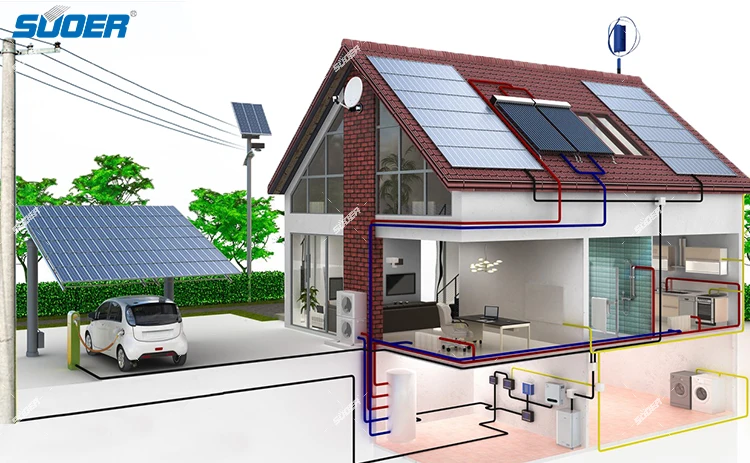

Home Solar System Show

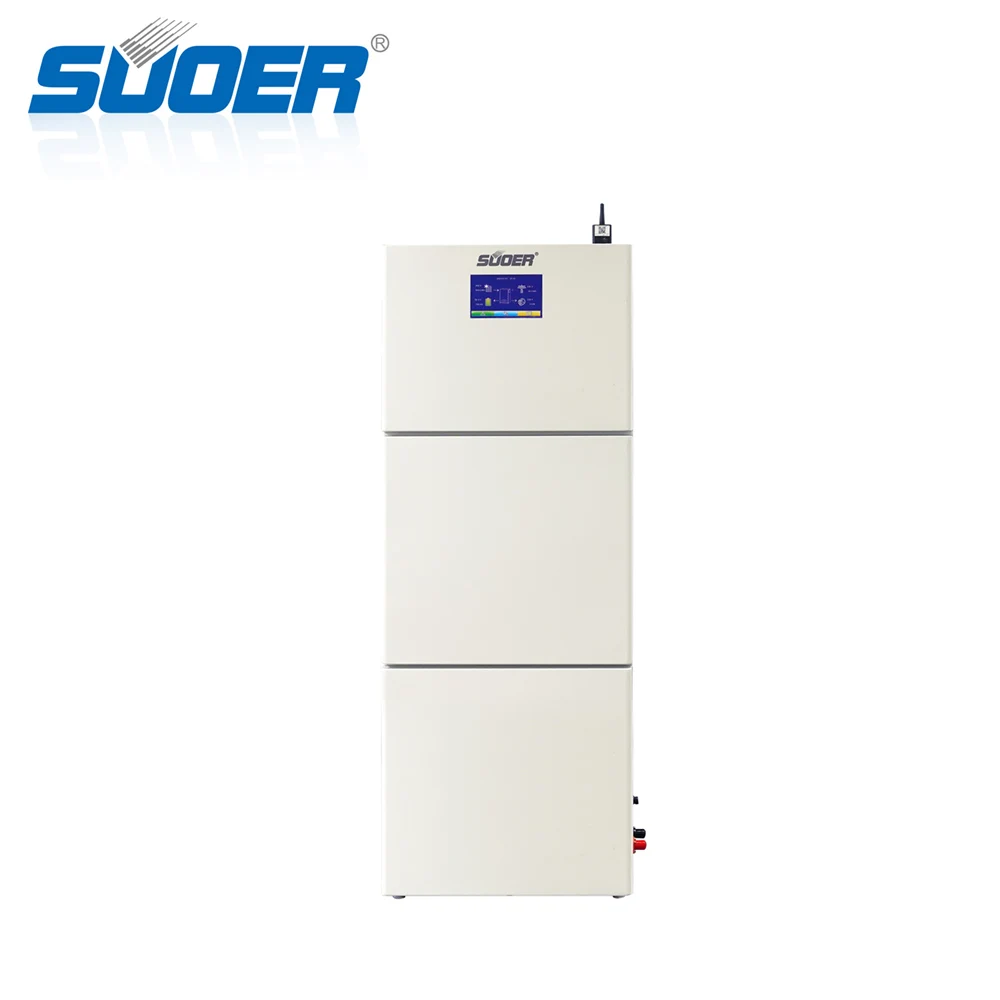

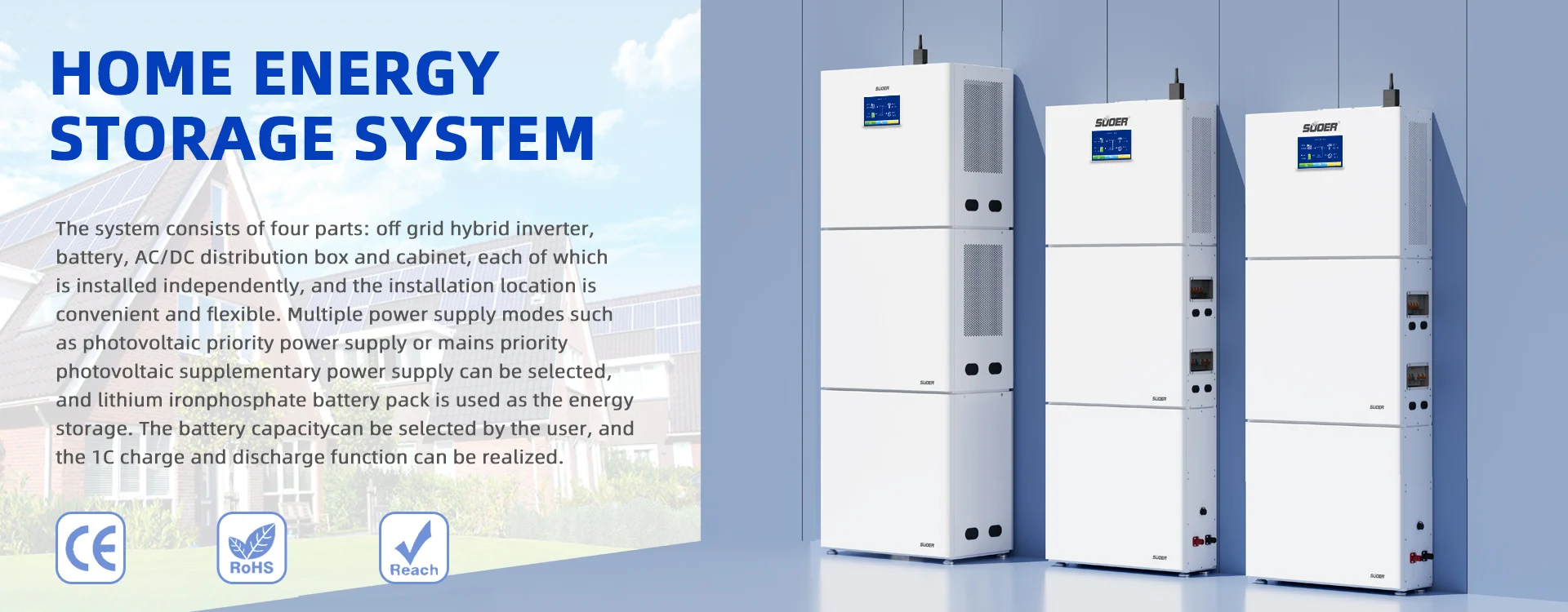

SUOER - Home Energy Storage System
SUOER brand solar energy storage home system is suitable for European and American households, providing 3kw, 5kw, 10kw, 20kw, 30kw and other off-grid solar energy systems, which can effectively solve the energy crisis and get rid of the plight of insufficient power.
Product Description
Specification
Solar Residential Energy Storage System Technical parameter | ||||
Model | SEM-103A5E | SEM-153A5E | ||
Power/Capacity | 10KW/10KWH | 15KW/15KWH | ||
Input - inverter | ||||
AC input voltage range | 176Vac-280Vac(bypass mode） | 176Vac-280Vac(bypass mode） | ||
AC input maximum current | 63A/1 phase | 32A/3 phase | ||
Input frequency | 50Hz/60Hz | 50Hz/60Hz | ||
MPPT voltage range | 120Vdc-340Vdc | 120Vdc-340Vdc | ||
MPPT maximum input voltage | 450Vdc | 450Vdc | ||
Number of MPPT channels | 4 | 6 | ||
MPPT MAX power | 12KW | 18KW | ||
MPPT maximum input current | 17A@One way photovoltaic | 17A@One way photovoltaic | ||
Input - energy storage | ||||
Battery capacity | 5 ~10KWH | 5 ~15KWH | ||
Battery operating voltage range | 42Vdc-54Vdc | 42Vdc-54Vdc | ||
Maximum charge current | 100A | 150A | ||
Maximum discharge current | 208A | 312A | ||
Protective function | ||||
AC input/output overcurrent protection | Yes | Yes | ||
AC output leakage protection | Yes | Yes | ||
PV input overcurrent protection | Yes | Yes | ||
Overheating protection | Yes | Yes | ||
Battery input overcurrent protection | Yes | Yes | ||
AC input over/under voltage protection | Yes | Yes | ||
PV input lightning protection | Optional | Optional | ||
Photovoltaic power generation metering | Optional | Optional | ||
Photovoltaic insulation testing | Optional | Optional | ||
Output - Inverter | ||||
AC output voltage | 230Vac±5% | 380Vac±5% | ||
AC Max output power | 10KW/1 phase | 15KW/15KWH | ||
Output frequency | 50Hz/60Hz | 50Hz/60Hz | ||
Output power factor | 0.99 | 0.99 | ||
Efficiency | ≥95% | ≥95% | ||
General parameters | ||||
Operating temperature | -10℃-50℃ | -10℃-50℃ | ||
Working humidity | 0%-95%RH | 0%-95%RH | ||
Altitude | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) | ||
Weight | Battery: 45kg/pc, Cabinet: 80kg | Battery: 45kg/pc, Cabinet: 130kg | ||

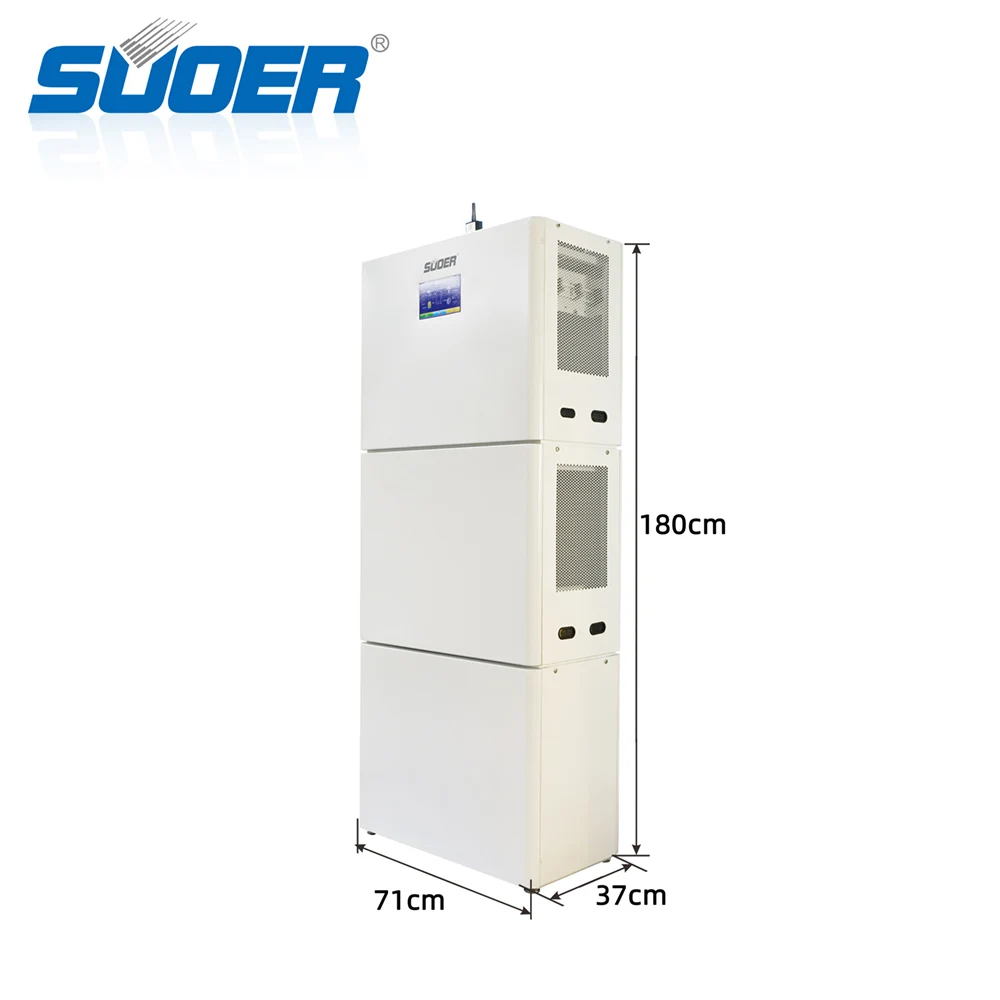

Size | 710*371*1179 mm （Without WIFI size） | 710*371*1745 mm （Without WIFI size） | ||
Installation method | Floor mounted | Floor mounted | ||
Display | LCD; PC Web; Mobile: APP | LCD; PC Web; Mobile: APP | ||
Communication | RS232*1; 4G (optional); WiFi(optional) | RS232*1; 4G (optional); WiFi(optional) | ||
Cooling method | forced air cooling; | forced air cooling; | ||
Protection class | IP20 | IP20 | ||
Fulfill the standard | ||||
Standards | CE,UN38.3,RoHs,Reach | CE,UN38.3,RoHs,Reach | ||
Project Case

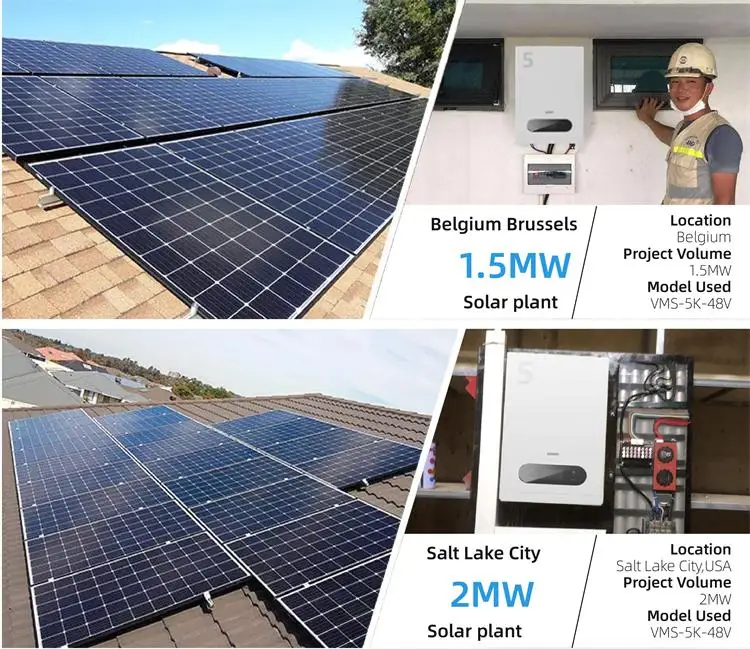

Solar System Project Case
Project -1:Belgium Brussels; 1.5MW Solar Plant; Project Volume 1.5MW; Model Used: VMS-5K-48V
Project -2:Salt Lake City; 2MW Solar Plant; Project Volume 2MW; Model Used: VMS-5K-48V
Company Profile
Foshan Suoer Electronic Industry Co.,Ltd.,located in Dali, Nanhai, Foshan City, Guangdong Province,which is a comprehensive joint-stock corporation integrating R&D, production and sales as one of the high-tech enterprises.Our company has established an industrial park covering a land area of 20 thousand square meters, with standard workshop, advanced production equipment, a standard R&D building and world-leading facilities.
Suoer brand is our registered trademark for our products. Our products mainly include High/Low frequency hybrid solar inverter, MPPT/PWM solar charge controller, battery charger, solar pump inverter,etc. Our company has been specialized in the manufacture and export of home power supply for more than 10 years. Adhere to the integrity management, sustainable development,and create a win-win service purposes with our customers as our ultimate development philosophy.
Suoer brand is our registered trademark for our products. Our products mainly include High/Low frequency hybrid solar inverter, MPPT/PWM solar charge controller, battery charger, solar pump inverter,etc. Our company has been specialized in the manufacture and export of home power supply for more than 10 years. Adhere to the integrity management, sustainable development,and create a win-win service purposes with our customers as our ultimate development philosophy.
